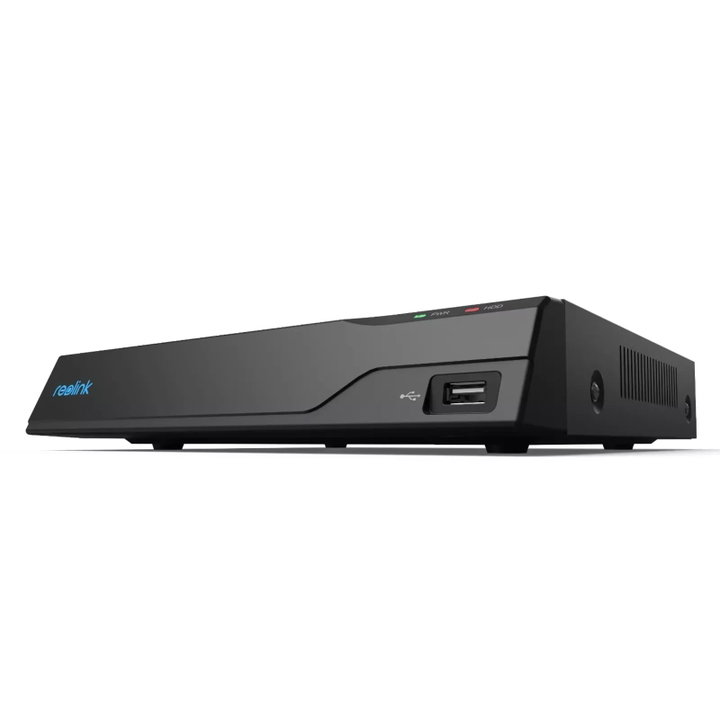

Video recorder NVR 4 K PoE 16 CH 4 TB HDD with HDMI and VGA NVS 16 - Reolink ICR-NVS 16

This 16 channel NVR provides complete protection to cover more ù areas. Thanks to support for resolution up to 12 MP, continuous recording 24 hours on 24, 7 days on 7 and HDD from 4 TB integrated, you can capture every moment with extraordinary sharpness and save videos locally. Thanks to remote and local access, you can easily control live feeds wherever you are via your mobile or offline device via NVR.

•

• Supports up to 16 IPC access channels; each channel has an input up to 12 MP

• Continuous recordings directly on your hard drive with expandable storage space

• PoE technology can ò transmit data and power via a single Ethernet cable, simplifying configuration

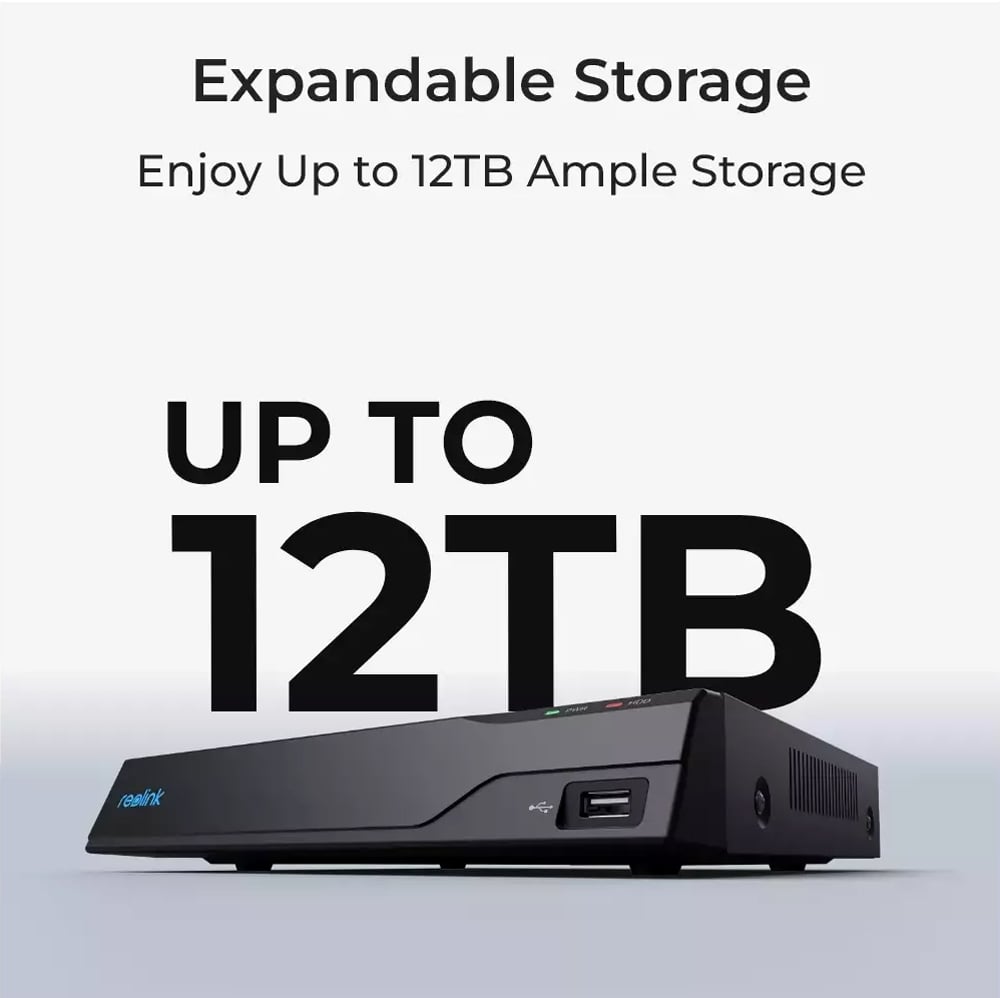

• Store videos locally on an HDD from pre-installed 4 TB (expandable to 12 TB)

• Easily create your security center with the expandable NVR to 16 Reolink cameras

• Find out what happens in your property; always and everywhere through the Reolink app and client, both at home and on the go. No monthly fees

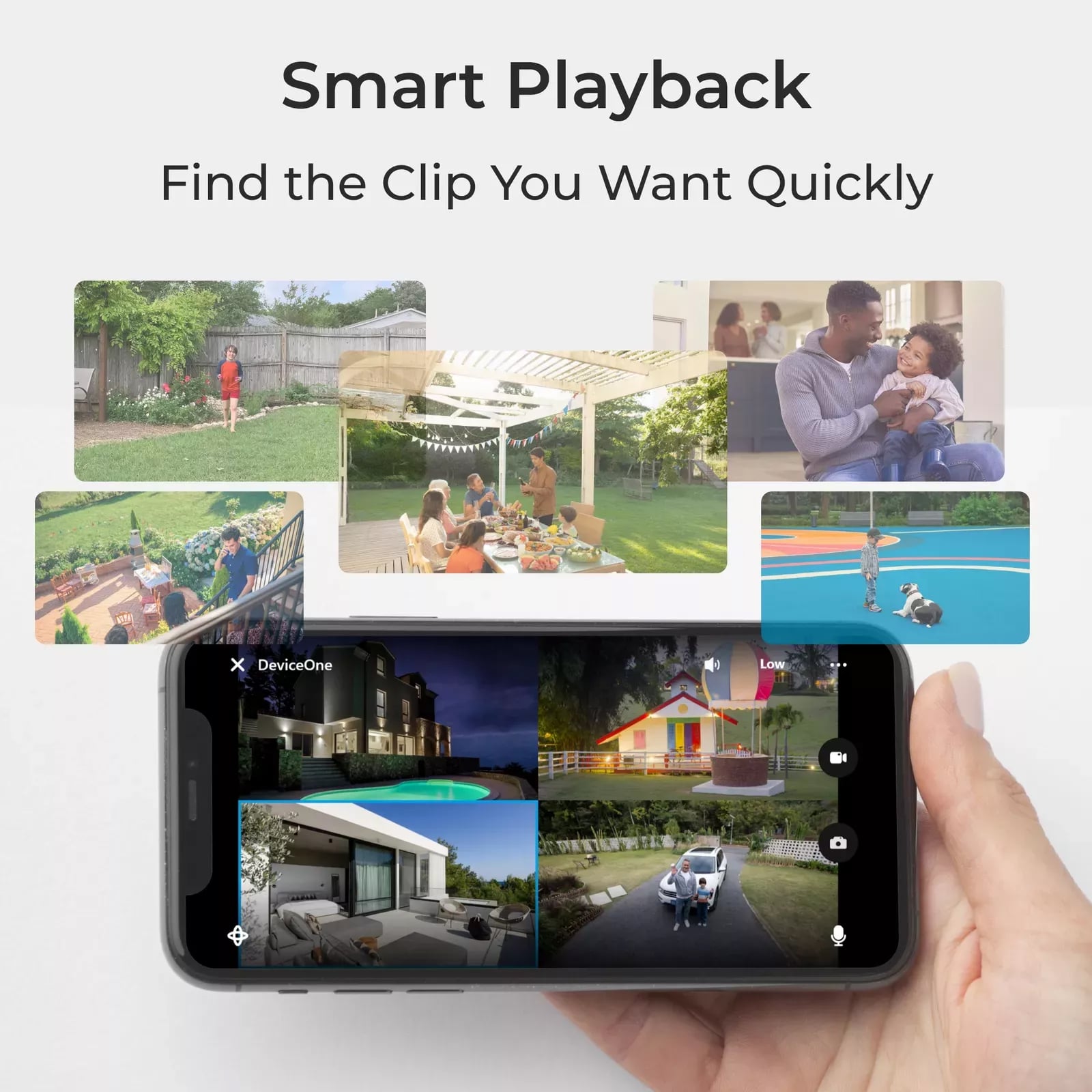

• Easily browse through your video footage with filters by time and event to quickly find the exact clip you need, saving time and effort


Technical Specifications

•

• IP video input: 16 IP PoE cameras

• Audio input: cameras with integrated microphone

• Video output: VGA, HDMI

• Display Resolution:

  •

  • HDMI: 4096 x 3072 , 3840 x 2160 , 1920 x 1080 , 1440 x 900 , 1280 x 1024 , 1280 x 720 , 1024 x 768

  • VGA: 1920 x 1080 , 1440 x 900 , 1280 x 1024 , 1280 x 800 , 1280 x 720 , 1024 x 768




• Audio output: 1 channel, RCA

• Video format: H. 264 , H. 265

• Live/reproduction visualization resolution: 4096 x 3072 , 3840 x 2160 , 2560 x 1920 , 2560 x 1440 , 2048 x 1536 , 2304 x 1296 , 1080 p, 720 p

• synchronous reproduction: up to 4 channels

• SATA: 1 SATA interface (1 HDD Seagate from 4 TB included)

• External HDD: 1 eSATA interface for HDD

• Capacità: up to 12 TB (capacità maximum 6 TB for each HDD)

• USB interface: 2 USB 2.0

• Network interface:

  •

  • 1 self-adaptive Ethernet interface RJ- 45 10 / 100 Mbps for LAN/WAN

  • 16 Ethernet PoE auto-adaptive interfaces RJ- 45 10 / 100 Mbps for IP camera




• PoE max. power per door: 25 W

• Supported standards: IEEE 802.3 af/at

• Network protocols: HTTP, TCP/IP, UDP, DHCP, P 2 P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP

• Supported browsers: Edge, Firefox, Chrome, Safari

• Supported OS: PC: Windows, Mac OS; Smartphone: iOS, Android

• Maximum user access: 20 users (1 admin account and 19 user account); supports up to 12 simultaneous video streams (10 substream and 2 mainstream)

• Power supply: CC 52 V/ 2,88 A

• Power consumption: < 10 W (without HDD and PoE)


Environmental Characteristics

•

• Temperature: - 10 °C~+ 55 °C

• Humidità: 10 %~ 90 %


Dimensions

•

• Width: 330 mm

• Height: 45 mm

• Depthà: 285 mm


Package contents

•

• NVR video recorder ICR-NVS 16

• User manual
