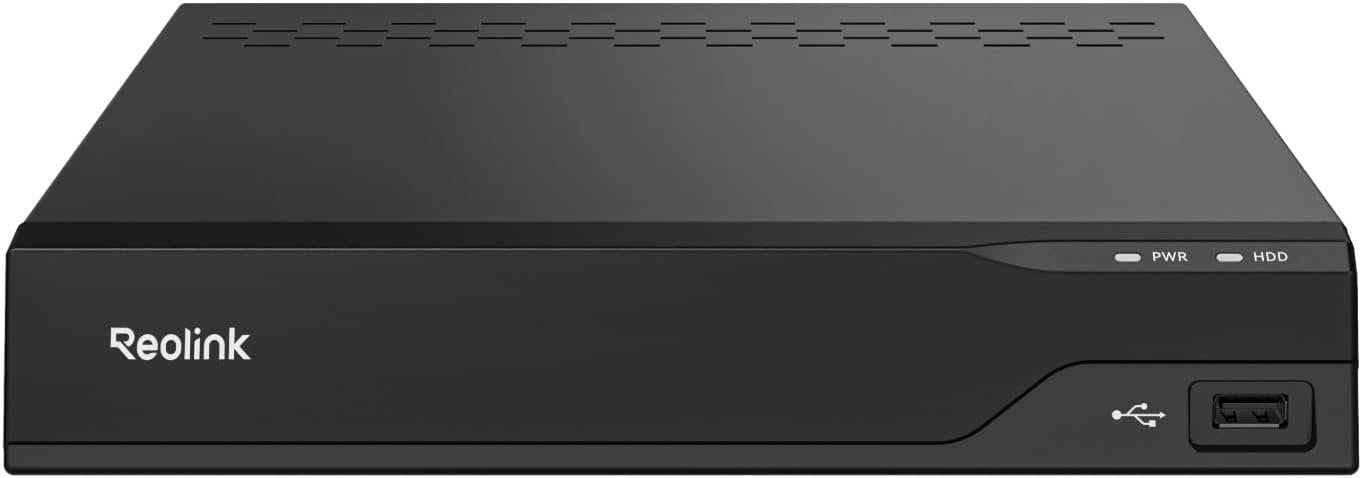

Video recorder NVR 8 CH Poe 16 MP Up to 32 TB HDMI VGA - Reolink ICR-RP-PN 8 NHD

•

• Video recorder equipped with 8 PoE ports and expandable to 12 channels, allowing a flexible configuration ideal to create a customized surveillance system according to your security needs; the system supports up to 8 PoE/Wi-Fi cameras more ù 4 battery powered Wi-Fi cameras or up to a total of 12 battery powered Wi-Fi cameras

• Supports up to 16 MP resolution from connected cameras, capturing ultra sharp, color or black and white, day and night videos

• A centralized solution for video storage and alarm management on all Reolink cameras: wired, wireless, PoE and bells (excluding 4 G models)

• The NVR è ideal for large-scale surveillance implementations, ensuring reliable data storage and quick access to historical video recordings

• HDD not included; expandable storage capacity up to 32 TB

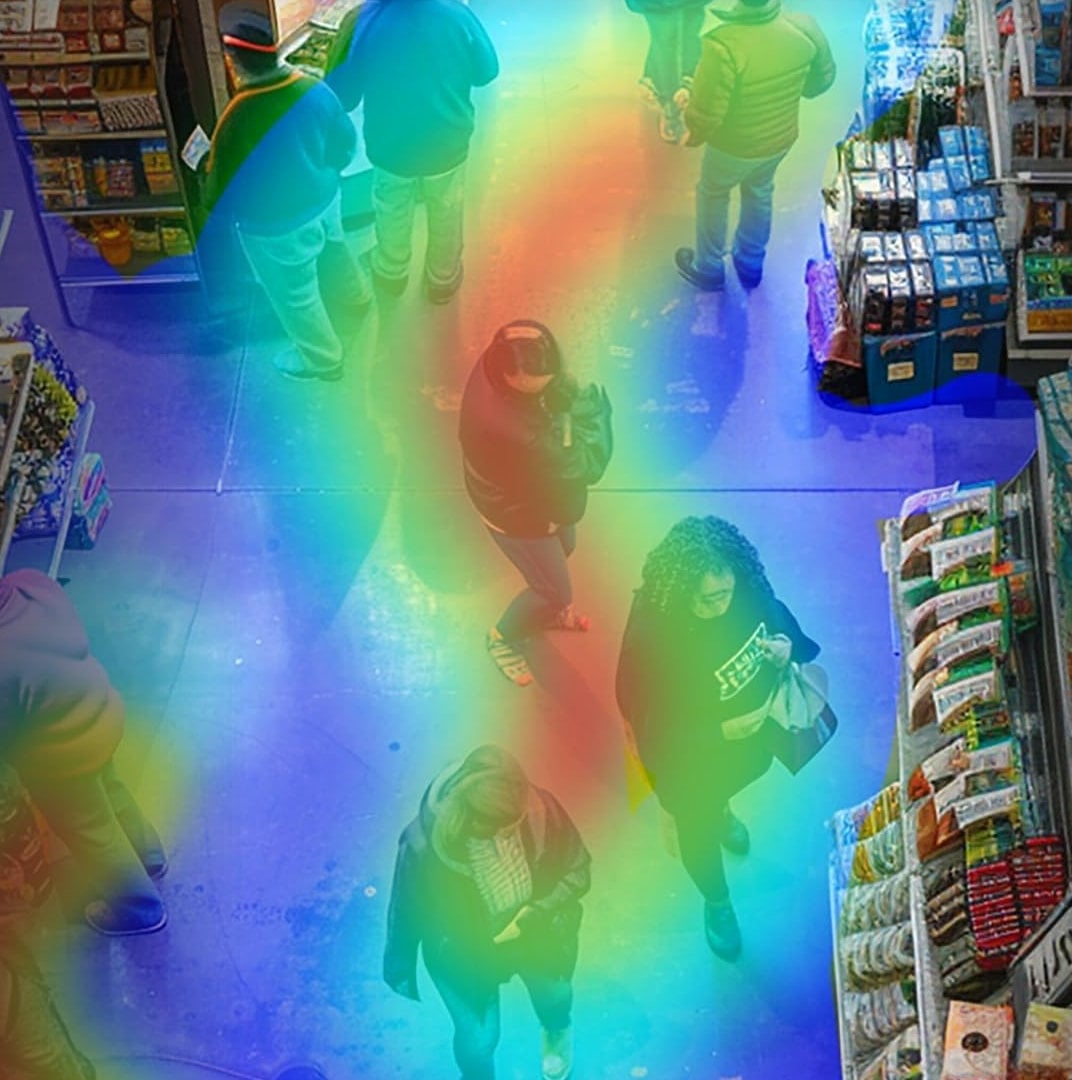

• Heat mapping technology: using color variations, thermal mapping displays distribution, densityà and intensityà of the collected data, allowing monitoring and analysis of target traffic within a defined area; ideal for shopping centers, supermarkets and museums, this functionalityà helps to optimize the layout and positioning of products, showing how people move and pause inside the space

• Combining it with compatible cameras, the VCR allows à video search via AI: insert descriptive keywords (e.g. person wearing white clothes, yellow dog) to search for specific video clips in locally saved active recordings. Filter the irrelevant clips and locate the target alarm event in an instant

• Perimeter protection (equipped with line crossing alerts, zone intrusion alerts and artificial intelligence-based persistence warnings, ensures precise protection 24 hours on 24, 7 days on 7 for critical areas, allowing a quick response to security threats)

• Intelligent Event Detection (Beta): Send instant alerts on forgotten or removed objects from key areas, ensuring timely intervention and loss prevention

• Smart access options with multi-user support: this NVR supports access to cameras both locally and remotely; displays live feeds and manages the system via monitor, PC client or app

• Maximum of 12 simultaneous users (2 main flows + 10 secondary flows) to stay connected anytime and anywhere

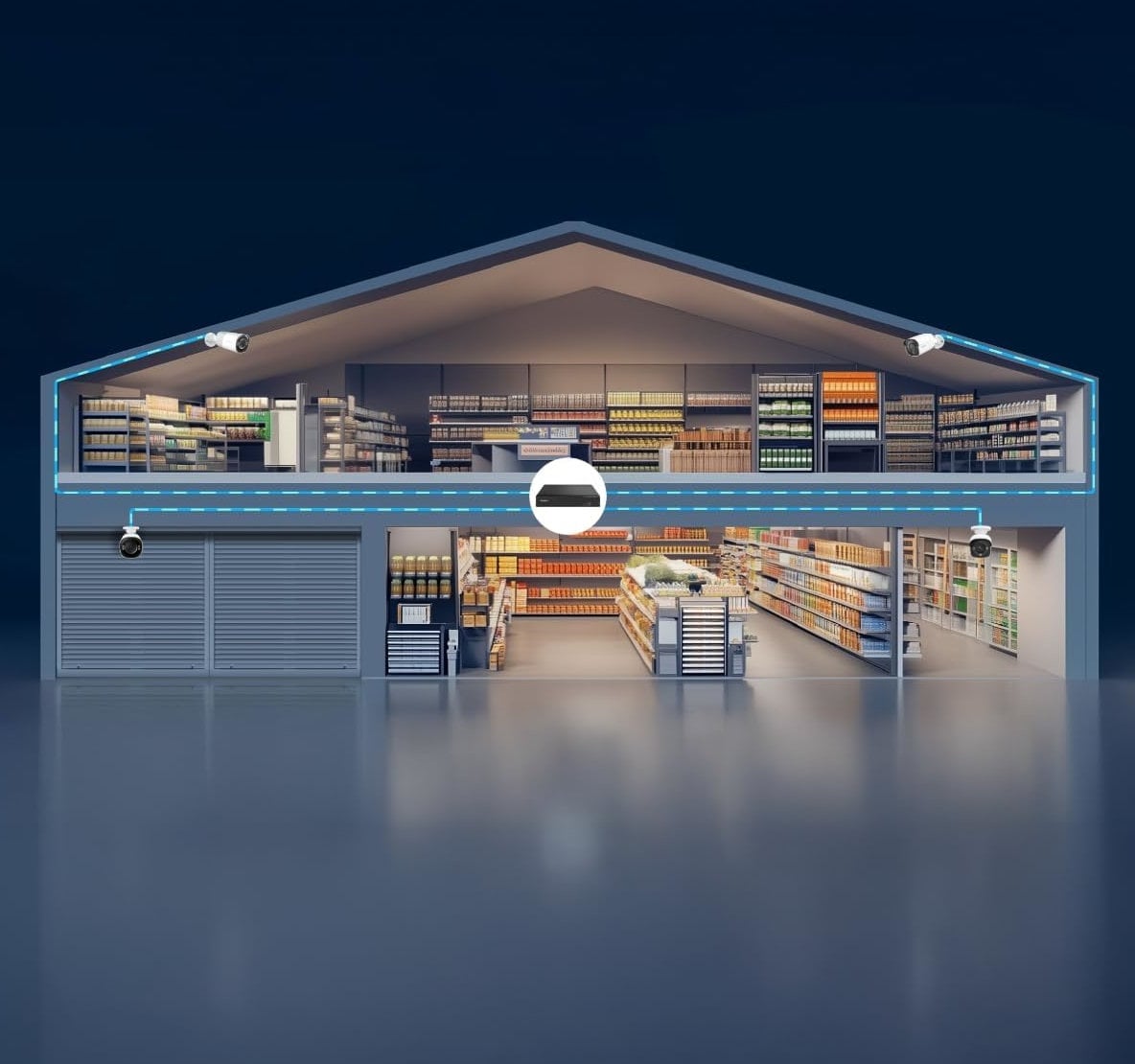

• Thanks to PoE technology, RP-PN 8 provides power and network access to each camera connected via a single cable, reducing the need for additional power sources and simplifying installation

• Plug & Play

• Reliable connection


Technical Specifications

•

• Video input: 16 MP for each channel

• Audio camera input with integrated microphone

• Bandwidth: 240 Mbps

• Video output: 1 HDMI, 1 VGA

• Video output HDMI: 3840 x 2160 , 1920 x 1080 , 1280 x 1024 , 1280 x 720 , 1024 x 768

• Video output VGA: 1920 x 1080 , 1280 x 1024 , 1280 x 720 , 1024 x 768

• 1 audio output channel, RCA

• Video compression: H. 265 , H. 264

• Visual resolution live/playback: 7680 × 2160 , 4608 × 1728 , 4512 × 2512 , 4096 × 3072 , 3840 × 2160 , 2560 × 2560 , 2560 × 1920 , 2560 × 1440 , 2048 × 1536 , 2304 × 1296 , 1080 p, 720 p

• 2 USB ports 2.0 ; 8 doors RJ- 45 , 10 / 100 Mbps self-adapting (for each room); 1 door RJ- 45 , 10 / 100 / 1000 Mbps self-adapting (for LAN/WAN)

• Poe: 25 W for each door; IEEE 802.3 af/at

• Network protocols: HTTP, TCP/IP, UDP, DHCP, P 2 P, UPNP, RTSP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP

• Power supply: DC 52 V/ 2.3 A

• Power consumption: < 10 W(without HDD and Poe)

• Capacità expandable storage to 32 TB


Compatibilityà

•

• Supported browsers: Edge, Firefox, Chrome, Safari

• PC: Windows; Mac OS

• Smartphone: iOS, Android


Environmental Characteristics

•

• Temperature: - 10 °C ~+ 45 °C (14 °F~ 113 °F)

• Humidità: 10 %~ 90 %


Dimensions

•

• Width 255 mm

• Depthà 211 mm

• Height 50 mm

• Weight 1,4 kg (without HDD)

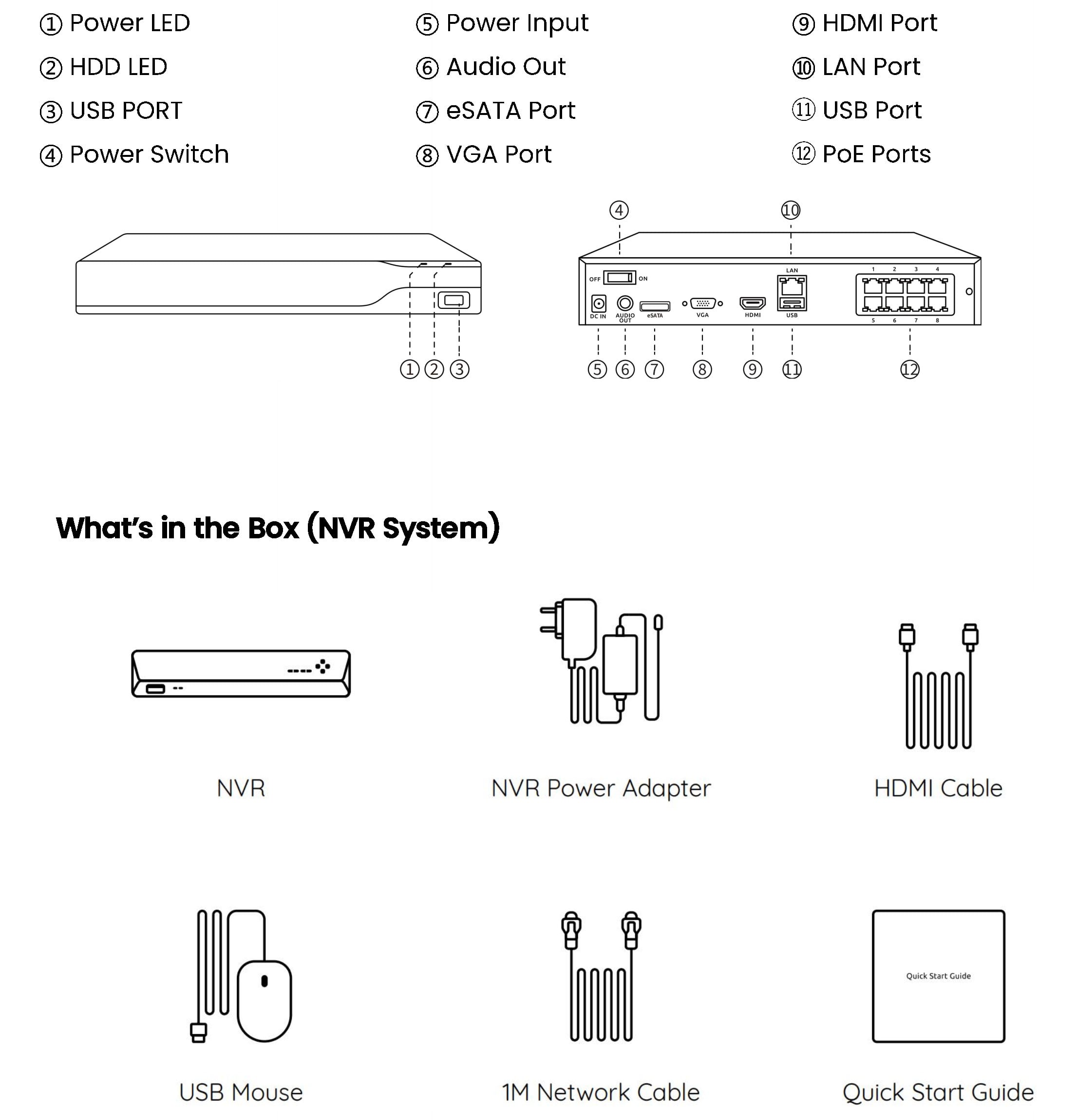

Package contents

•

• Video recorder NVR 8 CH 16 MP Up to 32 TB with HDMI and VGA ICR-RP-PN 8 NHD

• 1 x NVR power adapter

• 1 x HDMI cable

• 1 x USB mouse

• 1 x network cable from 1 m

• 1 x user manual
