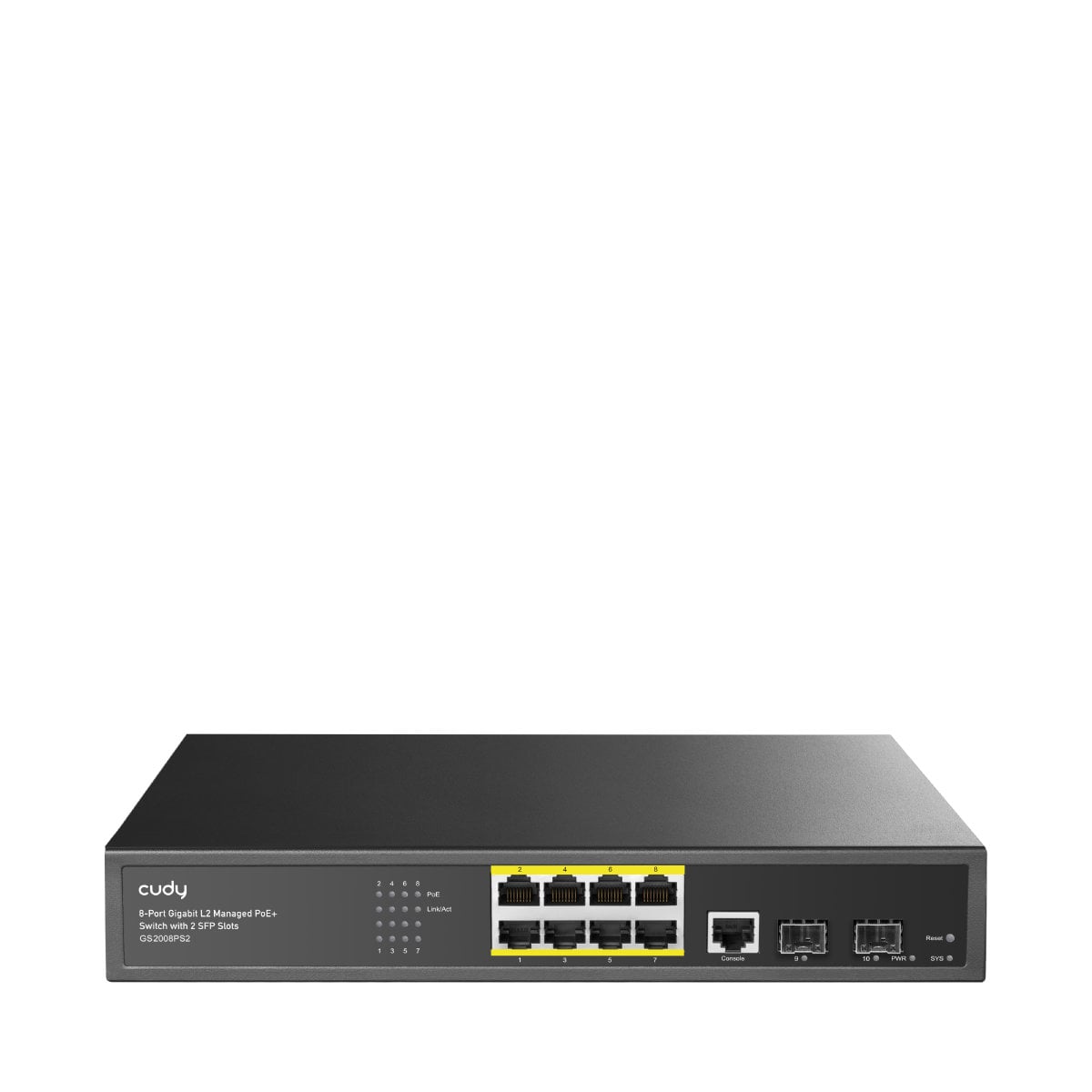

Switch 8 Web-Managed Gigabit L 2 with 2 SFP - Cudy ICU-GS 2008 P

•

• 8 doors 10 / 100 / 1000 Mbps PoE auto-sensing with automatic speed detection à optimal network

• Two 1000 Mbps housings for GBIC modules (SFP)

• 1 console holder RJ 45

• The extended mode (Port # 7 ~ # 8) supports PoE power up to 250 m

• Panel indicator that monitors status and helps fault analysis

• Fan-free design, natural cooling, compatible with mounting on 1 rack

• Overvoltage lightning protection: modalità general 6 KV, modalità differential 4 KV, ESD 15 KV

• Installed rack, kit included


Technical specifications

•

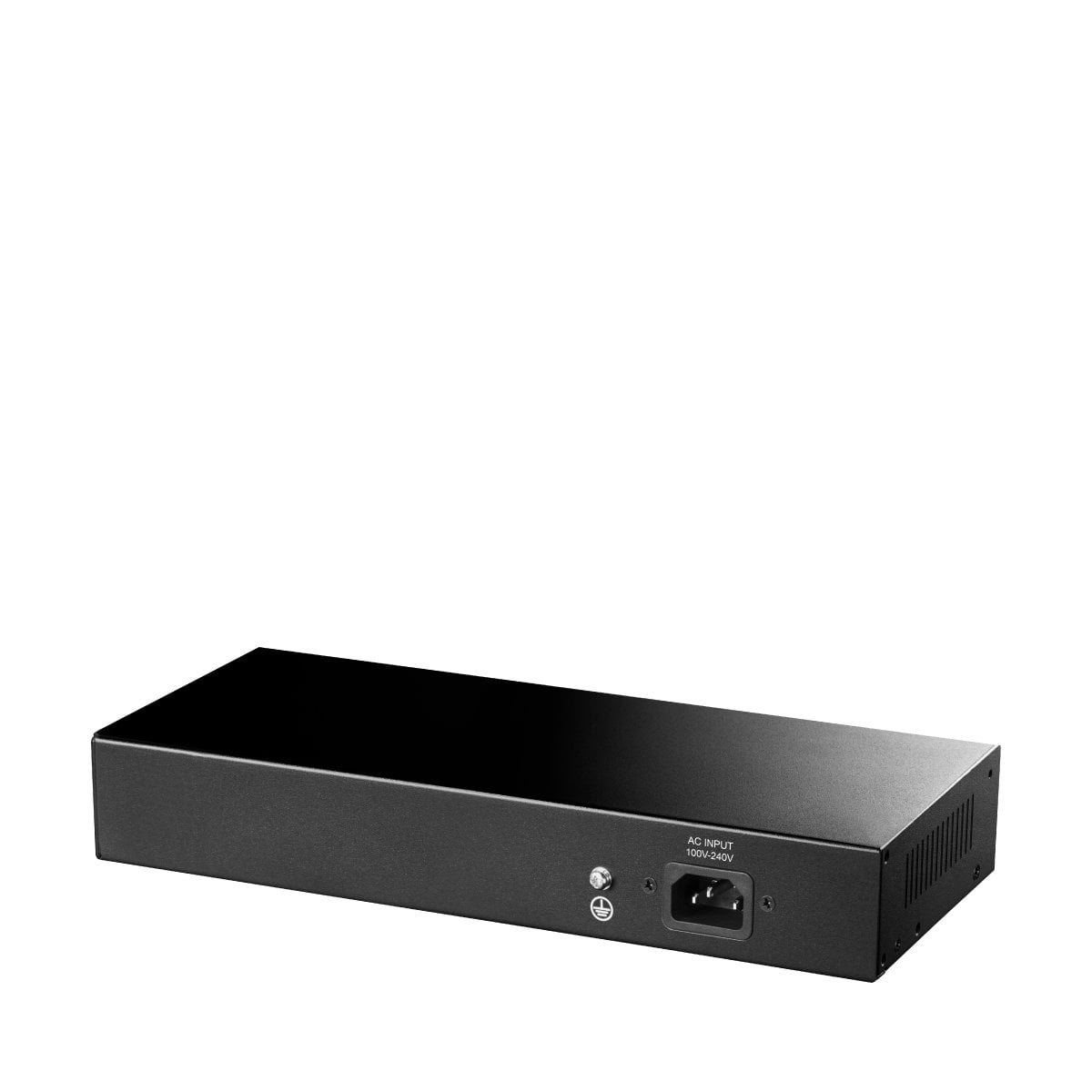

• Power supply: AC 100 - 240 V 50 / 60 Hz; 52 V 2.3 A

• Maximum power consumption 130 W; maximum power excluding PoE 12 W

• Ethernet doors: 8 doors 10 / 100 / 1000 Mbps, 2 doors 1000 Mbps SFP, 1 door console RJ 45

• Bandwidth: 20 Gbps

• Pack forward rate: 14,88 Mpps

• DDR SDRAM: 128 MB

• Flash Memory: 16 MB

• Packet Buffer Memory: 4

• MAC address: 8 K

• Jumbo Frame: 9,6 Kbytes


Functions

•

• Supports hardware watchdog, factory reset, system and port LEDs

• Global information, statistical information, log information

• User management, alarm management, configuration management

• Port rate, duplex, flow control, maximum frame length configuration

• Supports Port mirroring, port speed limit, port energy saving

• PoE time management, PoE automatic monitoring, PoE Watchdog, PoE port power configuration

• WEB Management (HTTP, HTTPS)

• CLI (Telnet, SSH V 1 /V 2 , Local serial port)

• SNMP (V 1 , V 2 , V 3)

• RMON (V 2)

• Supports 802.1 x port authentication, AAA authentication, and TACACS+ authentication

• Supports LLDP Device discovery

• Supports SNTP Time Synchronization

• Supports CPU Monitoring, Memory Monitoring

• Supports System log, classification warning

• Supports Ping, Traceroute detection, cable detection


VLAN

•

• 4 K; 802.1 Q VLAN, based on VLAN port

• SupportAccess, Trunk, Hybrid VLAN mode

• GVRP (VLAN registration protocol)

• MAC VLAN , IP VLAN

• Voice VLAN


Network protocol

•

• IEEE 802.3: Ethernet MAC Protocol

• IEEE 802.3 i: 10 BASE-T Ethernet

• IEEE 802.3 u: 100 BASE-TX Fast Ethernet

• IEEE 802.3 ab: 1000 BASE-T Gigabit Ethernet

• IEEE 802.3 z: 1000 BASE-X Gigabit Ethernet (optical fibre)

• IEEE 802.3 ad: Standard method for performing link aggregation

• IEEE 802.3 x: Flow control

• IEEE 802.1 ab: LLDP/LLDP-MED (Link Layer Discovery Protocol)

• IEEE 802.1 p: LAN Layer QoS/CoS Protocol Traffic Priority

• IEEE 802.1 q: VLAN Bridge Operation

• IEEE 802.1 x: Client/Server Access Control and Authentication Protocol

• IEEE 802.1 d: STP

• IEEE 802.1 s: MSTP

• IEEE 802.1 w: RTDP


PoE Protocol

•

• IEEE 802.3 af (15,4 W)

• IEEE 802.3 at (30 W)


Network

•

• 10 Base-T: Cat 3 , 4 , 5 or higher UTP (≤ 100 m)

• 100 Base-TX: Cat 5 or higher UTP (≤ 100 m)

• 1000 Base-TX: Cat 5 or higher UTP (≤ 100 m)

• Multimodal optical fibre: 50 / 125 , 62,5 / 125 , 100 / 140 um

• Single-mode optical fibre: 8 / 125 , 8,7 / 125 , 9 / 125 , 10 / 125 um


LED

•

• Feeding

• System

• Connection/ACT of each Ethernet port

• PoE state of each PoE port


Physical information

•

• Metal shell

• Dimensions: 268 (L) x 181 (P) x 44 (H) mm

• Weight: 1,2 kg


Environmental features

•

• Operating temperature: - 20 - 50 °C

• Storage temperature: - 40 - 85 °C

• Umidità for operation: 10 - 90 %, without condensation

• Humidità storage: 5 - 90 %, without condensation

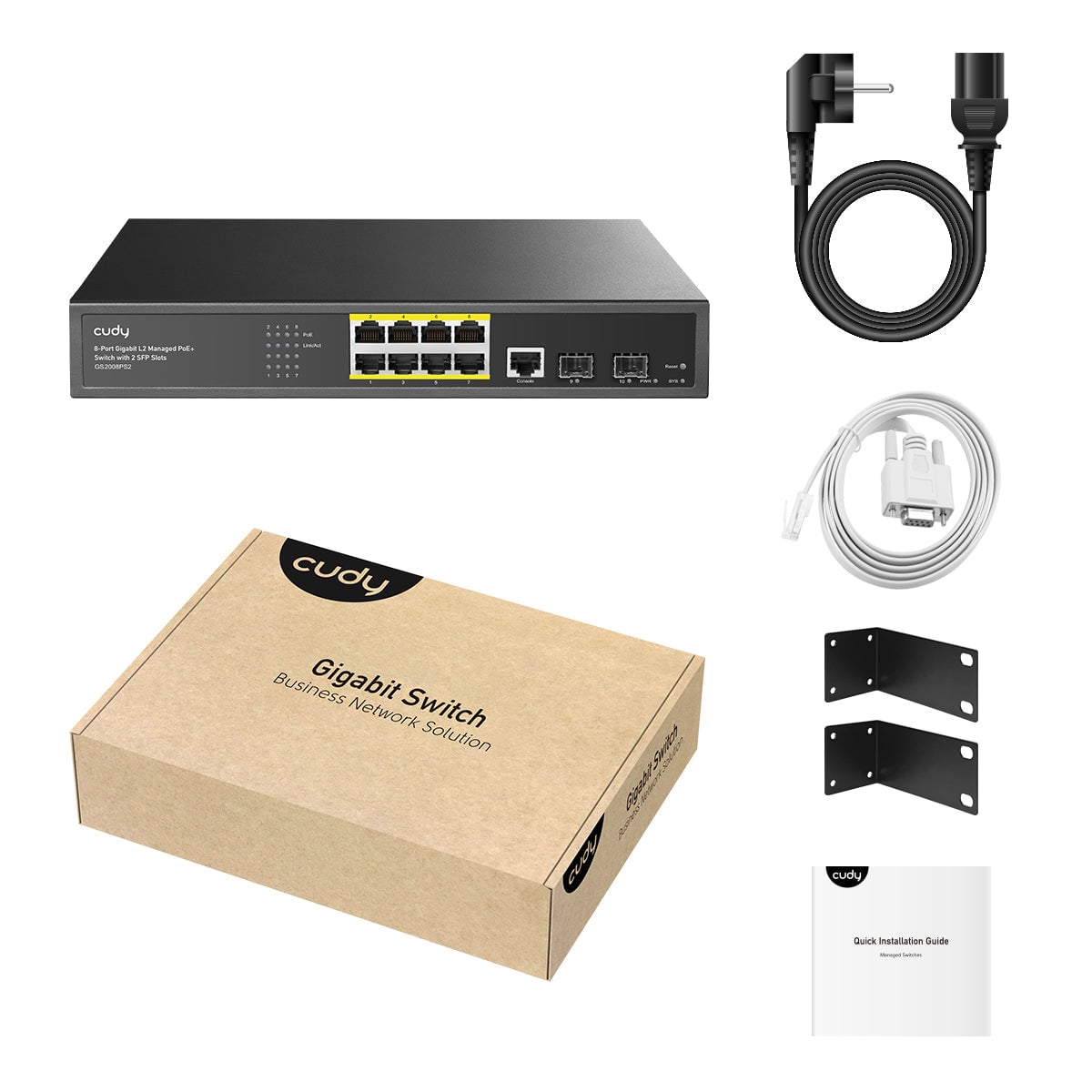

Package contents

•

• 1 x Switch 8 Web-Managed Gigabit Ethernet ports with 2 SFP ICU-GS 2008 P ports

• 1x Power cable

• 1 x Serial cable

• 2 x rack mounting bracket 19

• 1 x Instructions manual
