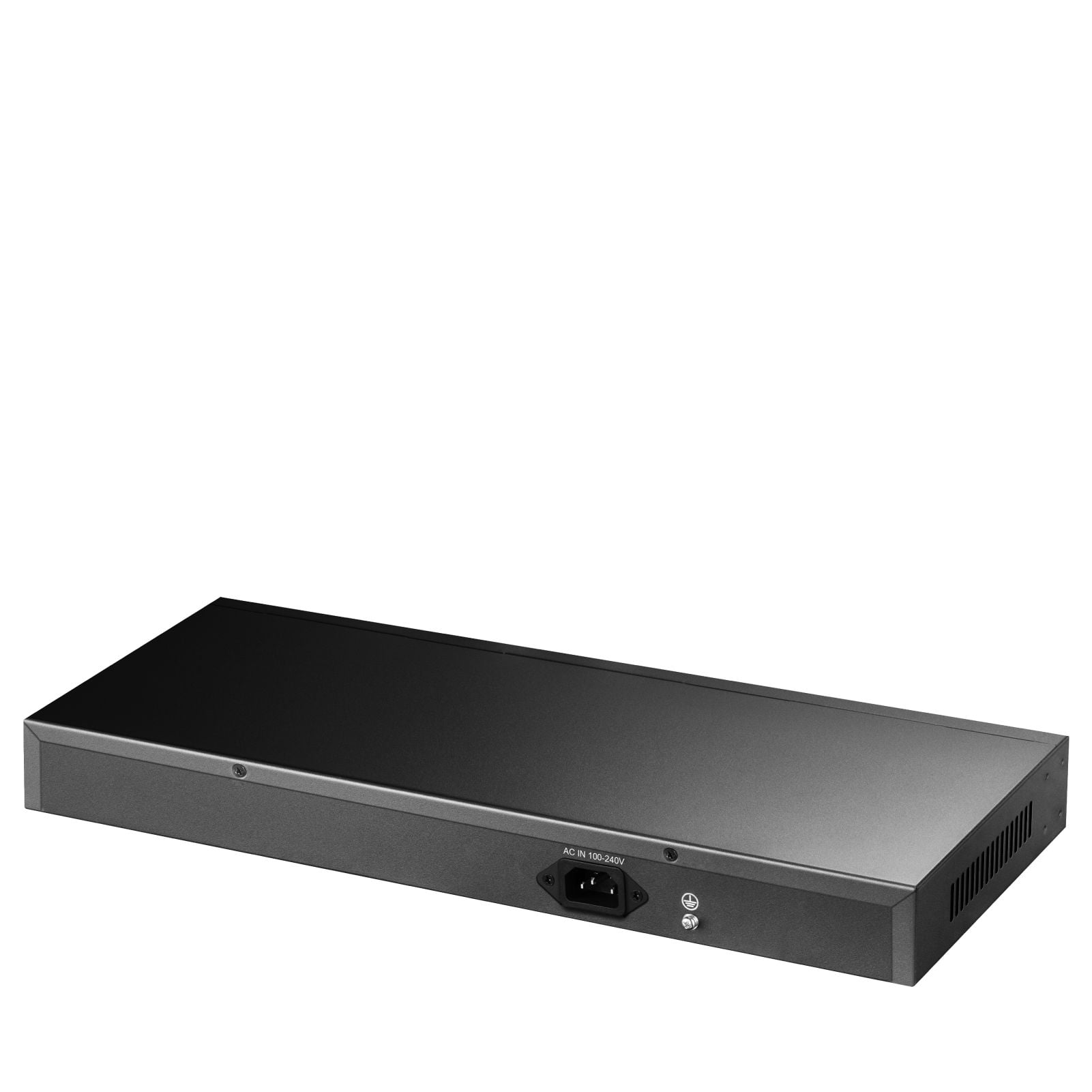

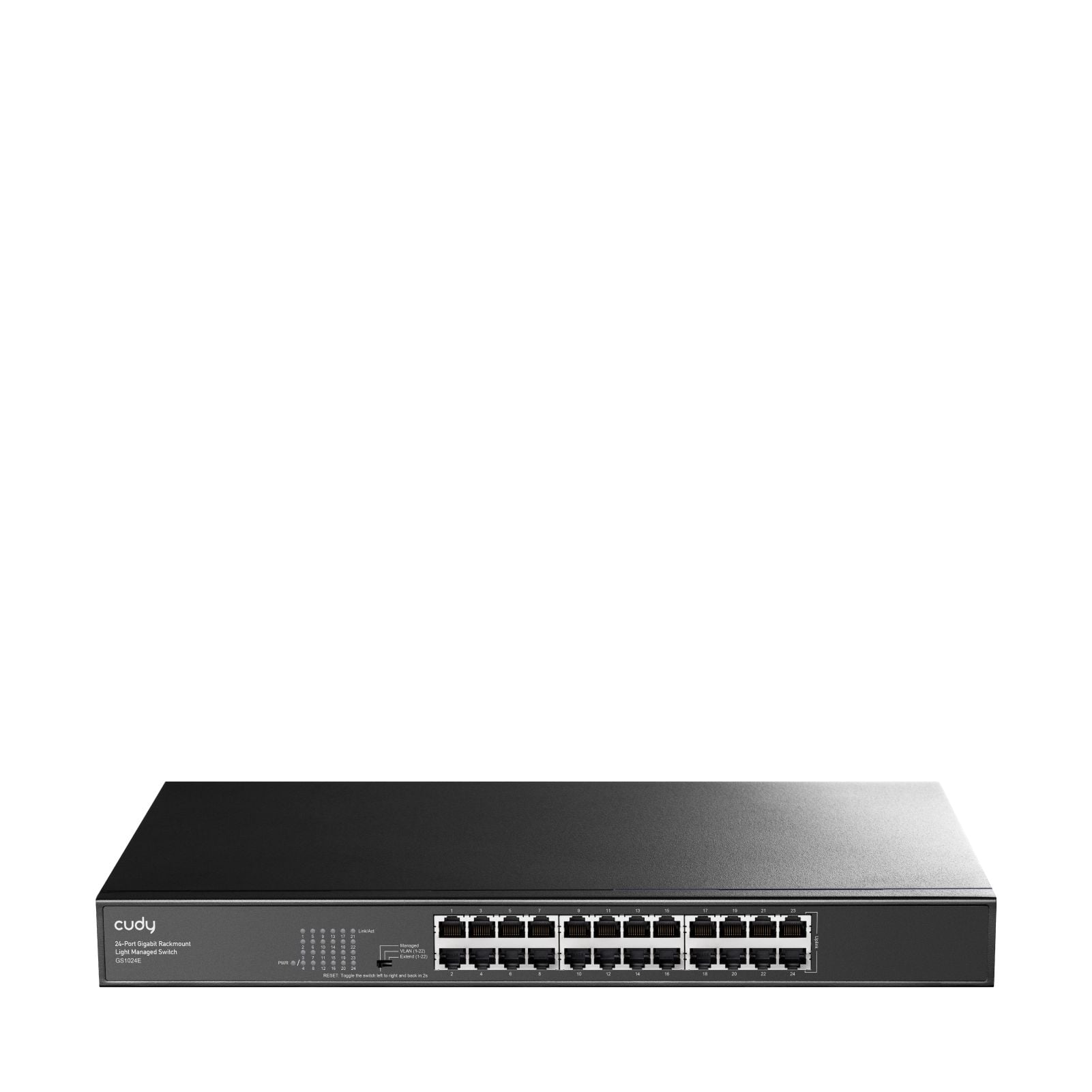

Switch 24 Gigabit Web Managed, GS 1024 E - Cudy ICU-GS 1024 E

•

• 24 GbE doors

• Web Management, SNMP

• VLAN (802.1 Q/MTU/Voce/Door-based)

• QoS (802.1 p/DSCP/port-based)

• Port Mirror, Static aggregation, etc

• STP/RSTP and loop prevention

• Snooping DHCP, Snooping IGMP

• EEE (energy saving 802.3 az)

• Managed/VLAN/Extend Preset Modes

• Desktop, rack mount


Technical specifications

•

• Memory: Flash/ROM: 8 MB (64 Mbit) NOR

• Interfaces:


•

• Gigabit RJ 45 : 24 doors

• Extend Mode Porte # 1 ~# 22

• VLAN Mode Porte # 1 ~# 22

• LED: Power supply; Speed, Link, ACT of Each Ethernet Port

• Power input: AC

• Physical buttons: Managed/VLAN/Extend/Reset DIP Switch


Performance

•

• Velocità and distance:

  •

  • Cable Cat. 3 or higher: 100 meters to 10 Mbps

  • Cable Cat. 5 or higher: 100 meters to 100 Mbps

  • Cable Cat. 5 and above: 100 meters to Gigabit

  • Cable Cat. 5 and above: 250 meters to 10 Mbps

  • Cat. cable 6 or higher: 150 meters to Gigabit




• Note: Transmission to 250 meters è available only on doors in mode à extended when è activated extended modeà

• Table of MAC 8192 addresses

• Capacità maximum switching 48 Gbps

• Velocità maximum forwarding 35.712 Mpps

• Frame jumbo 15 KB

• Mbit 4 Package Buffers


Feeding

•

• Basic energy saving

• Power supply: AC 90 ~ 260 V 50 / 60 Hz

• Maximum power consumption 11 W

• Inactive energy consumption 6,8 W


Switching

•

• 802.3 protocols


•

• 802.3 x Flow control

• 802.3 i 10 BASE T

• 802.3 u 100 BASE-TX

• 802.3 ab 1000 BASE-T

• 802.3 az Energy saving


•

• 802.1 protocols


•

• 802.1 d: STP

• 802.1 w: RTDP

• 802.1 p: QoS/CoS level 2 LAN

• 802.1 q: operation of the VLAN bridge

• 802.1 ab: LLDP/LLDP-MED


•

• Door Manager


•

• Port activated/deactivated

• Velocità Door Trading

• Port Trunk (static aggregation)

• Port Mirror

• Speed limit; data

• Jumbo Frame Settings

• Storm Control

• Traffic monitoring

• MAC Address Management

• EEE (802.3 az)


•

• Port trunk groups: 4

• Maximum number of doors for port trunk groups: 8


Functionality & agrave; L 2

•

• IGMP Snooping

• Loop prevention

• DHCP Snooping

• STP/RSTP

• LLDP and neighbors configuration

• VLAN MTU

• Port-based VLAN

• VLAN 802.1 Q

• Voice VLAN

• QoS DSCP

• QoS 802.1 p

• Port-based QoS


Dimensions

•

• Width: 440 mm

• Depthà: 180 mm

• Height: 44 mm


Package contents

•

• Switch 24 ports GS 1024 E

• User manual
