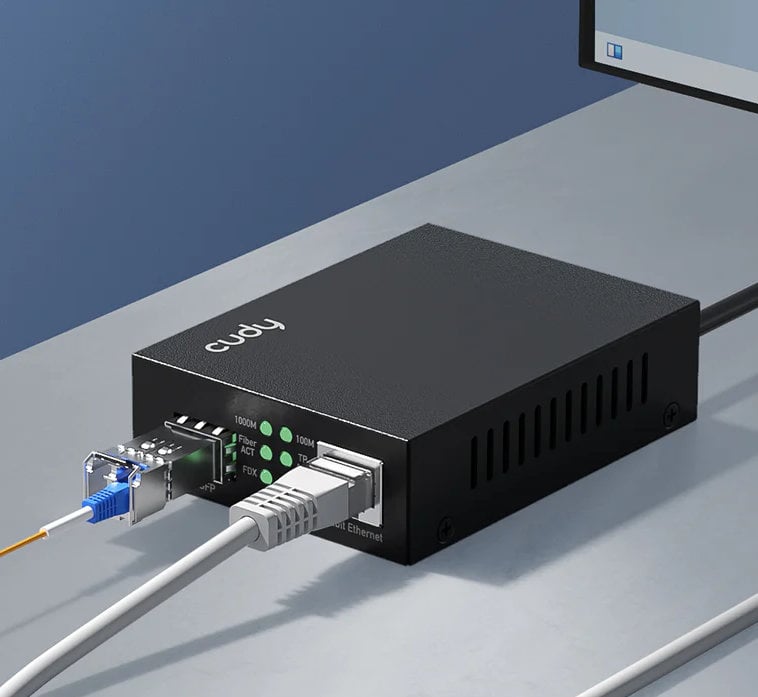

Multimedia Converter Gigabit RJ 45 10 / 100 / 1000 Mbps Slot SFP - Cudy ICU-MC 220

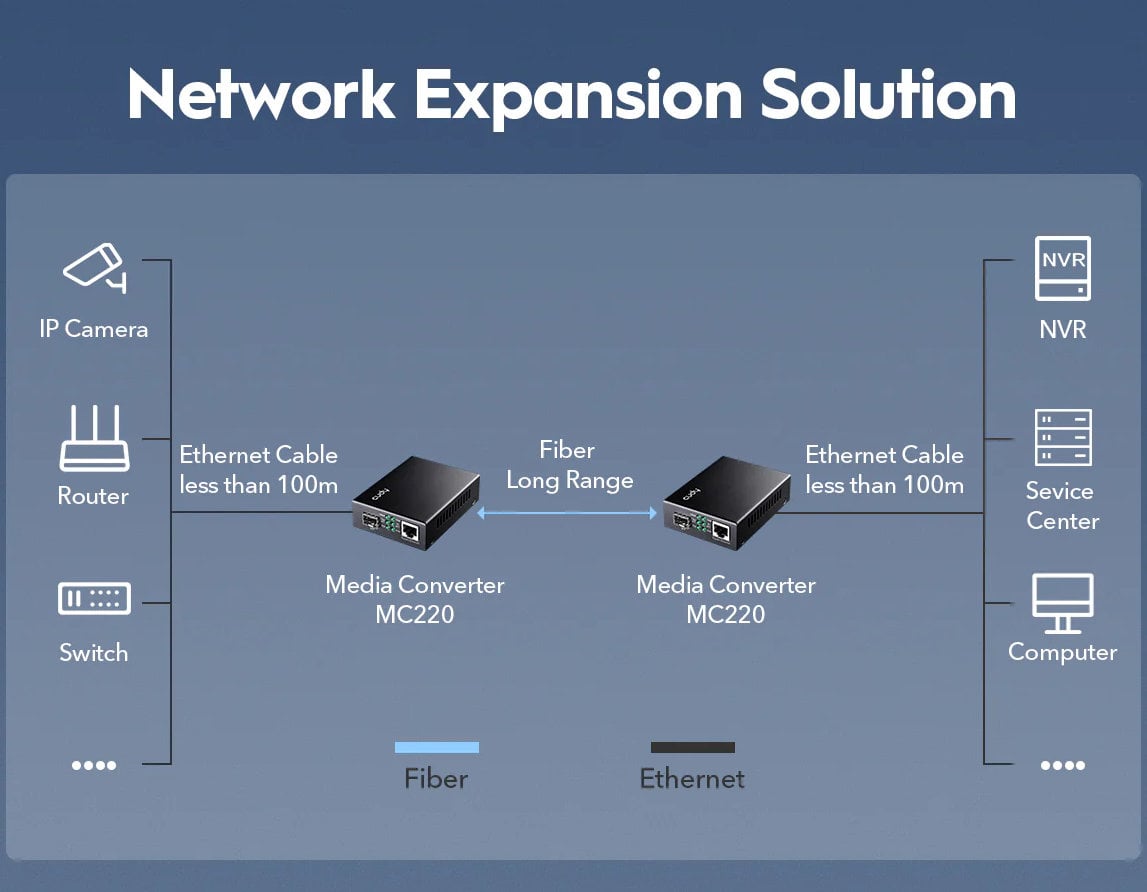

• The average converter 10 / 100 / 1000 Mbps Ethernet è designed to meet high range of network distribution needs. It can extend a fast copper-based network through fiber optic cables up to 100 km away (depending on the modules used)
• Plug and play, does not require configurations; just connect the port to have an instant connection; easy to use, with fast and reactive performance
• The status of operations can be monitored locally via a set of diagnostic LEDs located in the front of the panel
• Hot-Swap on RJ 45 and SFP

Standard

• IEEE 802.3 (10 Base-T Ethernet)

• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)

• IEEE 802.3 u (100 Base-TX Fast Ethernet)

• IEEE 802.3 x (flow control for full duplex mode)

• IEEE 802.3 z (1000 Base-SX/LX/LHX)


Network

• 802.3 i 10 BASE T

• 802.3 u 100 BASE-T

• 802.3 ab 1000 BASE-T

• 802.3 x Flow control

• 802.3 az Energy saving

• Troubleshooting: Far End Fault (FEF), Link Fault Pass Through (LFP)

Performance

• Velocità and distance: Cable Cat. 3 or higher: 100 meters to 10 Mbps;
• Cable Cat. 5 or higher: 100 meters to 100 Mbps;

• Cable Cat. 5 and above: 100 meters to Gigabit
• Optical specifications and distance: depends on the optical module installed

• Jumbo Frame: 16 KB

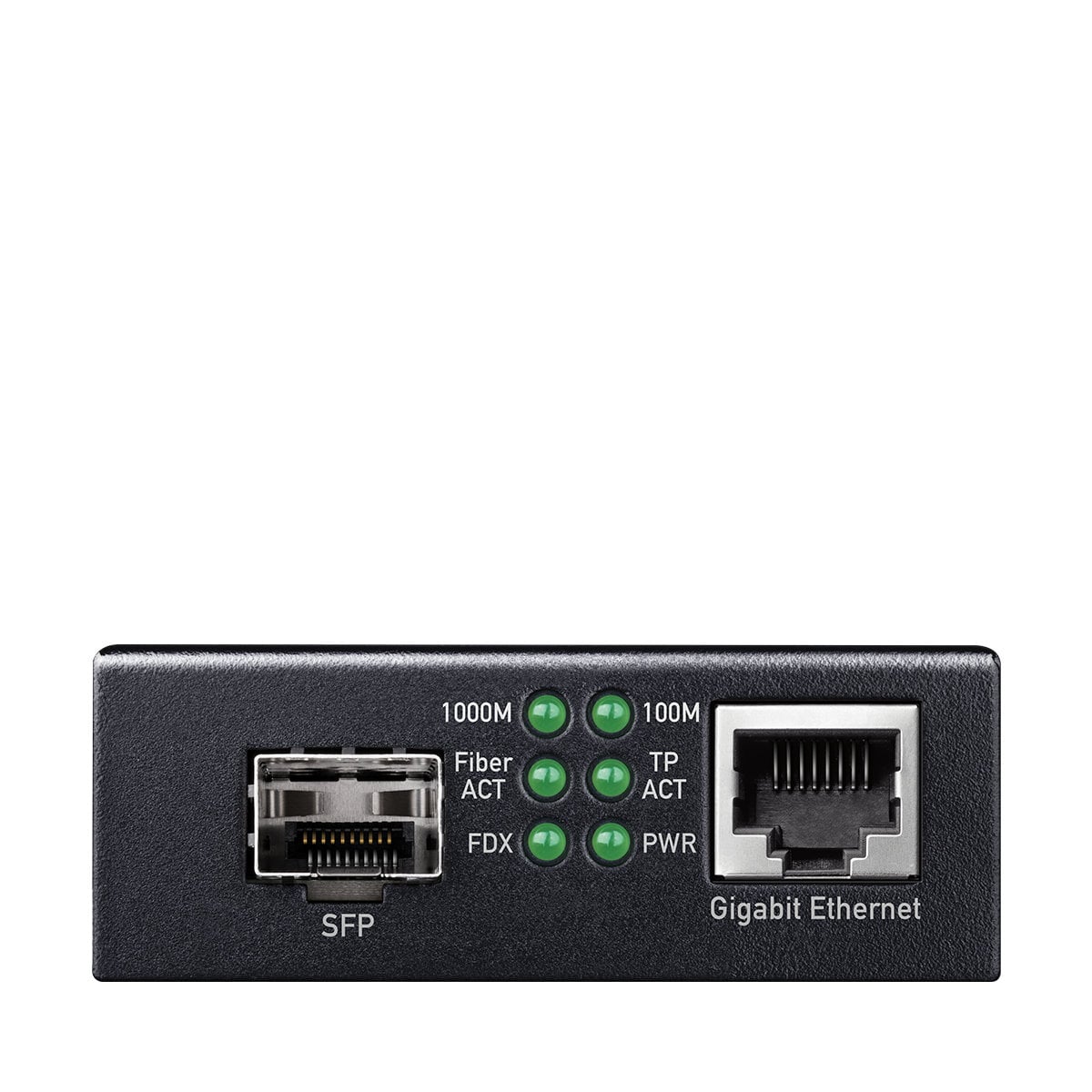

LED

• PWR: Power LED (ON/OFF)
• 1000 M: (ON/OFF) Speed LED; port RJ 45 (1000 Mbps)
• 100 M: (ON/OFF) Speed LED; port RJ 45 (100 Mbps)
• TP ACT: (ON/FLASH/OFF) The RJ 45 è connected port; the RJ 45 port is transmitting or receiving data (fast flash); a break or other failure in the fiber or copper cable (slow flash); the RJ 45 port is not è connected
• Fiber ACT: LED signaling fiber status (ON/OFF/FLASH, if it is transmitting or receiving data)
• FDX: LED for port RJ 45 duplex (ON = full duplex, OFF = half duplex)


Feeding

• External transformer, output 5 V  0,55 A, input 100 - 240 V AC, 50 / 60 Hz
• Consumption: 2,3 Watt (maximum)


Environmental features

• Operating temperature: 0 ~ 50 °C
• Storage temperature: - 40 ~ 70 °C
• Operating Humidità 10 %~ 90 % (without condensation)
• Storage Humidità 5 %~ 95 % (without condensation)

Dimensions

• Width: 70 mm
• Depthà: 94 mm
• Height: 26 mm
• Weight: 142 g

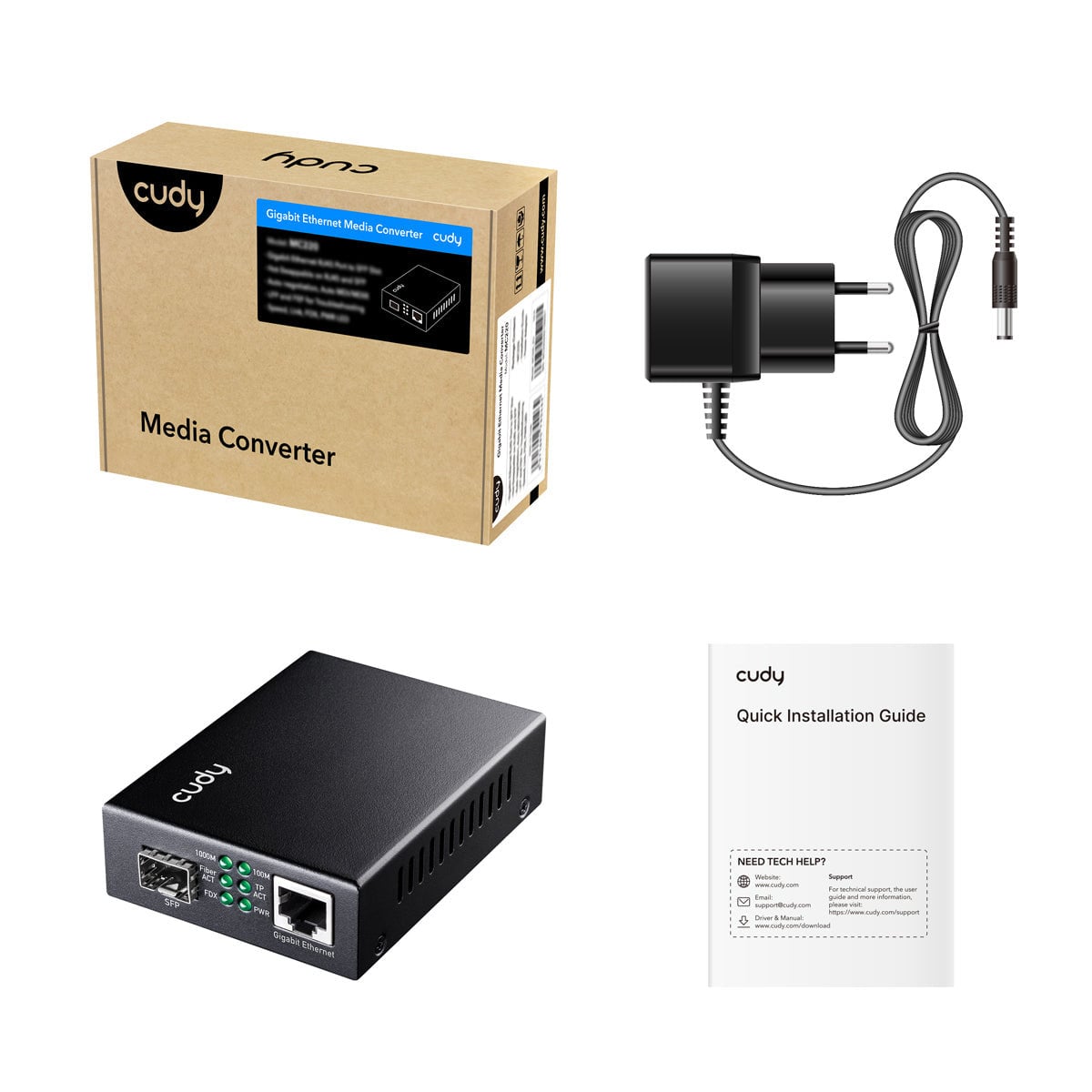

Package contents

• 1 x Media Converter ICU-MC 220

• 1 x AC-DC power supply

• 1 x User Manual
