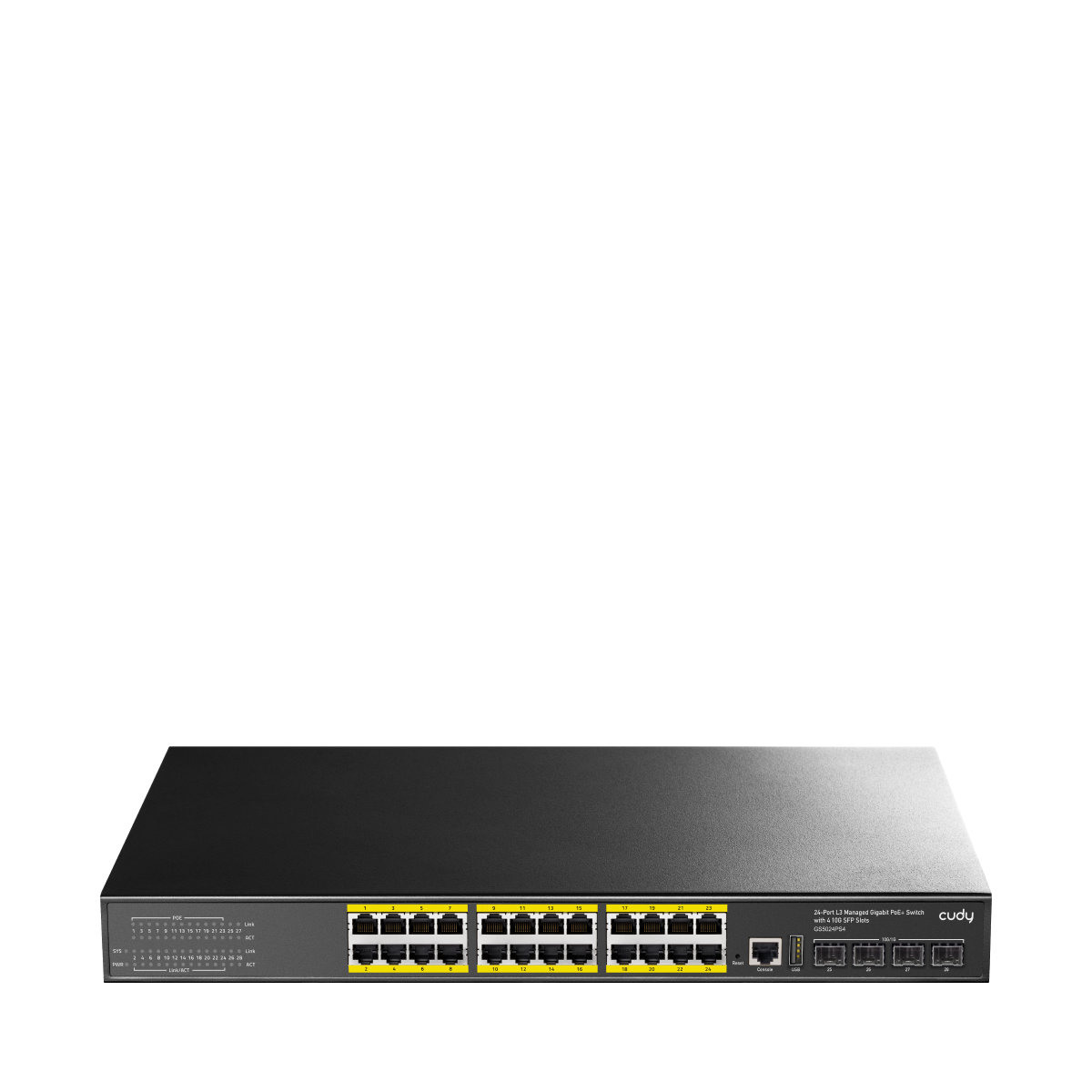

Switch 24 Web-Managed Doors PoE Gigabit L 3 with 4 SFP Doors, GS 5024 PS 4 Black - Cudy ICU-GS 5024 PS 4

•

• Switch 24 ports 10 / 100 / 1000 Mbps PoE, 4 slot SFP 10 Gigabit, 1 port Console RJ 45 , 1 port USB

• Panel indicator that monitors status and helps fault analysis

• Fan-free design, natural cooling, compatible with mounting on 1 rack

• Installed rack, kit included


Technical specifications

•

• 24 doors POE 10 / 100 / 1000 Mbps

• 4 doors SFP 10 G

• 1 console holder RJ 45

• 1 USB port

• Power supply: AC 100 - 240 V 50 / 60 Hz; 52 V 7.5 A, 12 V 4 A

• Maximum energy consumption 440 W; product consumption: 33 W; budget PoE: 390 W


Performance

•

• Capacità: 128 Gbps

• Velocità Package Forwarder: 95,23 Mpps

• DDR SDRAM: 128 MB

• Flash memory: 16 MB

• Memory buffer packages: 12 Mbit

• MAC address: 16 K

• Jumbo Frame: 12 Kbyte

• VLAN: 4096

• MTBF: 100000 hours


•

• Supports management L 3 , DHCP server, QoS, ACL control, SNMP V 1 /V 2 /V 3 , IGMP Snooping v 1 /v 2 , supports the Spanning Tree STP/RSTP/MSTP protocol (ERPS), loop detection and self-repairing, remote loopback monitoring and control (802.3 ah OAM); supports IP address + MAC address + VLAN + port association, DHCP Snooping, IP source and DAI protection; supports IPV 4 /IPV 6 , RIP, OSPF; supports PoE management and Watchdog PoE


VLAN

•

• Supports more ù VLAN, VLAN mac, VLAN protocol, private VLAN divisions


Network protocol

•

• IEEE 802.3: Ethernet MAC Protocol

• IEEE 802.3 i: 10 BASE-T Ethernet

• IEEE 802.3 u: 100 BASE-TX Fast Ethernet

• IEEE 802.3 ab: 1000 BASE-T Gigabit Ethernet

• IEEE 802.3 z: 1000 BASE-X Gigabit Ethernet (optical fibre)

• IEEE 802.3 ae: 10 G Ethernet

• IEEE 802.3 az: Energy-efficient Ethernet

• IEEE 802.3 to: Standard method for link aggregation

• IEEE 802.3 x: Flow control

• IEEE 802.1 ab: LLDP/LLDP-MED

• IEEE 802.1 p: QoS/Cos level protocol 2 LAN relative to the priorityà traffic

• IEEE 802.1 q: operation of the VLAN bridge

• IEEE 802.1 x: client/server access control and authentication Protocol

• IEEE 802.1 d: STP

• IEEE 802.1 s: MSTP

• IEEE 802.1 w: RTDP


PoE Protocol

•

• IEEE 802.3 af (15,4 W)

• IEEE 802.3 at (30 W)


Network

•

• 10 Base-T: Cat 3 , 4 , 5 or higher UTP/STP (≤ 100 m)

• 100 Base-TX: Cat 5 or higher UTP/STP (≤ 100 m)

• 1000 Base-TX: Cat 5 or higher UTP/STP (≤ 100 m)

• Multimodal optical fibre: 50 / 125 , 62,5 / 125 , 100 / 140 um

• Single-mode optical fibre: 8 / 125 , 8,7 / 125 , 9 / 125 , 10 / 125 um


LED

•

• Feeding

• System

• Connection/ACT of each Ethernet port


Physical information

•

• Metal shell

• Dimensions (LxPxH): 440 x 280 x 44 mm

• Weight: 4,03 kg


Environmental features

•

• Operating temperature: - 10 ~ 50 °C

• Storage temperature: - 40 ~ 70 °C

• Umidità for operation: 10 - 90 %, without condensation

• Humidità storage: 5 - 90 %, without condensation

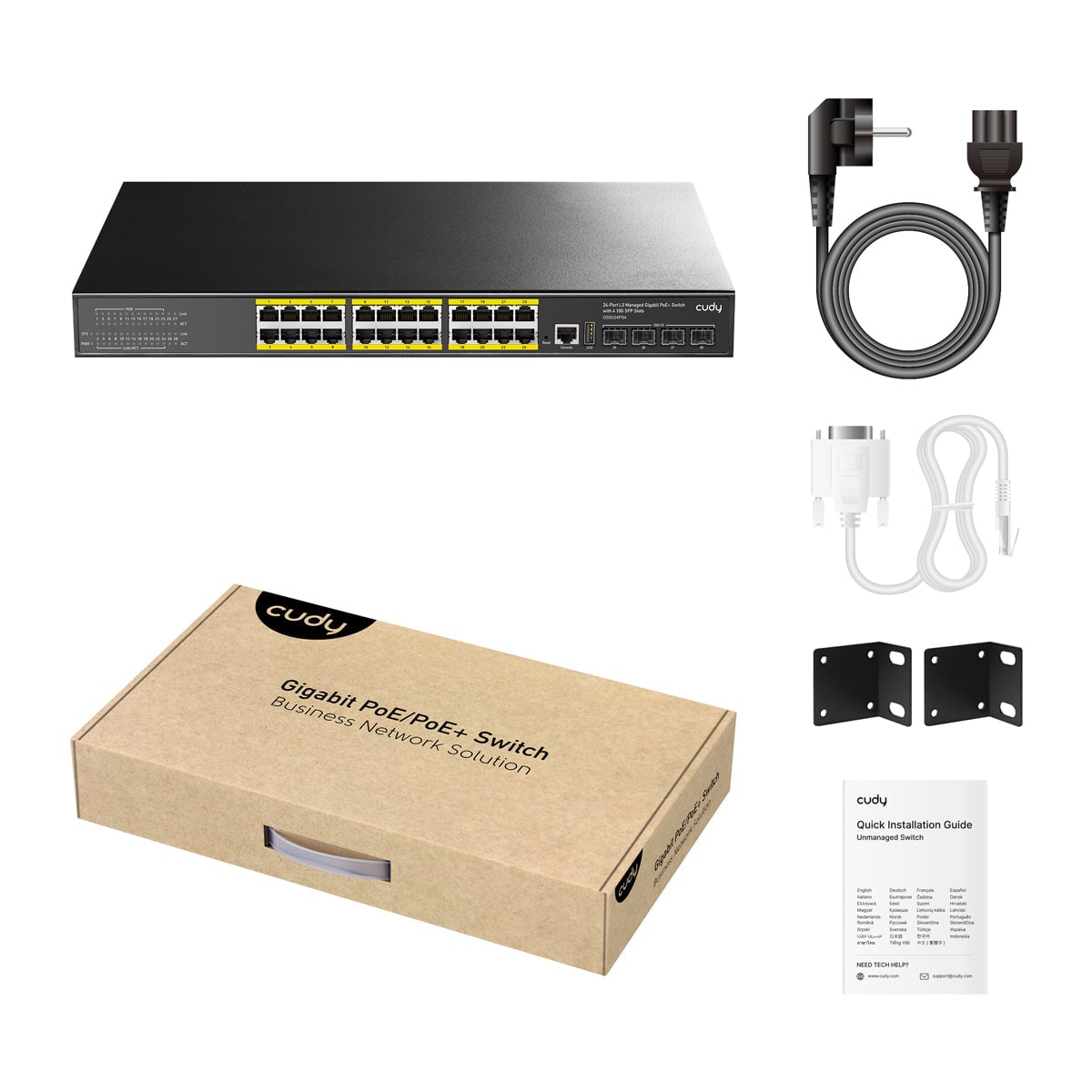

Package contents

•

• 1 x Switch 24 Web-Managed Doors PoE Gigabit L 3 with 4 SFP Doors ICU-GS 5024 PS 2

• 1x Power cable

• 1 x Serial cable

• 2 x rack mounting bracket 19

• 1 x Instructions manual
