Switch Easy Managed Gigabit 24 Doors PoE+ 2 Uplink GbE 2 SFP/RJ 45 Combo - Cudy ICU-GS 1028 EPS 2

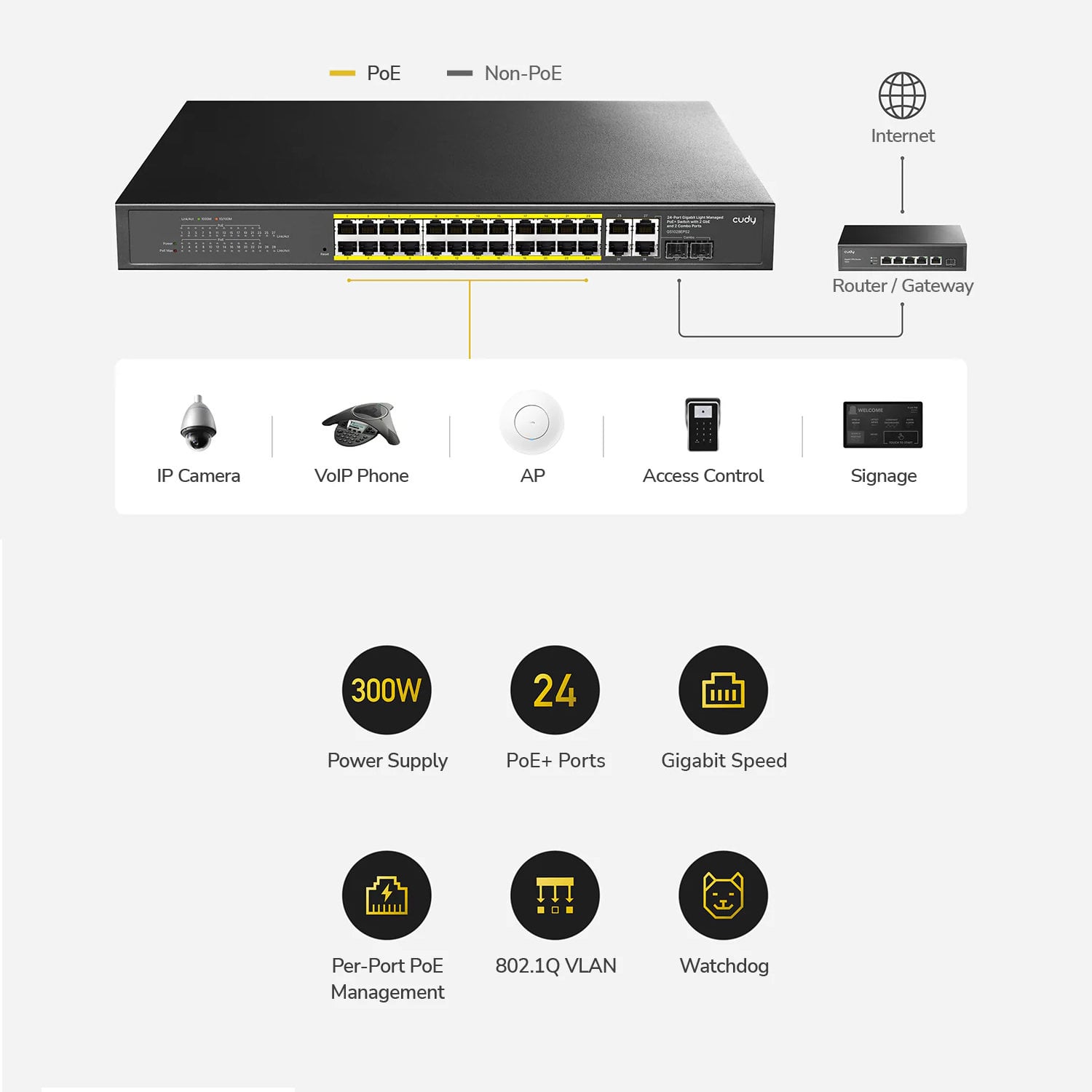

• Switch PoE+ Gigabit Easy Managed and Connectivityà Cloud, equipped with 24 GbE PoE+ ports, 2 Uplink GbE ports, 2 Uplink GbE/SFP Combo

• Consistent with the IEEE 802.3 af/ 802.3 standard at

• Power Budget Total PoE of 300 watts, up to 30 watts per door

• Watchdog to monitor port activity à: If a connected device locks and stops transmitting data for 5 minutes, Watchdog restartà automatically the corresponding PoE port
• Supports SNMP to allow remote and centralized control
• The VLAN 802.1 Q allows you to create secure and high-performance network segments on different managed switches
• Other MTU/port-based VLANs allow a more ù simple local VLAN configuration
• QoS DSCP/ 802.1 p protocol identifies DSCP packages during transmission and assigns priorityà to latency sensitive data
• IGMP Snooping that identifies the multicast groups connected to the switch and sends data to specific ports instead of&eatute; send them to broadcast
• Automatically detects network loops and blocks affected ports
• Supports STP/RSTP to ensure stable performance in large redundant networks
• Improves service reliability and reduces inactivity time; caused by electrostatic surges and discharge
• ESD: 6 kV contact; 8 kV air

• Power supply DM 2 kV, CM 4 kV; RJ 45 CM 4 kV

• LED indicators for network diagnostics

• Shielded doors
• Robust metal shell

Technical specifications

PoE Standard

• Protocols 802.3 : 802.3 x Flow Control, 802.3 i 10 BASE-T, 802.3 u 100 BASE-TX, 802.3 ab 1000 BASE-T, 802.3 z 1000 BASE-X, 802.3 az Power Saving, 802.3 af PoE/ 802.3 at PoE

• Protocols 802.1: 802.1 d: STP, 802.1 w: RSTP, 802.1 p: LAN Layer 2 QoS/CoS, 802.1 q: VLAN Bridge Operation, 802.1 ab: LLDP/LLDP-MED


Network

• Cable Cat. 3 or higher: 100 meters to 10 Mbps; Cable Cat. 5 or higher: 100 meters to 100 Mbps; Cable Cat. 5 and above: 100 meters to Gigabit; Cable Cat. 5 and above: 250 meters to 10 Mbps

• MAC Address Table: 8192
• VLAN: 4096

• Maximum switching capacity & 56 Gbps

• Velocità maximum forwarding  41.664 Mpps

• Jumbo Frame: 15 KB

• Package buffers   4 Mbit

Feeding

• AC input: 100 ~ 240 V, 50 / 60 Hz

• Power Budget PoE 300 Watt

• PoE Doors: 1 ~ 24 ; compliant with IEEE 802.3 standard at/af
• PoE output power: 30 W (maximum; maximum power excluded PoE: 20 W


Environmental features

• Operating temperature: 0 °C ~ 40 °C

• Storage temperature: - 40 °C ~ 70 °C

• Humidità operating: 10 % ~ 90 % without condensation

• Storage humidità 10 % ~ 95 % without condensation

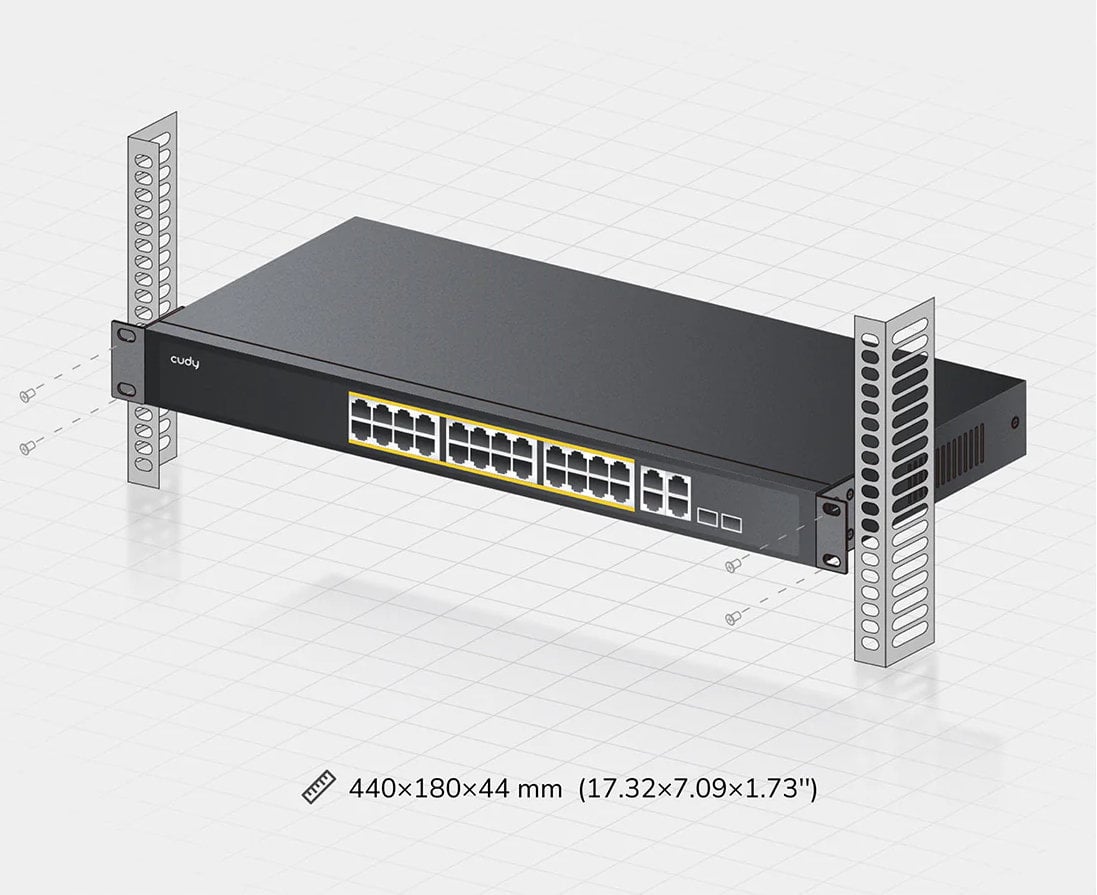

Dimensions

• Width: 440 mm

• Depthà: 220 mm

• Height: 44 mm

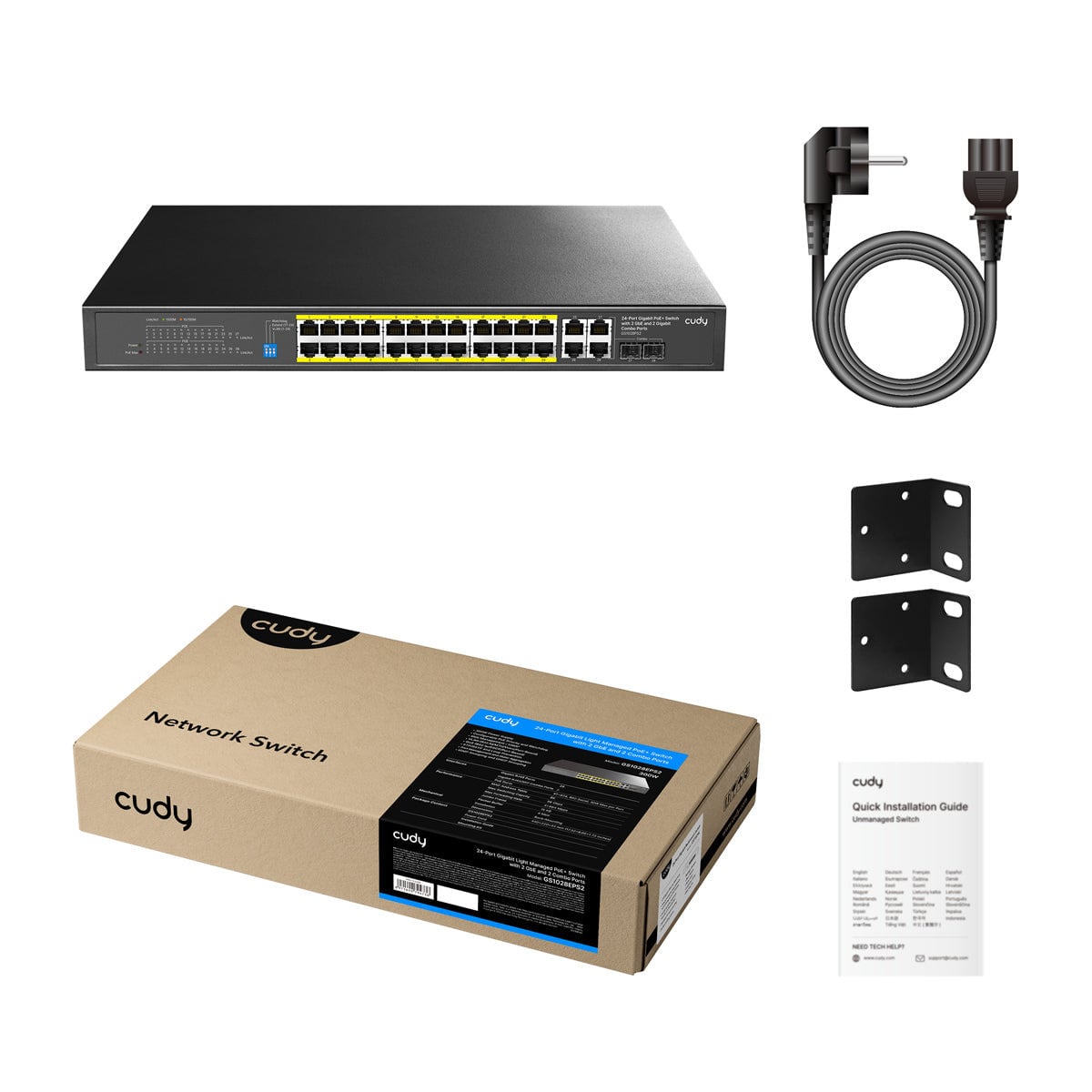

Package contents

• Switch Easy Managed Gigabit 24 Porte GbE PoE, 2 Uplink GbE, 2 Uplink SFP/RJ 45 Combo, ICU-GS 1028 EPS 2
• Power cable
• rack &nbsp fixing brackets;
• User Manual
