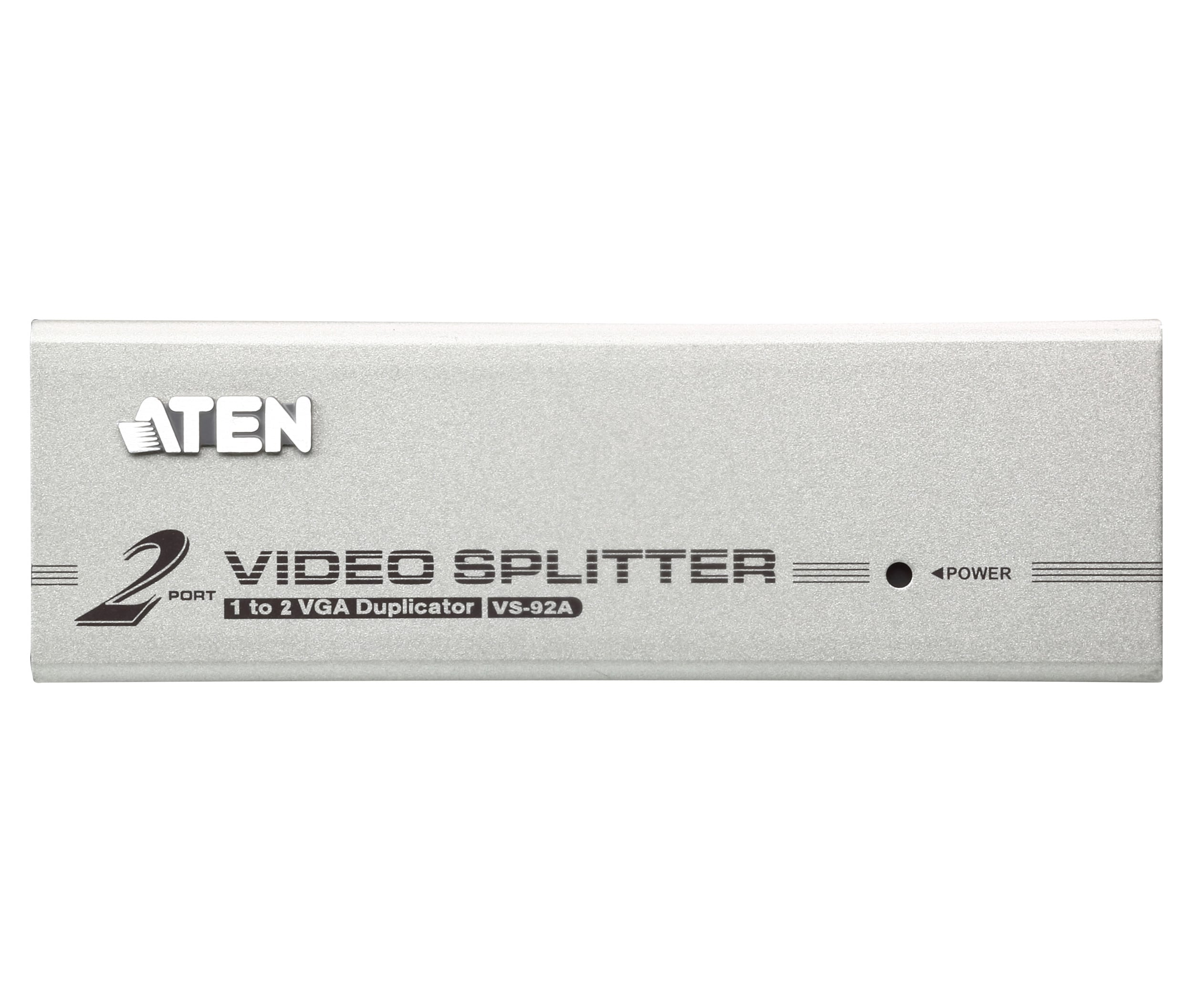

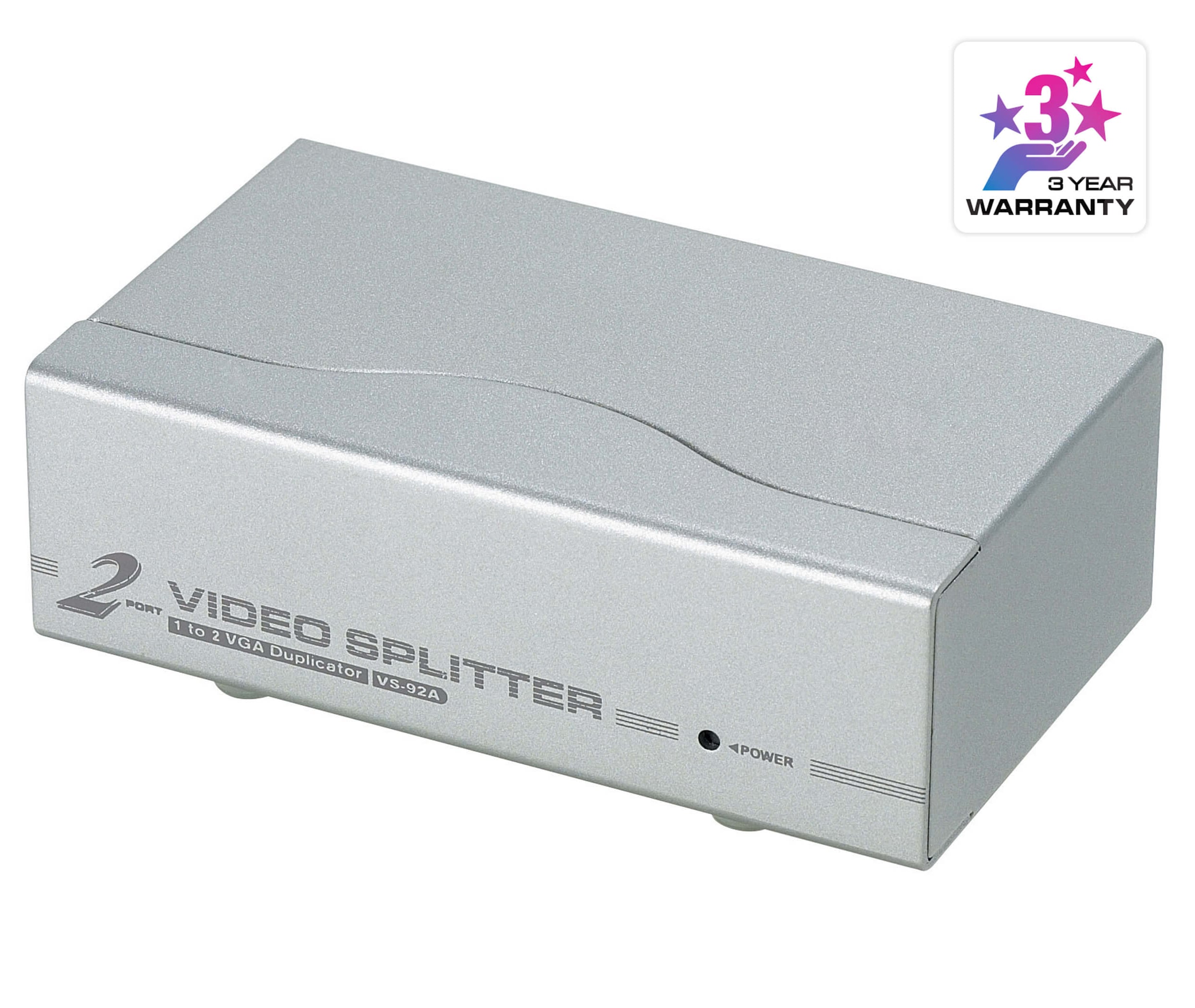

Splitter VGA 2 doors, VS 92 A - Aten IDATA VS- 92 A

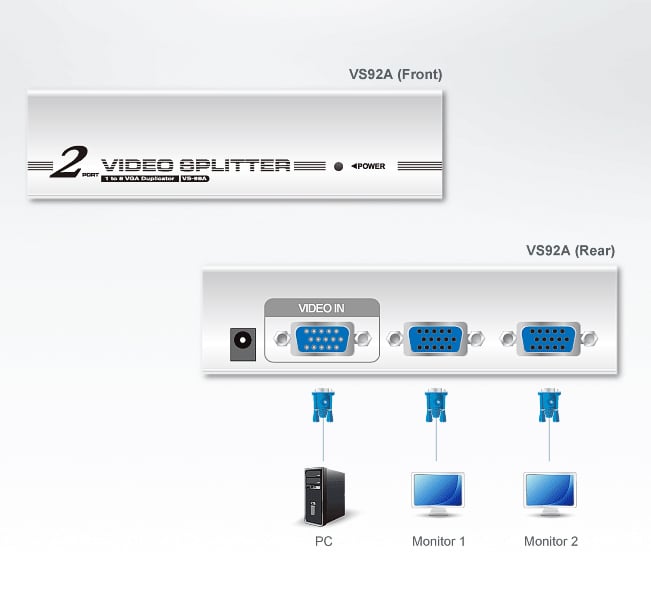

The VS 92 A è a video splitter that not only duplicates the video signal from a VGA, XGA, SVGA, UXGA or Multisync monitor with two outputs, but also amplifies it over a maximum distance of 65 meters. Thanks to the cascade connection of 8 screens and bandwidth up to 350 MHz, the VS 92 A è is ideal for transmitting video information to the public, monitoring work environments from safe places or to offer quality videos higher in educational or business.



Features

• From a video entry to 2 video outputs


• Possibility to connect in cascade up to 3 levels – offers a maximum of 8 video signals


• Bandwidth from 350 MHz


• Long distance transmission up to 30 m *


• Superior video quality – 1920 x 1440 @ 60 Hz


• DDC, DDC 2 , DDC 2 B compatible (only 1 port)


• Supports VGA, XGA, SVGA, UXGA, WUXGA and Multisync monitors


• Completely made of metal



* Video content transmitted at very long distances through a VGA cable may experience a slight degradation of the signal and qualityà video.

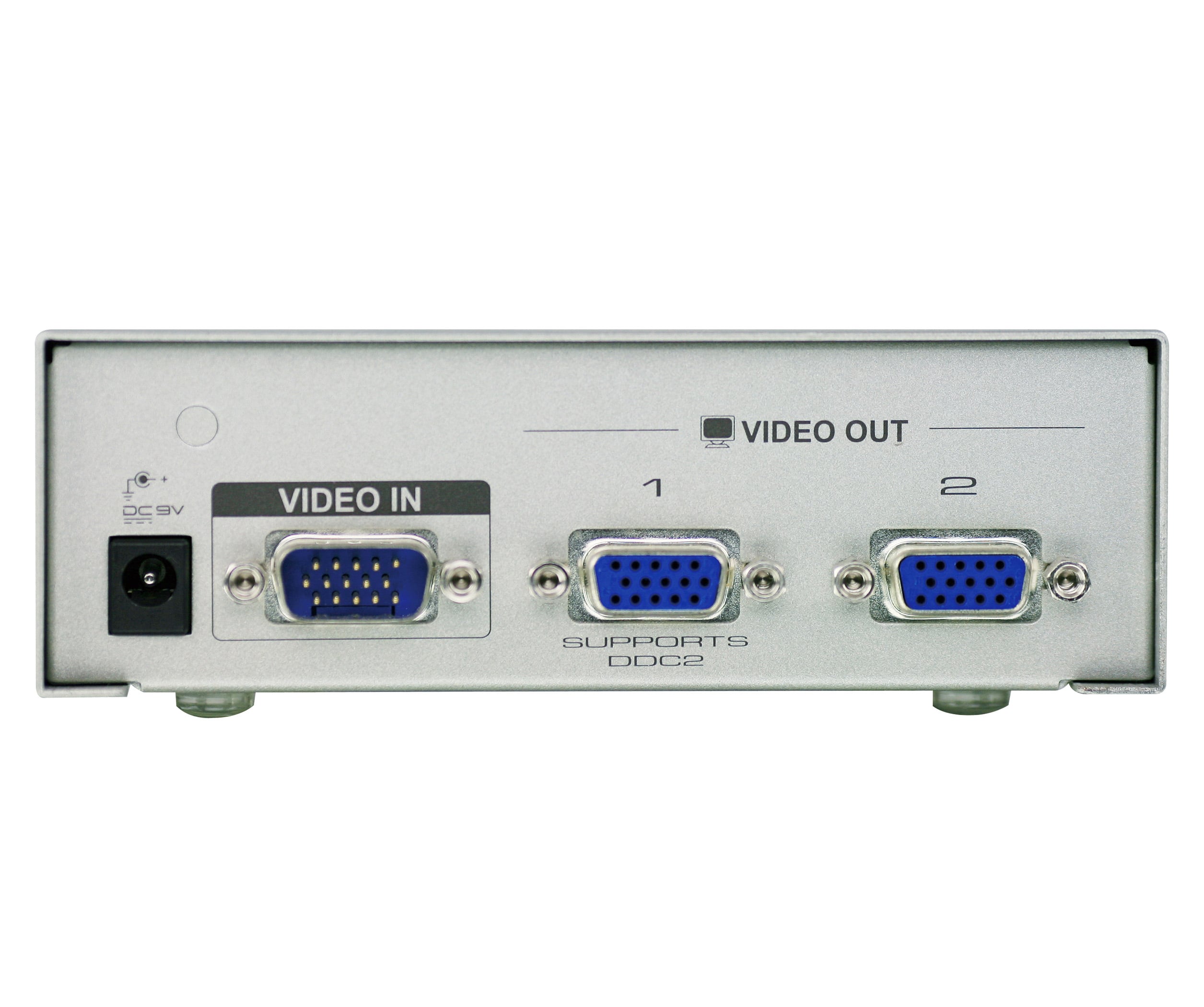

Technical specifications· Video Input

- Interfaces: 1 x HDB- 15 male (blue)

- Impedance: 75

- Max. distance: 1,8 m

• Video output



- Interfaces: 2 x HDB- 15 female (blue)

- Impedance: 75

• Video



- Max. bandwidth: 350 MHz

- Maximum resolution: Up to 1920 x 1440

- Max. distance: up to 30 m

• Feeding



- Connectors: 1 x DC connector

- Consumption: 9 V CC, 1,24 W

• Environment



- Operating temperature: 0 - 50 °C

- Storage temperature: - 20 - 60 °C

- Humidità: 0 - 80 % relative humidity, without condensation

• Proprietà physical



- Structure: Metal

- Weight: 0.42 kg (0.93 lb)

- Dimensions (L x P x A): 13.00 x 7.51 x 4.40 cm



Package contents

• 1 splitter video to 2 ports


• 1 power supply 0 AD 6 - 1909 - 03 EG


• 1 user guide
