Mini dock USB-C 4 K with pass-through power supply - Aten IADAP UH- 3235

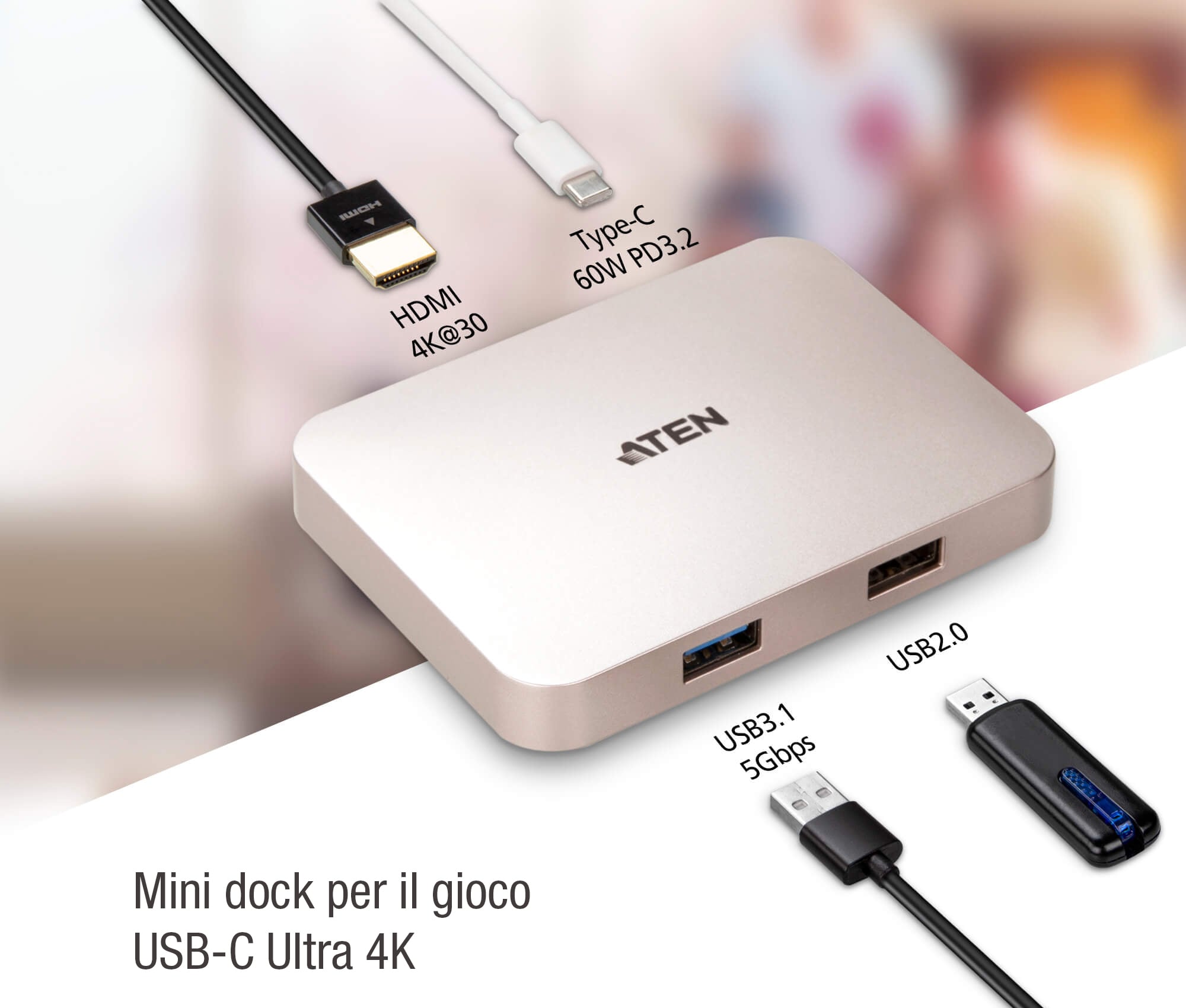

Mini docking station USB-C™ multifunction 4 -in- 1 that has USB ports 2.0 Type-A, USB 3.2 Gen 1 Type-A, HDMI and input USB-C™. Thanks to its wide compatibilityà, it can ` support different operating systems such as PC, Mac, iPad Pro, Android smartphone, and USB-C™ game consoles.

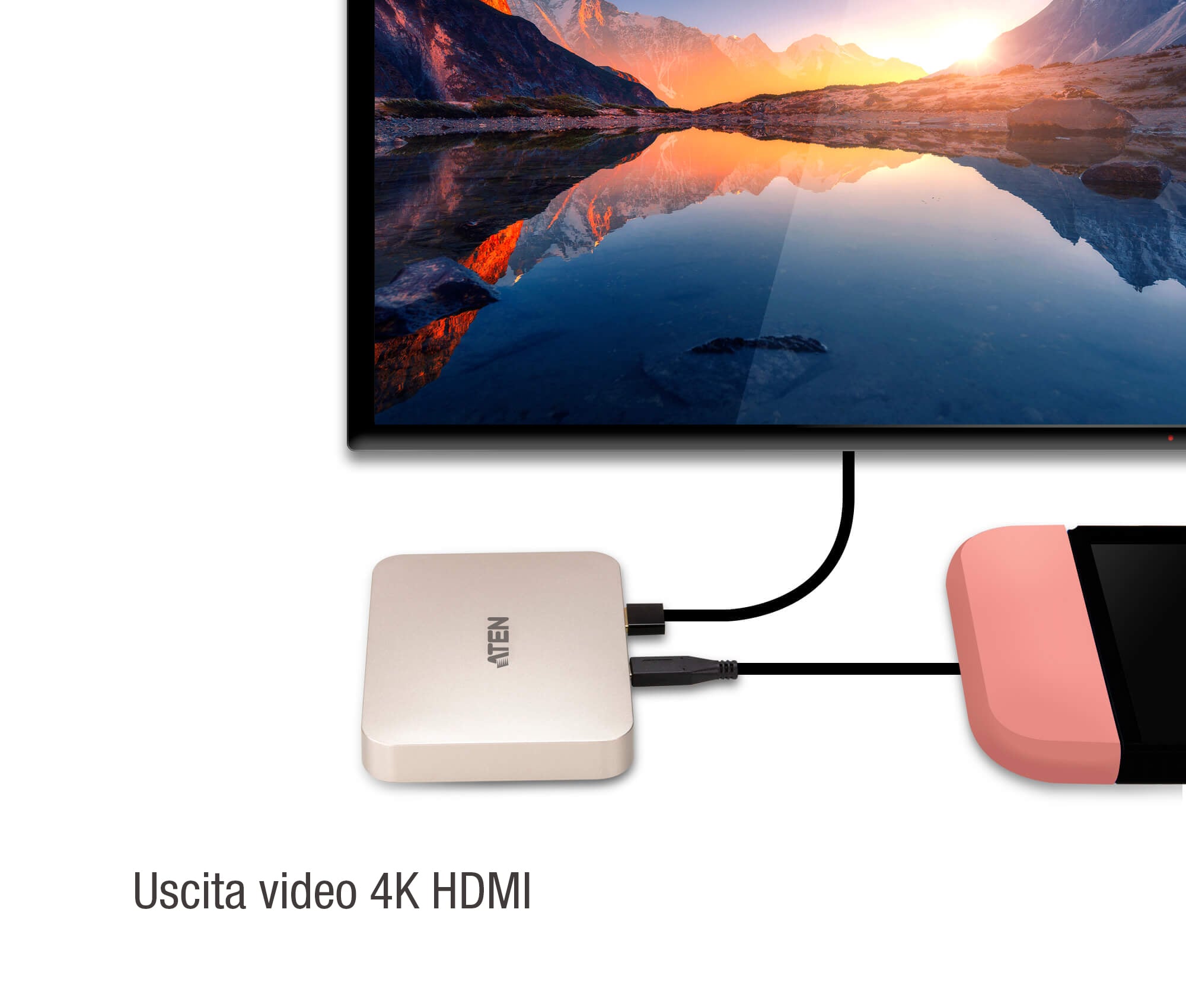

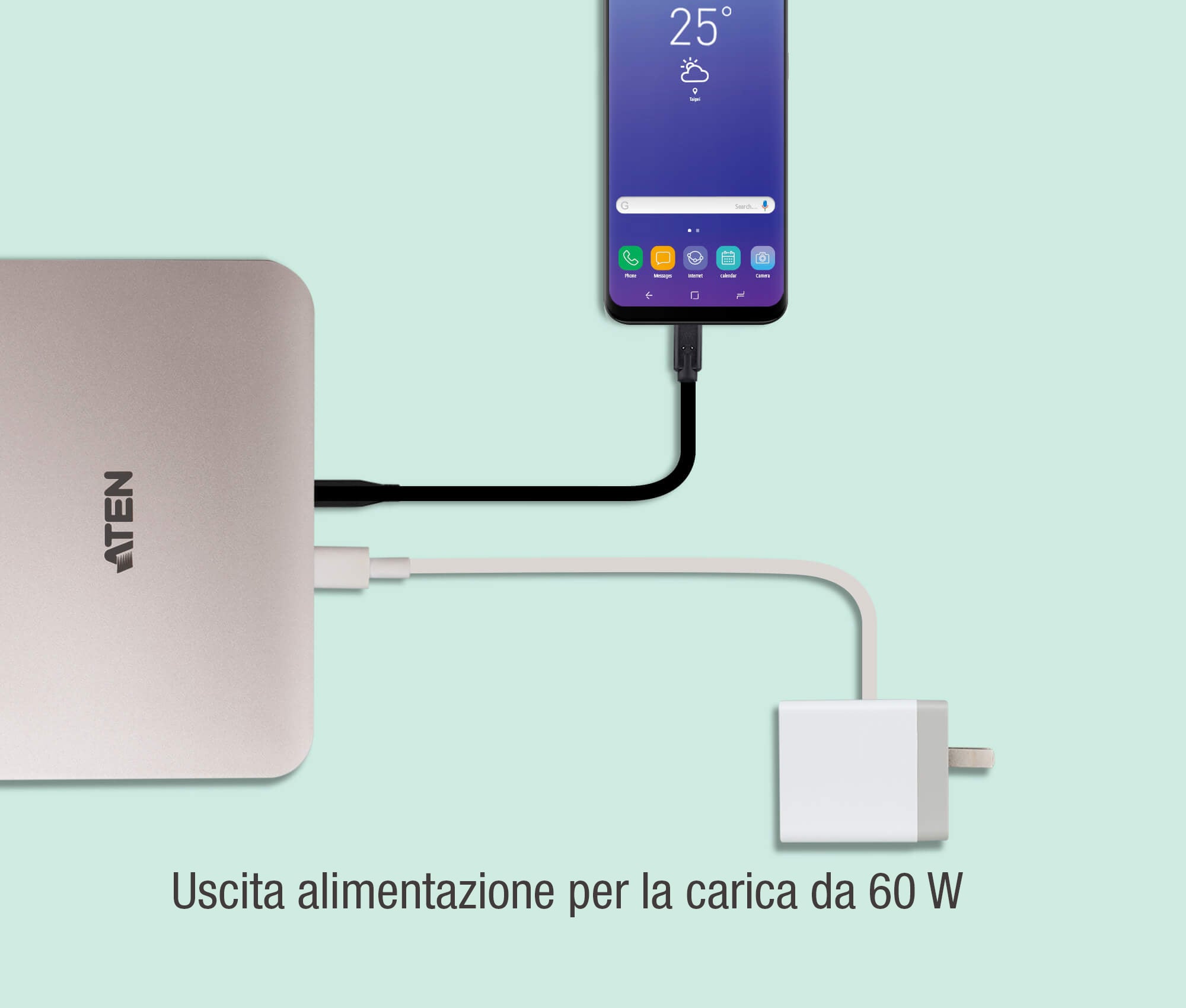

The HDMI supports a clear crystal video output up to 4 K (3840 x 2160 at 30 Hz) that provides users with a high level of fun, from video viewing, to video games, or work from home. It also supports the pass-through of the USB-C™ power supply up to 60 W, means that it canò power the device via a USB-C™ PD power adapter with PD profile specifications from 5 V, 9 V, 15 V, 20 V.

In addition, the 3.2 Gen 1 Type-A USB port supports data transfer speeds à up to 5 Gbps, offering simplified access to USB flash drivesà. The 2.0 Type-A è USB port for keyboard/mouse connection as well as avoiding signal interference.

Thanks to the portable and lightweight design, è can carry it anywhere and maintain the necessary connection capabilities with a single cable. It is the perfect solution to maximize the functionality à of the smart device.



Features

• Mini dock USB-C™ multifunctional for laptops, smartphones and USB-C&trade game consoles;


• Supports USB Power Delivery 2.0 for charging up to 60 W (è additional USB-C™ PD power adapter required)


• Supports 4 K resolutions up to 3840 x 2160 at 30 Hz


• Supports modeà Samsung DeX or Huawei Desktop

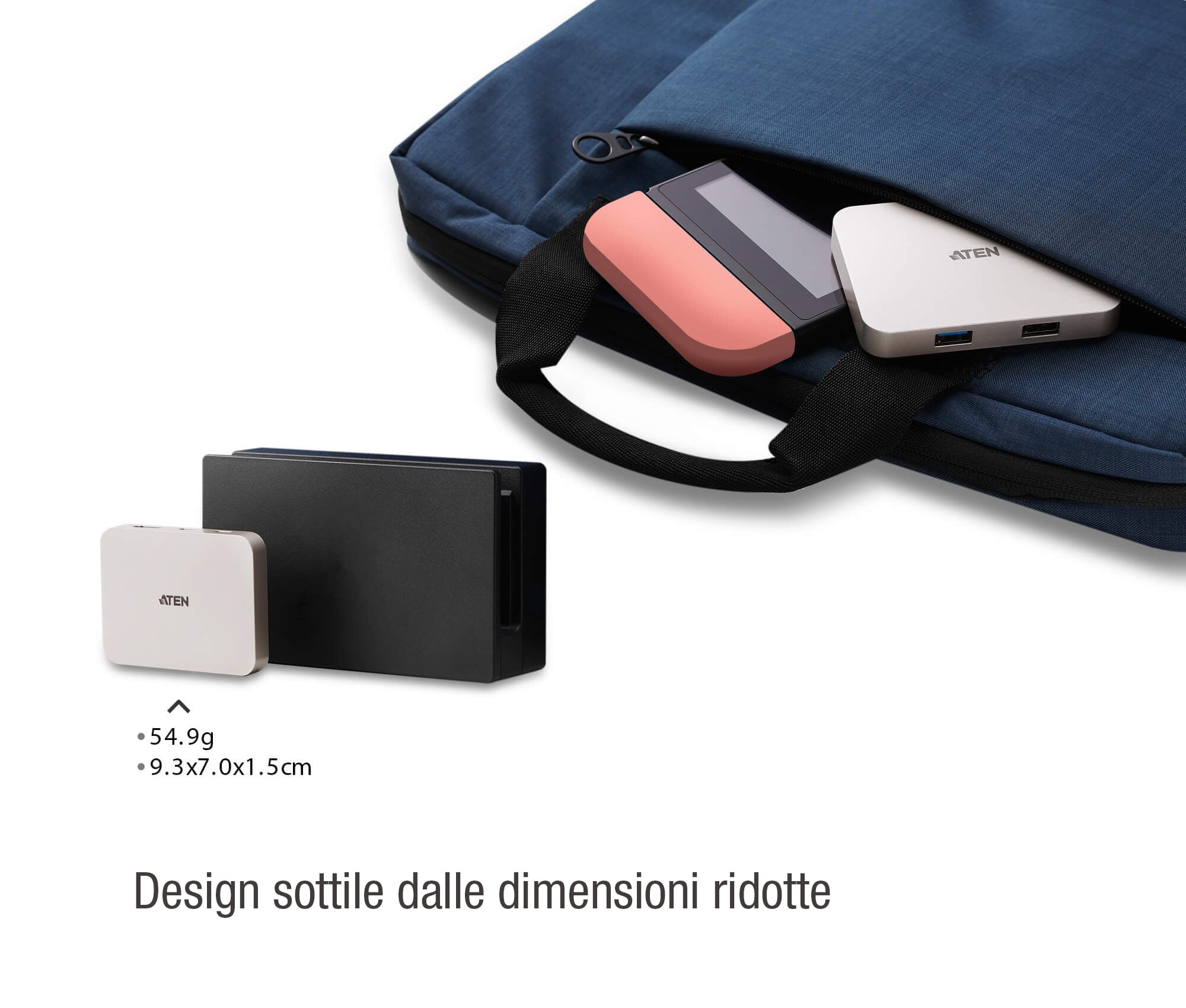

• Lightweight design with compact dimensions: elegant design and ultra reduced to make it easier to transport



Specifications

• USB-C™ computer connection cable from 50 cm

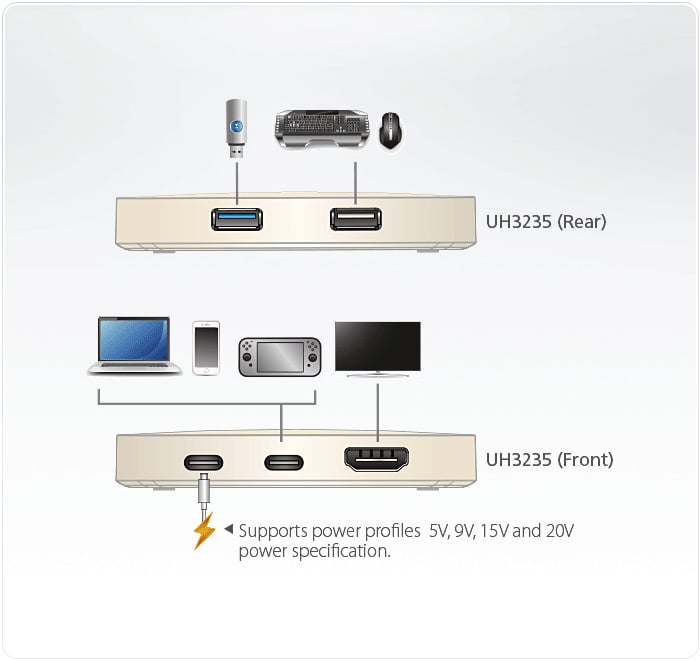

• Computer connector: 1 USB-C™ female (black)


• Device connectors: 1 USB 2.0 type A female (black)* and 1 USB 3.2 Gen 1 type A female (blue)**



*Supports a maximum output to 5 V, 0,3 A

**Supports a maximum output to 5 V, 0,7 A

• Video output connectors: 1 HDMI female (black)

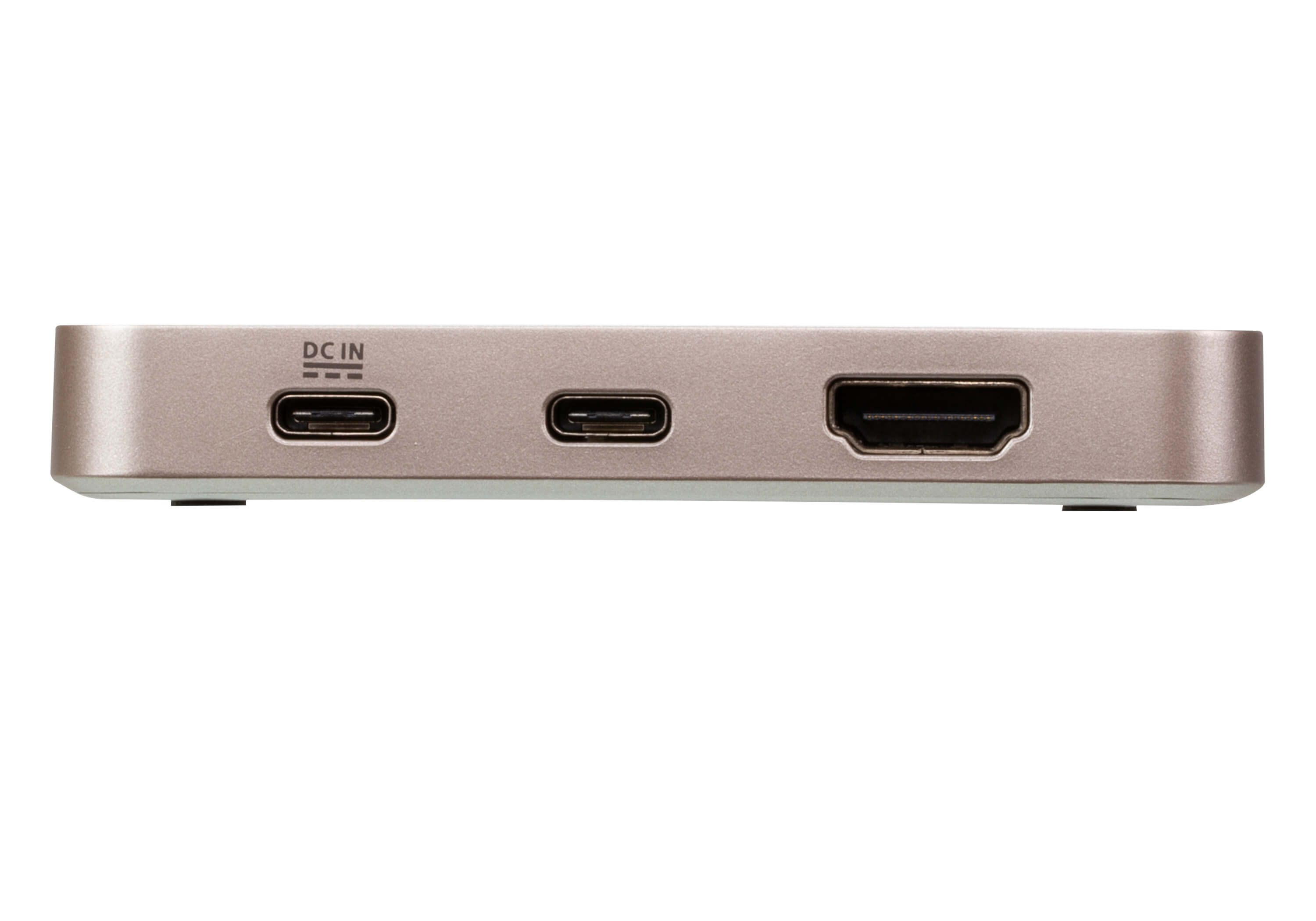

• Power connector: 1 input DC USB-C™ female*



*Supports Power Delivery 2.0 up to 60 W for charging, power profiles include: 5 V, 9 V, 15 V, 20 V (USB-C & trade; PD power supply required)

*For charging the mobile device, it is recommended to use a USB-C™ PD adapter from over 25 Watt Limited Power Source certificate (LPS)

• Video resolution: 3840 x 2160 at 30 Hz


• Consumption: 5 V BTU - 7,5 W BTU



Environmental information

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80 % relative humidity without condensation



Package contents

• IADAP UH- 3235 mini dock ultra USB-C™ 4 K with power pass-through


• USB-C&trade cable;


• User instructions
