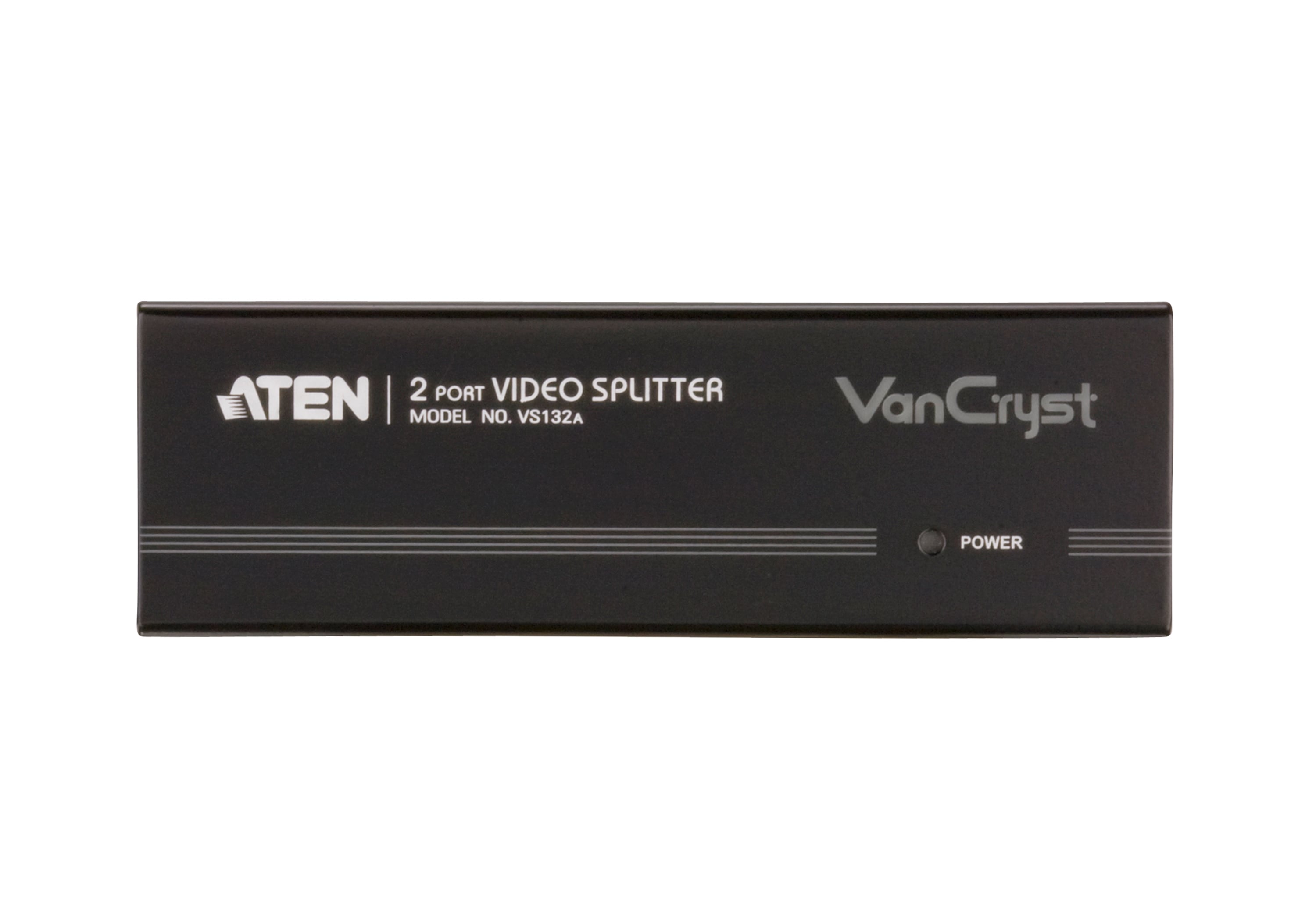

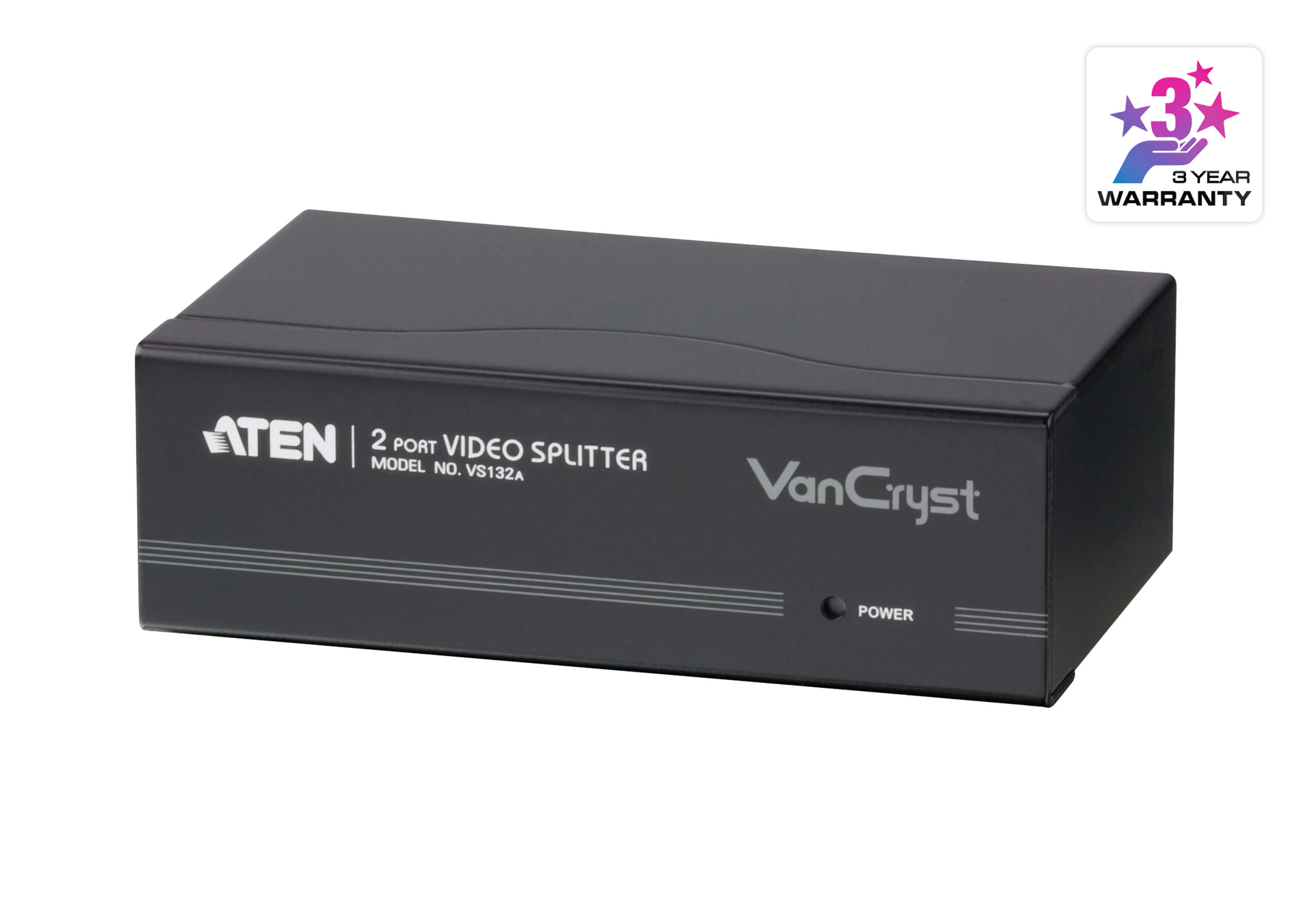

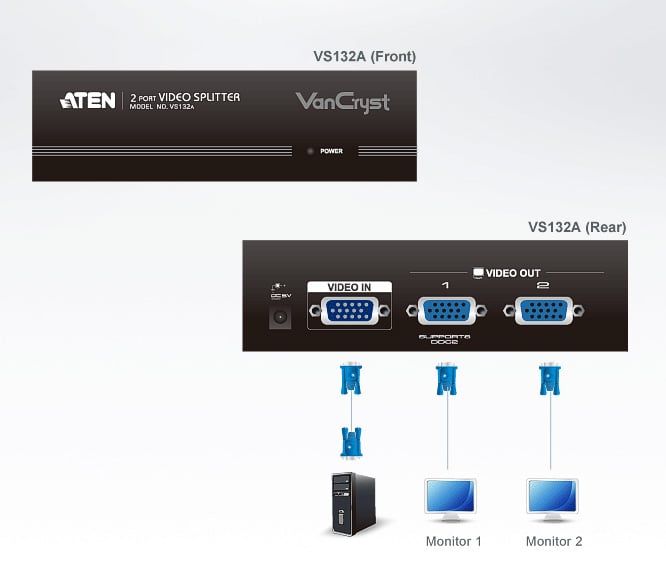

IDATA VS- 132 A è a video splitter and amplifier that duplicates a video signal from a source to 2 output devices. Connectable in cascade up to three levels, the VS 132 A provides up to 8 video signals, as well as extending the transmission distance to 30 m, making it an excellent solution for public transmission systems.
To transmit more ù di alta qualità video signals; VGA, XGA, SVGA, UXGA, QXGA, WUXGA and long-distance multisync without problems, IDATA VS- 132 A è the best choice.
Applications shall include:
- Finance: Remote view for stock quotes
- Education: Remote display of lessons in classrooms and classes
- Business: remote view of speeches in listening rooms, video conferences and demonstrations
Features- From a video entry to 2 video outputs
- Maximum bandwidth: 450 MHz
- Possibility to connect in cascade up to 3 levels – offers a maximum of 8 video signals
- Long distance transmission up to 30 m *
- Superior video quality – up to 2048 x 1536
- Supports VGA, XGA, SVGA, UXGA, QXGA, WUXGA and Multisync monitors
- Built-in 1,5 GHz amplifier to ensure the high fideltà video system
- Completely made of metal
* Video content transmitted at very long distances through a VGA cable may experience a slight degradation of the signal and qualityà video.

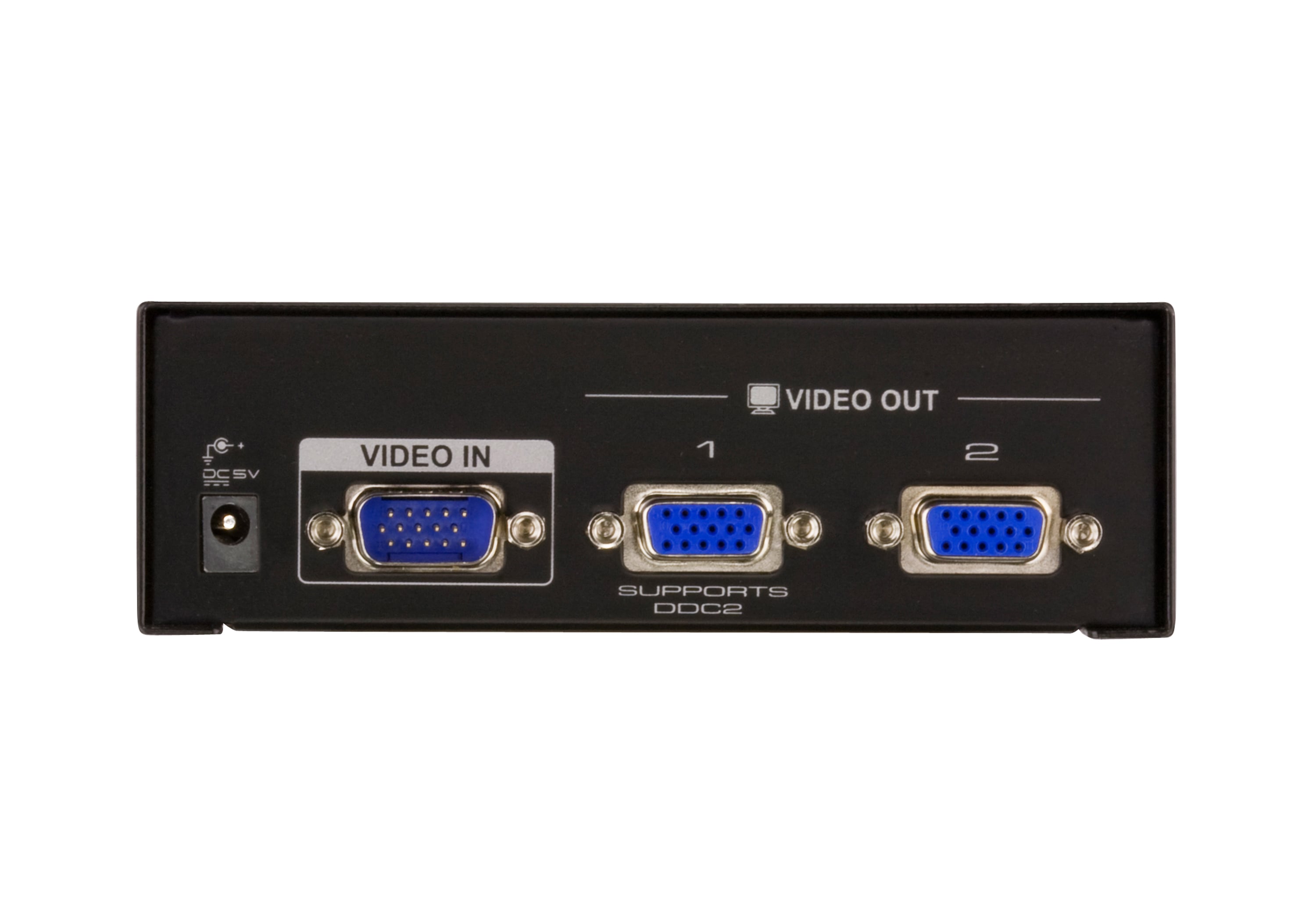

Technical specifications- Interface 1 x HDB- 15 male (blue)
- Impedance 75 Ω
- Maximum distance 1,8 m
- Interface 2 x HDB- 15 female (blue)
- Impedance 75 Ω
- Bandwidth max. 450 MHz
- Maximum resolution up to 2048 x 1536
- Max. distance to 30 m
- Connector: 1 x CC jack
- Consumption: 5 V CC, 0,78 W
Environmental features- Operating temperature: 0 - 50 °C
- Storage temperature: - 20 - 60 °C
- Humidità: 0 - 80 % relative humidity without condensation
Dimensions- Width: 13,00 cm
- Depthà: 7,51 cm
- Height: 4,40 cm
CertificationsPackage contents- 1 x Video splitter VS 132 A
- 1 x Power supply 0 AD 6 - 1005 - 10 EG
- 1x User guide
