Switch Audio Video HDMI 8 ports with IR remote control - ATEN IDATA VS- 0801 H

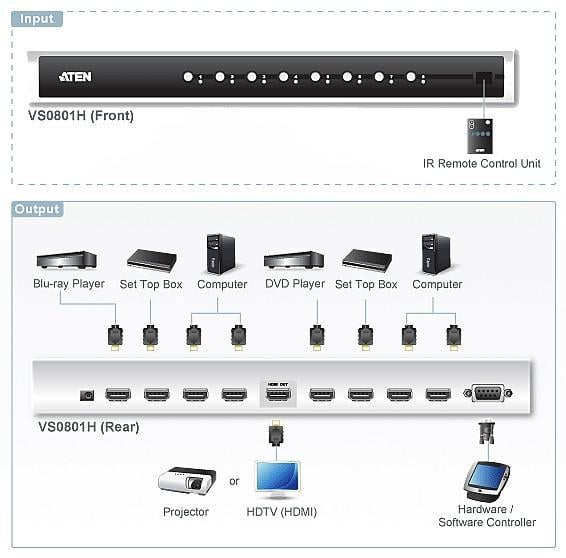

With the spread of HDMI devices in the home theater market, the need for simultaneous access to more ù HDMI video audio sources becomes more and more important. This device offers a simple and cost-effective way to add functionality à HDMI to your home theater system allowing you to easily switch between eight HDMI audio/video sources (e.g. an HD camera, a satellite receiver, an HD-DVD or Blu-ray player, a home theater PC, a media player streaming standalone or a video game console etc.) connected to the HDMI screen.

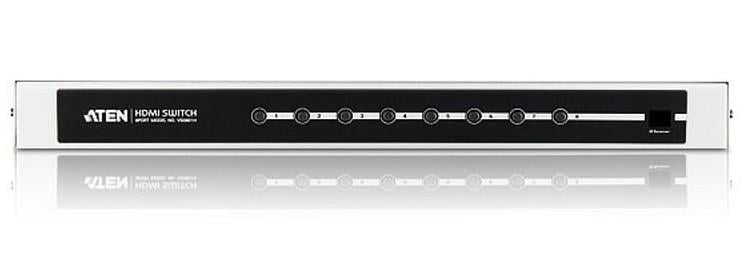

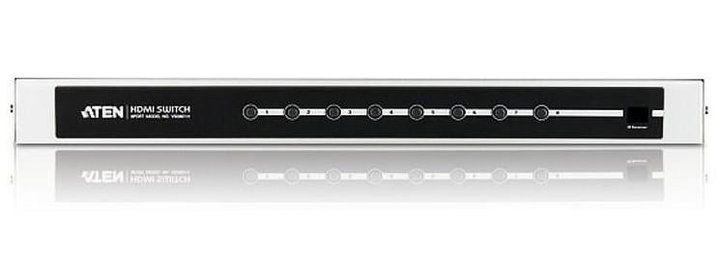

The remote control and convenient buttons on the front panel allow you to switch quickly and easily from one HDMI source to the other, while the LEDs immediately indicate the source device. In addition, for a complete integration, the RS- 232 è standard control via the RS- 232 bidirectional serial port of the VS 0801 H, which allows you to control the switch from an advanced controller, a PC and/or a home automation/home theater software package.



Features

• Connects up to eight HDMI sources to a single HDMI screen


• Quick and easy switching between HDMI sources via front panel buttons or infrared remote control


• RS- 232 bidirectional built-in serial port for state-of-the-art system control


• Supports Dolby True HD and DTS HD Master Audio


• Update frequency up to 60 Hz


• Long distance transmission – up to 20 m (24 AWG)


• Superior video quality - HDTV resolution from 480 p, 720 p, 1080 i, 1080 p (1920 x 1080); VGA, SVGA, SXGA, UXGA and WUXGA (1920 x 1200)


• HDMI (3 D, Deep Color)


• Plug-and-play: does not require software installation


• DDC compatible


• HDCP 1.1 compatible


• The Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to the remote control


• Velocità signal up to 2,25 Gbit for display support to 1080 p

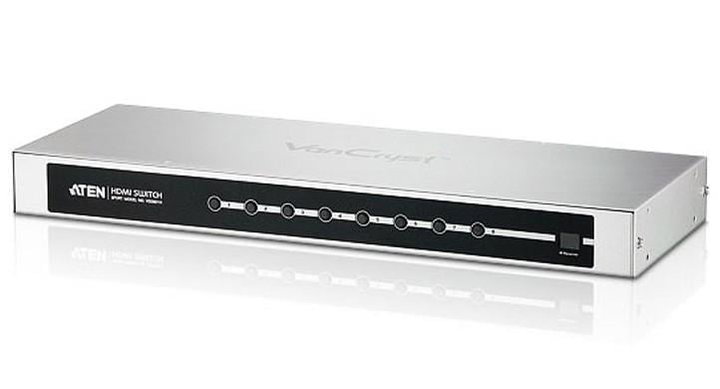

• Completely made of metal


• Switching on detection: when an HDMI source is switched off, the VS 0801 H automatically switches to the next on source


• It is an easy and inexpensive way to add 8 HDMI inputs to your home theater system


• Installed to rack



Technical specifications

• Video input: 

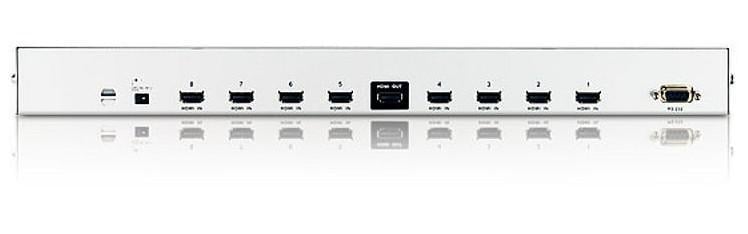

- Interface 8 x HDMI type A female (black)

- Impedance 100

- Maximum distance 1,8 m

• Video output: 



- Interface 1 x HDMI type A female (black)

- Impedance 100

• Video 



- Max. frequency data & 6,75 Gbps (2,25 Gbps per lane)

- Pixel clock max. 225 MHz

- Conformityà HDMI (3 D, Deep Color)

- HDCP conform

- CEC (Consumer Electronic Control)

- Maximum resolution up to 1080 p

- Max. distance to 15 m

• Audio:



- Input 8 x HDMI type A female (black)

- output 1 x HDMI type A female (black)

• Control: 



- RS- 232 Connector: 1 x DB- 9 female (black)

- Velocità in baud and protocol: 19200 , bit data: 8 , Bit stop: 1 , Parità: No, flow control: No



Feeding

• Connector: 1 x CC jack


• Consumption: 5,3 V CC, 3,71 W



Environmental features

• Operating temperature: 0 - 50°C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80 % relative humidity without condensation



Dimensions

• Width: 43,70 cm


• Depthà: 15,97 cm


• Height: 4,40 cm



Certifications

• CE


• RoHS


• RAEE



Package contents

• 1 x HDMI switch to 8 ports VS 0801 H


• 1 x Infrared remote control


• 1 x Power supply 0 AD 6 - 1605 - 24 EG


• 1 x Mounting kit


• 1x User guide
