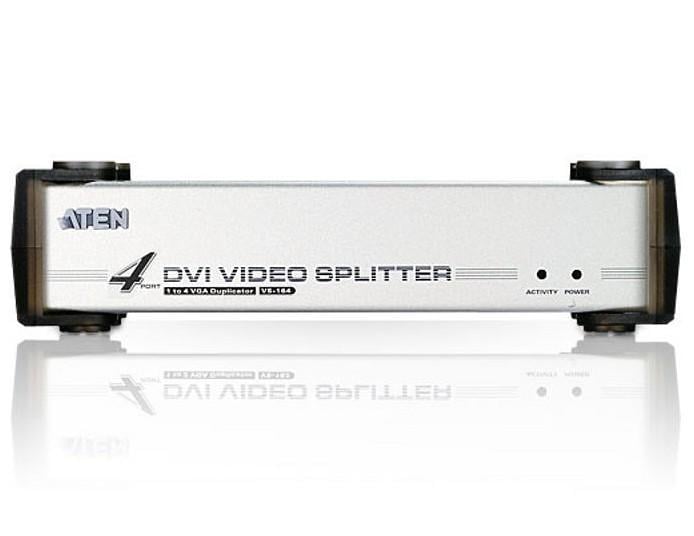

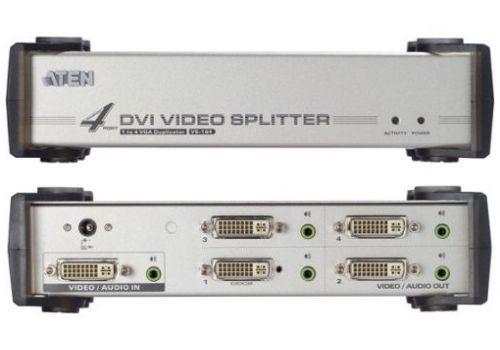

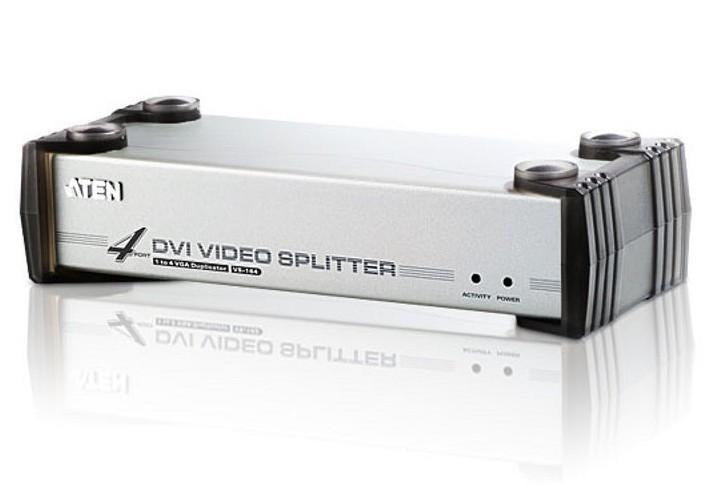

The video splitter Aten VS 164 provides DVI and audio video signals in input to 4 video and audio DVI outputs, through duplication and amplification. An ideal solution for any type of environment, class or advanced computer user.
Features- Connect computers equipped with DVI graphics cards to more ù DVI compatible monitors or projectors
- Fully compliant with digital and analog DVI
- Supports DDWG (Digital Display Working Group) standard for DVI compatible monitors
- DDC/CI support, allows color adjustment, brightness, contrast and other settings via the LCD monitor user interface equipped with DDC/CI
- With speaker sockets

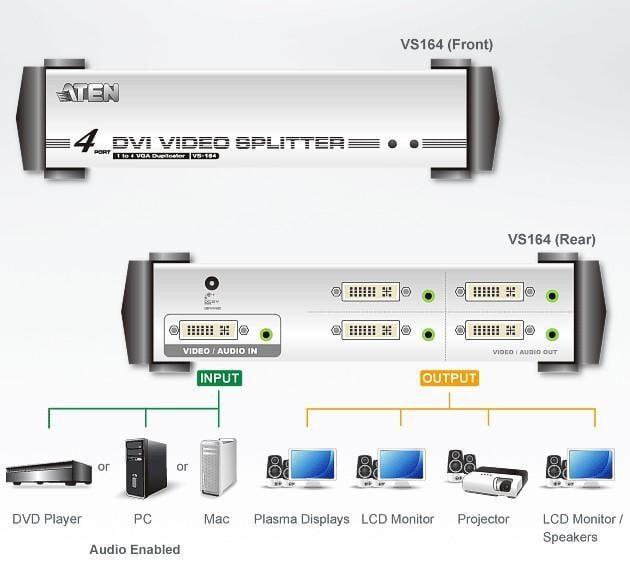

- Possibility to connect in cascade up to 3 levels: offers a maximum of 64 video signals
- Waterfall connection distance: from source to device - 1,8 m; from device to device - 5 m; from device to screen - 5 m
- Installation takes minutes
- Keep the highest possible video resolution DVI Single Link (up to 1920 x 1200)
- DDC, DDC 2 , DDC 2 B compatible (only 1 port)
- HDCP Conforms
- Supported operating systems: Windows 2000 , Windows XP, Linux, Mac and Sun

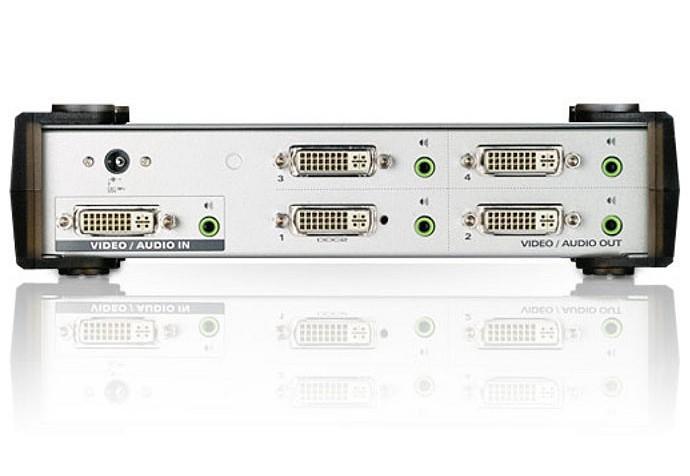

Technical specifications- Interfaces 1 x DVI-I female (white)
- Impedance 100
- Maximum distance 1,8 m
- Interfaces 4 x DVI-I female (white)
- Impedance 100
- Max. frequency data & 6,75 Gbps (2,25 Gbps per lane)
- Pixel clock max. 225 MHz
- HDCP conform
- Maximum resolution up to 1920 x 1200
- Max. distance to 5 m
- Input 1 x Mini stereo jack female (green)
- output 4 x mini stereo jack female (green)
Feeding- Connectors: 1 x CC connector
- Consumption: 5,3 V CC, 4,0 W
Environmental features- Operating temperature 0 - 50 °C
- Storage temperature -20 - 60°C
- Humidità 0 - 80 % relative humidity, without condensation
Dimensions - Width: 21.00 cm
- Depthà: 8.80 cm
- Height: 5.55 cm
Package contents- 1 Aten VS 164
- 1 power supply 0 AD 6 - 1605 - 24 EG
- 1 user guide
