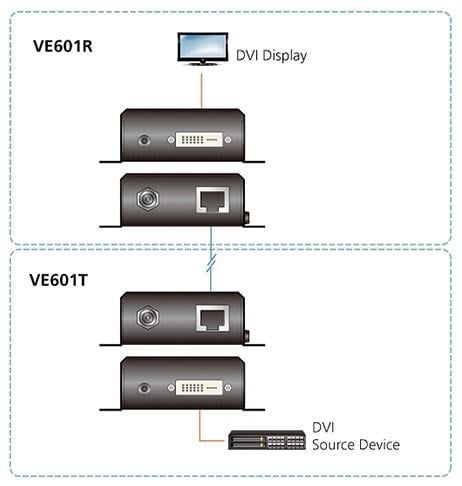

The IDATA VE- 601 DVI HDBaseT-Lite è extends a DVI 1080 p display up to 70 meters with an Ethernet cable. This combination of ATEN technology and HDBaseT also supports sharing of 1920 x 1200 media up to 40 meters away, offers a simple, adaptable and affordable solution for any professional audio installation.
It is the perfect solution for professional video audio installations that require protection from video signal interference, such as in medical and military installations. With its lightweight and easy to assemble design, in addition to the non-slip CC jack lock mechanism, IDATA VE- 601 can be installed virtually anywhere, ensuring a reliabilityà infallible.
Features- Connectivityà HDBaseT – extends a DVI connection to 70 meters with a single Ethernet cable
- HDBaseT – anti-locking resists signal interference during video transmission using HDBaseT technology
- rack mount possible
Technical specifications- Interface VE 601 T: 1 x DVI-D female (white)
- Impedence VE 601 T: 100
- Max. distance VE 601 T: up to 1,8 m
- Interface VE 601 R: 1 x DVI-D female (white)
- Impedence VE 601 R: 100
- Max. frequency data & 10,2 Gbps (3,4 Gbps per lane)
- Pixel clock max. 340 MHz
- conformità DVI (3 D, Deep Color)
- HDCP 1.4 Conforms
- Maximum resolution/distance up to 1920 x 1200 to 35 m (Cat 5 and/ 6) / 40 m (Cat 6 a); 1080 p a 60 m (Cat 5 and/ 6) / 70 m (Cat 6 a)
- 1 x CC jack connector with lock
- Consumption: VE 601 T: 5 V CC, 1,85 W; VE 601 R: 5 V CC, 4,23 W
Environmental features- Operating temperature: 0 - 50 °C
- Storage temperatures: - 20 °C - 60 °C
- Humidità: 0 %- 80 % of relative humidity without condensation
Dimensions- Width: 8,70 cm
- Depthà: 10,30 cm
- Height: 3,00 cm
CertificationsPackage contents- 1 x HDBaseT-Lite VE 601 T Extensor Transmitter
- 1 x HDBaseT-Lite VE 601 R Extensor
- 2 x Power supplies 0 AD 6 - 1 F 05 - 26 EG
- 1x User manual
