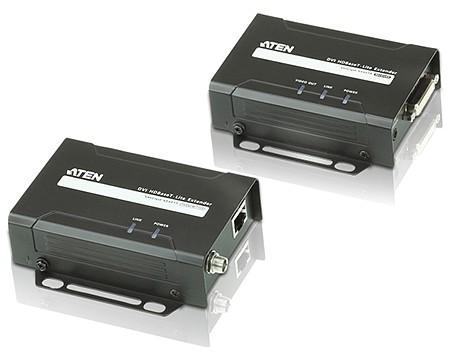

DVI HDBaseT-Lite Class B transmitter up to 70 m - ATEN IDATA VE- 601 T

The IDATA VE- 601 DVI HDBaseT-Lite è extends a DVI 1080 p display up to 70 meters with an Ethernet cable. This combination of ATEN technology and HDBaseT also supports sharing of 1920 x 1200 media up to 40 m away, offers a simple, adaptable and affordable solution for any professional audio installation.

It is the perfect solution for professional video audio installations that require protection from video signal interference, such as in medical and military installations. With its lightweight and easy to assemble design, in addition to the non-slip CC jack lock mechanism, the IDATA VE- 601 can be installed virtually anywhere, ensuring a reliabilityà infallible.

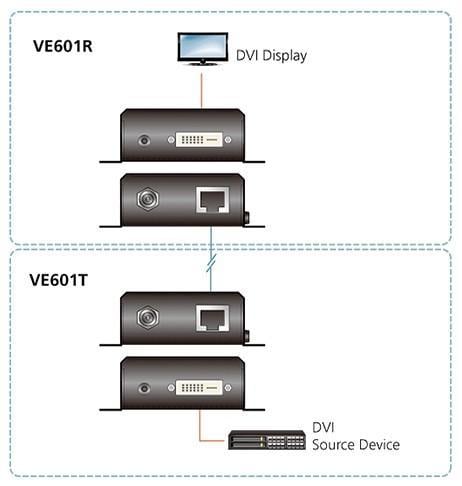

* HDBaseT compatible receivers: VE 601 R, VE 801 R



Features

• Connectivityà HDBaseT – extends a DVI connection to 70 meters with a single Ethernet cable


• HDBaseT – anti-locking resists signal interference during video transmission using HDBaseT technology


• rack mount possible



Technical specifications

• Video input:

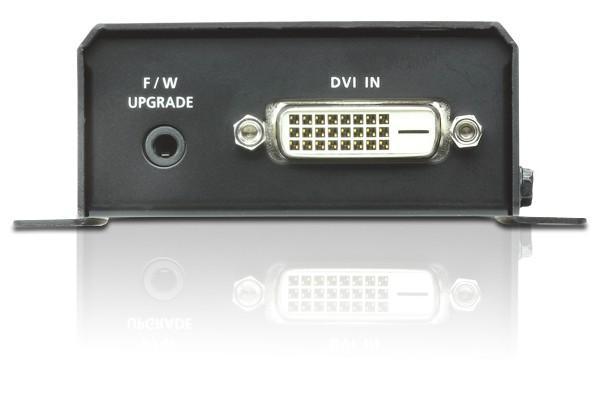

- Interface: 1 x DVI-D female (white)

- Impedance: 100

- Max. distance to 1,8 m

• Video: 



- Max. frequency data & 10,2 Gbps (3,4 Gbps per lane)

- Pixel clock max. 340 MHz

- Conformityà DVI (3 D, Deep Color)

- HDCP 1.4 Conforms

- Maximum resolution/distance up to 1920 x 1200 to 35 m (Cat 5 and/ 6) / 40 m (Cat 6 a); 1080 p a 60 m (Cat 5 and/ 6) / 70 m (Cat 6 a)

• Power supply: 

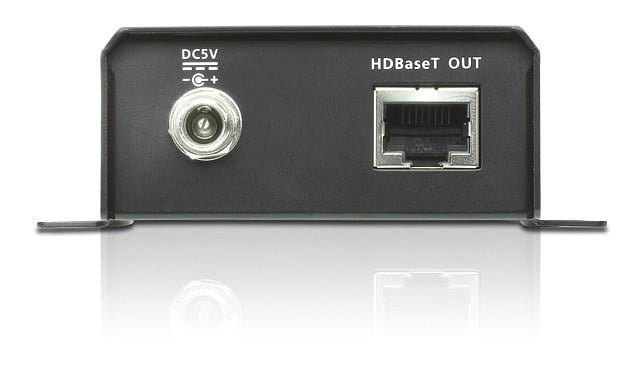

- Connector   1 x CC jack with lock

- Consumption 5 V CC, 1,85 W



Environmental features

• Operating temperature: 0 - 50 °C


• Storage temperature: - 20 °C - 60 °C


• Humidità: 0 %- 80 % of relative humidity without condensation



Dimensions

• Width: 8,70 cm


• Depthà: 10,30 cm


• Height: 3,00 cm



Certifications

• CE


• RoHS


• RAEE



Package contents

• 1 x HDBaseT-Lite DVI transmitter VE 601 T


• 1 x Power supply 0 AD 6 - 1 F 05 - 26 EG


• 1x User manual
