HDMI/Audio Cat 5 with wall plate 1080 p 40 m - ATEN IDATA VE- 807

The HDMI/Audio Cat 5 extender with MK VE 807 è plate designed to be mounted in a band junction box. Extends HDMI and audio signals up to 60 meters via Cat 5 and/ 6 cables and supports widescreen formats that guarantee excellent qualityà video.



The VE 807 can be powered on both the transmitter and receiver side using a second Cat 5 and/ 6 cable. The compact plate design of the VE 807 eliminates the footprint of the cables allowing a simple and tidy installation. Therefore, è a perfect solution for meeting rooms, museums and any setting that requires installation of equipment or cables in a way not visible to the public.



Features

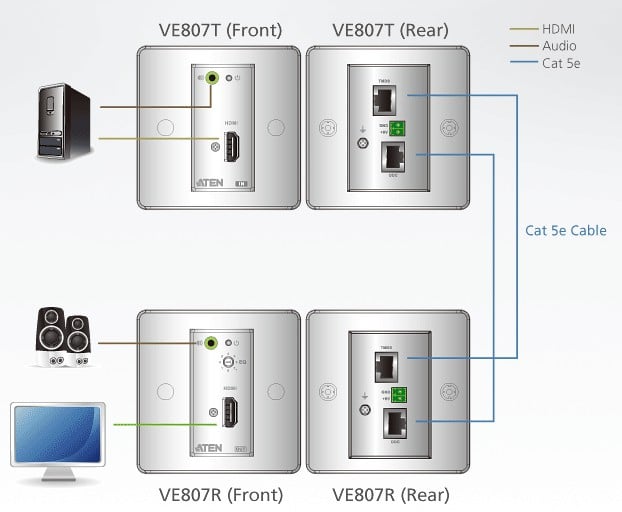

• Use two Cat 5 and/ 6 cables to connect to local and remote units, one to transmit video and the other to power*


• Powered remotely by the transmitter or receiver**


• Increase the distance between the HDMI source and the screen


• Supports quality à videos up to 1080 p at 60 Hz at a distance of 40 m; 1080 i at 60 Hz at a distance of 60 m


• HDMI (3 D, Deep Color); HDCP compatible


• Supports 8 equalization adjustment segments via switch


• Supports many screen formats


• Supports hot link


• Supports stereo audio


• Integrated ESD protection 8 KV/15 KV


• Plug-and-play with no necessary software installation


• LED connection power indicator/state



* A second Cat 5 and/ 6 è connection cable required for remote power supply on transmitter or receiver

**In the package è there is a power adapter that can be used on both the transmitter and the receiver to remotely turn on the other unità



Video Input

• Interfaces: 1 x HDMI type A female (black)


• Impedance: 100


• Max. distance: 1,8 m



Video output

• Interfaces: 1 x HDMI type A female (black)


• Impedance: 100



Video

• Maximum frequency of data: 6,75 Gbps (2,25 Gbps per line) 


• Pixel clock max. 225 MHz 


• Conformità HDMI (3 D, Deep Color) HDCP compatible


• Maximum resolution/distance up to 1080 p to 40 m; 1080 i to 60 m



Audio

• Input: 1 x HDMI type A female (black)


• Output: 1 x HDMI type A female (black)



Consumption 

• 9 V CC, 2,9 W



Environmental features

• Operating temperature: 0 - 50°C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80 % relative humidity without condensation



Dimensions

• Width: 6,86 cm


• Depthà: 4,44 cm


• Height: 4,00 cm


• Front cover dimensions: 8,60 x 8,60 x 1,60 cm



Package contents

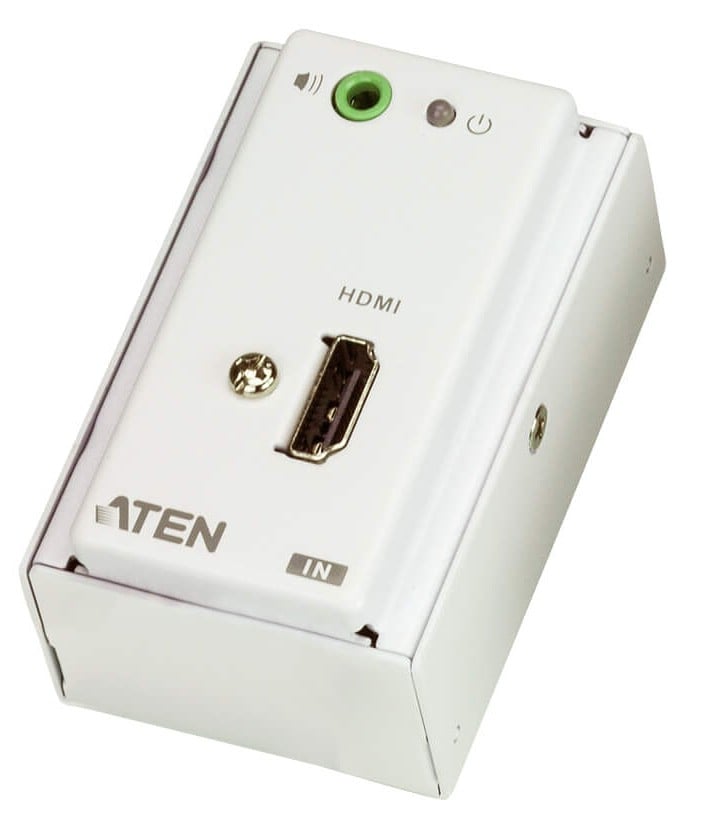

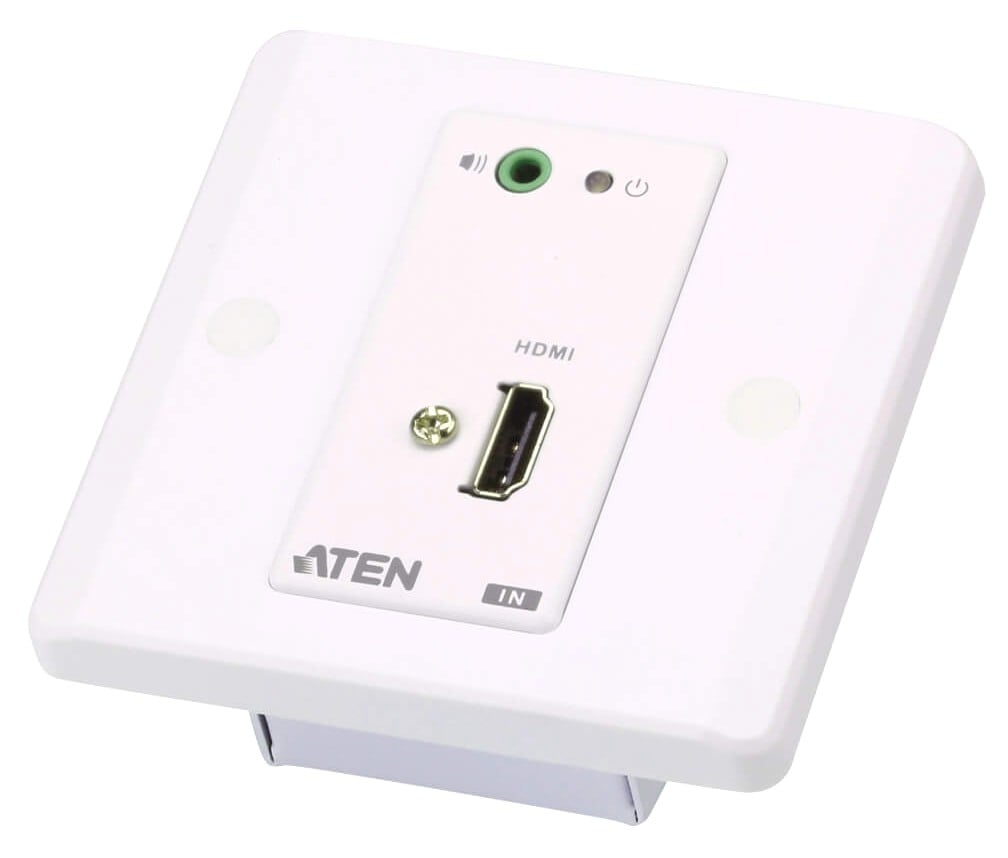

• 1 x VE 807 HDMI/Audio Cat 5 transmitter with wall plate MK

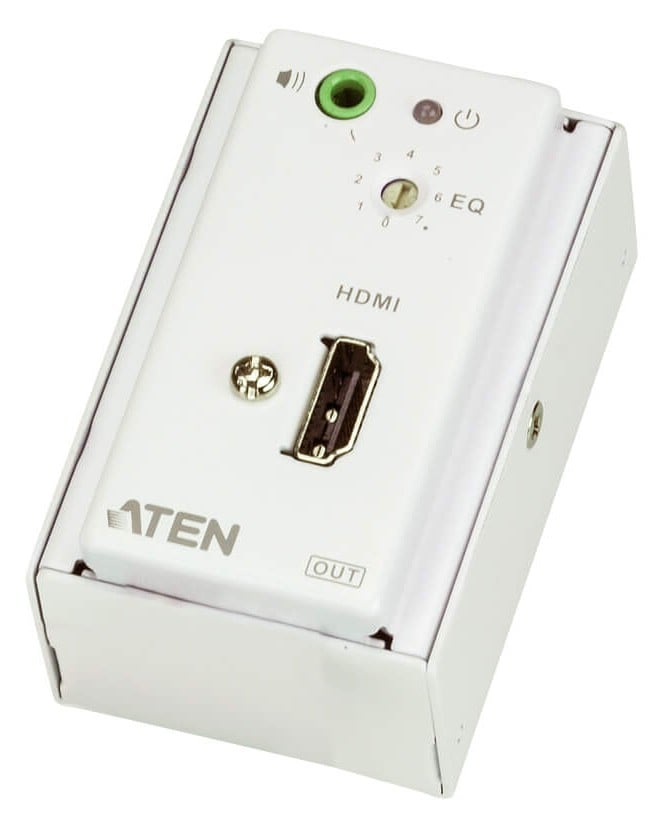

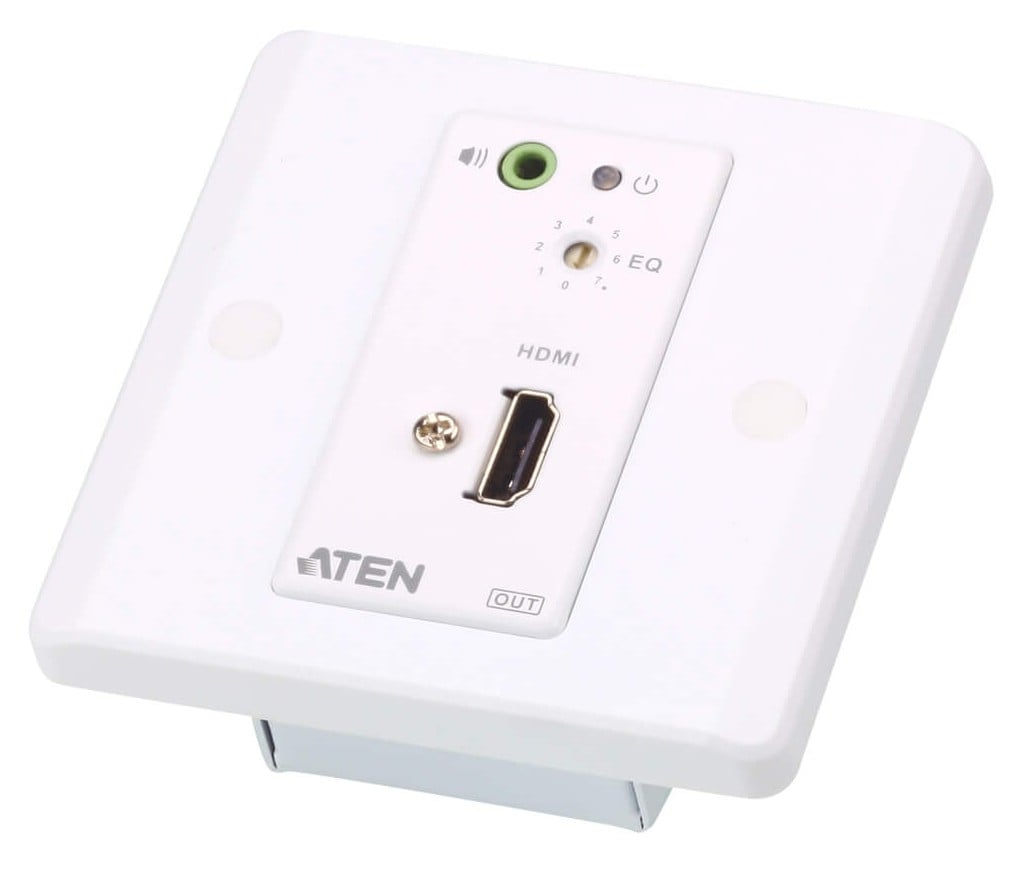

• 1 x VE 807 HDMI/Audio Cat 5 receiver with wall plate MK


• 1 x terminal block connector


• 1 x 0 AD 6 - 1909 - 06 EG power supply

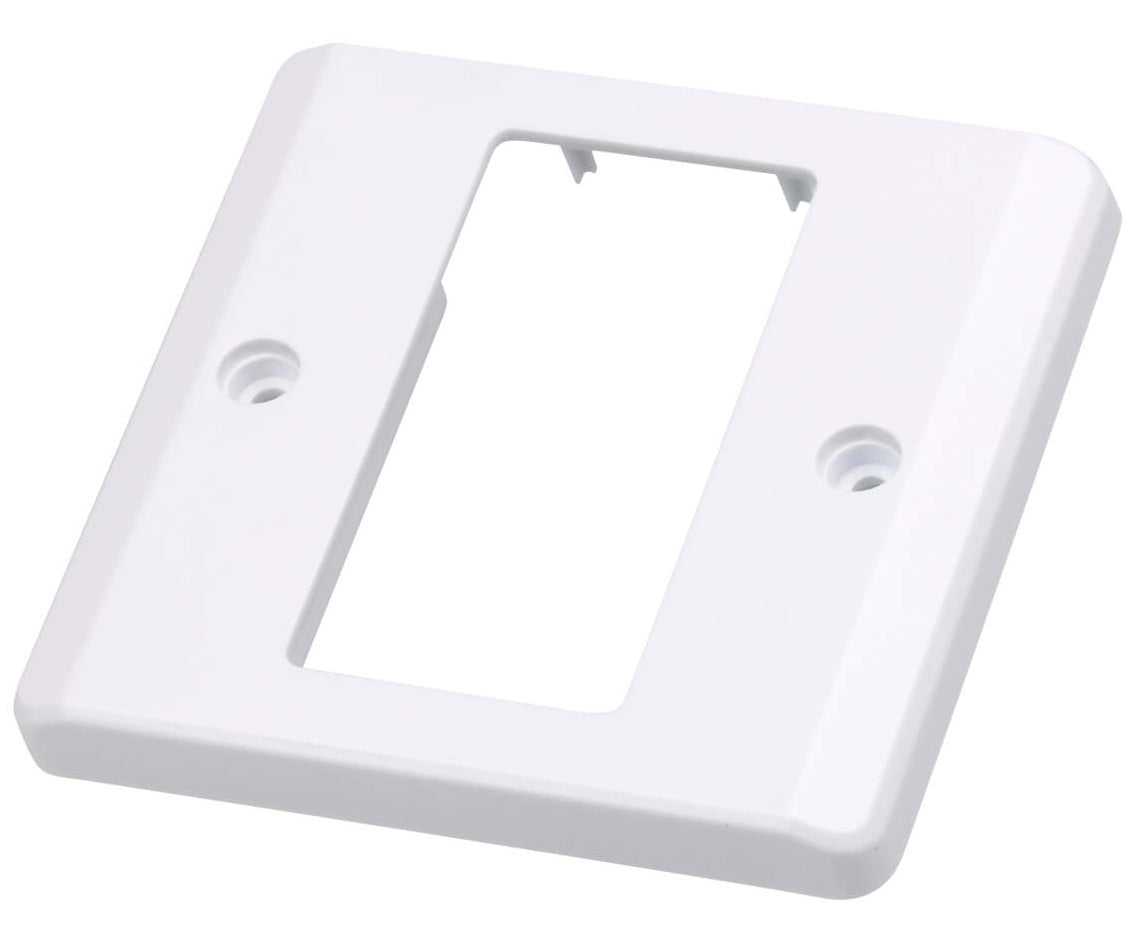

• 2 x wall plate cover type MK


• 8 x screw covers


• 1 x screw kit


• 1 x user instructions
