DisplayPort Receiver HDBaseT-Lite - Aten IDATA VE- 901 R

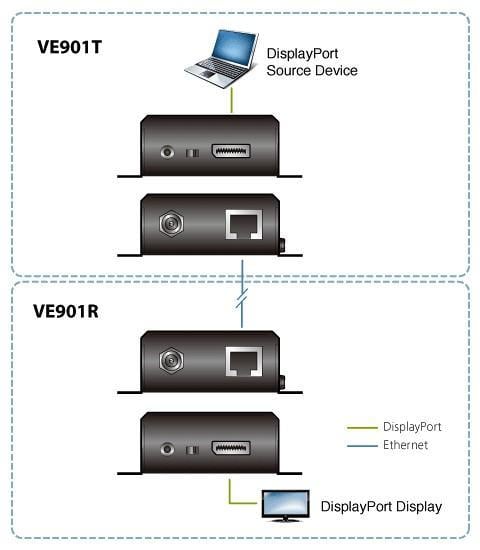

The DisplayPort HDBaseT-Lite Aten VE 901 è extends displayPort to 70 m using a Cat 6 / 6 a cable. This combination of ATEN technology and HDBaseT™ supports media sharing 4 K at a distance up to 40 m, offering a simple, adaptable and cost-effective solution for any professional A/V installation.

The DisplayPort HDBaseT-Lite Aten VE 901 è extender is the perfect solution for professional A/V installations that require protection from video signal interference, such as medical and military installations. Thanks to its lightweight and easy to mount design, and a non-slip CC jack lock mechanism, the VE 901 can be installed in different locations always ensuring tranquilityà thanks to its reliabilityà.



Features

• Connectivityà HDBaseT – extends the DisplayPort connection to 70 meters via a single Cat 6 / 6 cable to


• HDBaseT Anti-block – resists signal interference during video transmission using HDBaseT technology


• It has 3,3 V / 500 mA power output for power supply of auxiliary devices


• Installed to rack



Video output

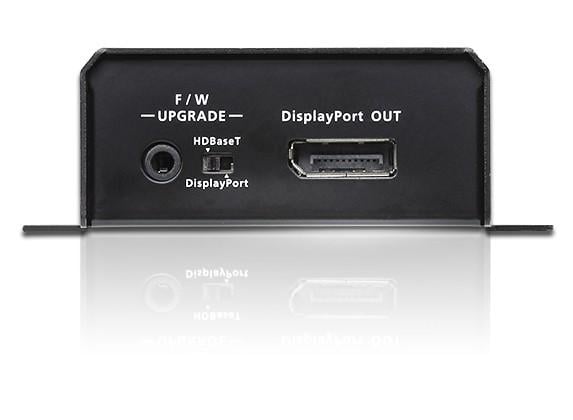

• Interfaces: 1 x DisplayPort female (black)


• Impedance: 100



Video

• Max. frequency data  10,2 Gbps (3,4 Gbps per line)


• Pixel clock max. 340 MHz


• Conformità DisplayPort (Deep Color, 4 K)


• HDCP compatible


• Resolution/Distance max.



up to 4 K to 35 m (Cat 5 and/ 6) / 40 m (Cat 6 a);

1080 p a 60 m (Cat 5 e/ 6) / 70 m (Cat 6 a)

* 4 K supported:

4096 x 2160 / 3840 x 2160 at 60 Hz (4 : 2 : 0 );

4096 x 2160 / 3840 x 2160 at 30 Hz (4 : 4 : 4 )



Audio

• Input: N/D


• Output: 1 x DisplayPort female (black)



Feeding

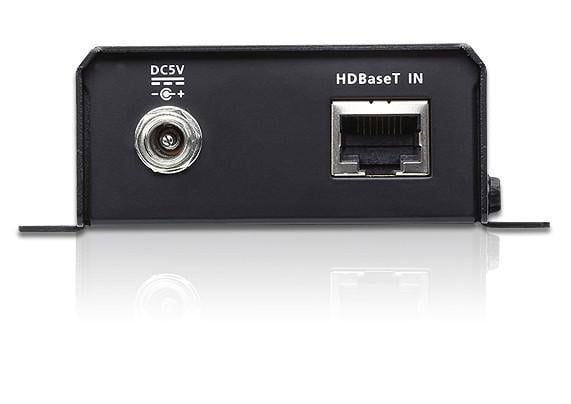

• Connectors: 1 x CC (Black) connector with lock


• Consumption: 5 V CC, 7,95 W



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80 % RH, without condensation



Dimensions

• Width: 10,06 cm


• Depthà: 8,70 cm


• Height: 3,00 cm



Package contents

• 1 x VE 901 R receiver DisplayPort HDBaseT-Lite


• 1 x 0 AD 6 - 1 F 05 - 26 EG power supply


• 1 x user instructions
