Switch Matrix 4 x 4 HDMI with Videowall and Scaler - ATEN IDATA VM- 5404 H

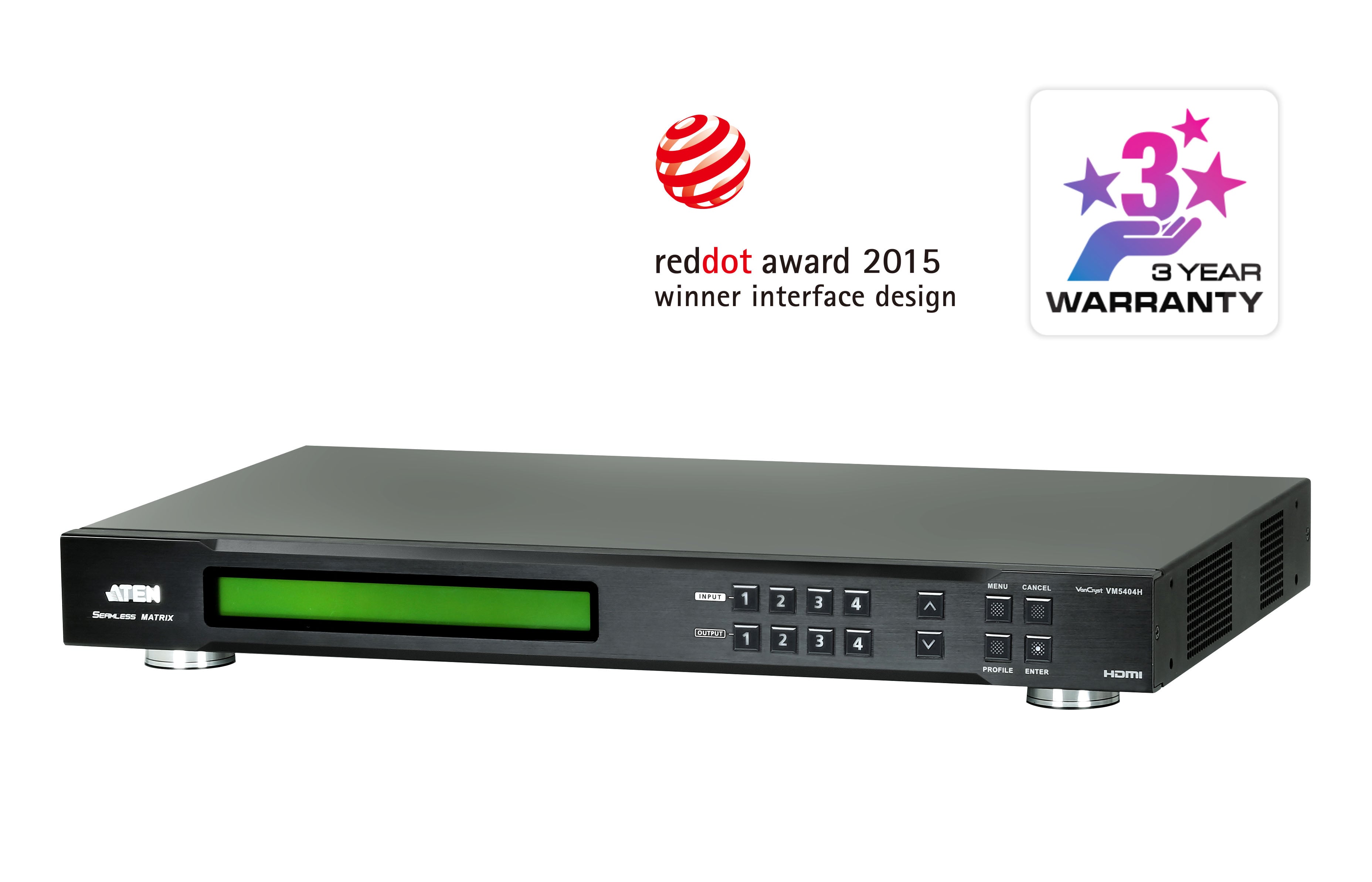

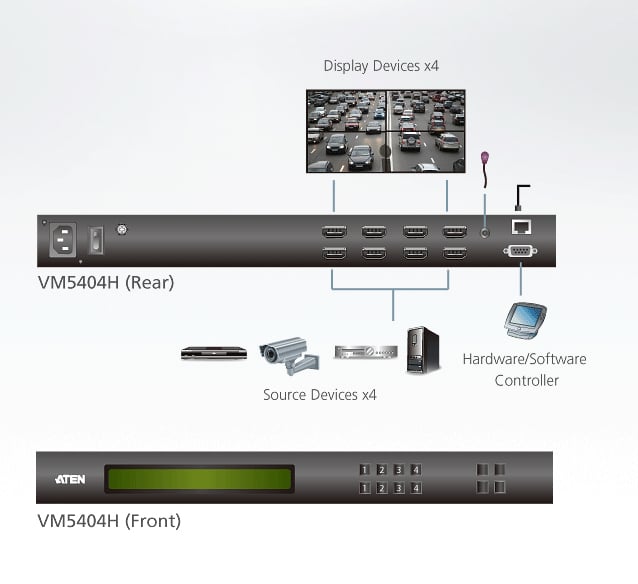

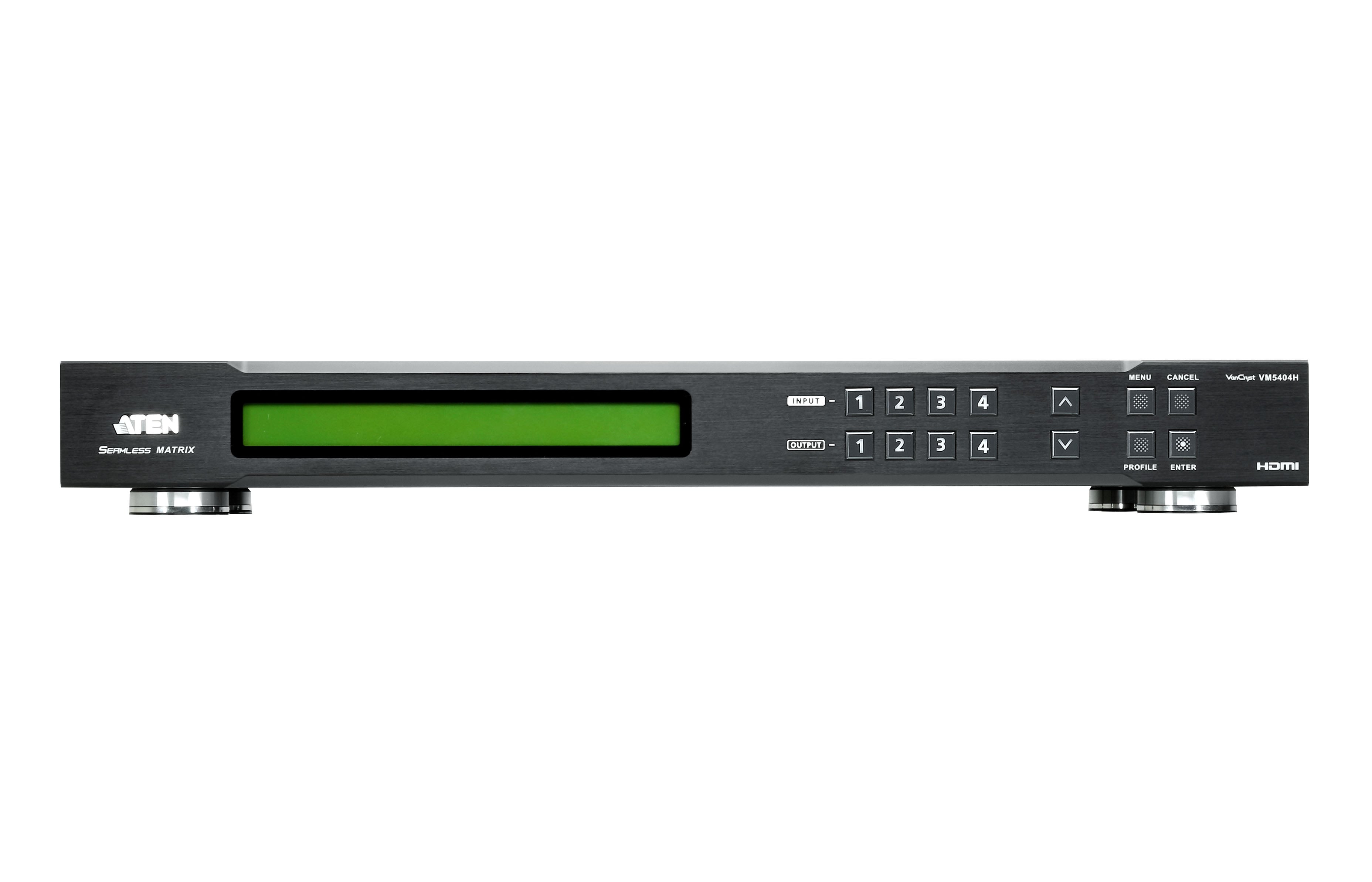

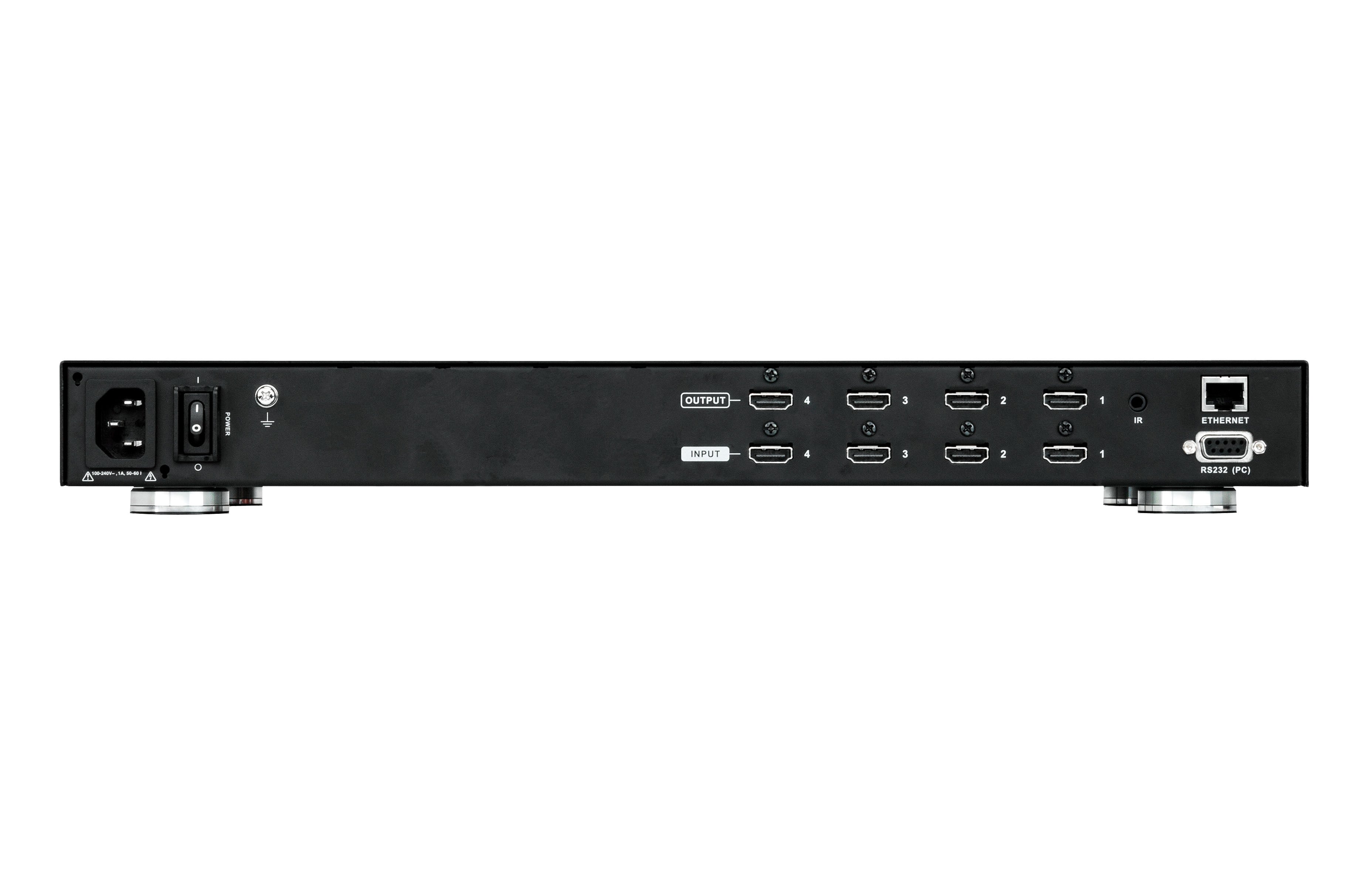

The IDATA VM- 5404 H 4 x 4 HDMI è a HDMI solution that offers a simple and accessible mode to address one of the 4 HDMI video sources on one of the 4 HDMI screens, with a quick view of all the connecting ports via the LCD of the front panel.

It includes the uniform switching function that uses a FPGA matrix architecture that guarantees the continuity à of video transmission, real-time control and stable signal transmissions. Thanks to an integrated high-performance scaler, the VM 5404 H easily converts different input resolutions into various output visualization resolutions, offering viewers the best qualityà possible for videos and images on all screens. The switch integrates the functionalityà video wall with an easy web graphic interface that allows you to create 8 connection profiles that can be customized in different video wall layouts.

It is the ideal solution for applications that require different HDMI screens with more ù HDMI sources to be set in different locations, for example for theatrical presentations, competitions, control centres and installations that require real-time reports.



Features

• Connect one of the 4 HDMI sources to one of the 4 HDMI screens


• Long distance transmission, supports up to 15 m (24 AWG)


• HDMI (3 D, Deep color); HDCP 1.4 compatible


• Seamless Switch – The ATEN FPGA design unifies video formats to provide continuous video streaming, real-time switching and stable signal transmissions


• Video Wall allows you to create custom layouts of video walls via intuitive web interface


• EDID Expert™ - select the best EDID settings to adjust the high quality ignition and display;


• Various control methods – system management via front panel buttons, IR, RS- 232 and Ethernet connections (Telnet/web user interface)


• It has an integrated high performance scaler for best image quality à


• Integrated bidirectional RS- 232 serial port for high-end system control


• Superior video quality - HDTV resolution of 480 p, 720 p, 1080 i and 1080 p (1920 x 1080) Full HD


• ESD protection for HDMI


• Supports Dolby True HD and DTS HD Master audio


• Support for Consumer Electronics Control (CEC)


• Supports IR signals for remote control


• Updated Firmware


• Installed to rack



Technical specifications

• Video input:



- 4 x HDMI type A female (black)

- Impedance  100

- Maximum distance 1,8 m

• Video output:



- 4 x HDMI type A female (black)

- Impedance  100

- Maximum distance 15 m

• Video



- Max. frequency data & 6,75 Gbps (2,25 Gbps per lane)

- Pixel clock max. 225 MHz

- Conformityà HDMI (3 D, Deep Color)

- HDCP 1.4 compatible

- CEC (Consumer Electronic Control)

- Maximum resolution up to 1080 p

- Max. distance to 15 m

• Monitoring



- RS- 232:

Connector: 1 x DB- 9 female (black);

Velocità in baud and protocol;

Velocità in baud: 19200 , bit data: 8 , Bit stop: 1 , Parità: No, flow control: No

- IR  1 x Mini stereo female jack (black)

• EDID  Settings



- Modelità EDID: Default / 1 / Remix / Customized (Supported EDID wizard procedure)

• Feeding



- Connectors: 1 x Tripolar AC sockets

- Input power load & 100 - 240 V AC; 50 - 60 Hz; 1,0 A

- Consumption: 120 V AC, 36,6 W; 230 V AC, 37,5 W

• Material: metal



Environmental features

• Operating temperature:  0 - 50 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80% relative humidityà without condensation



Dimensions

• Width: 43.24 cm


• Depthà: 26.23 cm


• Height: 4.40 cm


• Weight: 4.10 kg



Certifications

• CE


• RoHS


• RAEE



Package contents

• 1 x Switch matrix HDMI 4 x 4 with scaler VM 5404 H


• 1 x Power cable LIN 2 - 418 K-E 12 G


• 1 x IR remote control 2 XRT- 0106 G


• 1 x IR Receiver 2 XRT- 0003 G


• 1 x Mounting kit


• 1x User instructions
