IDATA HDMI-EA 74 K allows you to extract the audio signal from the HDMI source and convert it to multi-channel optical or analog digital audio.

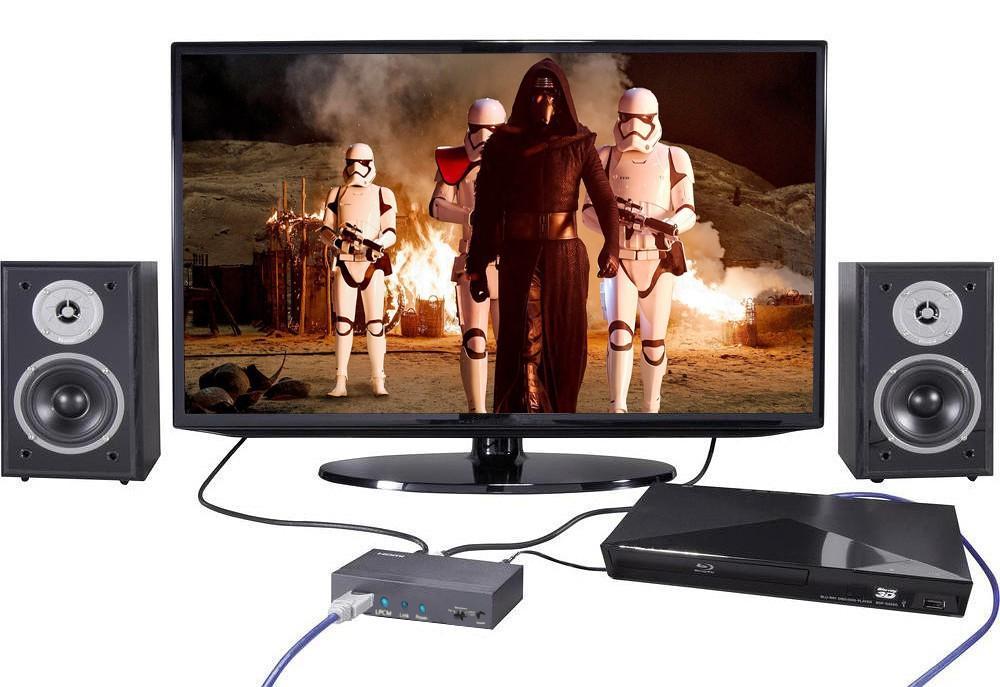

It allows you to easily send the HDMI video signal to a TV, projector or monitor and send the HDMI audio signal to a 7 channel system.
Features- Extract audio signal from an HDMI source
- Supports HDMI audio sampling frequency up to 192 kHz
- Supports optical audio sampling frequency S/PDIF audio up to 192 kHz
- Supports 4 outputs from 3,5 for multichannel analog audio
- Allows 4 resolutions Kx 2 K@ 30 Hz and 3 D reproductions
- HDMI, HDCP 1.2 and DVI 1.0
- Supports high-bit-rate HDMI audio (HBR)
- No HDMI connections required to receive audio on analog and optical outputs
- In and out can ` use HDMI cables up to 15 meters long to 1080 p 8 bit resolution, or 10 m to 1080 p 12 bit

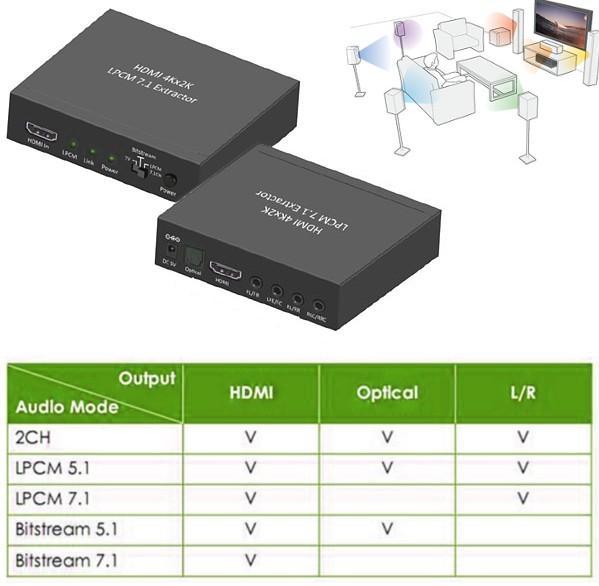

- Supports EDID audio function between LPCM 7.1 CH, TV EDID (outside) and Bitstream audio
- Supports CEC bypass
- Color: black
Technical specifications- Video bandwidth: 300 Mbps / 9 Gbps

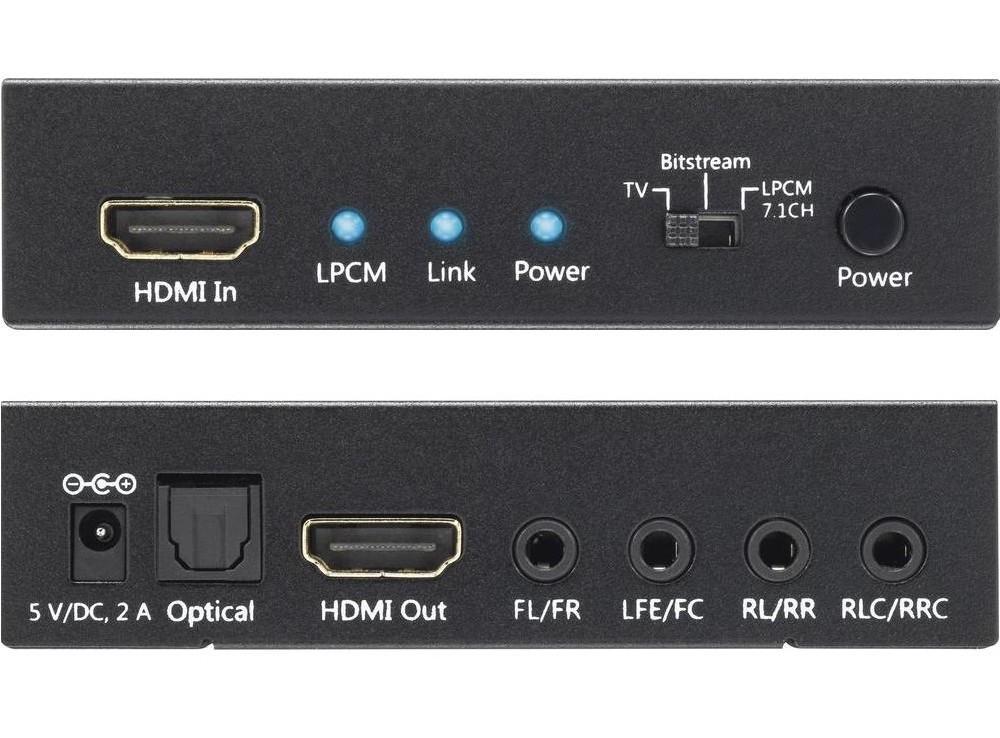

- Input doors: 1 x HDMI
- Output doors: 1 x HDMI, 1 x Optic, 4 x 3,5 Phone Jack
- HDMI Audio sampling frequency: up to 192 kHz
- Sample rate SPDIF Optical Audio: up to 192 kHz
- HDMI Audio format: LPCM 2 / 5.1 / 7.1 CH, Dolby Digital 2 ~ 5.1 CH, DTS 2 ~ 5.1 CH, Dolby Digital Plus, Dolby TrueHD, and DTS-HD Master Audio
- Optical Audio Format: LPCM 2 CH, Dolby Digital 2 ~ 5.1 CH, and DTS 2 ~ 5.1 CH
- Audio format L/R: 4 x output format Phone Jack; 7.1 CH Audio Analog
- Power supply included 5 V 2 A
Environmental features- Operating temperature: 0 .C~ 40 °C
- Storage temperature: -20˚C ~ 60˚C
Dimensions- Width: 95 mm
- Depthà: 82 mm
- Height: 23 mm
CertificationsPackage contents- Audio extractor IDATA HDMI-EA 74 K
- 5 V 2 A power supply
- Information sheet
