Audio extractor HDMI 1 in 1 out 8 K@ 60 Hz ARC LPCM 7.1 SPDIF 3.5 mm - Techly IDATA HDMI-EA 8 KSPD

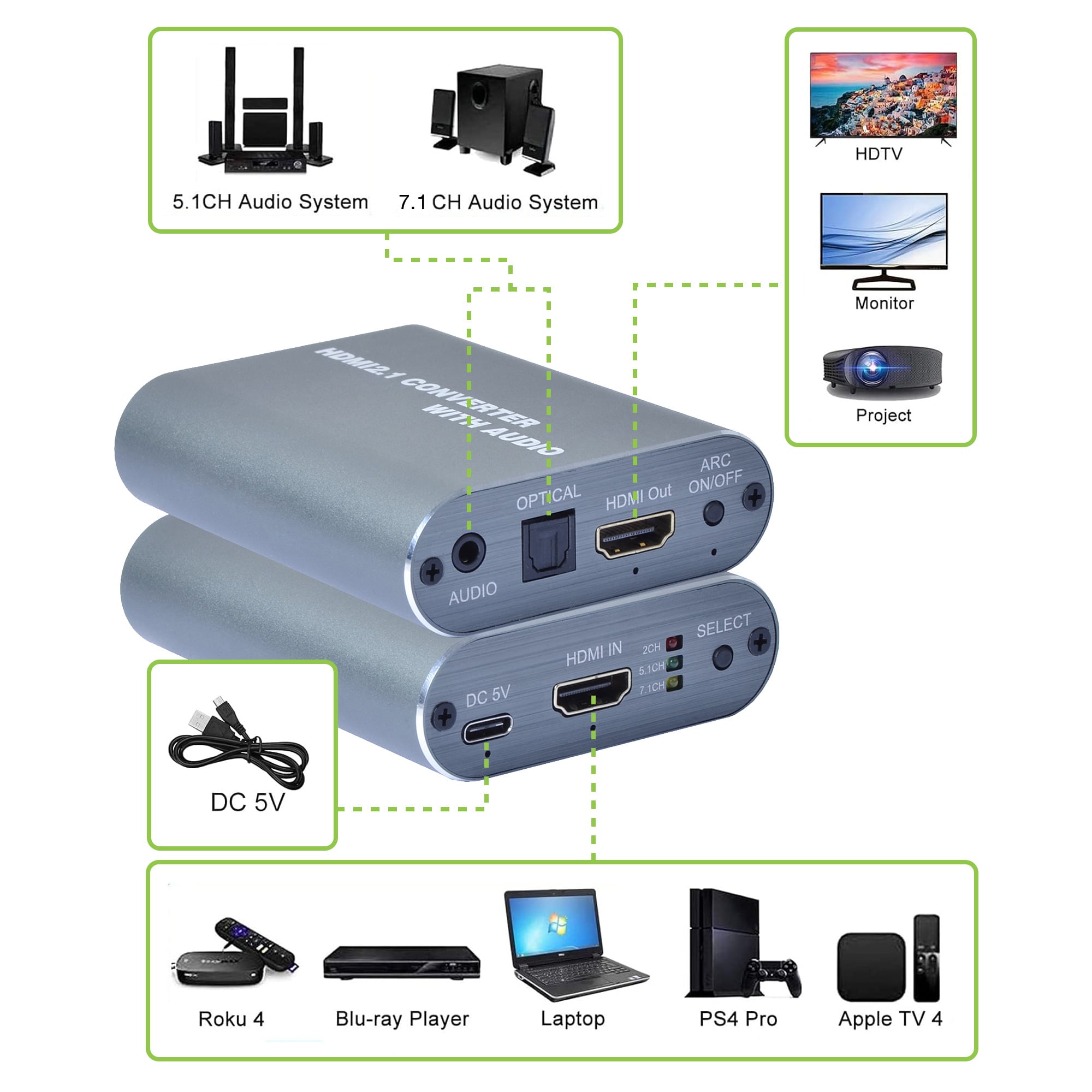

IDATA HDMI-EA 8 KSPD è an audio extractor HDMI 1 in 1 out that helps to connect the source device's signal to a display.

It can simultaneously separate the digital audio from the HDMI input and transfer it to the Toslink SPDIF outputs made of fiber optics or to the stereo jack 3.5 , with two-channel analog stereo signal after the internal DAC audio conversion that allows you to achieve a more faithful and pleasant sound.

Supports Digital Dolby AC- 3 , DTS, LPCM and other audio formats and can be used to connect to DVD players, Blu-ray HDMI players and many entertainment devices such as PS 2 , PS 3 , Xbox 360 , PC and much more.

Ideal for entertainment venues, home theater, data center control, conference rooms or multimedia rooms.



Technical specifications

• Maximum resolution: 8 K@ 60 Hz, 4 K@ 120 Hz


• Bandwidth 40 Gbps


• Supported HDMI frequency: LPCM up to 7.1 192 KHz 24 Bit, Dolby Digital, Dolby Digital Plus, Dolby MAT, Dolby TrueHD, Dolby Atmos (all formats), Dolby AC- 4 , DTS Digital, DTS Discrete, DTS Express, DTS HiRes Audio, DTS Master Audio


• Output format SPDIF Toslink: LPCM up to 5.1 96 KHz 24 Bit, Dolby Digital 5.1 , DTS HiRes Audio


• RCA stereo output format: PCM 2 CH


• HDCP 2.3


• HDMI 2.1


• Supports ARC (Audio Return Channel): when è connected, the analog output is not supported, but only the digital audio output


• Supports HDMI video output. At the same time supports fiber optic audio output and 3.5 stereo output mm


• 4 Modelità EDID audio selection (2 CH/ 5.1 CH/ 7.1 CH/TV)


• Equipped with practical LED panel status indicator


• Power supply not included; Supports 5 V 2 A



Connections

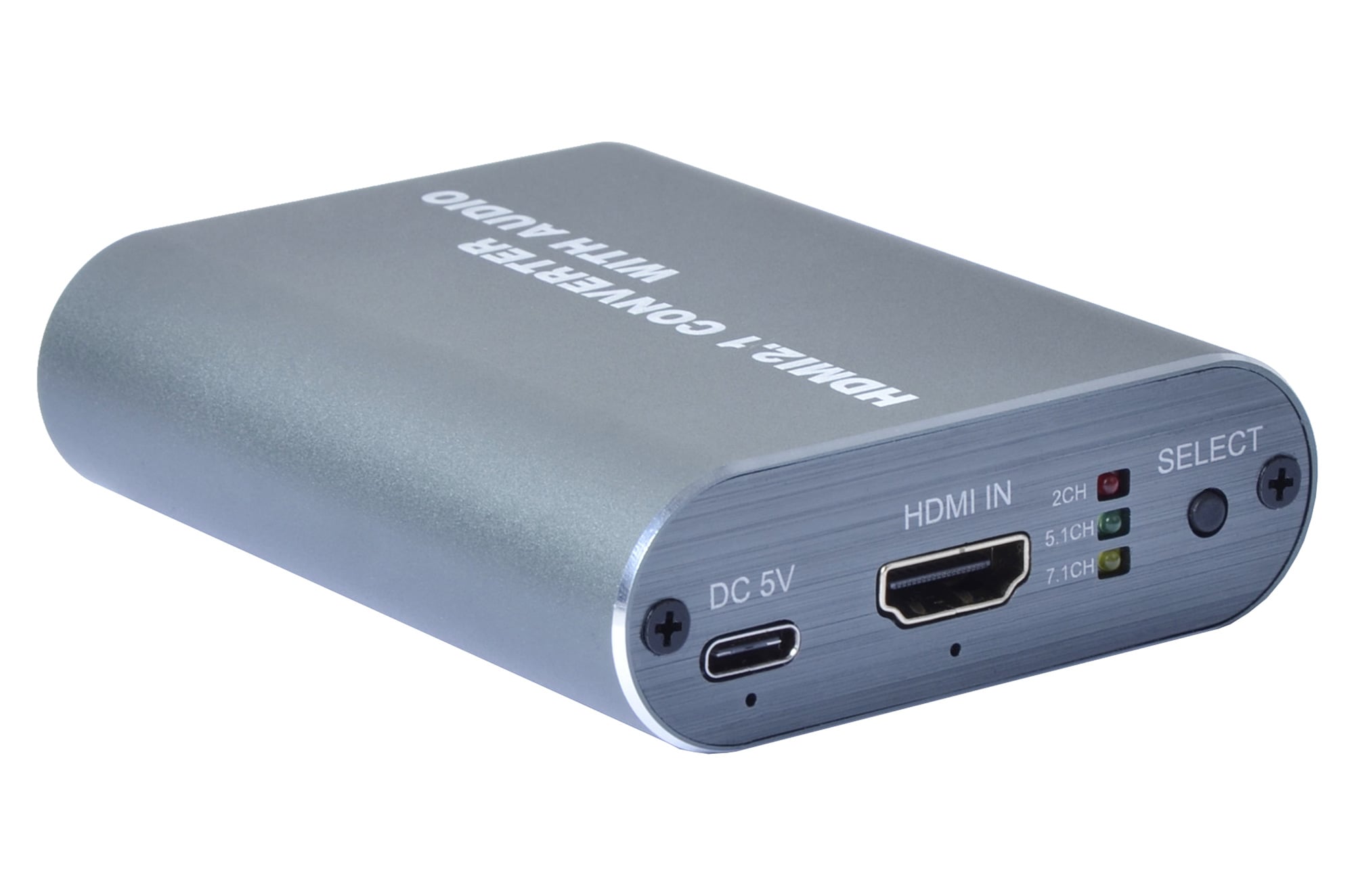

• Input: 1 x HDMI

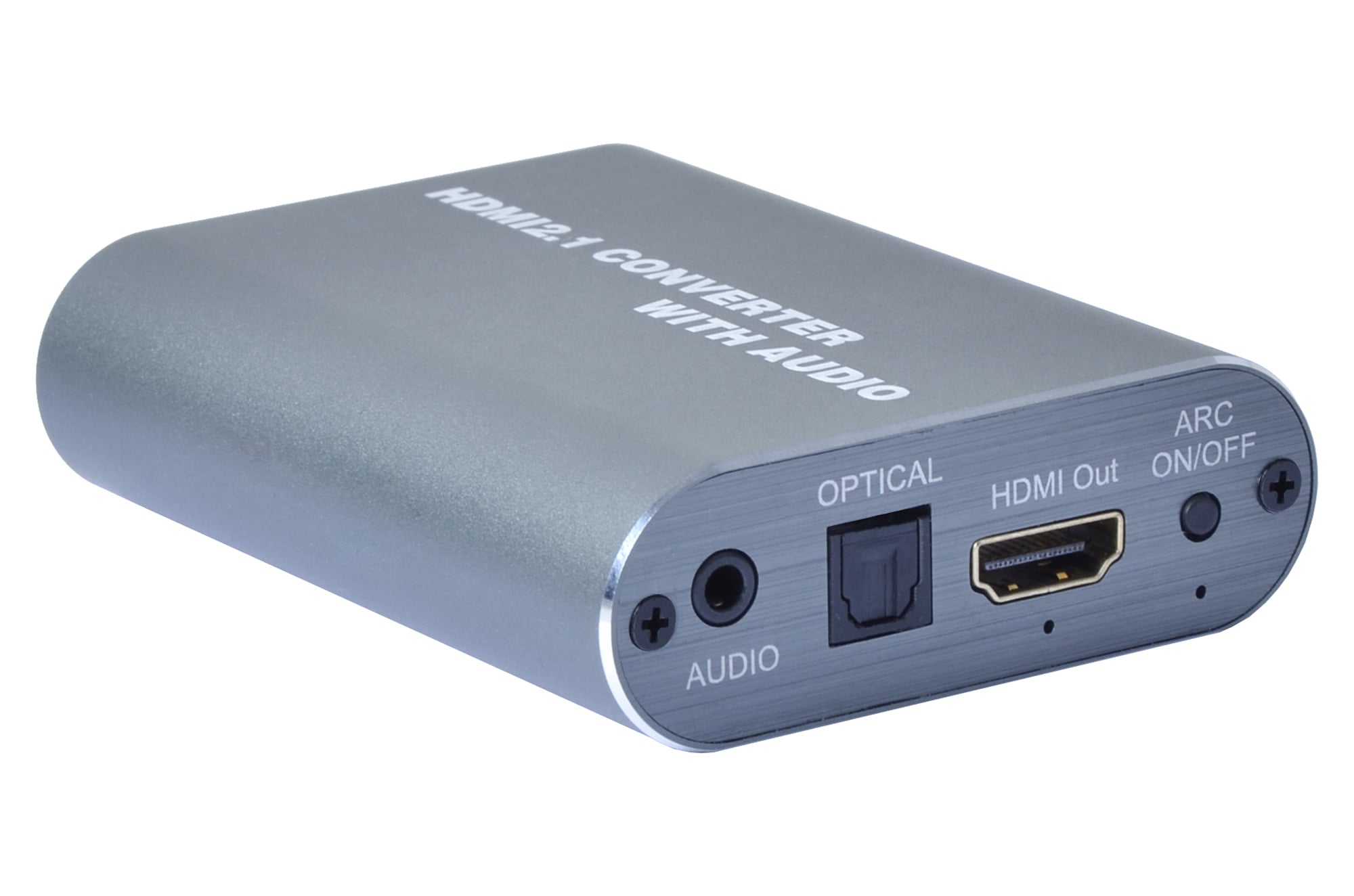

• Output: 1 x HDMI, 1 x Optical Audio Toslink; 1 x Stereo Jack 3.5 mm; 1 x USB-C™ power supply connector



Dimensions

• Width: 90 mm


• Depthà: 70 mm


• Height: 24 mm



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 / 60 °C



Package contents

• 1 x HDMI extractor audio adapter IDATA HDMI-EA 8 KSPD


• 1 x USB power cable


• 1x User manual
