Audio extractor HDMI 2.1 1 in 2 out 8 K@ 60 Hz ARC LPCM 7.1 SPDIF 3.5 mm - Techly IDATA HDMI-EA 8 KHA

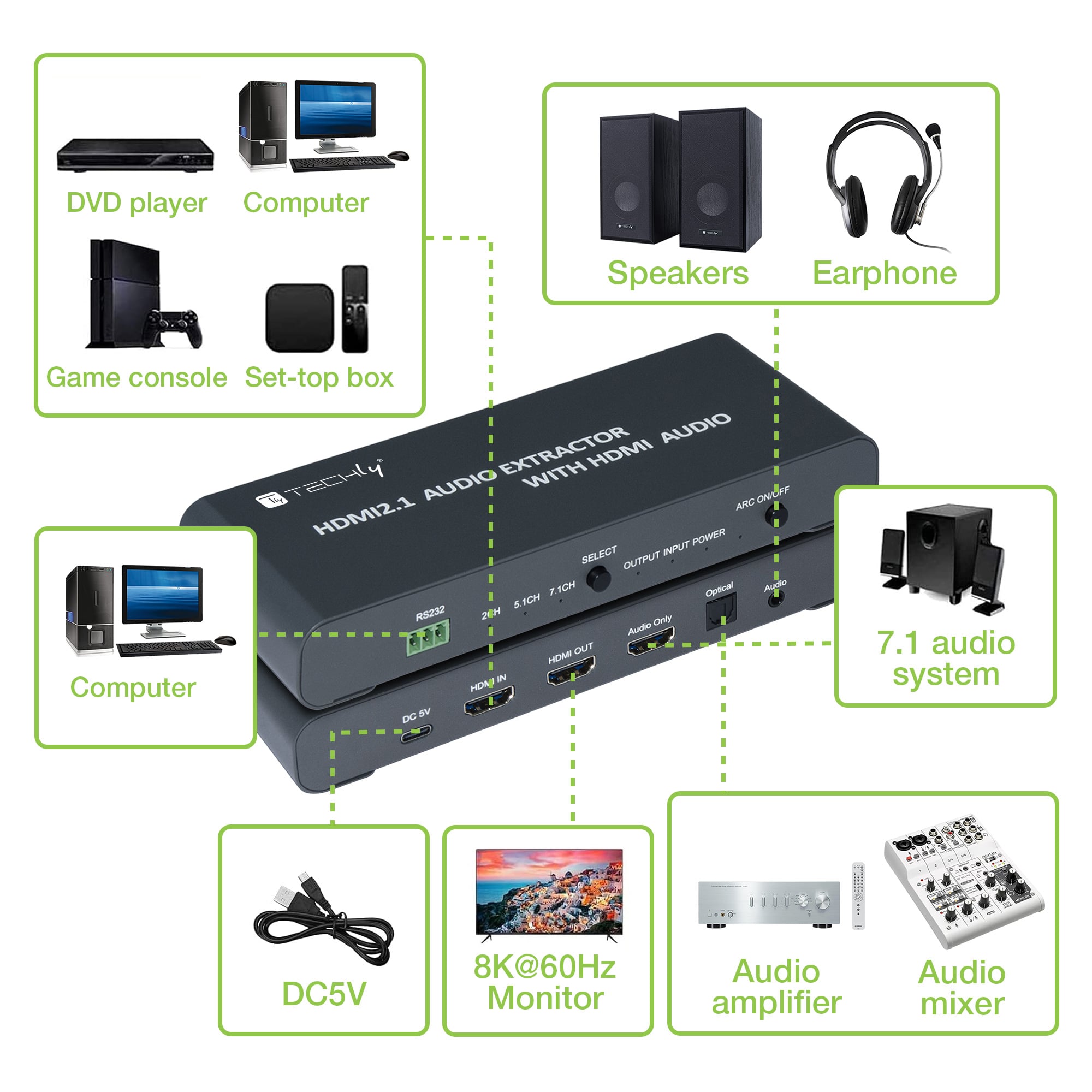

IDATA HDMI-EA 8 KHA è an audio extractor HDMI 2.1 1 in 2 out that helps connect the source device to the display device, allowing you to synchronize and separate the digital audio from the output HDMI signal on optical fiber SPDIF or analog audio output 2 channels after an internal DAC audio conversion. It supports digital audio formats such as Dolby Digital AC- 3 , DTS and LPCM, and the audio può be played through various entertainment devices (such as set-top box, PS 2 , PS 3 , Xbox 360 and PC, DVD players, Blu ray reader) and find application in demonstrations in conference rooms, digital environments and corporate training locations.



Features

• Allows you to synchronize and separate digital audio from the output HDMI signal on SPDIF fiber optic or analog audio output 2 channels after internal DAC audio conversion


• Maximum resolution: 8 K@ 60 Hz / 4 K@ 120 Hz, bandwidth 40 Gbps


• Supported HDMI audio formats: LPCM up to 7.1 192 KHz 24 Bit, Dolby Digital, Dolby Digital Plus, Dolby MAT, Dolby TrueHD, Dolby Atmos (All Formats), Dolby AC- 4 , DTS Digital, DTS Discrete, DTS Express, DTS HiRes Audio, DTS Master Audio, DTS:X


• Output SPDIF TOSLINK audio formats: LPCM up to 5.1 96 KHz 24 Bit, Dolby Digital 5.1 , DTS HiRes Audio


• Output stereo RCA audio format: PCM 2 CH


• Compatible HDCP 2.3 and HDMI 2.1 and backcompatible with previous versions


• Supports HDMI ARC return function. When HDMI ARC è inserted, the non-egrave; supported analogue output, è supported only digital audio output



Technical specifications

• Maximum resolution: 8 K@ 60 Hz / 4 K@ 120 Hz


• Maximum bandwidth: 40 Gbps


• Supported HDMI audio formats: LPCM up to 7.1 192 KHz 24 Bit, Dolby Digital, Dolby Digital Plus, Dolby MAT, Dolby TrueHD, Dolby Atmos (all formats), Dolby AC- 4 , DTS Digital, DTS Discrete, DTS Express, DTS HiRes Audio, DTS Master Audio, DTS:X


• Output SPDIF TOSLINK audio formats: LPCM up to 5.1 96 KHz 24 Bit, Dolby Digital 5.1 , DTS HiRes Audio


• Output stereo RCA audio format: PCM 2 CH


• Output 3.5 mm PCM 2.0 CH


• DC- 5 V 2 A power supply


• HDCP version: HDCP 2.3 and backcompatible with previous versions


• HDMI version: HDMI 2.1 and backcompatible with previous versions


• Supports HDMI ARC return function. When HDMI ARC è inserted, the non-egrave; supported analogue output, è supported only digital audio output


• Supports HDMI video output. Supports optical fiber audio, HDMI audio only and stereo headphone output 3.5 mm



Connections

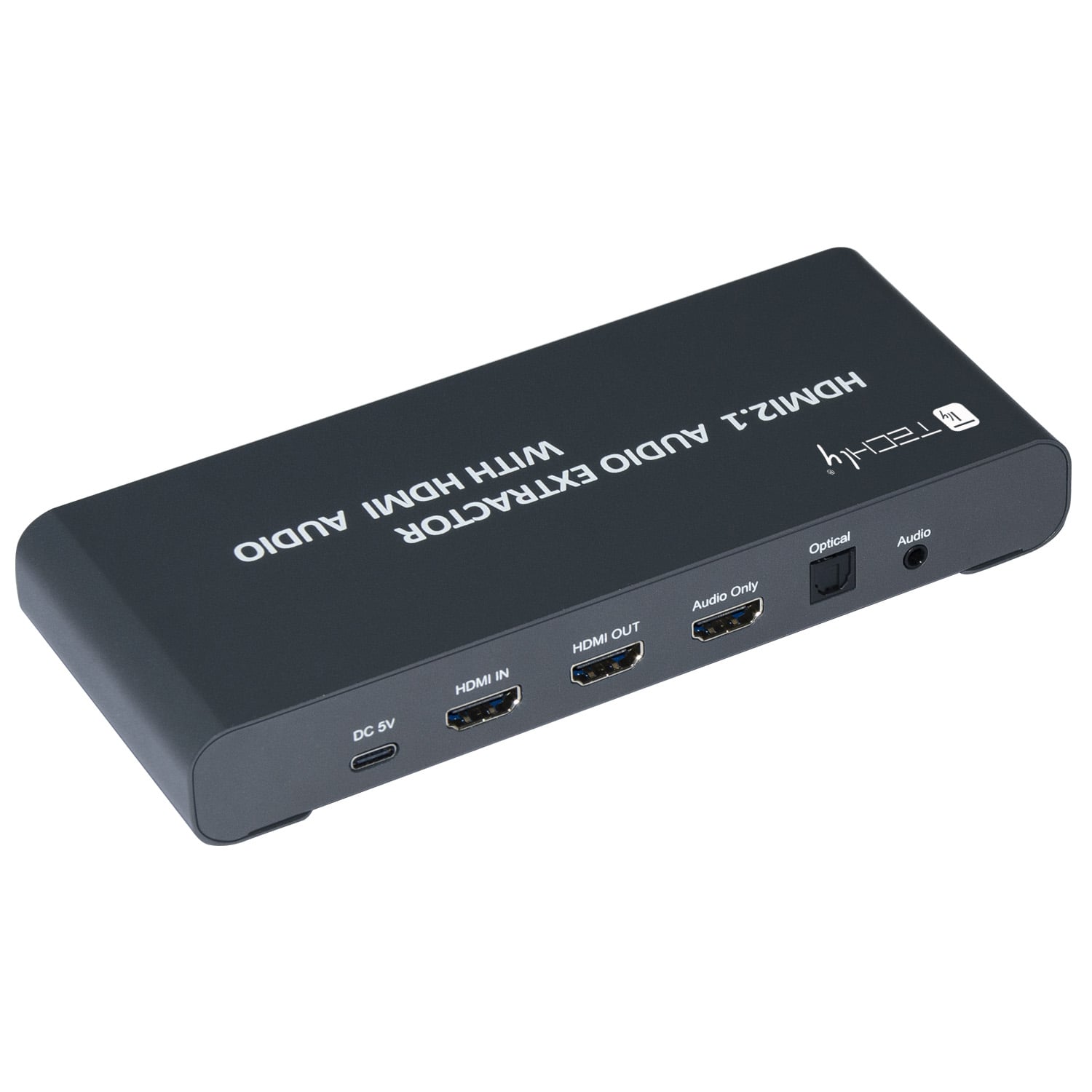

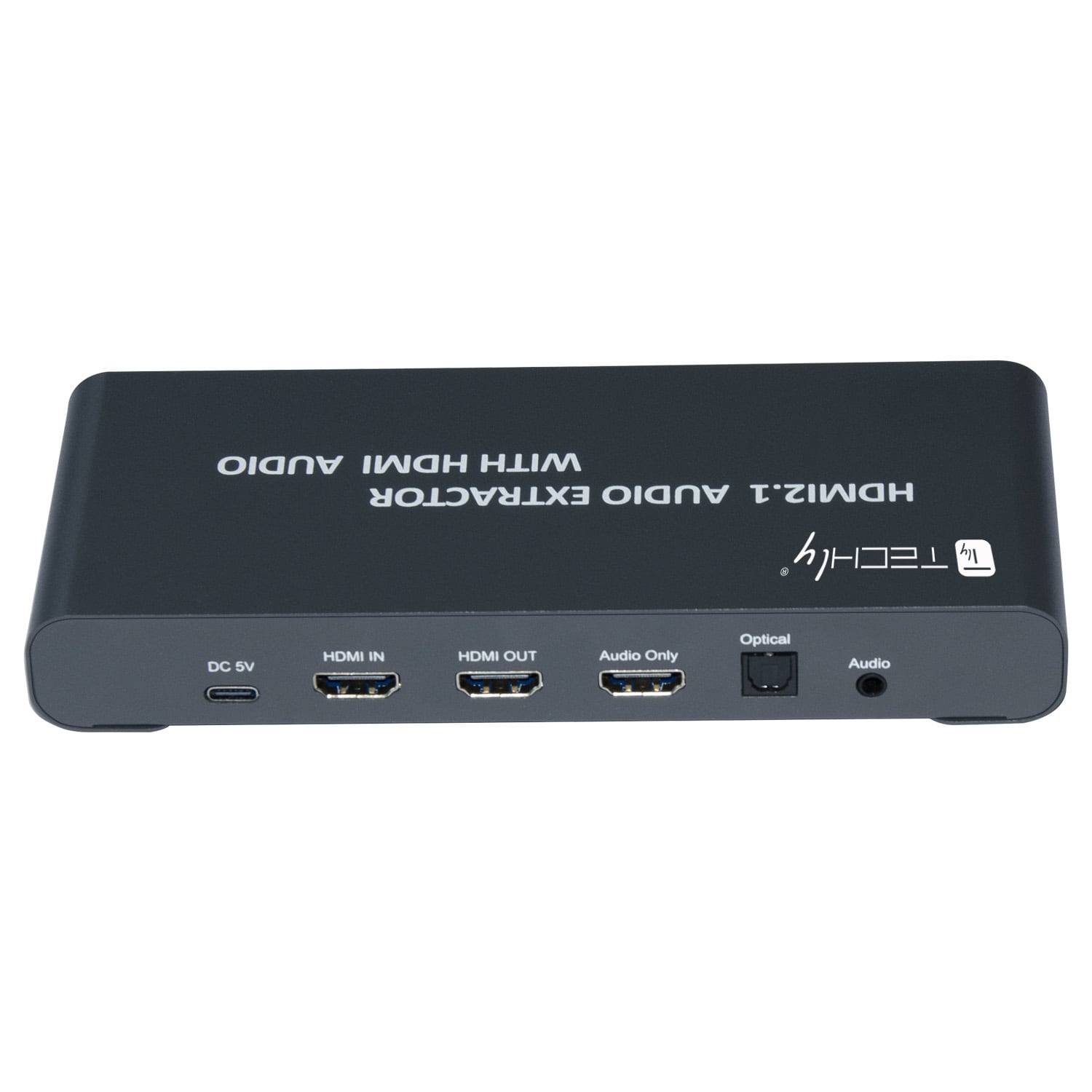

• IN: 1 x HDMI


• OUT: 1 x HDMI, 1 x audio only, 1 x optics, 1 x 3.5 mm



Dimensions

• Width: 180 mm


• Depthà: 75 mm


• Height: 26 mm



Environmental features

• Operating temperatures 0 °C ~ 40 °C


• Storage temperature - 20 °C ~ 60 °C



Package contents

• 1 x HDMI audio extractor


• 1 x USB power cable


• 1x User manual
