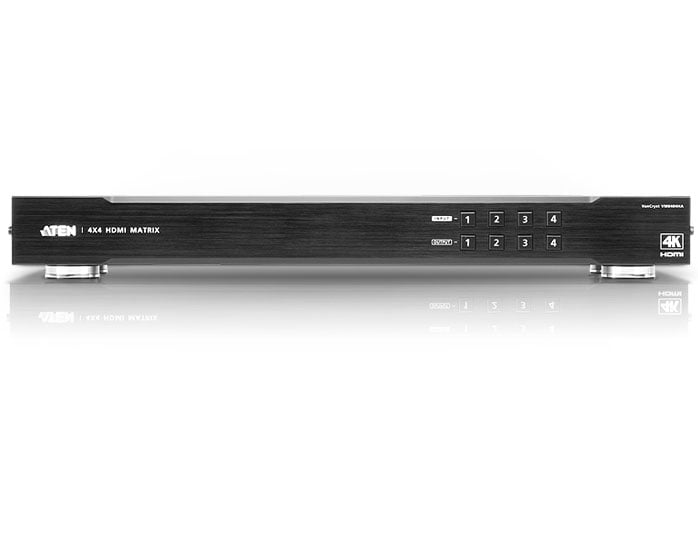

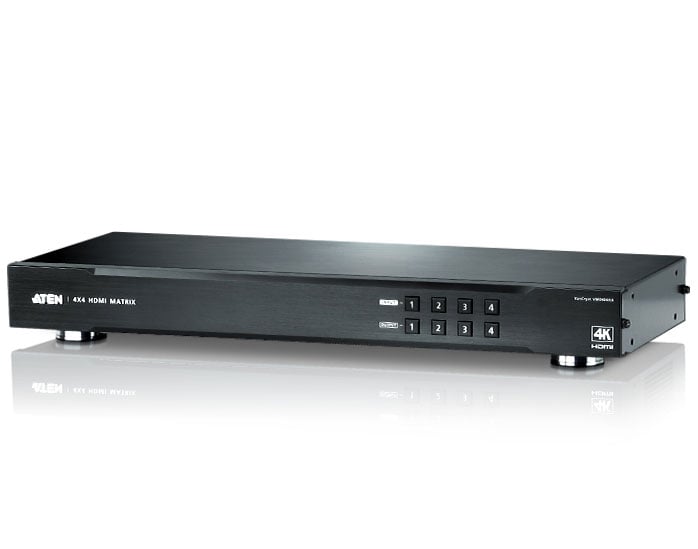

Switch Matrix 4 x 4 HDMI 4 K with IR remote control - Aten IDATA VM- 0404 H

The 4 K HDMI 4 x 4 VM 0404 HA switch from ATEN supports 4 K resolutions for UHD (3840 x 2160) and DCI (4096 x 2160) with 30 Hz update frequencies (4 : 4 : 4 ) and 60 Hz (4: 2: 0 ). Ready for future high-definition video switching, the VM 0404 HA & grave; ideal for applications where è need to address digital signals 4 K, for example in classrooms, auditoriums, departments and more.

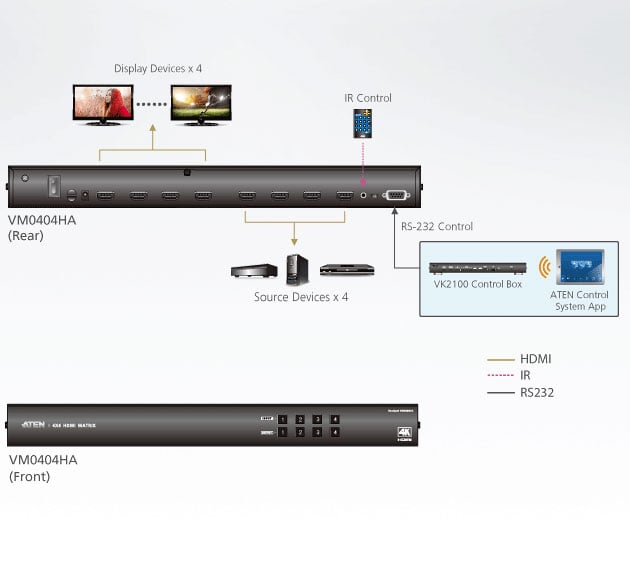

The IDATA VM- 0404 H Matrix Switch offers an easy and convenient way to direct 4 HDMI video sources to 4 HDMI and pu&ograve screens; it can be used via push buttons on the front panel, IR remote control and RS- 232 control, ensuring optimal viewing and control of videos in high definition.



Features

• Connect one of the 4 HDMI sources to one of the 4 HDMI screens


• Supports 4 K resolutions for UHD (3840 x 2160) and DCI (4096 x 2160) with 30 Hz update frequencies (4: 4: 4 ) and 60 Hz (4: 2: 0 )


• EDID Expert™ – selects optimal EDID settings for high quality smooth display and for better video resolution on different monitors


• Multiple control methods, system management via push buttons on the front panel, IR remote control and RS- 232 control


• Supports Dolby True HD and DTS HD Master audio


• Signal frequency up to 3,4 Gbits for 4 K output without problems


• HDMI (3 D, Deep color, 4 K); HDCP 1.4 compatible


• Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control


• Supports ATEN's HDMI LockPro™ cable block for secure HDMI cable connections


• ESD protection for HDMI


• Updated Firmware


• Mountable on rack (design 1 U)



Technical specifications

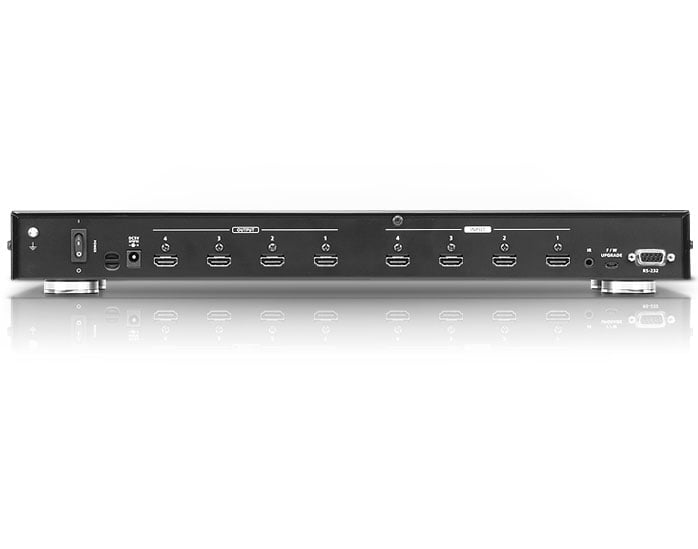

• Video Input



- Interfaces: 4 x HDMI type A female (black)

- Impedance: 100

- Max. distance: 1,8 m

• Video output



- Interfaces: 4 x HDMI type A female (black)

- Impedance: 100

- Max. distance: 15 m

• Video



- Max. frequency of data: 10,2 Gbps (3,4 Gbps per linefa)

- Pixel clock max.: 340 MHz

- Conformità:

HDMI (3 D, 4 K, Deep Color)

HDCP 1.4 compatible

Consumer Electronics Control (CEC)

- Resolution max.:

Up to 4096 x 2160 / 3840 x 2160 at 60 Hz (4 : 2 : 0 );

4096 x 2160 / 3840 x 2160 at 30 Hz (4 : 4 : 4 )

- Max. distance: up to 15 m

• Monitoring



- RS- 232:

Connector: 1 x DB- 9 female (black)

Velocità in baud and protocol:

Velocità in baud: 19200 , Data Bit: 8 , Stop Bit: 1 , Parità: No, Flow Control: No

- USB:

1 x Micro USB

Firmware Update

- IR: 1 x female mini stereo connector (black)

• EDID settings: Modelità EDID: Default / 1 / Remix port


• Feeding



- Connectors: 1 x CC connector (black)

- Consumption: 5 V CC, 10,58 W

• Environment



- Operating temperature: 0 - 40 °C

- Storage temperature: - 20 - 60 °C

- Humidità: 0 - 80 % RH, without condensation

• Proprietà physical



- Structure: Metal

- Weight: 2.02 kg (4.45 lb)

- Dimensions (L x P x A): 43.72 x 16.29 x 4.40 cm



Package contents

• 1 x VM 0404 HA Switch matrix 4 K HDMI 4 x 4


• 1 x 0 AD 6 - 1005 - 26 EG power adapter


• 1 x 2 XRT- 0106 G IR remote control


• 1 x 2 XRT- 0003 G IR receiver


• 1 x mounting kit


• 1 x user instructions
