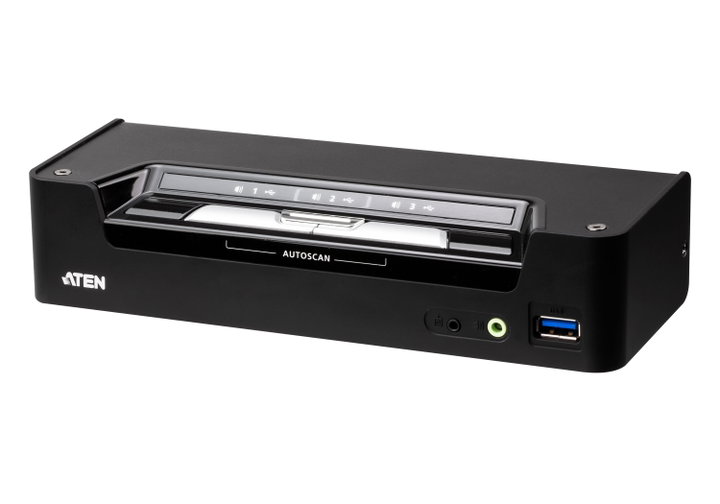

Switch KVMP USB-C DisplayPort Hybrid to 3 ports - Aten IDATA CS- 1953

IDATA CS- 1953 è a hybrid KVMP™ switch that integrates a USB-C™ device and a PC DisplayPort in a desktop workstation. With a huge step forward compared to digital interface KVM models, the CS 1953 features functionalityà USB Type-C transferring video, audio, data, as well as offering USB Power Delivery 3.0 power supply for charging the USB-C™ device. Ciò means that with a single USB-C™ cable, users can reduce the size of wired configurations as well as being able to take advantage of a better working environment.



Consistent with the DisplayPort 1.2 standard, CS 1953 supports qualityà higher video up to 4 K DCI (4096 x 2160 at 60 Hz) for high-level images. In addition, the USB-C™ channel supports modeà DP Alt so as to offer DisplayPort signals and operate as a standard DisplayPort connection. For greater flexibilityà usage, CS 1953 canò convert signals from DisplayPort to HDMI or DVI thanks to Modalità dual DisplayPort (DP++) technology.



Thanks to these solid functionality à and an unbeatable combination of speed à data transfer USB 3.2 Gen 1 , bus power design, and easy-to-use port switching methods including fast keys, mouse and remote port selector, CS 1953 allows users to stay up to date with the latest innovations in multimedia à desktop and work even smarter.

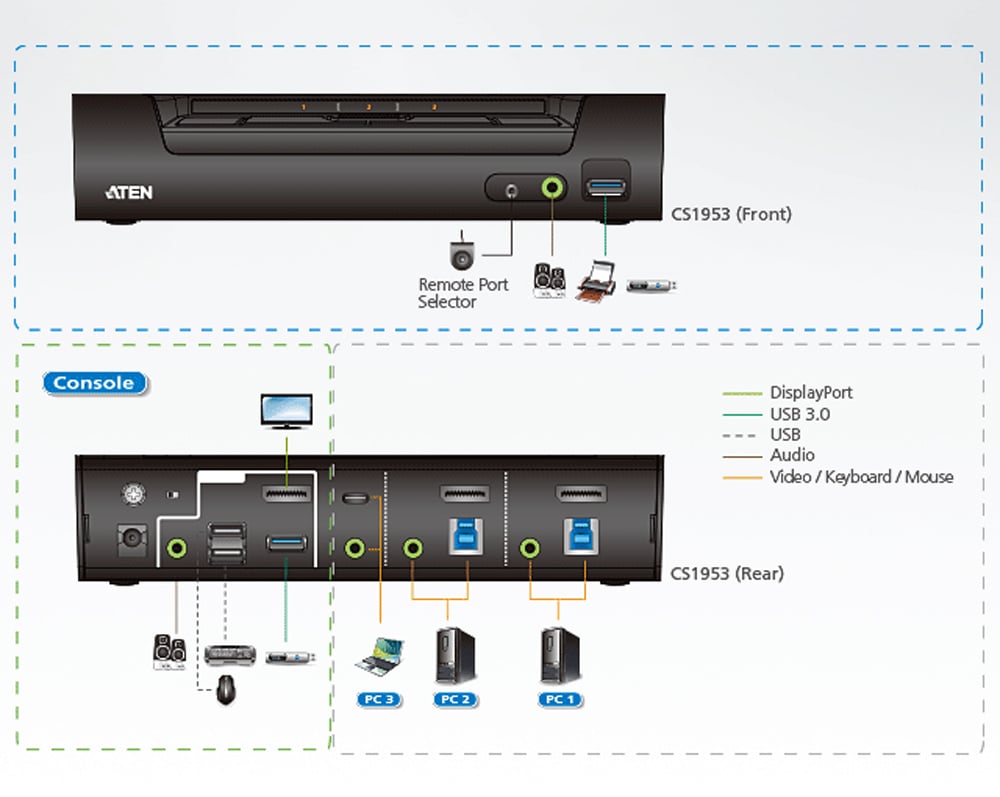

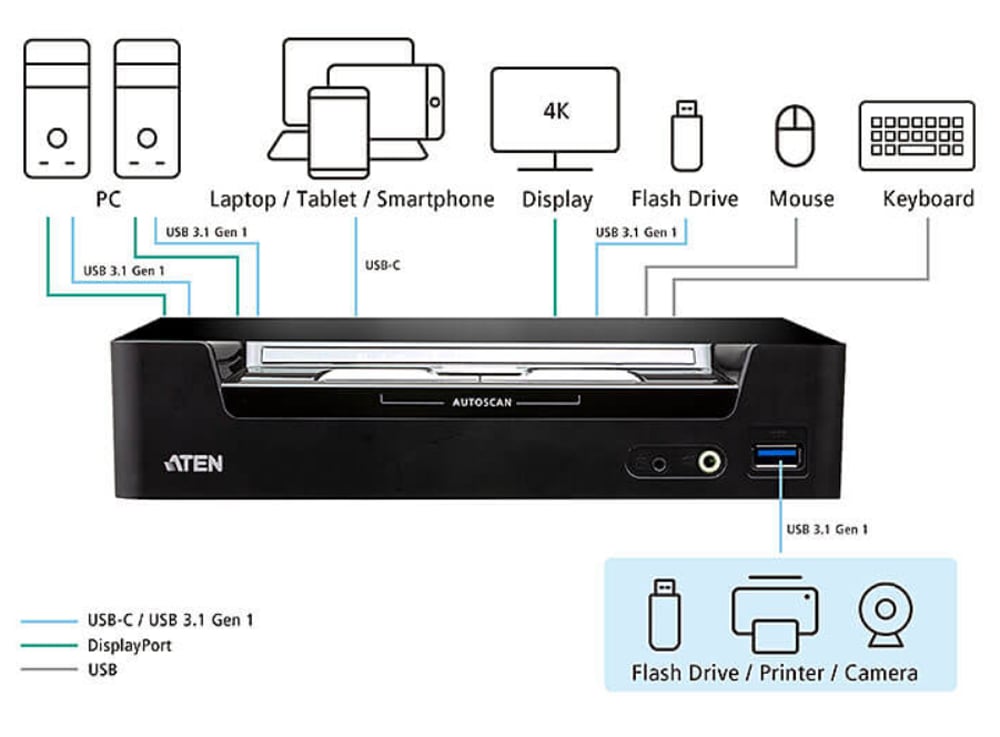

• A USB keyboard, mouse, and display port monitor control two DisplayPort computers, a USB-C™ device, and share two USB devices

• Supports higher video – quality up to 4 K DCI (4096 x 2160 at 60 Hz)

• Offers USB Power Delivery 3.0 for charging a USB-C&trade device; up to 45 W 1

• Computer selection via push buttons, quick keys, mouse (2) and remote port selector

• Hub USB 3.2 Gen 1 to 2 integrated ports with speed à SuperSpeed 5 Gbps data transfer

• Supports Modelità DisplayPort Alternate (Modalità DP Alt) that allows USB connection for DisplayPort signals

• Independent switching of KVM, USB devices and audio focus (3)

• DisplayPort 1.2 Conform; HDCP 1.43 conform

• Supports HD audio (4)

• Supports Modelità dual DisplayPort (DP++) technology * 5

• Updated Firmware

• Bus power supply (6)


Note:

1 . You need an additional power supply on CS 1953 to use USB-C™ device charge.

2 . Switching the è mouse port supported only in mode à emulation mouse with the USB mouse wheel to 3 buttons.

3 . For display devices compatible with DisplayPort 1.4 , make sure to configure the device setting to be compatible with DisplayPort 1.2 and avoid compatibility problemsà .

4 . The HD audio via the DisplayPort channel cannot be switched independently.

5 . Modalità dual DisplayPort (DP++) technology does not require an active adapter for single display configurations. Active DisplayPort adapters are recommended if you are not è certain of the video source's compatibilityà DP+++.

6 . The unit can be powered by a bus via the KVM sources connected via USB ports.



Technical specifications

• Computer connections: 3

• Select Port: shortcut, push button, mouse, remote port selector

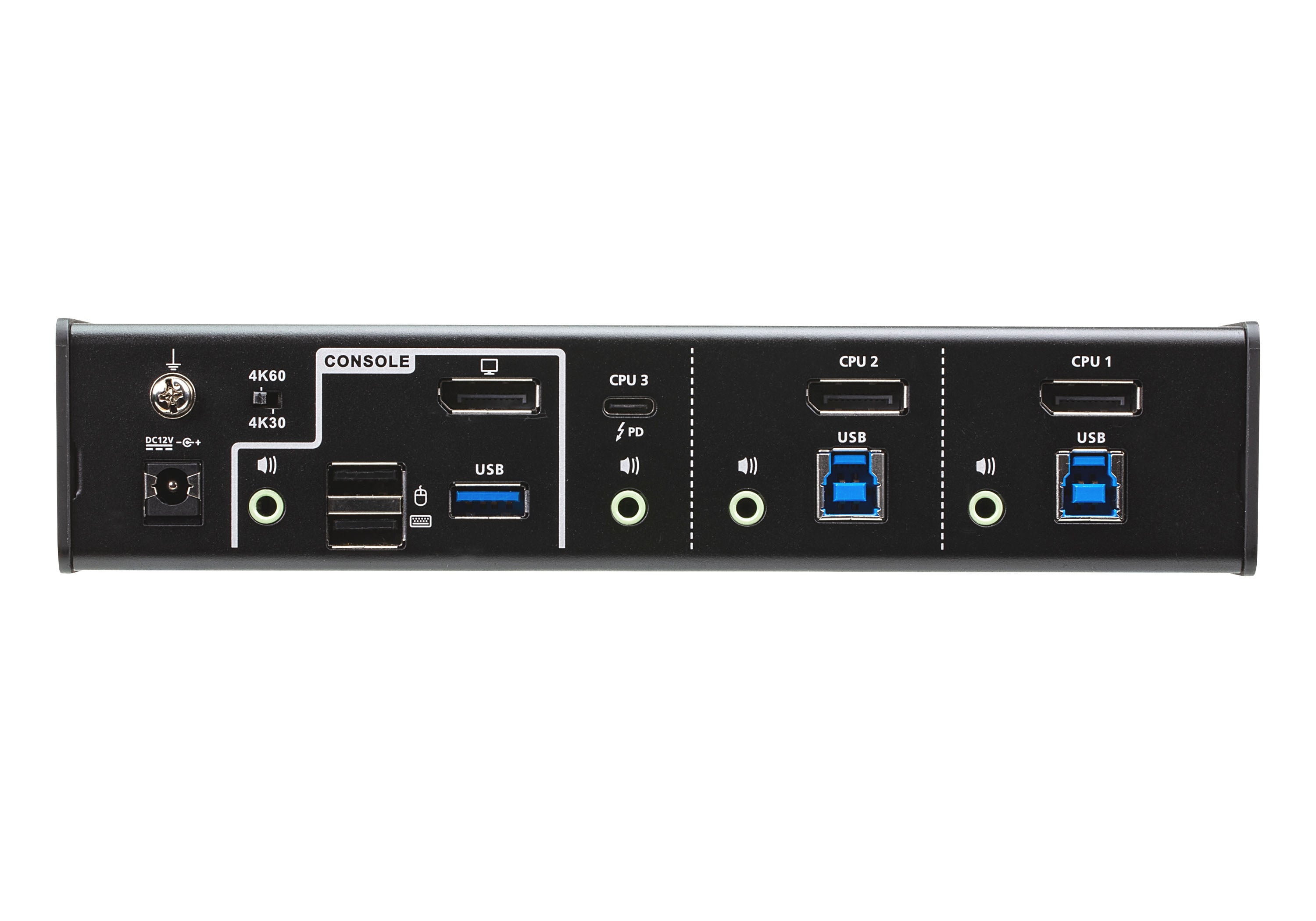

• Connectors:


- Console doors  

2 x USB type A female

1 x DisplayPort female (black)

2 x 3,5 female audio connector (green; 1 x front, 1 x rear)

- KVM ports (computer) 

CPU 1 and CPU 2:

2 x USB 3.2 Gen 1 female type B (blue)

2 x DisplayPort female (black)

2 x Female audio connector from 3,5 mm (green)

3 CPU:

1 x USB Type C female (black)

1 x audio jack from 3,5 mm female (green)

• Remote door selector: 1 x audio jack from 2,5 mm female (Black)

• Power supply: 1 x DC connector

• USB hub: 2 x USB 3.2 Gen 1 type A female (blue; 1 x front, 1 x rear)

• Video resolution: 4096 x 2160 at 60 Hz

• Keyboard/mouse emulation: USB

• Consumption: DC 12 V: 5.78 W: 269 BTU


Switches

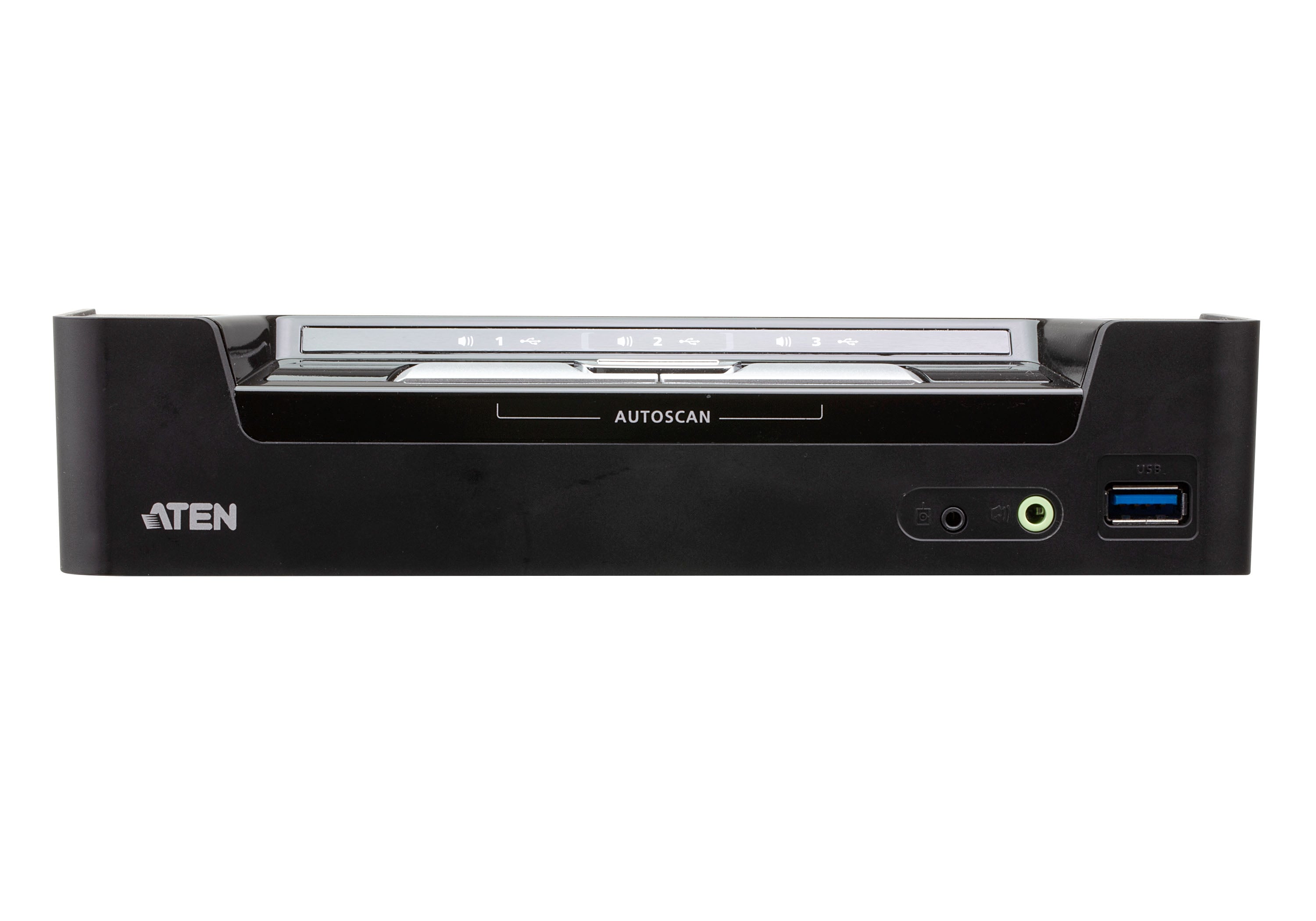

• Selected   3 x buttons: push

• Mode switch à: 1 x sliding switch


LED

• Audio  3 (Green)

• KVM  3 (Orange)

• USB  3 (Green)


Environmental features

• Operating temperature: 0 - 40 °C

• Storage temperature: - 20 - 60 °C

• Humidità: 0 - 80 % relative humidity without condensation


Dimensions

• Width: 20.63 cm

• Depthà: 7.54 cm

• Height: 4.40 cm


Package contents

• 1 x switch KVMP™ USB-C™ DisplayPort hybrid to 3 ports CS 1953

• 2 x LIN 5 - 20 K 1 -K 13 G cables DisplayPort 1.2

• 2 x LIN 6 - 11 C 1 -E 12 G USB cables 3.0 Type A Type B

• 1 x LIN 6 - 22 B 1 -B 12 G USB-C&trade cable;

• 3 x LIN 5 - 0205 - 21 CG audio cables

• 1 x 2 XRT- 0016 Remote door selector

• 1 x user instructions


[Optional] 0 AD 8 - 8012 - 70 MG power supply
