HDMI 4 dual output doors switch - Aten IDATA VS- 482 B

With the spread of HDMI devices in the home theater market, the need for simultaneous access to more ù HDMI A/V sources becomes more and more important. The HDMI Dual View switch to 4 ports VS 482 offers a simple and cost-effective way to add functionalityà HDMI to your home theater system allowing you to easily switch between four HDMI audio/video sources connected to two HDMI screens.

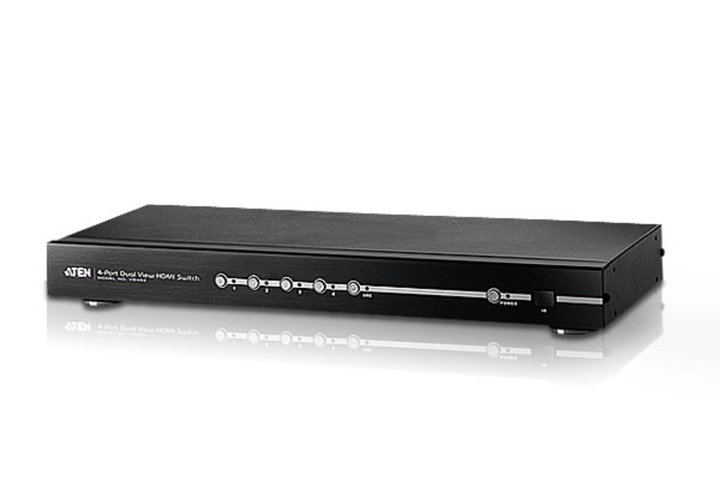

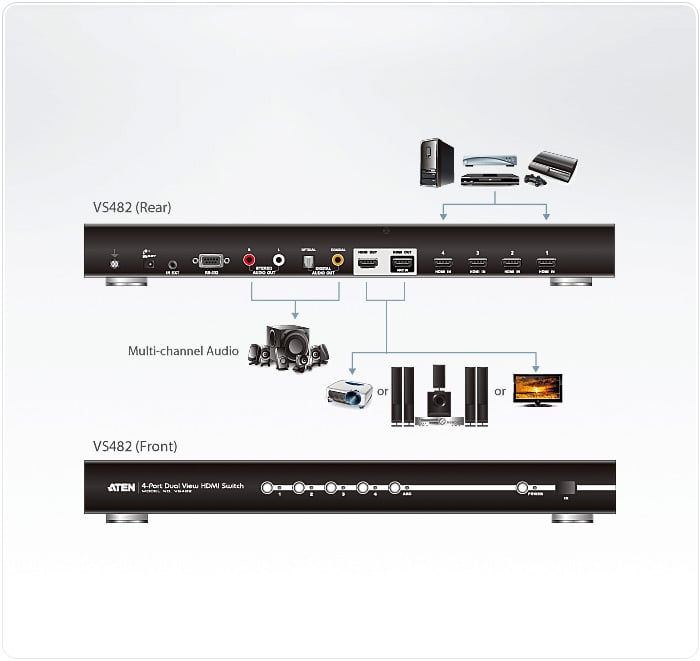

IDATA VS- 482 B supports up to four HDMI video input sources and two HDMI outputs. It is designed for two HDTVs or AVR (Audio/Video Receiver) applications. The è device is compatible with HDMI standards and supports 3 D content and ARC (Audio Return Channel) function. It also offers instant switching and an OSD to configure and display information about video, audio and system.



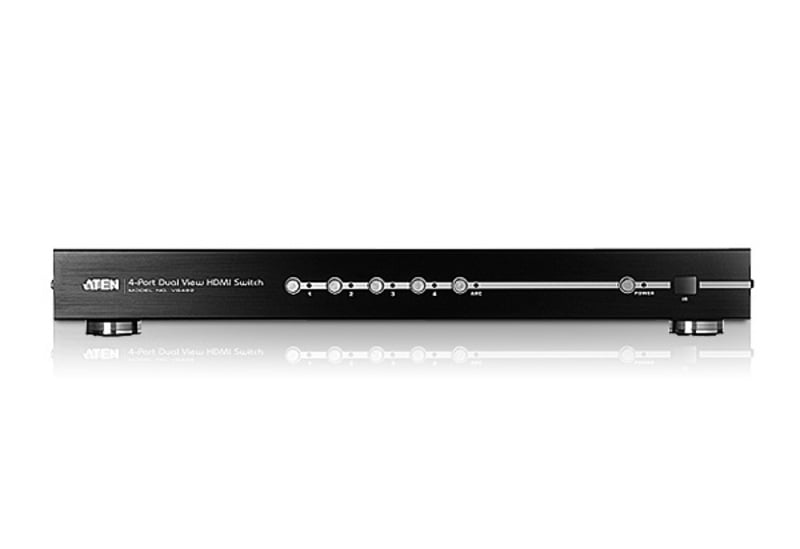

Features

• Allows you to connect an HDMI cable to the ARC port to send audio from the source device to the A/V receiver


• Immediate switching of HDMI input sources via front buttons or RS- 232 serial control port


• OSD for system setup and information display


• EDID Expert technology to set various configurations using different modes; EDID


• Connects up to four HDMI A/V source devices to two HDMI displays


• HDCP compatible


• HDMI (3 D, Audio Return Channel and Deep Color)


• Supports Dolby True HD and DTS HD Master Audio


• Audio Return Channel (ARC) function: connects an HDMI cable to the ARC port to send audio from the source device to an A/V receiver


• OSD for system setup and information display


• Immediate switching of HDMI input sources via front buttons or RS- 232 serial control port


• EDID Expert technology to set various configurations using different modes; EDID


• Displays the HDMI input port or source device to select


• Superior video quality: HDTV resolutions from 480 p, 720 p, 1080 i, 1080 p (1920 x 1080); up to WUXGA (1920 x 1200)


• RS- 232 bidirectional built-in serial port for state-of-the-art system control


• Extra audio output from HDMI input signal that supports both optical and coaxial digital audio and stereo audio output


• Infrared remote control signal extension: to increase remote control radius by adding an infrared receiver unit


• Mountable in rack



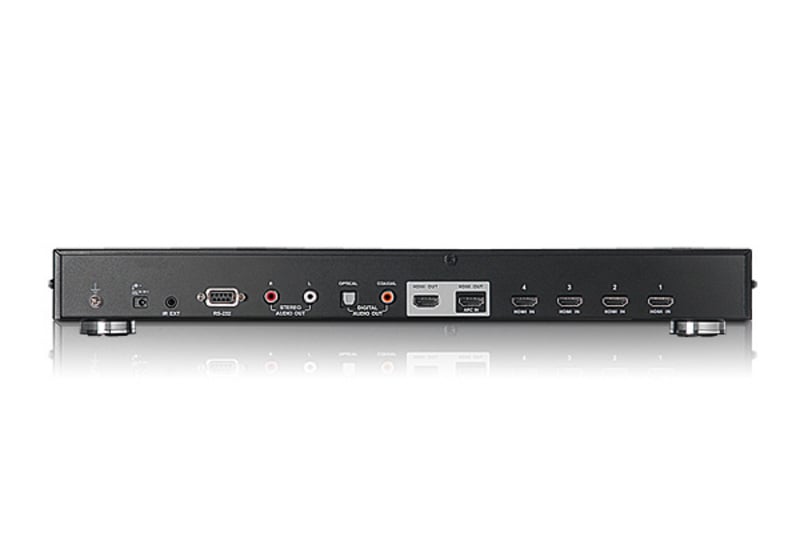

Specifications

• Video input: 4 HDMI type A female (black) interfaces; impedance 100 Ώ; max. distance 1,8 m


• Video output: 2 HDMI interfaces type A female (black); impedance 100 ...; distance max.  15 m


• Maximum frequency of video data: 6,75 Gbps (2,25 Gbps per lane)


• Max. video pixel clock: 225 MHz


• Conformità video: HDMI (3 D, Audio Return Channel, Deep Color); HDCP compatible; CEC (Consumer Electronic Control)


• Max. video resolution: up to 1080 p


• Max. video distance: up to 15 m


• Audio input: 4 x HDMI type A female (black)


• Analog audio output: 2 RCA (red / white)


• Digital audio output: 1 HDMI type A female (black); 1 Toslink (black); 1 RCA (orange)


• RS- 232 controls: 1 female DB- 9 connector (black); speedà in 19200 baud , 8 data bits , 1 stop bits , without parityà and flow control


• IR control: 1 Mini stereo jack female (black)


• Modelità EDID: Default / 1 / Auto Port


• DC connector for power supply


• Consumption: 5,3 V CC, 6,95 W



Environmental information

• Operating temperature: 0 - 50 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80 % relative humidity without condensation



Package contents

• HDMI Dual View switch to 4 ports VS 482


• Infrared remote control


• Power supply 0 AD 8 - 1605 - 24 M 1


• User guide


• Assembly kit
