Switch HDMI 4 K Real to 8 ports - Aten IDATA VS- 0801 HB

The VS 0801 HB from ATEN è designed for applications requiring the address of 8 sources on a compatible display device. Supports video resolutions up to 4 K (4096 x 2160 to 60 Hz 4 : 4 : 4 ) real, speed à data up to 18 Gbps, 3 D, Deep Color up to 12 -bit and lossless HD audio formats. VS 0801 HB features automatic switching mode for automatic selection of ports and instant switching for seamless transmission of video between HDMI ports. Several control options include push buttons on the front panel, RS- 232 bidirectional, IR and automatic switching that allow for smoother integration.



Designed to meet daily requests for real 4 K signal transmission and user-oriented design, VS 0801 HB from ATEN è a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade fairs and shopping centers.



Features

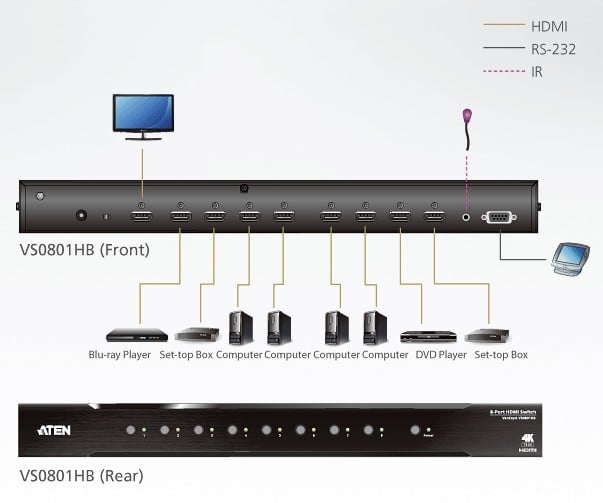

• Allows the connection of up to 8 HDMI sources to one HDMI screen


• HDMI 2.0 (3 D, Deep Color, 4 K); HDCP 2.2 compatible


• Superior quality video, 4 K resolutions real 4 K x 2 K at 60 Hz (4: 4: 4 ) and 1080 p (1920 x 1080 at 60 Hz) standard


• Integrated bidirectional RS- 232 serial port for high-end system control


• Automatic switching mode for automatic door selection


• Immediate switching between HDMI input sources


• Supports IR Extension

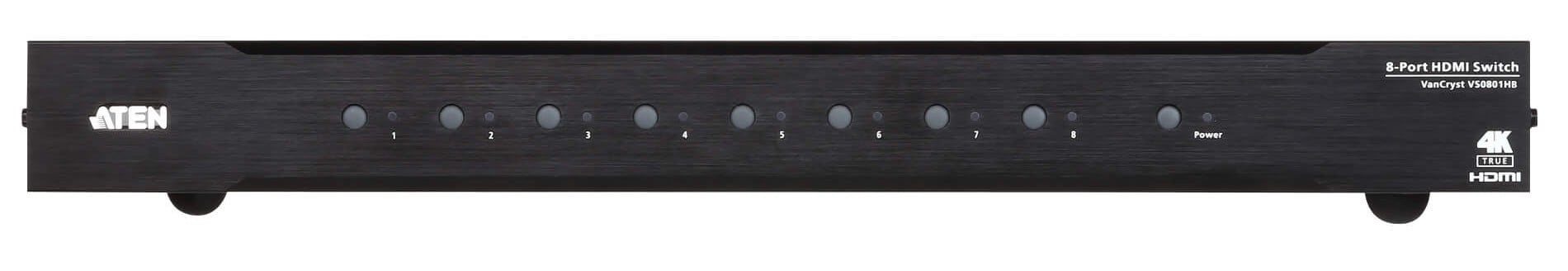

• Clear LED indication of device status


• Plug-and-play


• Installed to rack



Technical specifications

• DIP switch: 1 x Automatic switch - ON/OFF


• Video input:



Interfaces  8 x HDMI type A female (black)

Impedance   100

Max. distance & 3

• Video output



Interfaces  1 x HDMI type A female (black)

Impedance   100

Max. distance & 3

• Video



Maximum frequency 18 Gbps data (6 Gbps per line)

Pixel clock max. 600 MHz

conformà HDMI 2.0 (3 D, Deep Color)

HDCP 2.2

Consumer Electronics Control (CEC)

Maximum resolution up to 4096 x 2160 / 3840 x 2160 at 60 Hz (4: 4: 4 )

Maximum distance 3 m

• Monitoring



RS- 232 Connector: 1 x DB- 9 female (black)

Velocità in baud: 19200 , Data Bit: 8 , Stop Bit: 1 , Parità: No, Flow Control: No

IR 1 x female mini stereo connector (black)

• Power supply: 1 x DC connector (with lock)


• Consumption: DC 5.3 V: 3.73 W: 17 BTU



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80% relative humidityà without condensation



Dimensions

• Width: 43.72 cm


• Depthà: 15.83 cm


• Height: 4.40 cm



Package contents

• 1 x VS 0801 HB switch HDMI 4 K real to 8 ports


• 1 x 2 XRT- 0007 G unità IR remote control


• 1 x 2 XRT- 0003 G IR receiver cable


• 1 x 0 AD 6 - 1 F 05 - 26 EG power supply


• 1 x rack mounting kit


• 1 x user instructions
