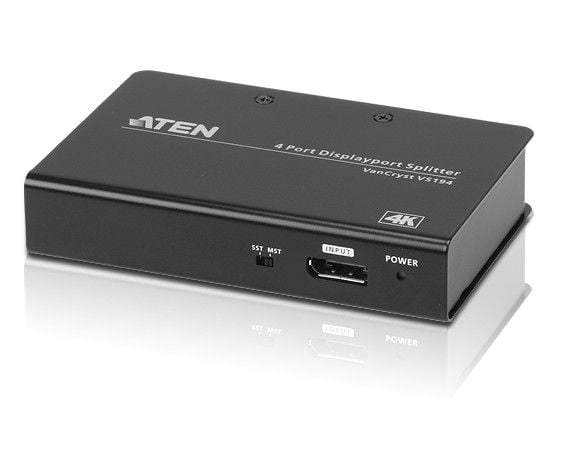

Splitter DisplayPort 4 K to 4 Doors - Aten IDATA VS- 194

The splitter DisplayPort 4 K to 4 ports VS 194 è the perfect solution for those who have to send a video source in high definition DisplayPort to two or four displays DisplayPort. VS 194 can ò either split or expand the audio/video signal DisplayPort on two or four DisplayPort monitors, ideal for multi-screen applications.

VS 194 è is compatible with DisplayPort 1.2 a and can support resolutions up to 4 K at 60 Hz, making it ideal for use with all DisplayPort screens in home theater applications, as well as business, school and commercial installations.

• Connect a DisplayPort source to two or four DisplayPort monitors


• Supports DisplayPort 1.2 a; HDCP 1.3


• Supports resolutions up to 4096 x 2160 / 3840 x 2160 at 60 Hz

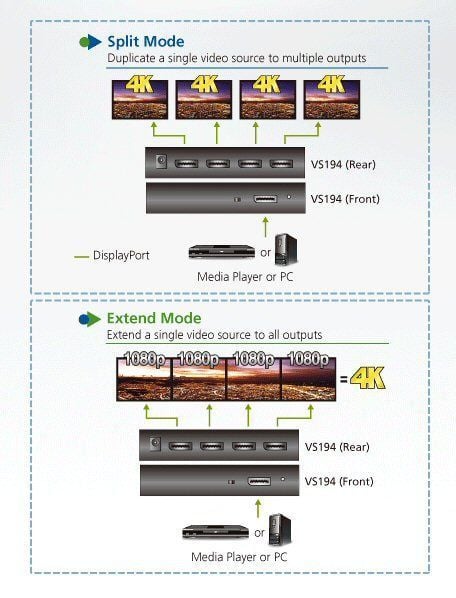

• Supports modeà MST/ Extended and modalità SST/ Divisa*


• Modelità MST/ Extended:


• Extends the video source on 4 screens with a maximum resolution of 4 K.


• Modelità SST/ Divisa:


• Duplicates a single video source on 4 screens with a maximum resolution of 4 K for each monitor

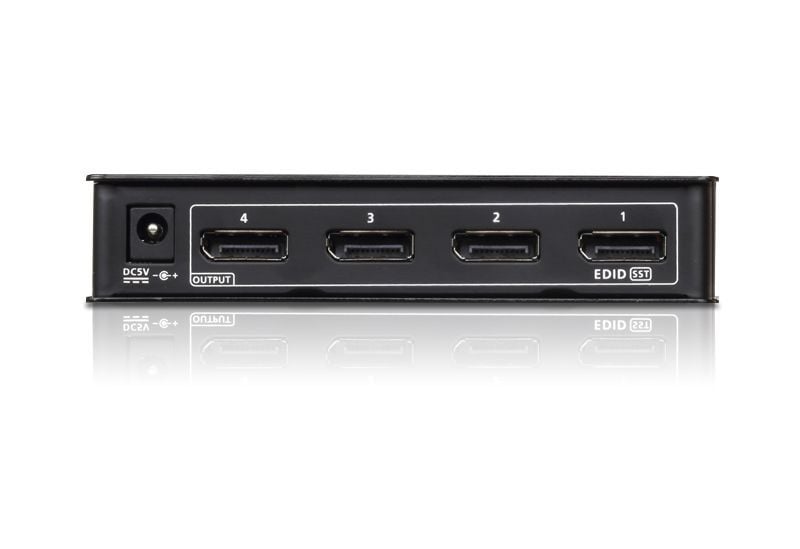

• Video output Interfaces & 4 x DisplayPort female (black)


• Video input Interfaces   1 x DisplayPort female (black)


• Video conformità DP 1.2 a; HDCP 1.3


• Maximum resolution & Up to 4096 x 2160 / 3840 x 2160 at 60 Hz


• Maximum frequency data  21,6 Gbps (5,4 Gbps per lane)


• Power Supply Connectors & 1 x DC Connector


• Consumption  5 V CC, 3,36 W


• Environment Operating temperature & 0 - 40 °C


• Storage temperature - 20 - 60 °C


• Humidità  0 - 80 % relative humidity, without condensation


• Proprietà physical


• Structure  Metal


• Weight & 0.33 kg (0.73 lb)


• Dimensions (L x P x A)  12.50 x 8.00 x 2.50 cm


• Supports Linkrate: HBR 2 (High Bit Rate 2)


• Note:



* VS 194 bypasses modeà EDID during modeà SST and sarà detected monitor resolution connected to port 1 .





Package contents

• 1 x VS 194 Splitter DisplayPort 4 K to 4 ports


• 1 x 0 AD 6 - 1005 - 26 EG power adapter


• 1 x user instructions
