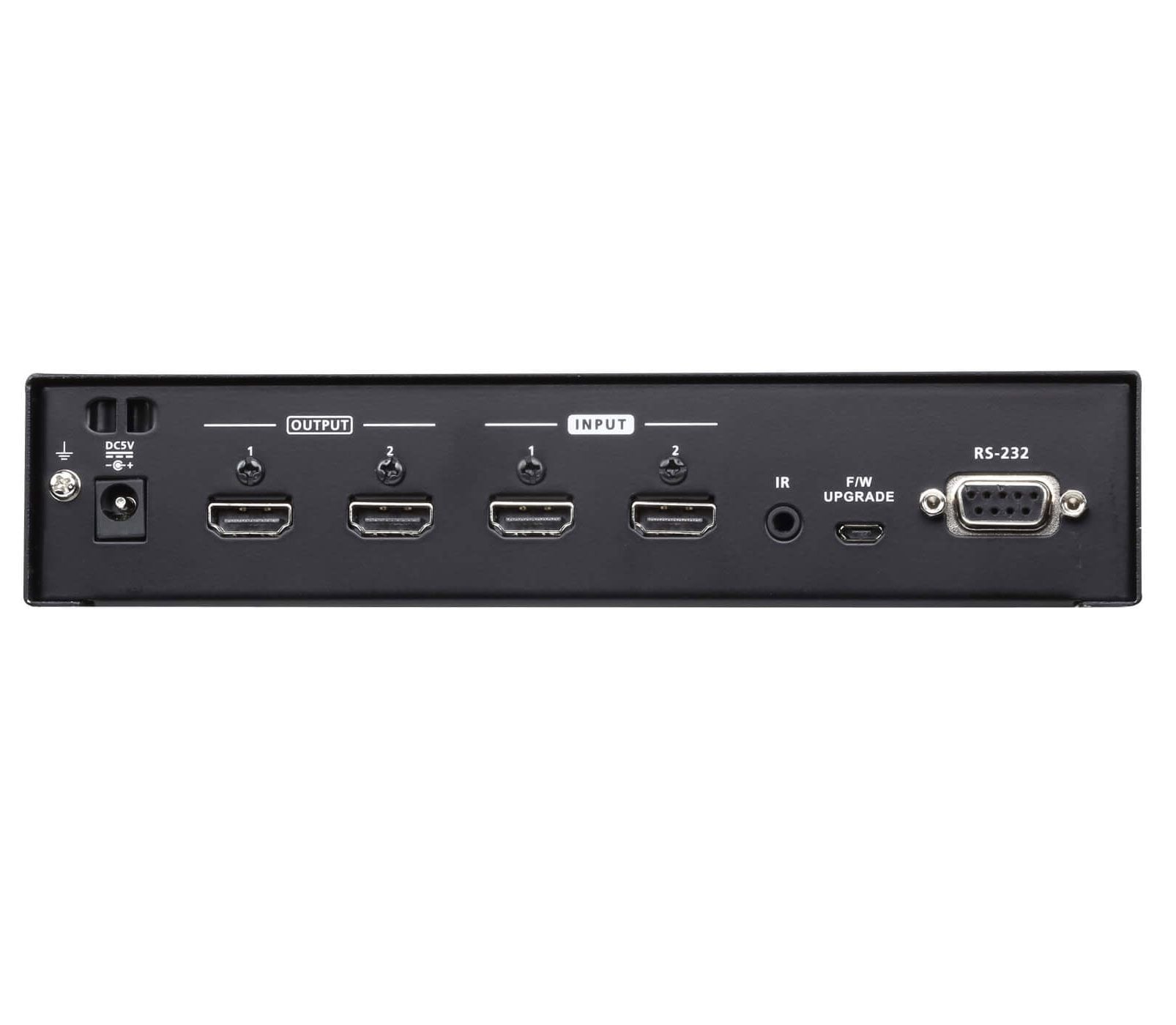

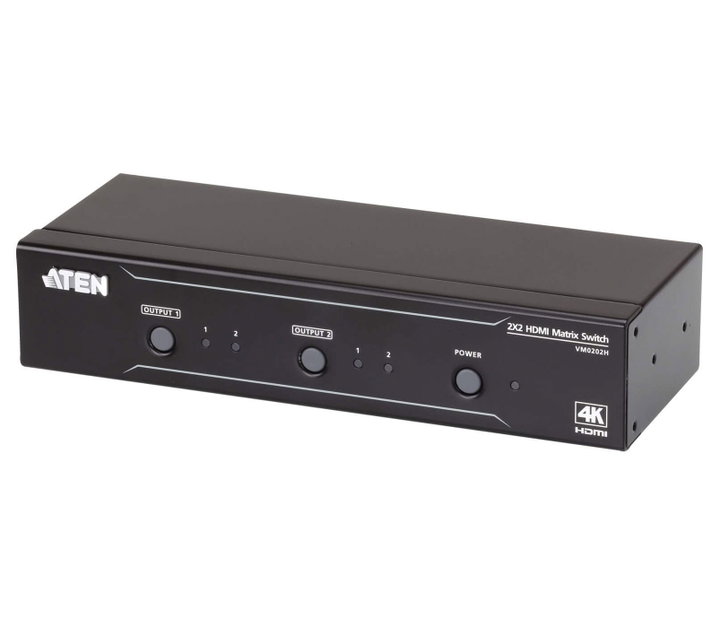

Switch Matrix 2 x 2 HDMI 4 K with IR remote control - Aten IDATA VM- 0202 H

Aten VM 0202 H è a HDMI 2 X 2 matrix switch that meets the HDMI specifications including 3 D, Deep Color up to 12 - bit and speedà data transfer up to 10,2 Gbps. Designed for the future trend of high-definition video switch, the VM 0202 H supports computer and video signals at resolutions up to 4 K.

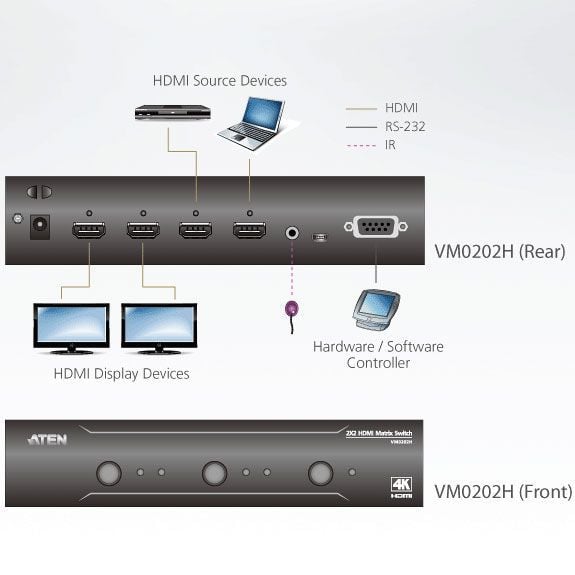

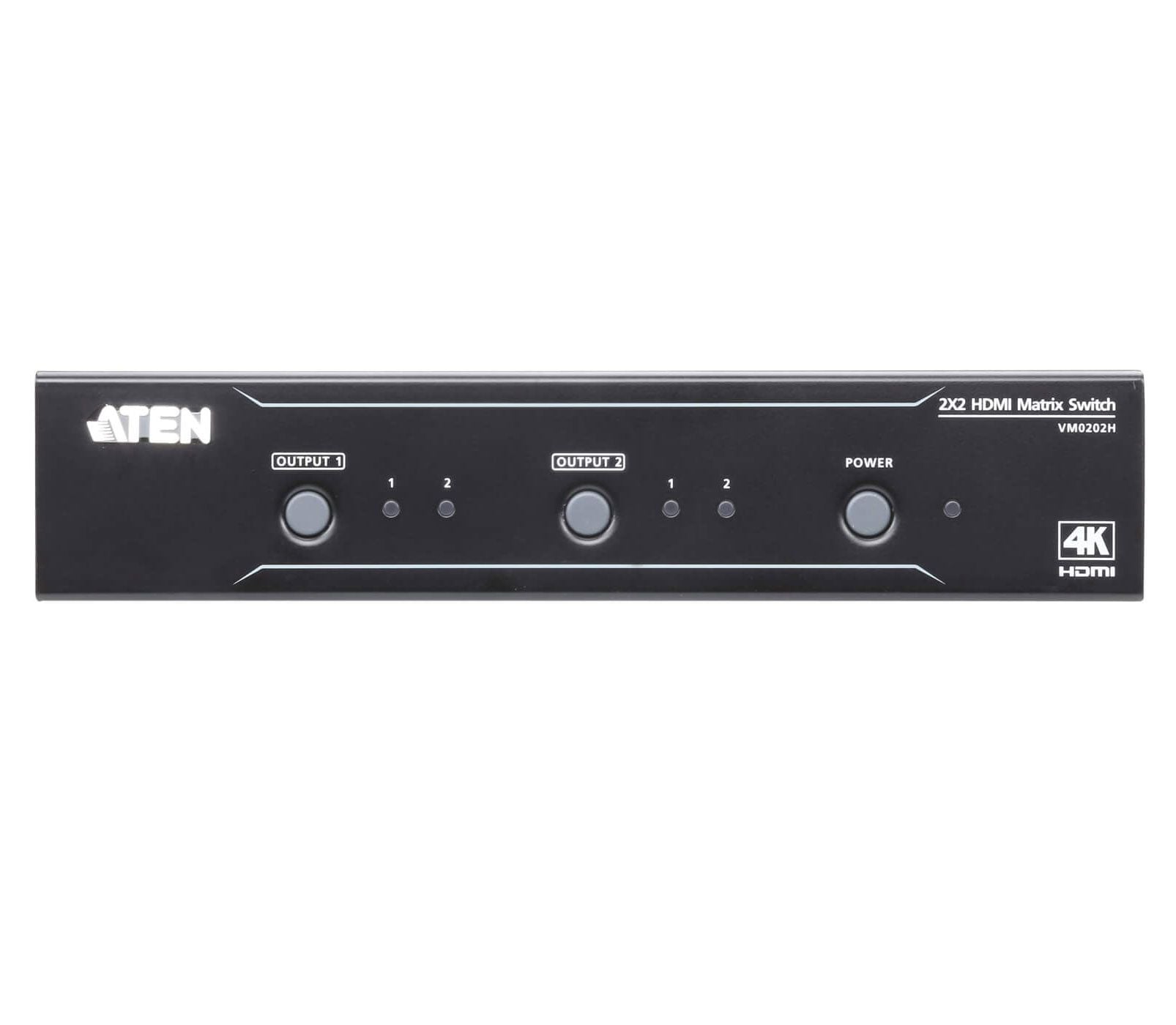

The IDATA VM- 0202 H Matrix Switch offers the high-performance address of 2 HDMI video sources such as HD camcorders, satellite decoders, HD-DVD players, high-performance Blu-ray players, home theater PCs and media players for standalone streaming on 2 HDMI screens. Remote control and convenient push buttons on the front panel allow you to efficiently scroll HDMI-source devices and displays, while the LEDs on the front panel indicate the source device for each screen.

• Video Input:



- Interfaces: 2 x HDMI type A female (black)

- Impedance: 100

- Max distance: 1,8 meters

• Video output:



- Interfaces: 2 x HDMI type A female (black)

- Impedance: 100

- Max distance: 15 meters

• Video:



- Max. frequency of data: 10,2 Gbps (3,4 Gbps per line)

- Pixel clock max.: 340 MHz

- Conformityà: HDMI (3 D, Deep Color), Compatible HDCP 1.4 , CEC (Consumer Electronics Control).

- Max resolution:

Up to 4096 x 2160 / 3840 x 2160 at 60 Hz (4 : 2 : 0 );

4096 x 2160 / 3840 x 2160 at 30 Hz (4 : 4 : 4 )

- Max. distance: Up to 15 meters

• Monitoring



- RS- 232: 1 x DB- 9 female (black), Velocità in baud and Protocol: Velocità in baud 19200 , bit data: 8 , Bit stop: 1 , Parità: No, flow control: No

• EDID Settings



- Modelità EDID: Default / Port 1 / Remix

• Feeding



- 1 connector x CC connector (black)

- Consumption 5 V CC; 4,3 W

• Environment



- Operating temperature 0 - 50 °C

- Storage temperature from - 20 to 60 °C

- Humidità: 0 - 80 % relative humidity, without condensation

• Proprietà physical



- Metal structure

- Weight 0,58 kg

- Dimensions (L x P x A) 20,00 x 7,60 x 4,20 cm



Package contents

• 1 x switch matrix 4 K HDMI 2 x 2 Aten VM 0202 H


• 1 x rack mounting kit


• 1 x 0 AD 6 - 1006 - 26 EG power adapter


• 1 x 2 XRT- 0106 G IR remote control


• 1 x 2 XRT- 0003 G IR receiver


• 1 x user instructions
