All-in-one StreamLive HD - Aten IDATA UC- 9020 Multichannel Mixer

StreamLIVE™ HD è a portable, complete, multi-channel audio/video mixer that integrates a 1080 p video capture solution, video switch, streaming transmission, video conversion, video splitter and audio mixer into a compact housing that eliminates the hassle of working with different AV equipment. StreamLIVE™ HD allows the transmission of HDMI video sources for quality à higher live transmissions on CDN platforms such as YouTube Live, Facebook and Twitch.

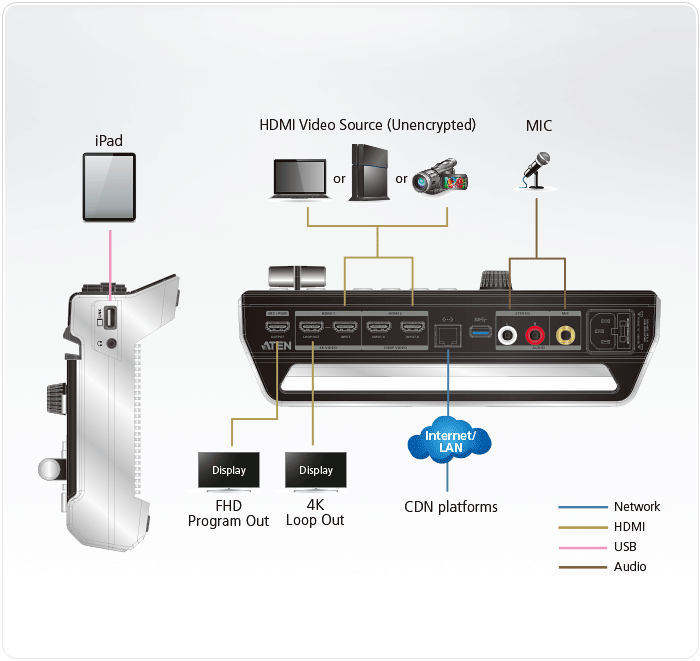

For more comfort à, StreamLIVE™ HD offers an intuitive application that makes it easy to monitor, edit image layouts and adjust PIP settings. StreamLIVE™ HD does not require the use of PCs and software, and thanks to its well-designed control panel makes live streaming more ù smooth and simple. You can also view video preview and monitor audio levels before going live with web transmission! To begin, è just connect video/audio sources and the Ethernet with iPad with the installed ATEN application, è si è ready to start.



Every time you do capture, edit or stream, StreamLIVE™ HD thanks to its ergonomic and practical design, è flexible enough to fit all independent live streaming environments. Thanks to its many features, StreamLIVE™ HD helps you solve the challenges that arise with independent live streaming and offers an easy-to-use solution.



Features

• Full design to simplify streaming workflow: integrates video capture 1080 p, video switch, streaming encoding, video conversion, video splitter and audio mixer


• High quality live streaming; professional for a global audience via any CDN platform, with a really low threshold, even less experienced users can quickly start using it


• Does not require PC and software with ability; plug-n-roll


• Possibility to change the video layout in the settings Fullscreen/PBP/PIP, add images and subtitle overlaps, and smooth scene transitions for a professional product


• Storyboard-like management: Up to 8 default scenes to use during streaming and performance to reduce hardware interaction needs

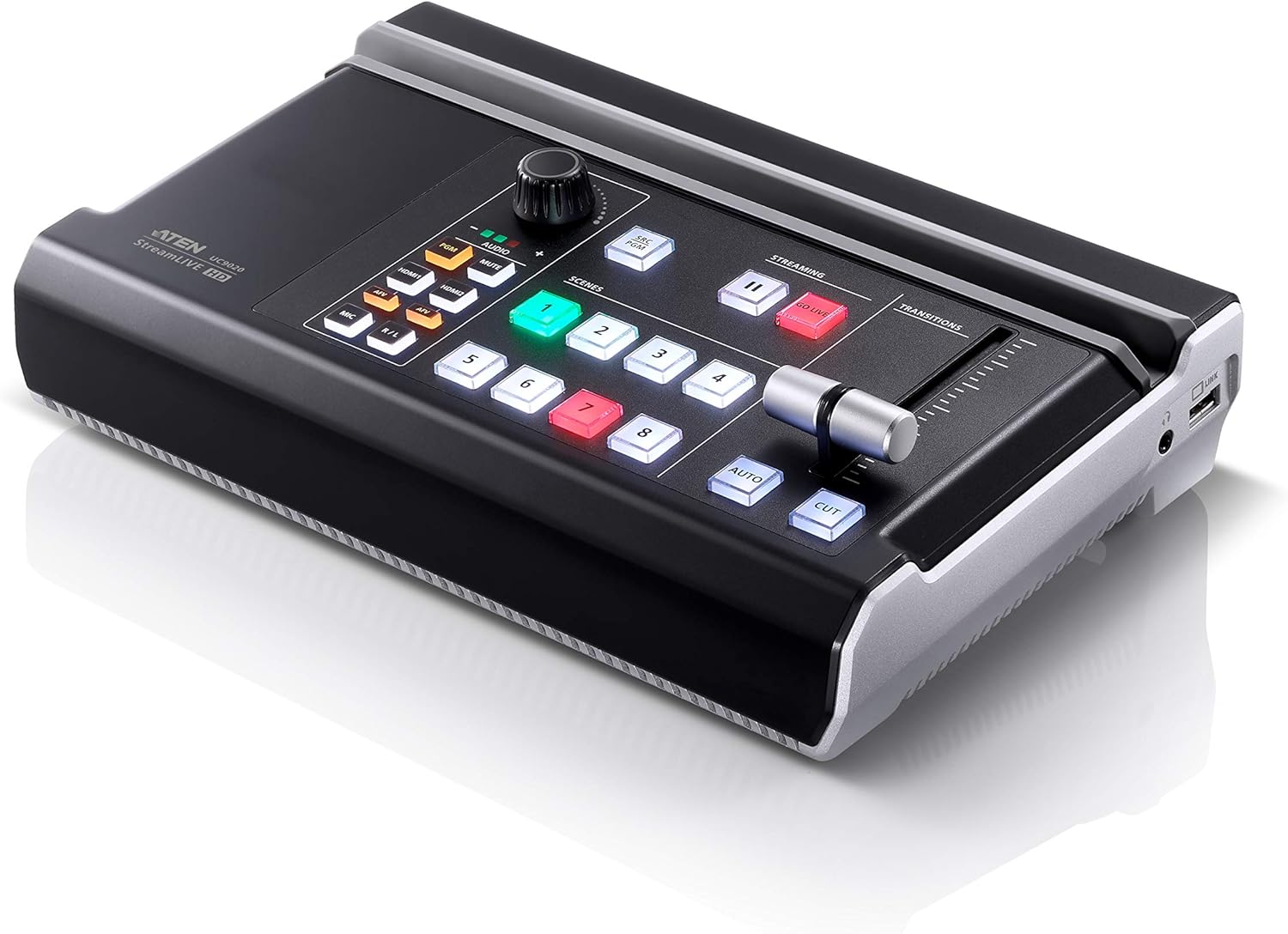

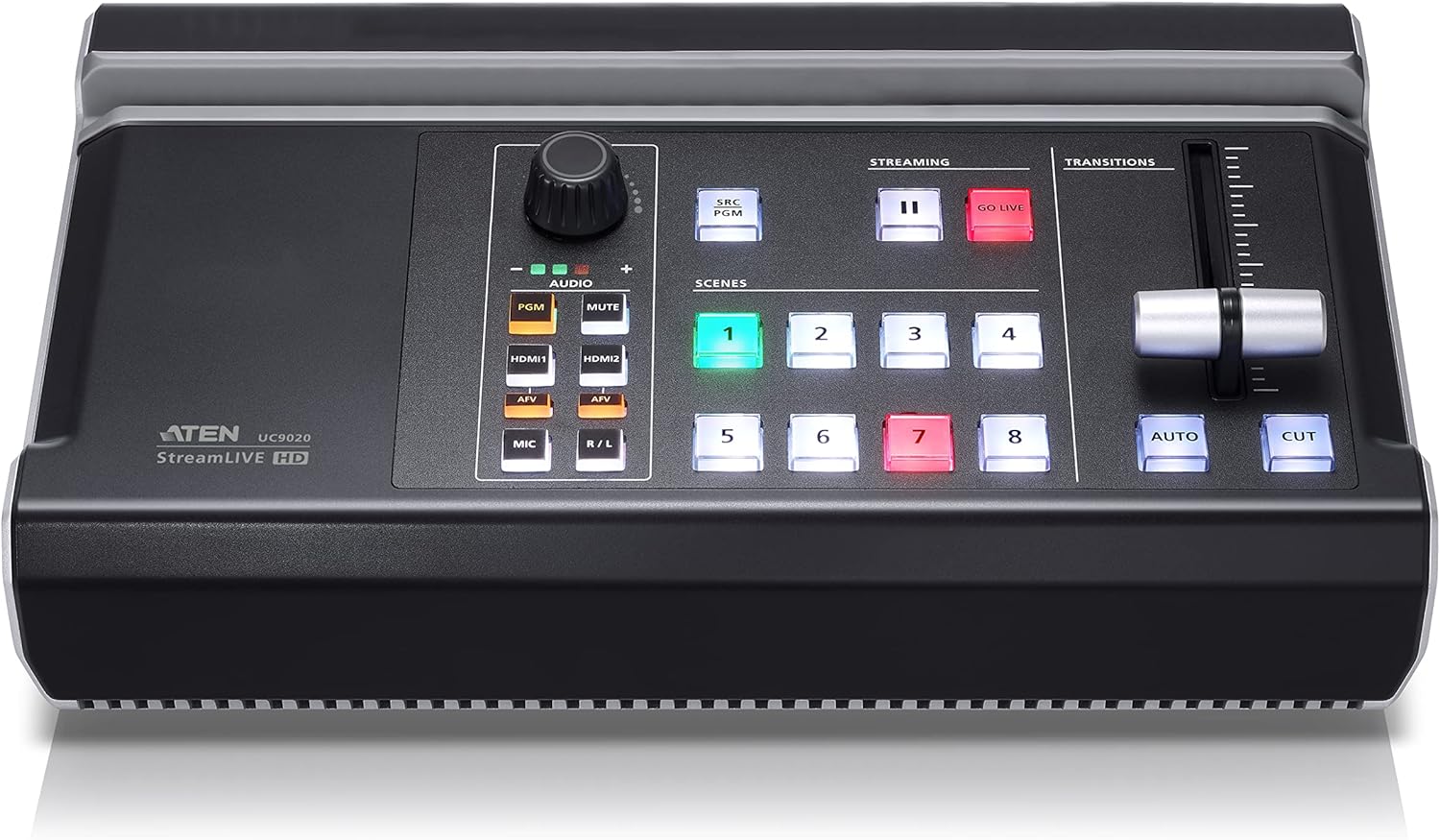

• Compact mixer control panel: switch and mix between more ù video and audio sources thanks to light keys easy to identify


• Fanless air recirculating system and optimized for silent operations


• Multitasking designed for support management to improve portabilityà and ergonomic angle



Technical Specifications Audio/Video

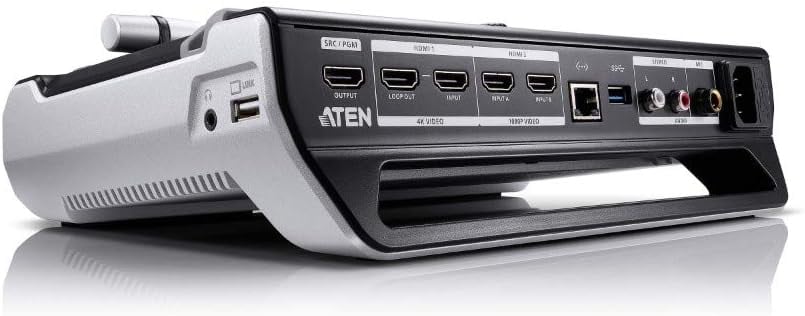

• Video input: 1 x 4 K HDMI Type-A female (up to 4 K at 60 hz, no HDCP support) and 2 x HDMI Type-A female (up to 1080 p at 60 , switcher, no HDCP support)


• Video output: 1 x 4 K Loop-Thru HDMI Type-A female (up to 4 K to 60 , no HDCP support), 1 x PGM HDMI Type-A female (up to 1080 p to 60 , no HDCP support)


• Video sampling: 4 : 2 : 2 8 -bit with 4 Color Space: 2 : 2 YUV


• Video encoding: Format H. 264 , Bit rate: 512 Kbps~ 10 Mbps , Color format: YUV 420 , Resolution: 1080 p 30 , 720 p 30 , 480 p 30


• Audio encoding: Format: AAC , Sample rate: 48 kHz , Bit rate: 128 kbps


• Input Resolutions:



HDMI input 1 : 640 x 480 , 480 p: 720 x 480 , SVGA: 800 x 600 , XGA: 1024 x 768 , 720 p: 1280 x 720 , SXGA: 1280 x 1024 , WXGA+: 1440 x 900 , UXGA: 1600 x 1200 (RB), WUXGA+: 1680 x 1050 , 1080 p: 1920 x 1080 , 4 K UHD: 3840 x 2160 , 4 K DCI: 4096 x 2160

HDMI input 2 A/B* : 640 x 480 , 480 p: 720 x 480 , SVGA: 800 x 600 , XGA: 1024 x 768 , 720 p: 1280 x 720 , SXGA: 1280 x 1024 , 1360 x 768 , WXGA+: 1440 x 900 , UXGA: 1600 x 1200 (RB), 1080 p: 1920 x 1080

*Only the selected port shows the video, the other shows non-video or graphics photos.

SRC/PGM HDMI: 480 p: 720 x 480 , 576 p: 720 x 576 , 720 p: 1280 x 720 , 1080 p: 1920 x 1080

HDMI Loop-Through: 640 x 480 , 480 p: 720 x 480 , SVGA: 800 x 600 , XGA: 1024 x 768 , 720 p: 1280 x 720 , SXGA: 1280 x 1024 , WXGA+: 1440 x 900 , UXGA: 1600 x 1200 (RB), WUXGA+: 1680 x 1050 , 1080 p: 1920 x 1080 , 4 K UHD: 3840 x 2160 , 4 K DCI: 4096 x 2160

• Audio inputs: Captured HDMI inputs (stereo), 1 x microphone input, 6,5 mm jack (dual mono) , 1 x line input, RCA jack, signal level: - 10 dBV


• Audio outputs: HDMI outputs (stereo) , 1 x line output, 3,5 jack mm (stereo)



Other technical specifications

• Connection doors: 1 x USB 3.1 Gen 1 type A female (blue), 1 x USB 2.0 type A (white)


• Ethernet connection required for operation via integrated Gigabit LAN network port


• Apple™ supported operating systems:



iPad Pro (3 per generation) with iOS 11 or later

iPad with iOS 11 or later (è Apple Lightning USB 3 adapter also needed): iPad Pro (1 per generation), iPad Pro (1 per generation) , iPad Pro (2 per generation) , iPad Pro (2 per generation) iPad (5 per generation) · iPad (6 per generation), iPad Air (3 per generation), iPad Mini (5 per generation).



Physical and environmental data

• Operating temperature: 0 - 40 oC


• Storage temperature: - 20 - 60 oC


• Humidità  0 - 80 % relative humidity, without condensation


• Power supply: IEC C 14 , 100 - 240 Vca cable (with 250 V fuse)


• Consumption : 110 V CA, 12,9 W, 80 BTU / 220 V CA, 12,7 W, 79 BTU


• Structure:  Metal


• Weight: 1,89 kg


• Dimensions (L x P x A): 28,85 x 18,99 x 9,66 cm



Package contents

• UC 9020 StreamLIVE ™ HD Multichannel AV Mixer


• Type A to USB type C USB cable.


• Type A USB to Type A USB cable.


• AC power cable.


• User Manual
