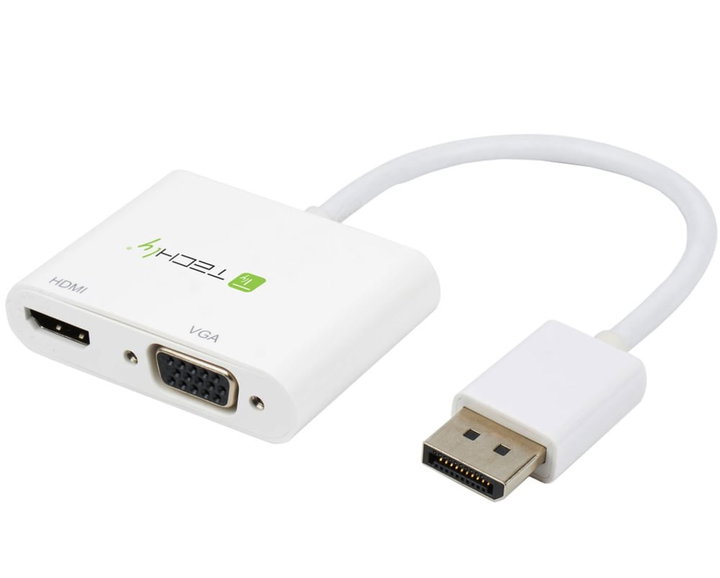

DisplayPort adapter to HDMI/VGA 4 K 60 Hz - Techly ICOC DSP-VH 1220

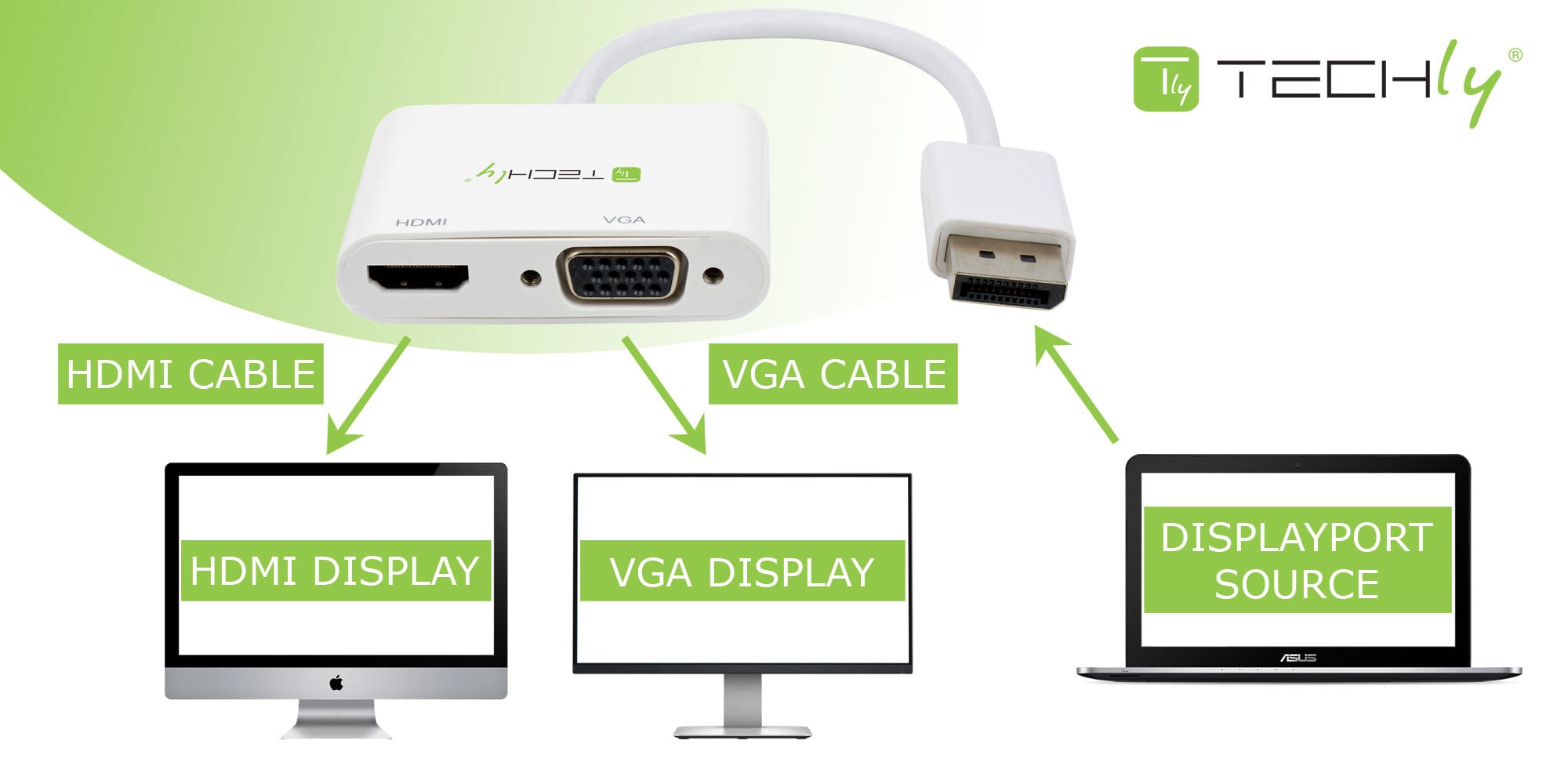

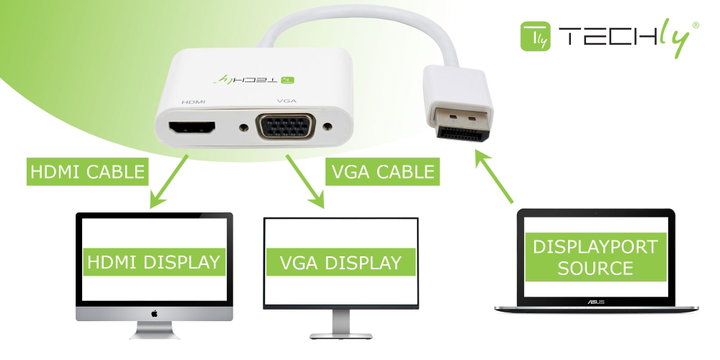

ICOC DSP-VH 1220 è an adapter from DisplayPort to HDMI and VGA. Allows the transmission of the signal from a DisplayPort screen to a high definition HDMI or VGA screen (televisions, projectors, etc.). With this product you can see both video or presentations on a large screen. If both outputs are connected, only one output can receive the input signal, the HDMI output è priority on the VGA output.



Features

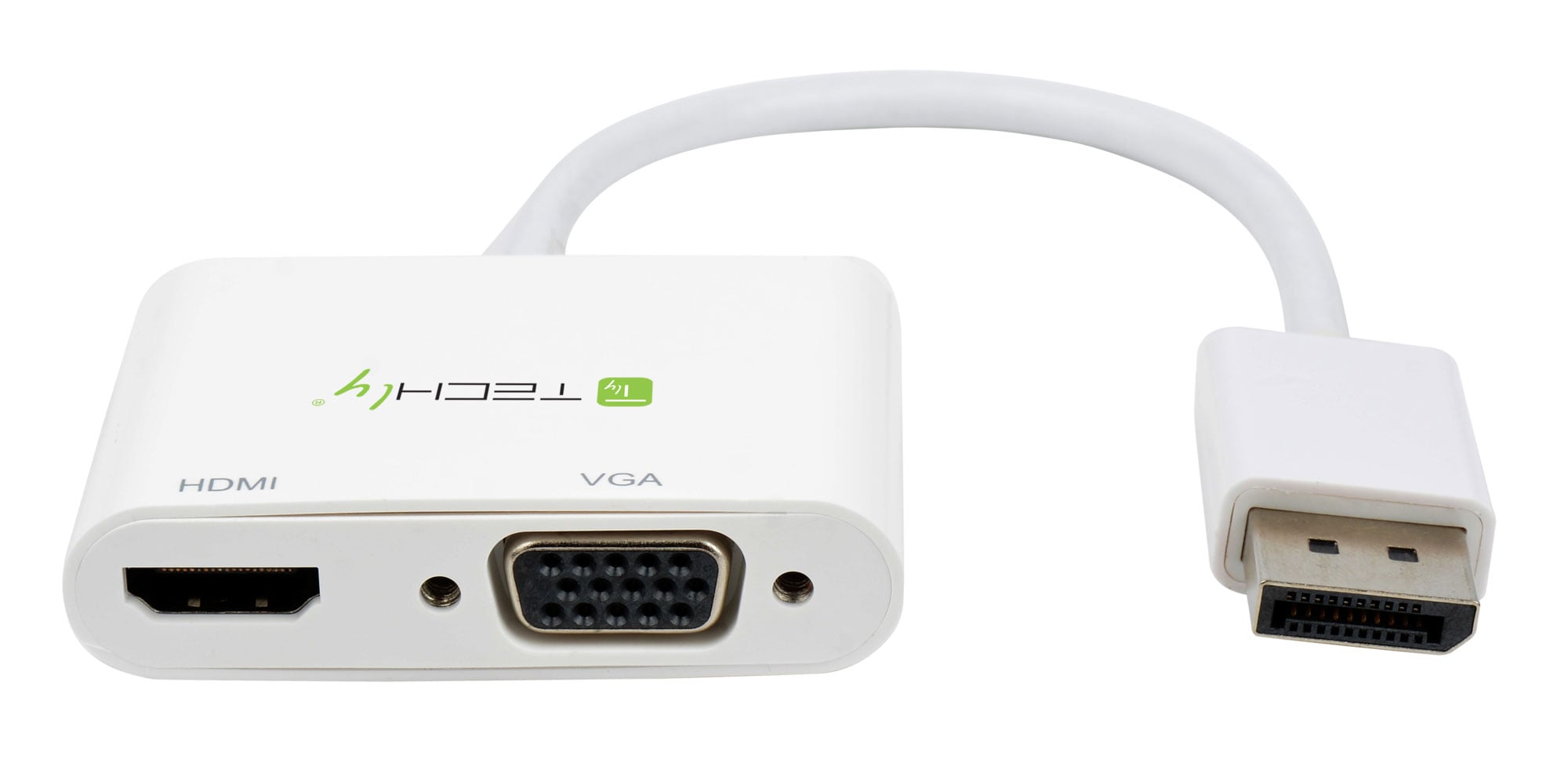

• Adapter from DisplayPort male to HDMI and female VGA


• Complies with DisplayPort 1.2 specifications


• Supports HDMI resolution up to 4 kx 2 k@ 60 HZ


• Supports VGA resolution up to 1920 x 1200 @ 60 HZ


• Supports 3 D format and conforms to previous versions


• Supports HDCP and EDID pass-through from PC source to monitor



Technical specifications

• Input connector: DisplayPort Male x 1

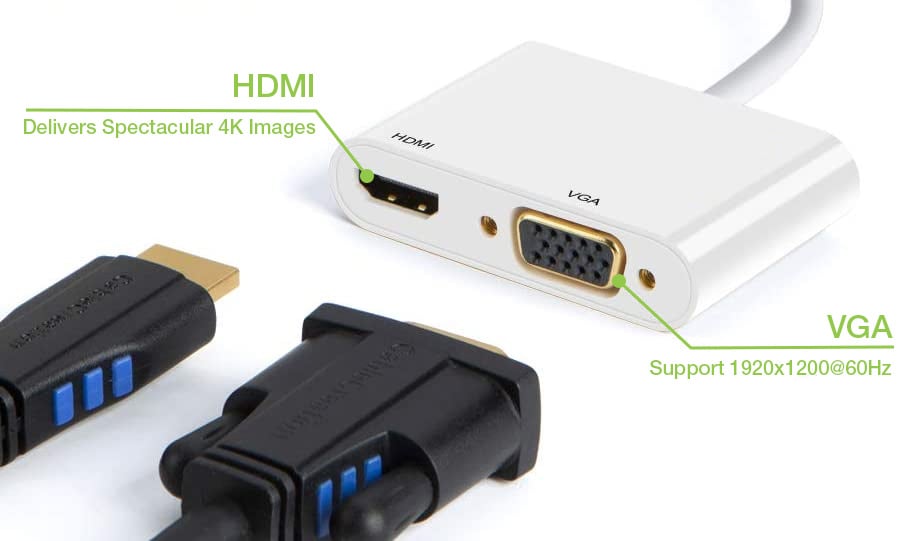

• Output connector: HDMI Female (HDMI V 1.4) x 1


• Output connector: VGA Female (Max VGA 1920 x 1200) x 1  


• HDMI resolution: up to 4 KX 2 K@ 60 HZ


• VGA resolutions: up to 1920 X 1200 @ 60 HZ

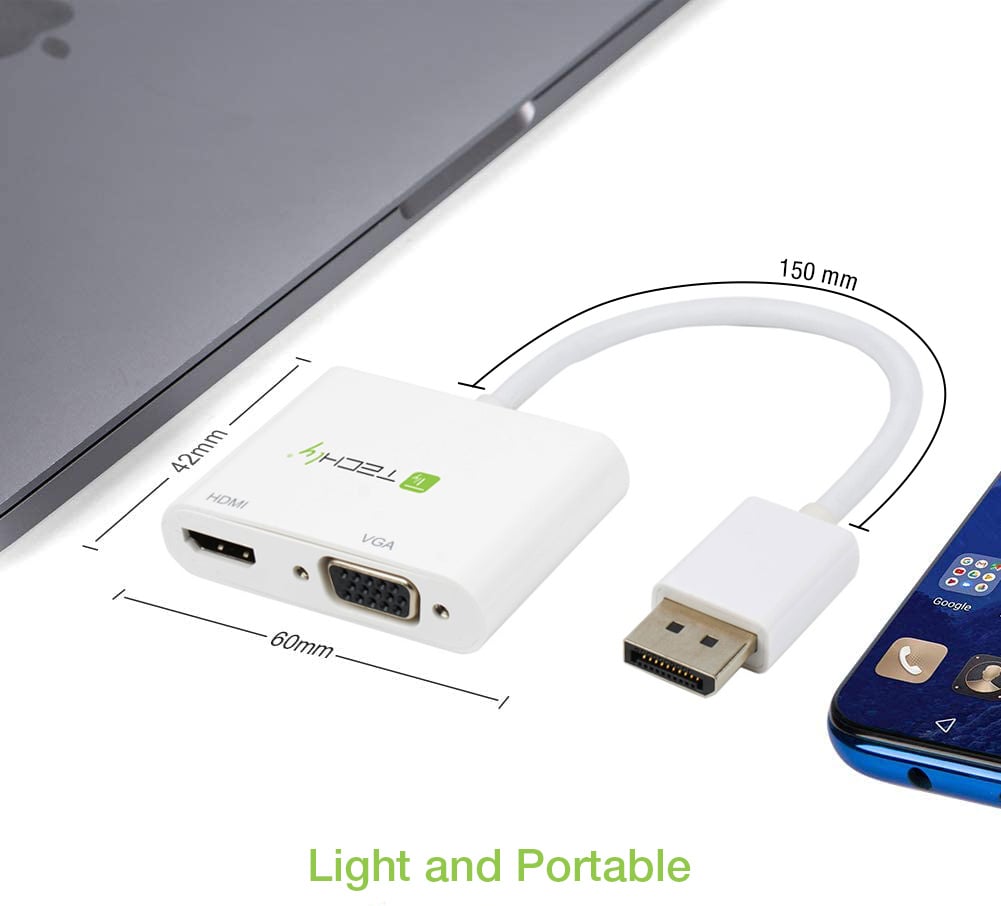

Dimensions

• Length: 60 mm


• Width: 42 mm


• Depthà: 14 mm


• Cable length: 150 mm


• Weight (Net): 39 g



Environmental information

• Operating temperature: a 0 °C a + 45 °C


• Humidità exercise: 10 % to 85 % RH (without condensation)


• Storage temperature: from - 10 °C to + 70 °C


• Storage humidità from 5 % to 90 % RH (without condensation)



Feeding 

• The DP cable provides power to the product

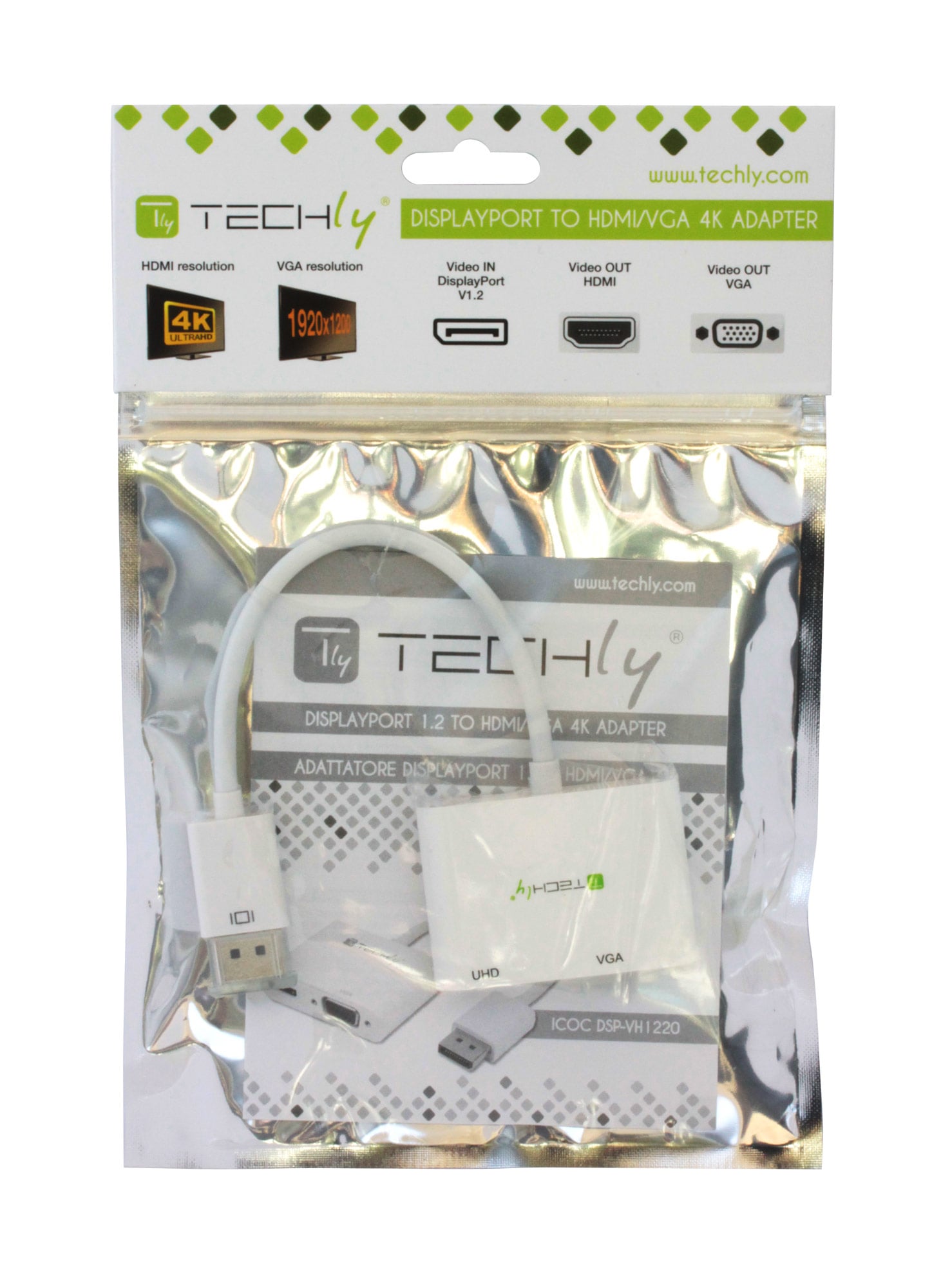

Package contents

• Unità main


• Education manual
