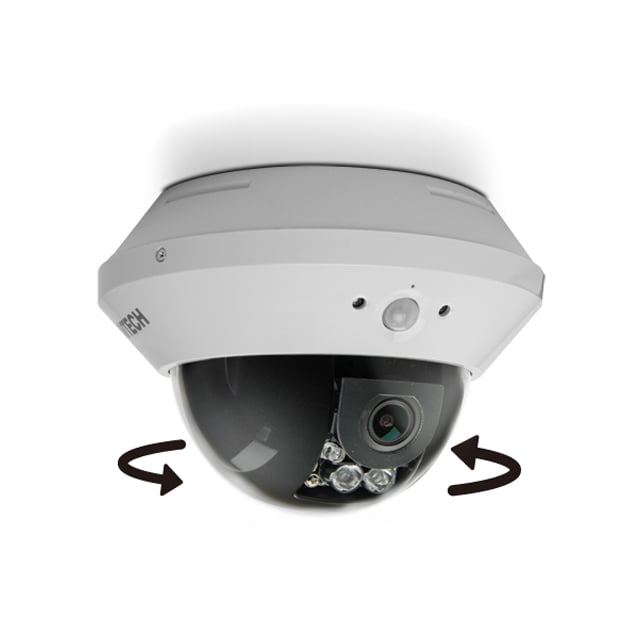

IC-AVT1303 is a Dome CCTV camera with motorized 316° rotation. The IR transmission distance reaches 20 meters for 24-hour video surveillance on 24 and, therefore, is ideal for use in factories or warehouses.
Features- Image sensor: 1/2.7” CMOS sensor with 1080P video output
- External alarm (1In / 1Out)
- With motorized panning of 316 degrees, the camera can achieve a wide field of view, offering users more complete control over the monitored site
- Camera parameters adjustable when used with HD CCTV DVR
- Effective IR distance up to 20 meters for continuous video surveillance
- Built-in PIR sensor for alarm detection
Specifications- Image sensor: 1/2.7” CMOS sensor
- Maximum video resolution: 1080P@30fps / 1080P@25fps
- Minimum illumination: 1 Lux / F2.0
- Lens: f2.8mm / F1.8
- Viewing angle: 118° (horizontal) / 65° (vertical) / 136° (diagonal)
- IR LED: 2 units
- Effective IR range: up to 20 meters
- PIR sensor: wide-angle detection range 76° with a maximum distance of 5 m at a height of 2,5 m (below 30°C)
- IR movement: yes
- Day/night mode: yes
- IRIS mode: AES
- White balance: Auto / User / Push / 8000K / 6000K / 4200K / 3200K
- AGC: adjustable
- Sharpness: adjustable
- Flickerless: 50HZ/ 60 HZ/ OFF
- BLC: adjustable
- External alarm I/O: yes ( 1 input / 1 output)
- Power supply: DC12V / 1A
- Consumption: 421 mA
- Operating temperature: 0℃ ~ 40℃
Camera dimensions- Width 130 mm
- Height 93,6 mm
Package contents- Ceiling Mount IR Full-HD CCTV Dome Camera
- Instruction manual
