IP Bullet Camera IR H.265 5MP AI-Based Detection, DGM5103A - Avtech IC-DGM5103A

Technical specifications

• IP Bullet IR H.265 camera, 5MP

• Provides clear and colorful images even at night

• AI-based people detection support to avoid false detection alarms

• Supported ONVIF standard to simplify system integration
• POE (Power-over-Ethernet) support to eliminate power cables and reduce installation costs

• Built-in microphone for audio recording and line out support for audio transmission

• Effective IR range up to 30 meters for night surveillance
• DWDR to increase image recognizability in overexposed and dark areas

• Remote surveillance

• CMOS image sensor 1/3

• Maximum resolution 2592 x 1944

• Lens f2,8mm/F1,6

• Viewing angle 107˚ (diagonal)

• Minimum illumination 0,01 Lux (IR LED off), 0 Lux (IR LED on)

• Shutter speed AUTO

• LED IR: 18 units

• Effective IR distance: up to 30 meters

• Day/Night Vision

• DWDR mode

• RTC (real-time clock)

• POE IEEE 802.3af
• Power supply (±10%) PoE / DC12V

• Power consumption (±10%) < 8 W

• Protection rating IP67


Video

• H265 / H.264 compression

• Video resolution:


Main stream 5MP (2592x1944) / 4MP (2560x1440) / 3MP (2304x1296) / 2MP (1080P) / 720P
Secondary stream D1/VGA/640x360/480x360/CIF

• Frame rate 5 MP at 25 FPS

• Video profile: High Profile/Main Profile/Baseline Profile

• Multiple video streaming 2 streams

• Bitrate control 32Kbps - 8Mbps, VBR/CBR

• Image enhancement DWDR/HLC/2D DNR/3D DNR/AWB

• Day/Night switching Auto/Color/(B/N)/Timer

• Forced anti-flicker
• Auto/Manual white balance

• Image Orientation: Rotate/Mirror

• Privacy mask

• Text overlay

• Configurable OSD title position/font size/text; text input (English and Chinese characters) and image upload (BMP) supported


Audio

• Built-in microphone

• Encoding G.711-u / G.711-a
• Audio adjustment


Alarm and event

• Motion/Human detection mode

• Detection program

• Motion detection area 1x1, 2x2, 3x2, 3x3, 4x3, 4x4, 8x8, 16x16, 22x18

Network

• LAN port RJ45 connector x 1/4KV surge-proof

• Ethernet LAN speed based on T from 100 Mbps

• Supported protocols HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS/RTMP

• Compatible with ONVIF Compatible with Onvif 17.06

• Number of online users: 6

Compatibility

• Compatible with Internet Explorer 6 and later, Microsoft Edge and Google Chrome

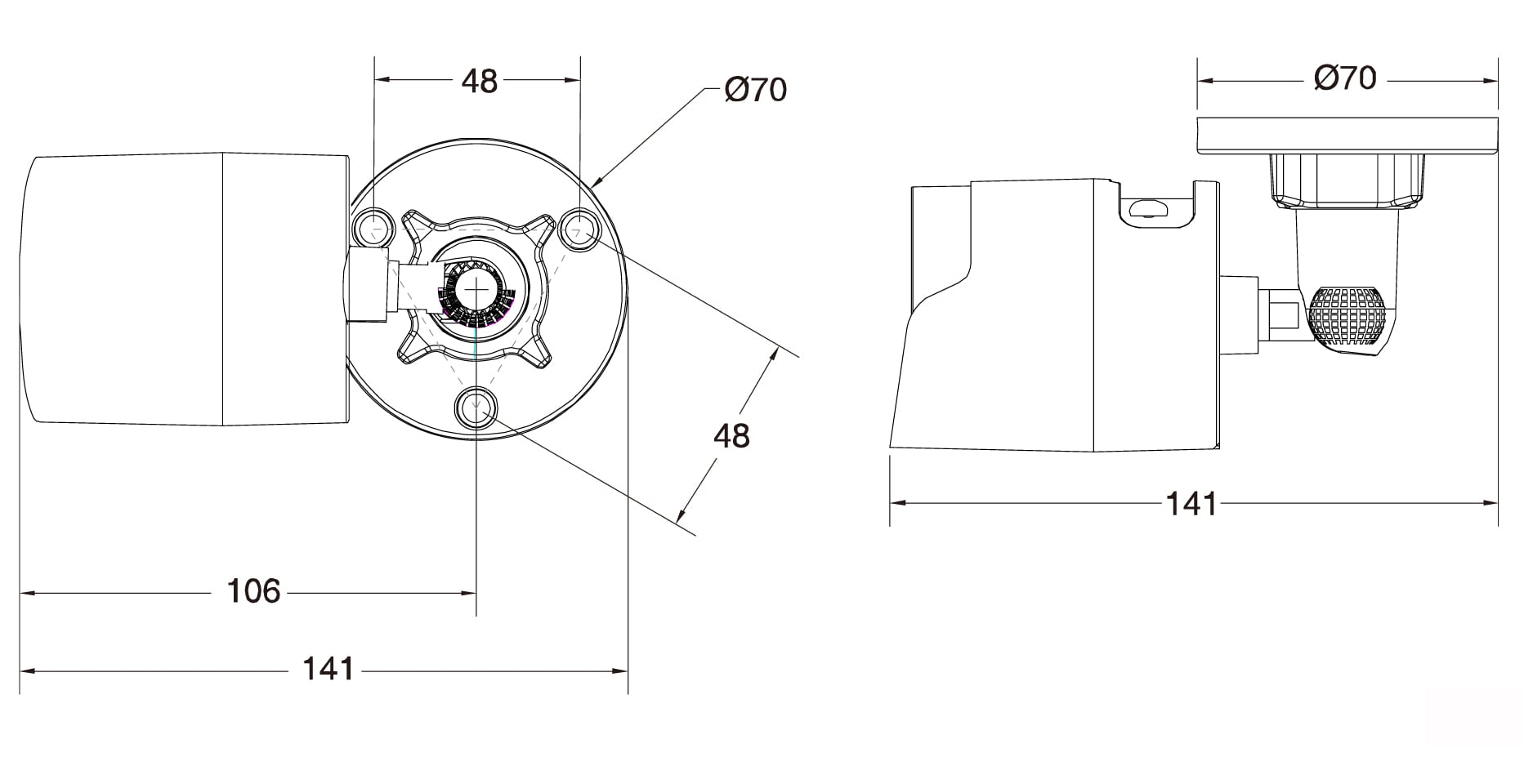

Dimensions

• Length: 141 mm

• Diameter: 70 mm


Environmental features

• Operating temperature -30 ℃ ~ 60 °C

• Operating humidity 10%-90%RH


Package contents

• Camera IC-DGM5103A

• User manual
