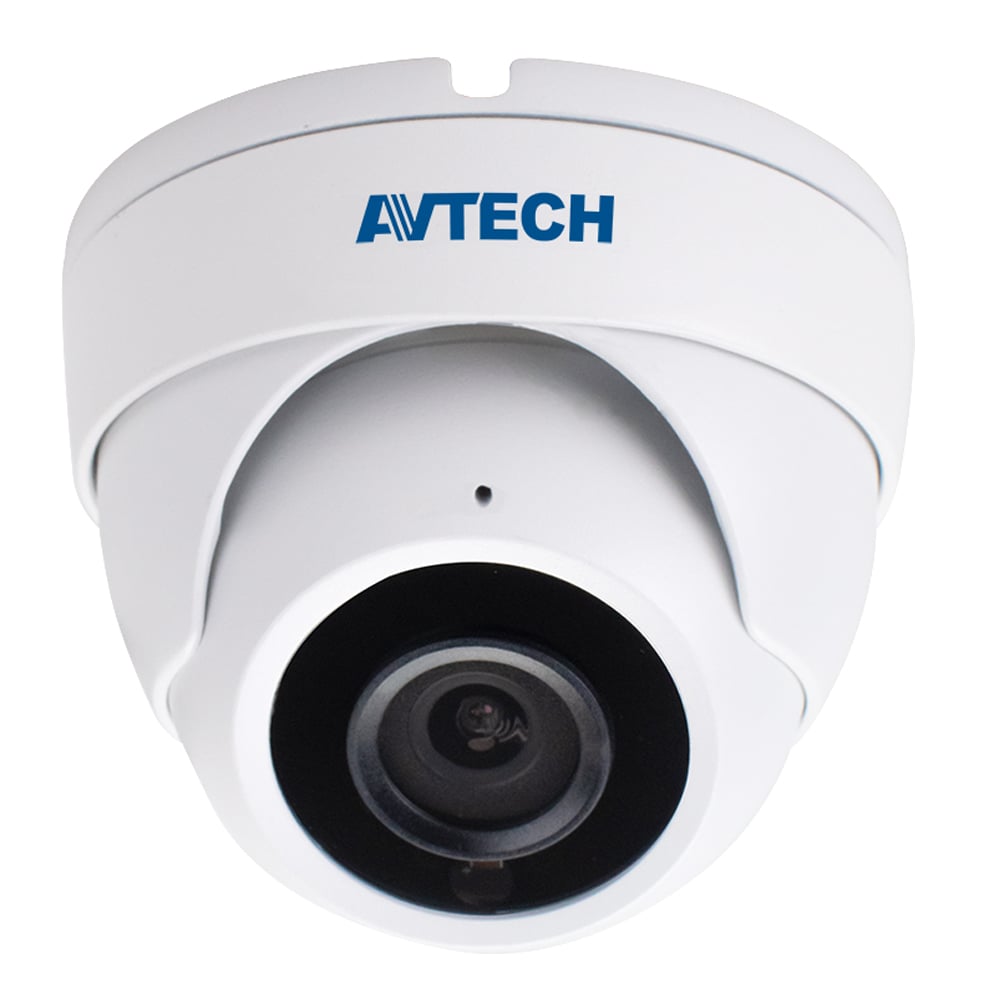

IP Dome Camera 3MP H.265 IR 30m IP66 AI - Avtech IC-DGM3202

€66.05
Tax included €54.10 excl. VAT

IP Dome Camera 3 MP with AI-based human detection, IP66, IR up to 30 m, PoE, built-in microphone. CMOS sensor 1/2.7\", lens 2,8 mm, diagonal angle 112°.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • IP Dome Camera with IP66 housing featuring AI-based human detection to avoid false alarms

  • Supported ONVIF standard to simplify system integration

  • POE (Power-over-Ethernet) support to eliminate power cables and reduce installation costs

  • Built-in microphone for audio recording

  • Effective IR range up to 30 meters for night surveillance

  • DWDR to increase image recognizability in overexposed and dark areas

  • Remote surveillance

  • Compatible with Internet Explorer 6 and later, Microsoft Edge and Google Chrome



Technical specifications

  • CMOS image sensor 1/2.7”

  • Maximum resolution 2304 × 1296

  • Lens f2,8 mm / F 1,6

  • Viewing angle 112˚ (diagonal)

  • Minimum illumination 0,01 Lux (IR LED off), 0 Lux (IR LED on)

  • Shutter speed AUTO, 1/25s ~ 1/100000s

  • LED IR: 18 units

  • Effective IR distance: up to 30 meters

  • Day/Night Mode

  • WDR Mode: DWDR

  • RTC (real-time clock)



Video

  • H265 / H.264 compression

  • Video resolution:


Main stream 3MP (2304x1296) / 2MP (1080P) / 720P / D1

Secondary stream D1 / VGA / 640x360 / CIF

  • Frame rate 3MP @ 25FPS / 2MP @ 30FPS

  • Video profile: High Profile/Main Profile/Baseline Profile

  • Multiple video streaming 2 streams

  • Bitrate control 32Kbps - 8Mbps, VBR/CBR

  • Image enhancement DWDR / HLC / 2D DNR / 3D DNR / AWB / AGC

  • Day/Night switching Auto/Color/(B/N)/Timer

  • Forced anti-flicker

  • Auto/Manual white balance

  • Image orientation Flip/Mirror

  • Privacy mask

  • Text overlay

  • Configurable OSD title position/font size/text; text input (English and Chinese characters) and image upload (BMP) supported



Audio

  • Built-in microphone

  • Encoding G.711-U / G.711-A

  • Audio adjustment



Alarm and event

  • Detection mode: motion/human detection

  • Detection program

  • Motion detection area 1x1, 2x2, 3x2, 3x3, 4x3, 4x4, 8x8, 16x16, 22x18



Network

  • LAN port RJ45 connector x 1/4KV surge-proof

  • Ethernet LAN speed based on T from 100 Mbps

  • Supported protocols HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS/RTMP

  • Compatible with ONVIF Compatible with Onvif 17.06

  • Number of online users: 6

  • Remote access Internet Explorer 6 and later (recommended), Microsoft Edge and Google Chrome



General

  • Web interface language: English, Traditional Chinese, Simplified Chinese, Russian, German, Italian, Turkish, Korean

  • Operating temperature -30 °C ~ 60 °C

  • Operating humidity 10%-90%RH

  • POE IEEE 802.3af

  • Power supply (±10%) PoE / DC12V

  • Power consumption (±10%) < 8 W

  • Net weight (g) 274,5

  • IP66 Housing

  • Optional bracket/junction box AVM552C-HBKT / AVM552C-HLKT



Minimum web browsing requirements

  • Intel Core i3 or higher, or equivalent AMD

  • 2 GB RAM

  • AGP graphics card, Direct Draw, 32 MB RAM

  • Windows 10, Windows 8, Windows 7, DirectX 9.0 or later

  • Internet Explorer 6 and later (recommended), Microsoft Edge and Google Chrome



Package contents

  • IP Dome Camera IC-DGM3202

  • User manual

  • Brand
  • Reference
    IC-DGM3202
  • In stock
    1 Item
  • EAN13
    4713218634931
