CCTV camera Bullet IR 5 MP 4 in 1 IP 67 - Avtech IC-DGC 5104

€44.94
Tax included €36.80 excl. VAT

Bullet camera with CMOS sensor 1 / 2,5 " and 5 MP resolution. Quadbrid (TVI, CVI, AHD, CVBS), IP protection rating 67 , IR distance up to 25 meters, integrated microphone.



Return policy



Delivery policy



Direct contact for info



Secure Payment

Features

  • CMOS sensor 1/2,5” with video output 5 MP

  • Quadbrid video output with TVI, CVI, AHD and CVBS to meet different customer needs

  • Sensitivityà low light of 0,01 Lux / F 1.6 , 0 Lux (lighted IR LED)

  • Integrated microphone for audio recording

  • D-WDR to increase recognition of image overexposure and dark areas

  • Day and night surveillance 24 hours on 24 with effective IR distance up to 25 meters

  • IP protection degree 67 for weather-resistant applications

  • Adjustable camera parameters when used with DVR CCTV AVTECH HD



Technical specifications

  • Modelità TVI, CVI, AHD and CVBS videos switchable

  • Sensor 1 / 2,5

  • Number of 2592 (H)× 1944 (V) pixels

  • Video frame rate TVI/AHD: 20 fps@ 2560 × 1944 P / CVI: 30 fps@ 2560 × 1440 P

  • Minimum Lighting 0,01 Lux/F 1,6 (AGC ON), 0 Lux (LED IR ON)

  • Signal/noise ratio 62 dB

  • Velocità auto/handicapped shutter (1 / 25 - 1 / 50.000 s)

  • Objective f 3,6 mm/F 1,6

  • Target angle 99,4 ° (horizontal) / 50,7 ° (vertical) / 118,7 ° (diagonal)

  • LED IR 18 unità

  • Actual distance IR 25 meters

  • Modelità day and night Auto/Color/(B/N)/EXT

  • Integrated microphone (modelità TVI available)

  • Noise reduction 2 D NR

  • ATW/Manual white balance

  • AGC

  • BLC

  • WDR: D-WD

  • Flip-Mirror

  • Degree of protection IP 67

  • Power supply (± 10 %) DC 12 V

  • Power consumption (± 10 %) < 5 W

  • Net weight (g) 327

  • Optional joining bracket/box AVA 126 -WHKT / AVA 156 -WHKT / AVA 456 -BBKT

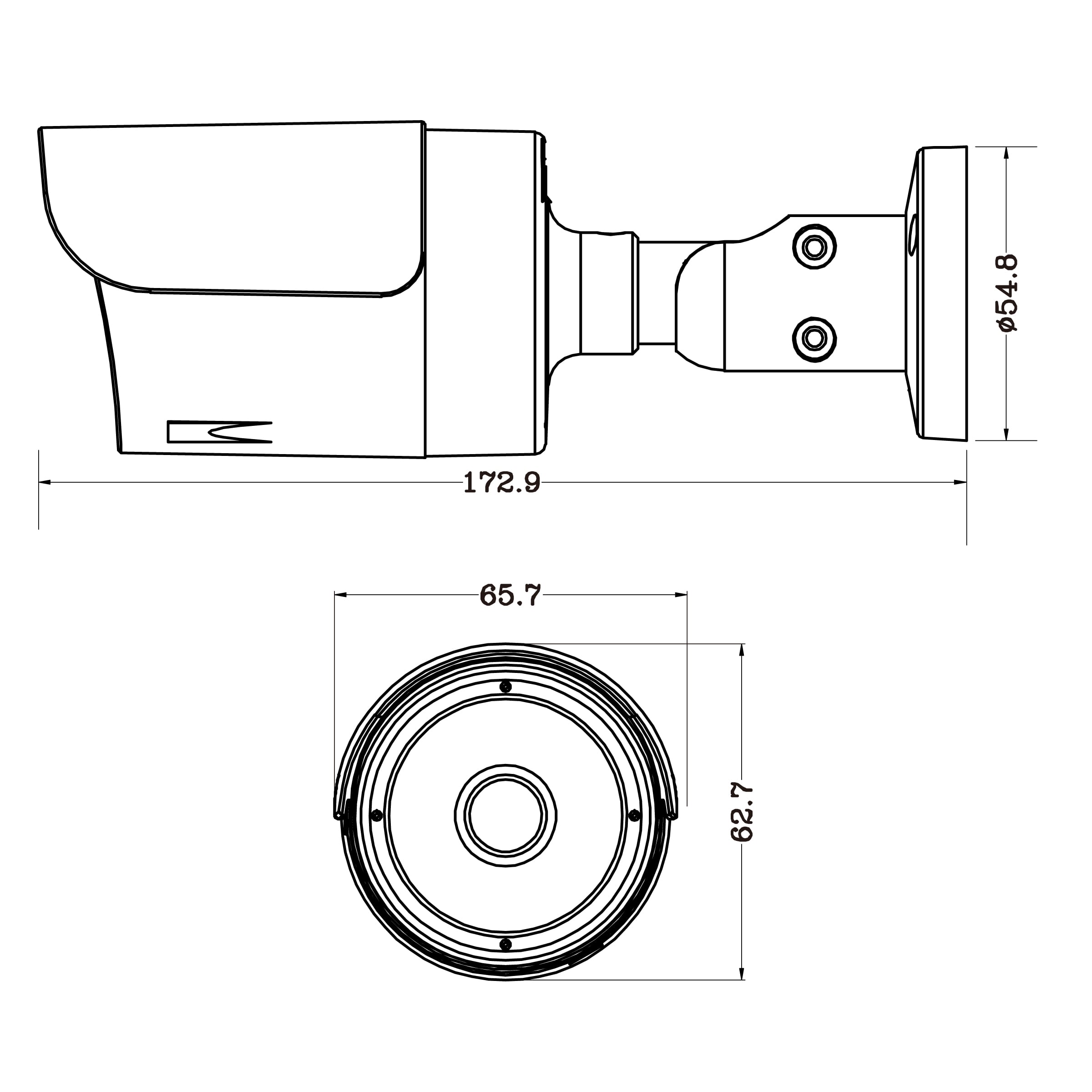

Dimensions

  • Total length 17,29 cm

  • Camera diameter 6,27 cm

  • Base diameter 5,48 cm



Environmental features

  • Operating temperature - 20 °C ~ 60 °C

  • Umidità 10 % - 90 %RH



Package contents

  • IC-DGC 5104 camera

  • User manual

  • Brand
  • Reference
    IC-DGC5104
  • In stock
    10 Items
  • EAN13
    4713218634993
