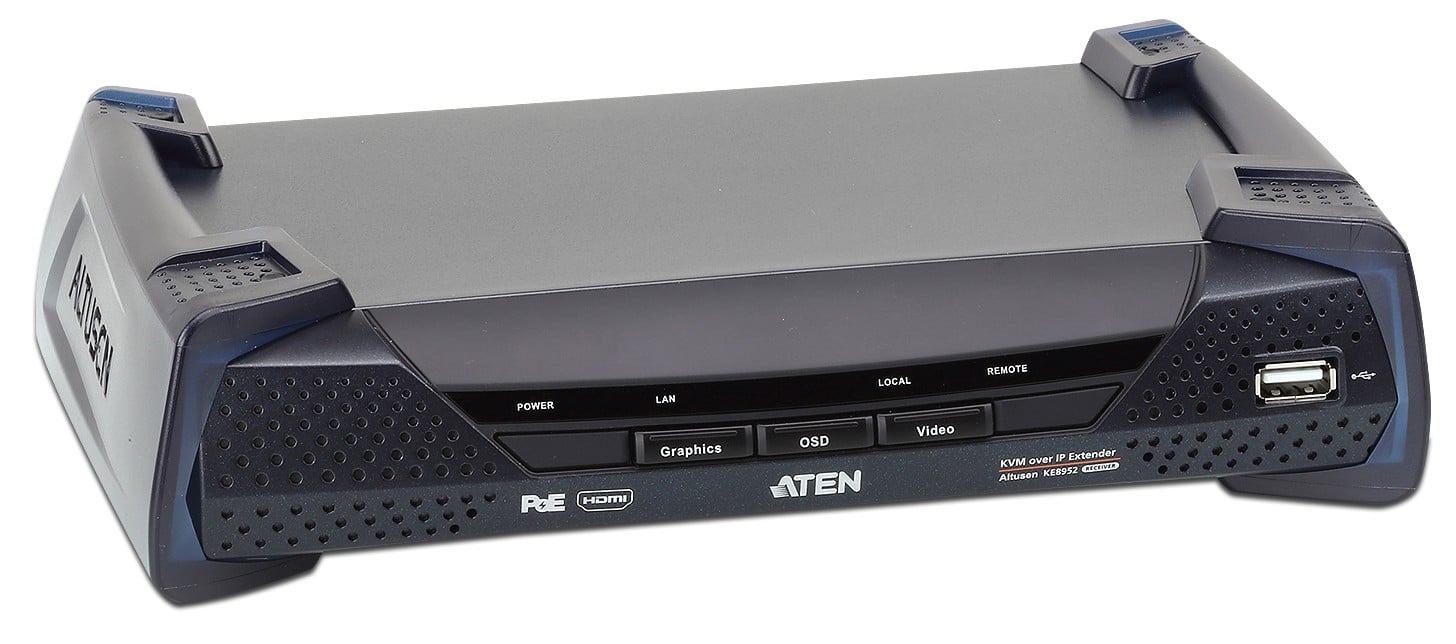

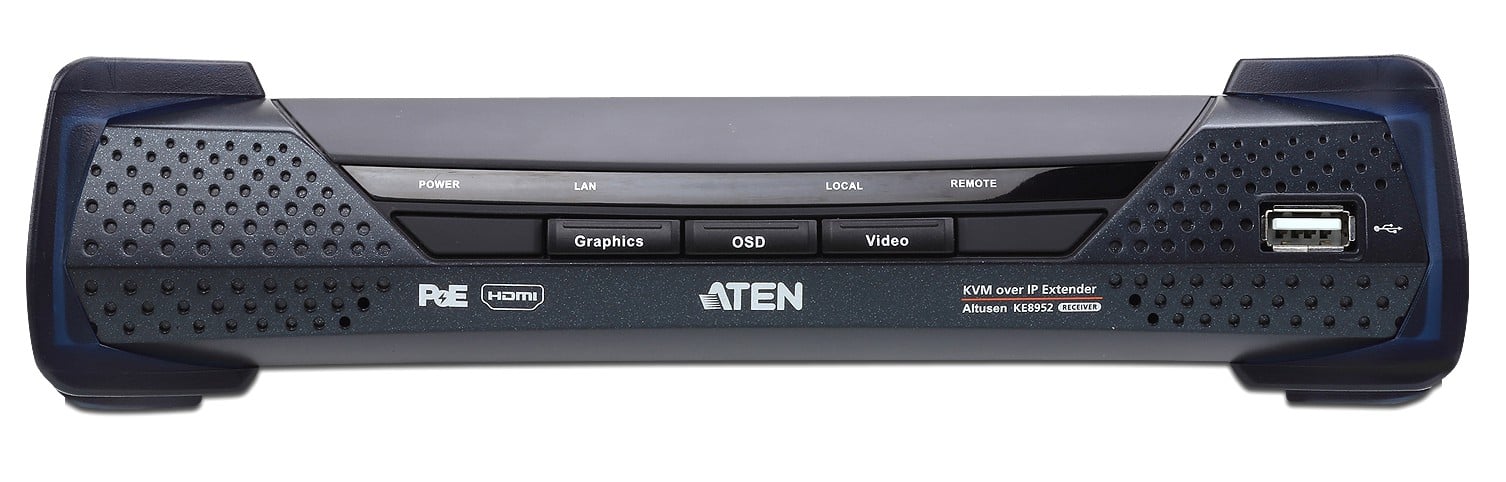

KVM over IP single screen receiver 4 K HDMI with PoE - ATEN IDATA KE- 8952 R

ATEN è well known to offer innovative technologies for connectivity à and access management solutions. For this reason we have introduced the new KVM over IP 4 K HDMI Extensor from ATEN KE 8952 that brings together a unique mix of functionality à and new technologies to offer a definitive solution to extend computers to consoles inside or outside the IT infrastructure.



Using the experience of the KVM over IP solutions, KE 8952 are HDMI-based KVM extenders that allow access to a computer system from a remote USB console from anywhere via Intranet. KVM over IP KE 8952 extenders support an HDMI monitor at each end of the system to offer a quality image with very high resolution 4 K x 2 K (up to 3840 x 2160 ). KE 8952 also supports the expansions of the 1 Gbps SFP fiber module that allows the connection via fibre optic network to extend the transmission distances. In addition, the KE 8952 has the Power over Ethernet (PoE) function, è possible to provide power via a PoE network switch; eliminating the need for a power adapter and efficiently reducing the costs for power configuration.

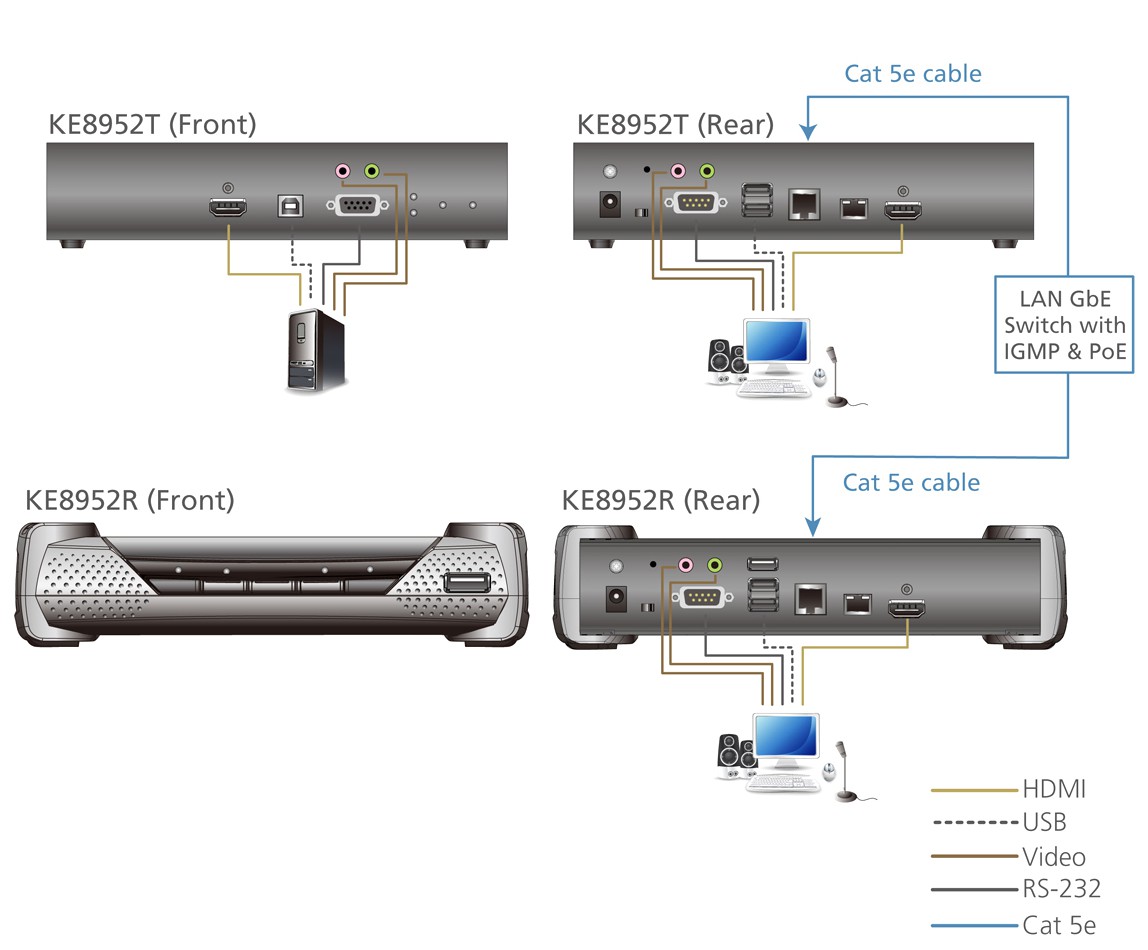

The 4 K HDMI KVM over IP è extender consists of a unit à transmitter that allows connection to a computer and a unità receiver that offers access to the console from a different position. You can access the computer from the remote console via a standard TCP/IP network using a Cat 5 and/ 6 cable that allows you to run the point-to-point, point-to-multipoint, multipoint-to-multipoint and multipoint-to-multipoint administration. KE 8952 can be connected either directly to each other or via a high-speed network à, through a LAN based on copper cables or fiber cables.



Thanks to the implementation of the KE Matrix Management Software (CCKM) with KE 8952 , IT administrators can use advanced features such as automatic detection of all KE* series extenders on the same subnet to make more ù faster installation or configuration, authentication and permission with username/password, and the abilityà to define different types of connections that can be exchanged and shared. Security features also offer additional protection and support AES encryption for secure data transmissions, while RADIUS, LDAP, AD or remote user authentication offer an additional level of security in connection; also, with OSD, RS- 232 and Auto MDIX support, the KE series represents the most economical and convenient way to get a complete digital extension from anywhere. On the Intranet.

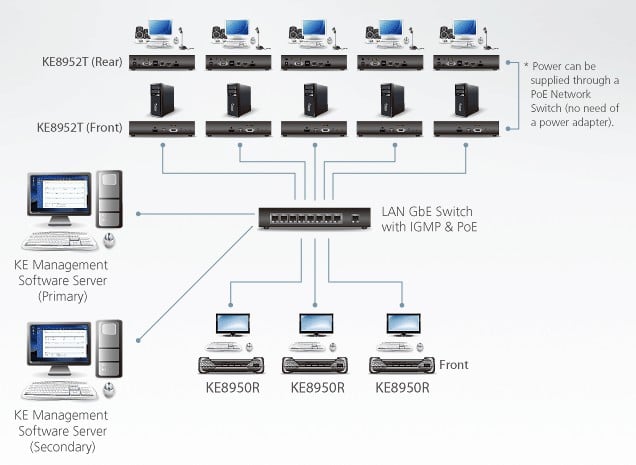

You can get more flexible and efficient operations in the KVM over IP matrix system that integrates the KE series extenders with a CCKM management software, such as configuration of more ù screens, video grouping, video profile planning and improvements that offer better access to control tools quickly and easily to configure KE devices over the network. Both during configuration, monitoring, administration, control or extension of computer access, the KVM over IP matrix system adapts to different work environments and workstation settings to offer solutions in the transmission sectors, control centres, multimedia, construction and many other sectors where è need to extend the matrix.



* KE series extenders include KE 6900, KE 6900 ST, KE 6940, KE 8950 and KE 8952.



Hardware

• Qualità video Ultra High Definition (UHD) – up to 3840 x 2160 at 30 Hz (4 : 4: 4); depthà colors at 36 -bit


• Interlaced video support (1080 i)


• Support for standard HDMI resolutions from 640 x 480 to 3840 x 2160 to 30 Hz


• Supports stereo speakers and stereo microphone


• USB Virtual Multimedia Support


• Conforms with HDMI 1.4 to and HDCP 1.4


• Auto-MDIX – automatically detects cable type


• ESD protection 8 KV/ 15 KV integrated and overvoltage protection 1 KV


• Fanless design for silent operation and guarantee energy efficiency


• Hot Connectable


• Updated Firmware


• Mountable on rack – Mounting options:



- Double 2 X- 021 G rack mounting kit

- Mounting kit on single rack 2 X- 031 G

• Support for connection via Gigabit Ethernet port


• Support for SFP module


• Support for Power over Ethernet (PoE) – function compliant with IEEE 802.3 at and IEEE 802.3 af



Management

• Remote access to computers with KVM installation via Intranet


• Operation with two – è consoles can control the system from both the keyboard, monitor and mouse of the transmitter and the receiver


• OSD (On Screen Display) on the Receiver to configure both drives;


• Support for GUI operations


• EDID Expert™ – selects the best EDID settings to avoid compatibility problems caused by different monitors


• Preview on screen – allows users to view videos of up to 6 monitors on one screen


• – command line interface administrators can control all KE devices via RS- 232 or TCP/IP using CLI or third-party applications


• RS- 232 – serial ports allow connection to a serial terminal for configuration and to several serial devices such as touchscreen and barcode scanners


• Flashing LEDs and Audible Signal to Help Identify and Identify Devices



Security

• Dedicated LAN port for direct connection KE – can be isolated from the business network


• Secure data transmission – AES encryption to protect all data before being transmitted to the network and decrypt the data on the receiver


• Remote access security



Virtual media

• The virtual media USB mode improves data transmission performance, ideally for file transfer, operating system patches, software installations and diagnostic tests


• Support for driveà USB 2.0 DVD/CD, USB mass storage devices, PC hard drives and ISO images


• Support for Smart Card/CAC player



Advanced functions**

• Quick – switch from one remote video resolution to another on a local screen within 0,3 seconds


• Unlimited video walls – create more ù video walls with up to 8 x 8 (maximum 64 screens) in each layout


• Advanced planning – improves efficiency and reduces costs by allowing the setting of multimedia playback based on time and date


• Channel connections allow connection of RX devices to different TX devices to transmit independently video, audio, USB and serial sources


• Support for both internal and external authentication – external authentication supports LDAP, Active Directory, RADIUS and TACACS+


• Advanced User Authorisation Settings – administrators can set four ways à to allow access to TX devices for collaboration or to avoid interference between users


• User permissions and configurable group for access and control of KE devices


• Supports industry standard TLS (Transport Layer Security) protocol


• Video grouping of up to 4 KE series device sets to support multi-screen applications



** These advanced features are supported when KE devices are managed by the KE Matrix Management Software (CCKM)



Recommended network switches

• Below are the network switches that have passed the stress tests of ATEN using the KE series extenders. Our tests transmit the contents through a network with 1920 x 1200 resolution at 60 Hz (KE 69 series) and 3840 x 2160 at 30 Hz (KE 89 series), depthà 24 bit color at 60 frames per second.



- Cisco Catalyst 2960 X / Catalyst 2960 XR / Catalyst 3750

- HP Procurve 2920

- H 3 C S 5120

- Huawei S 5700



Package contents

• 1 x KE 8952 R KVM receiver over IP single screen 4 K HDMI with PoE


• 1 x 0 X 12 - 0017 - 700 G HDMI LockPro


• 1 x user instructions
