Extensor KVM mini USB VGA up to 100 m - Aten IDATA CE- 100

The KVM USB IDATA CE- 100 extender with quality à top video and built-in ESD protection allows access to a computer system from a remote USB console (keyboard and USB mouse, monitor).

It improves previous designs: 1 ) incorporating a compensation adjustment function on the unità remote for a better qualityà video; 2 ) using cheap Cat 5 cables and instead of standard cables, bulky and expensive, to provide a more reliable, comfortable and stable data connection.



Features

• Extends VGA/keyboard/mouse of local PC to remote site

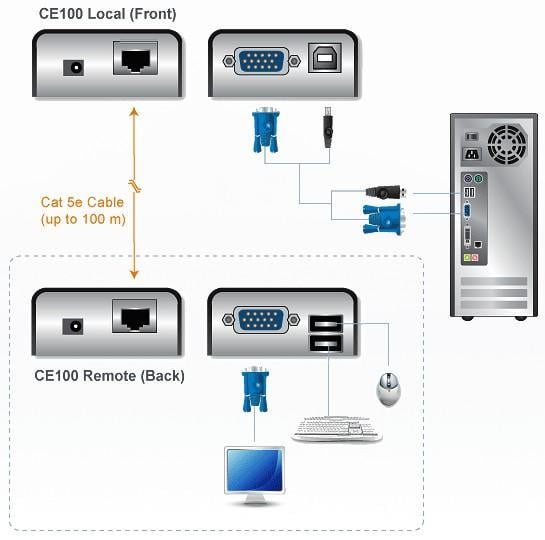

• Use a Cat 5 cable to connect local and remote units


• Easy addition and removal of computers connected to installation


• Supports real-time DDC communication


• Superior video quality – up to 1920 x 1200


• Allows you to access a computer from remote console up to 100 m distance


• Supports manual adjustment of compensation for better quality; video


• No external power required


• Protection 8 KV/ 15 KV ESD built-in (contact voltage 8 KV; aerial voltage 15 KV)


• Wall mountable



Technical specifications

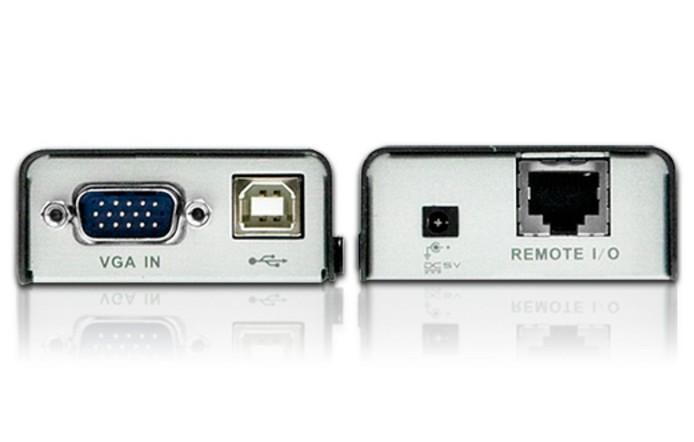

• Connector ports to the console:



- Keyboard: 1 USB type A female (white)

- Video: 1 female connector HDB- 15 (blue)

- Mouse: 1 USB type A female (white)

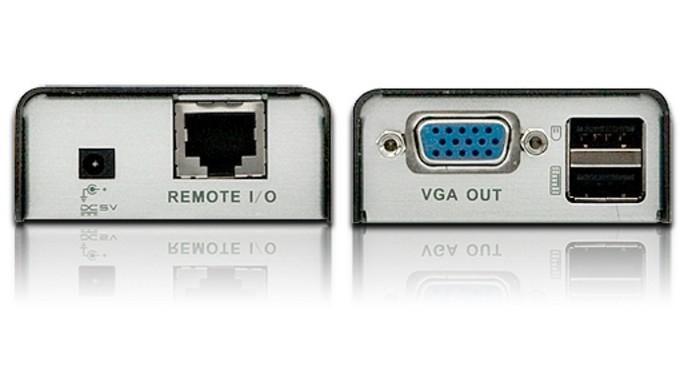

• KVM Doors Connectors:



- Keyboard/Mouse: 1 USB type B female (white)

- Video: 1 HDB- 15 male (blue)

• Power connector: 1 DC connector


• Device to device connector: 1 female RJ- 45 connector (black)


• LED: link, power supply


• Video: 1920 x 1200 @ 60 Hz (30 m); 1280 x 1024 @ 60 Hz (100 m)



Environmental features

• Operating temperature: 0 / 50 °C


• Storage temperature:- 20 / 60 °C


• Humidità: 0 - 80 %, without condensation



Dimensions

• Width: 9.10 cm


• Height: 2.40 cm


• Depthà: 5.74 cm



Certifications

• CE


• RoHS


• RAEE



Package contents

• 1 extender KVM mini USB CE 100 L (unità local)


• 1 extender KVM mini USB CE 100 R (unità remote)


• 1 USB/VGA cable


• 1 power supply 0 AD 6 - 1705 - 10 EG (for unità remote)


• 1 assembly kit


• 1 user guide
