The IDATA VB- 800 è a real 4 K HDMI amplifier that offers a solution for long distance transmissions. The HDMI amplifier reliably increases the real 4 K signals and can be cascaded up to 10 levels, ensuring exceptional quality of colors and image. The IDATA VB- 800 è HDMI 2.0 compliant and supports all devices equipped with HDMI. The amplifier can ò be mounted on racks to offer excellent flexibility à in work and home management.
Features- Superior video quality, 4 k resolutions real video 4 k x 2 k a 60 Hz (4: 4: 4 ) and 1080 p (1920 x 1080 a 60 Hz) standard
- HDMI (3 D, Deep Color, 4 K)
- Velocità maximum data, 18 Gbps (6 Gbps per line)
- Compatible with HDMI and HDCP 2.2

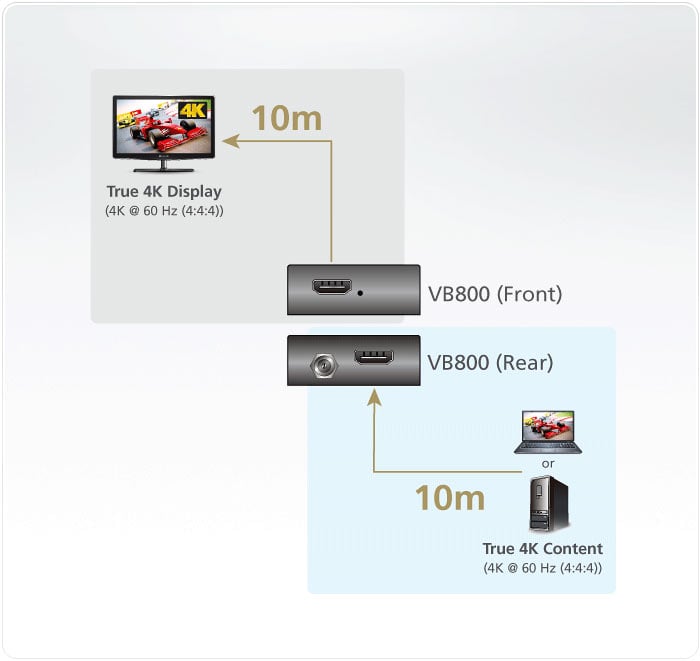

- Up to 10 waterfall levels with 4 K resolution up to 10 m (maximum input/output distance for single unità: 4 k resolution real at a distance up to 10 meters; 1080 p resolution up to a distance of 20 meters)
- A single unit can be powered by the source device
- Support HDR
- Plug-and-play — no software installation required
- Installable also to rack
Specifications- Video input: 1 x HDMI type A female
- Video output: 1 x HDMI type A female
- Max. bandwidth: 600 MHz
- Maximum resolution/distance :Up to 4 Kx 2 K at 60 Hz (4 : 4 : 4 )/ 10 m; 1080 p at 60 Hz/ 20 m
- Maximum frequency of data: 18 Gbps (6 Gbps per line)
- Conformità: HDMI compatible HDCP 2.2
- Connectors: 1 power supply x DC connector
- Power consumption: 5 V CC, [ 4 K 2 K 60 Hz] Power consumption: 0,99 W; [ 1080 p 60 Hz] Power consumption: 0,66 W
Environment- Operating temperature: 0 - 40 °C
- Storage temperature: - 20 - 60 °C
- Humidità: 0 - 80% relative humidityà without condensation
Proprietà physical- Structure: Metal
- Weight: 0,09 kg
- Dimensions (L x P x A): 4,90 x 5,60 x 1,70 cm
Package contents- 1 x HDMI 4 K VB 800 Amplifcator
- 1 x Power adapter
- 1 x Mounting kit on rack
- 1x User instructions
