DisplayPort 4 K Amplifier real 5 m - Aten IDATA VB- 905

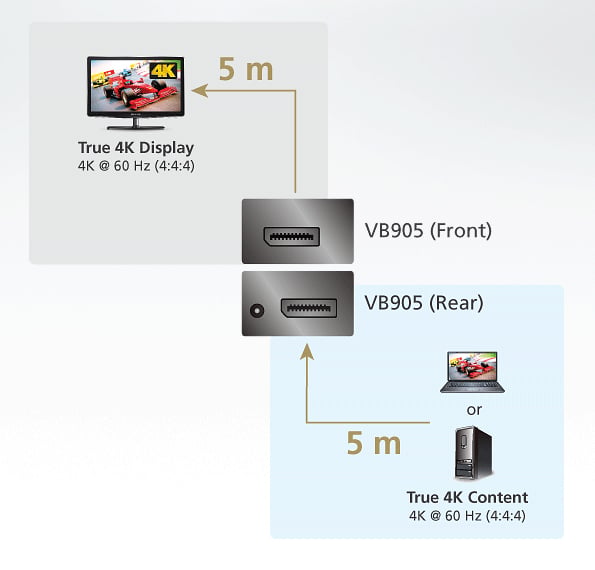

The IDATA VB- 905 extends the real 4 K signal from a source device to a screen up to 5 meters. For long distance transmissions è you can cascade the IDATA VB- 905 up to 3 levels (20 meters), ensuring exceptional quality à of colors and image. Supports all devices equipped with DisplayPort. For a flexible installation, the amplifier can ò be mounted on racks to offer excellent flexibility à in work and home management.



Features

• Extends the transmission of the signal 4 K real up to 5 m


• DisplayPort 1.2 to and HDCP 2.2 conform


• Superior video quality – resolutions up to 4 K real 4096 x 2160 at 60 Hz (4: 4: 4)


• Support HDR


• 3 cascade levels to extend the signal 4 K real up to 20 m


• A single unit can be powered by the source device


• Plug-and-play


• Installed to rack



Specifications

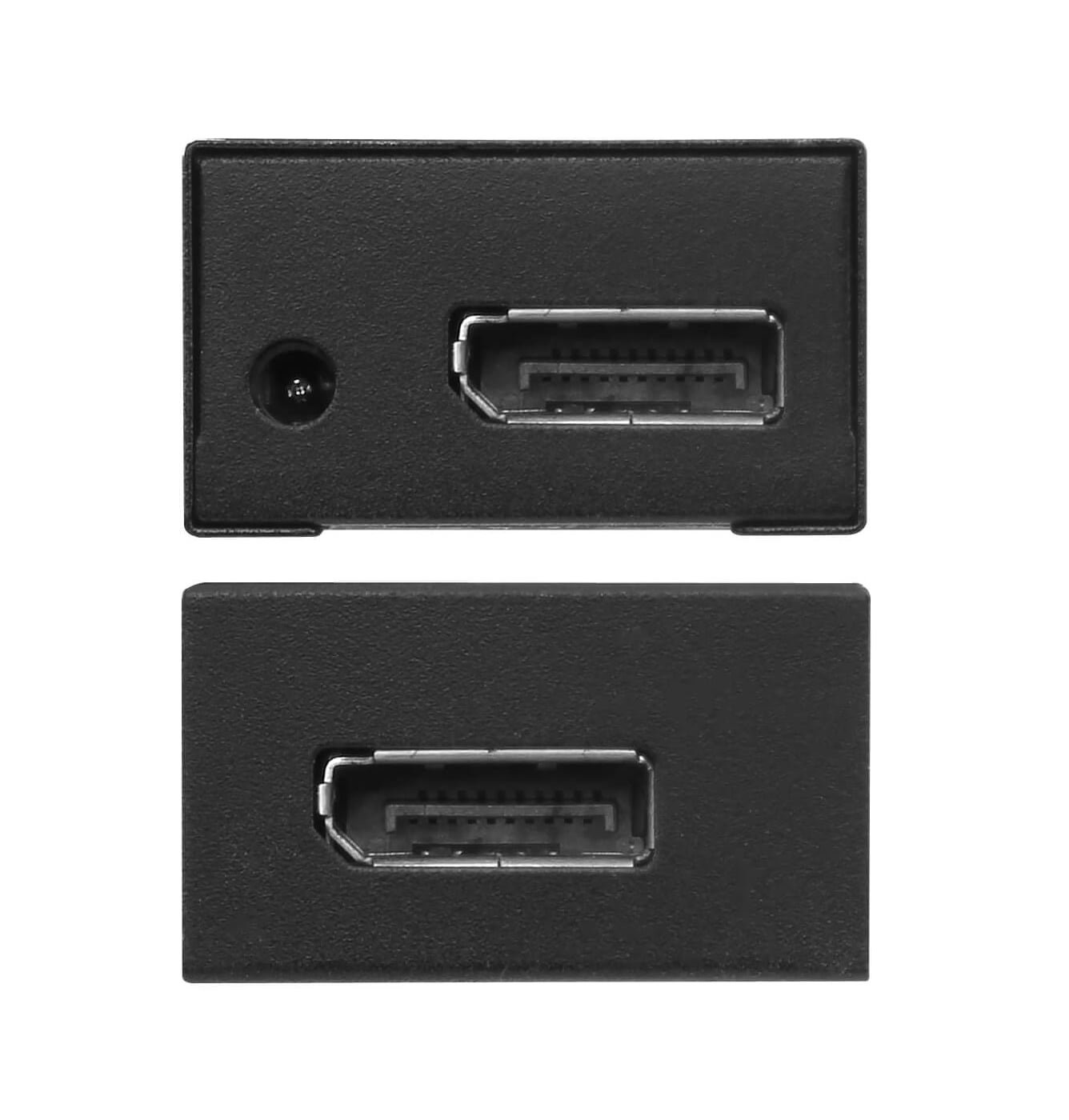

• Video input: 1 x DisplayPort female (20 pin)


• Max. distance: up to 4 Kx 2 K at 60 Hz (4 : 4 : 4 ) / 5 m; 1080 p at 60 Hz / 5 m


• Video output: 1 x DisplayPort female (20 pin)


• Max. distance: up to 4 Kx 2 K at 60 Hz (4 : 4 : 4 ) / 5 m; 1080 p at 60 Hz / 5 m


• With DC power connector


• Maximum frequency of data: 21,6 Gbps (5,4 Gbps per lane)


• Compliance;: DP 1.2 a, HDCP 2.2


• Maximum resolution: 4096 x 2160 at 60 Hz (4: 4: 4 )


• Consumption: DC 5 V: 0.937 W: 4 BTU



Environment

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80% relative humidityà without condensation



Proprietà physical

• Structure: Metal


• Weight: 0.05 kg


• Dimensions (L x P x A): 5.84 x 3.53 x 2.06 cm



Package contents

• 1 x DisplayPort Amplifier 4 K 10 m VB 905


• 1x Power supply


• 1x User instructions
