HDMI Extensor Kit up to 60 m on Cat cable 5 E - ATEN IDATA VE- 800 A

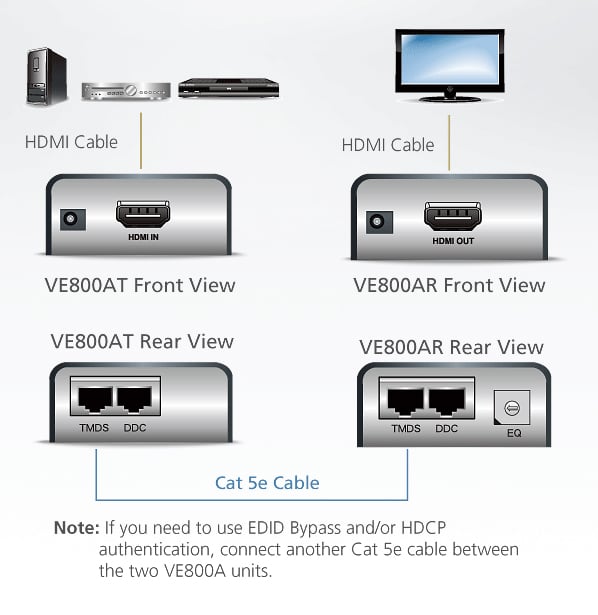

The HDMI IDATA VE- 800 A extender increases the distance between the HDMI screen and the HDMI source up to 60 m using a Cat 5 e cable. VE 800 A by ATEN integrates a new technology that allows the transmission of A/V signals on a single Cat 5 e cable. The DDC port provided allows you to use the Screen EDID simply by connecting another Cat 5 e cable. VE 800 A supports HDMI functions such as 3 D and Deep Color to offer a perfect viewing experience of images.



Features

• Amplify the distance between the HDMI source and the HDMI screen


• Use a 5 Cat cable and connect to local and remote units


• It has ATEN EDID technology that allows transmission on a single Cat 5 cable and


• Extends 1080 p of 40 m; extends 1080 i (HDTV) of 60 m


• Top video quality – 1920 x 1200 , up to 1080 p


• HDMI (3 D, Deep Color); HDCP 1.2 compatible


• Supports Dolby True HD and DTS HD Master audio

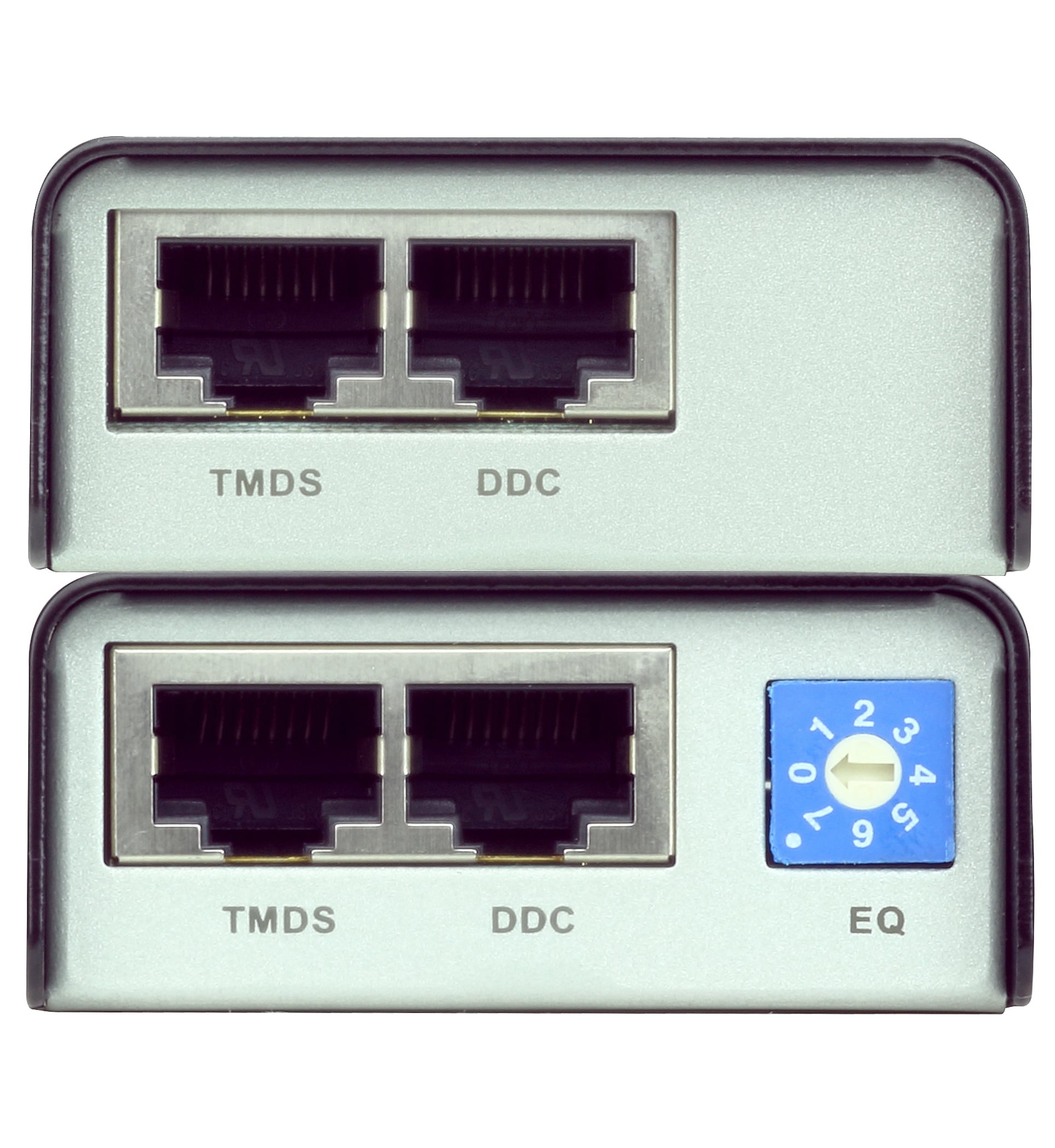

• Switch for adjusting equalization to 8 segments that optimizes the quality à display


• DDC compatible



Technical specifications

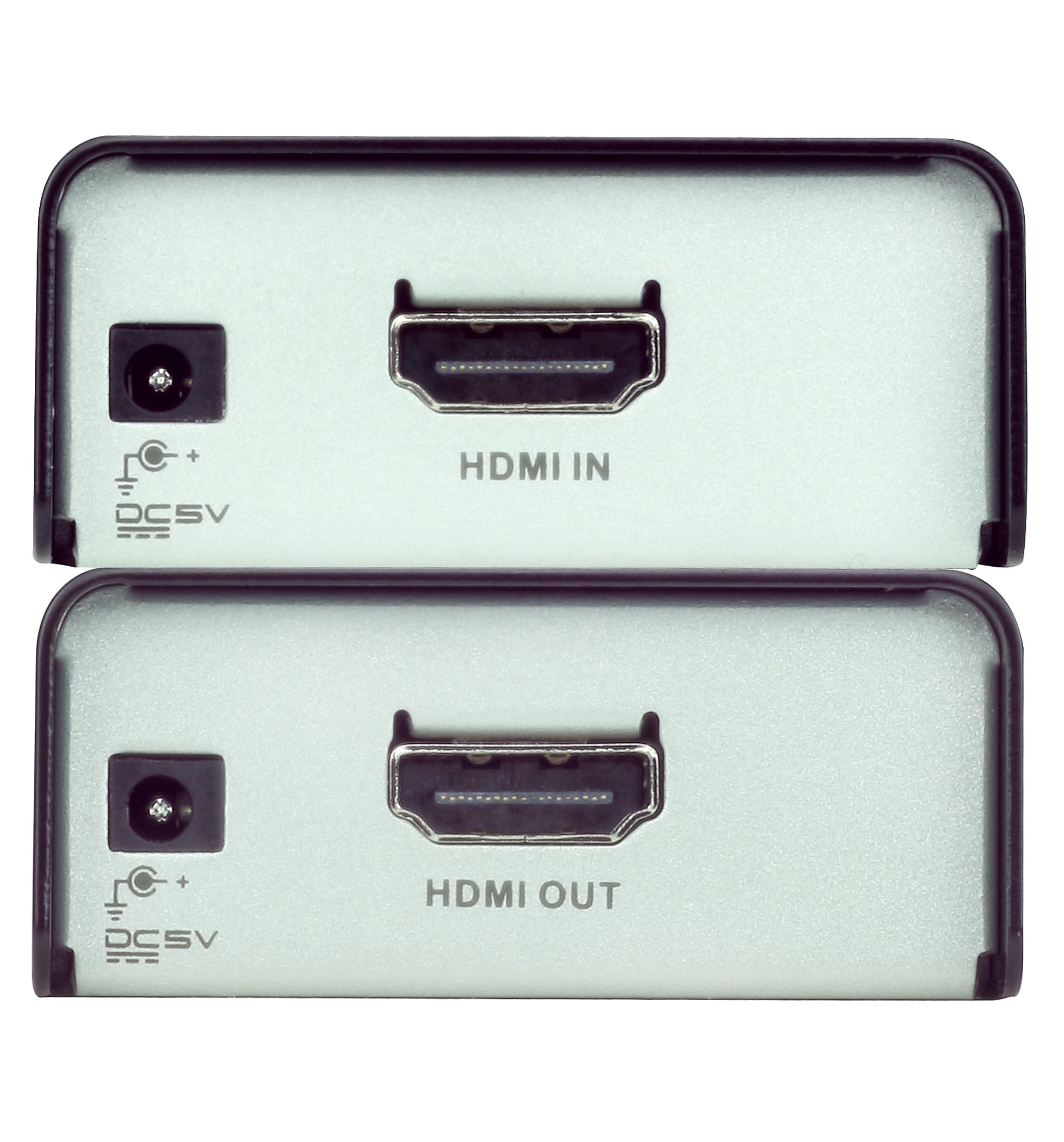

• Video input:



- Interface 1 x HDMI type A female (black)

- Impedance 100

• Video output: 



- Interface 1 x HDMI type A female (black)

- Impedance 100

• Video:



- Max. frequency data & 6,75 Gbps (2,25 Gbps per lane)

- Pixel clock max. 225 MHz

- conformità HDMI 1.4 (3 D, Deep Color)

- HDCP 1.4 Conforms

- Maximum resolution/distance up to 1080 p at 40 m; 1080 i at 60 m

• Audio: 



- Input 1 x HDMI type A female (black)

- output 1 x HDMI type A female (black)



Feeding

• Connector: 1 x CC jack


• Consumption:



VE 800 AT: 5 V CC, 1 W;

VE 800 AR: 5 V CC, 0,75 W



Environmental features

• Operating temperature: 0 - 50 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80 % relative humidity without condensation



Dimensions

• Width: 5,50 cm


• Depthà: 9,00 cm


• Height: 2,40 cm



Certifications

• CE


• RoHS


• RAEE



Package contents

• 1 x Extender HDMI transmitter VE 800 AT


• 1 x Receiver Extender HDMI VE 800 AR


• 2 x Power supply 0 AD 6 - 1705 - 10 EG


• 1 x Mounting kit


• 1x User manual
