HDMI+USB extender on Cat 5 cable and up to 60 m - ATEN IDATA VE- 803

The HDMI USB VE 803 extends the signal transmission of an HDMI source up to 60 m using two Cat 5 e cables. It is able to send signals 1080 i up to 60 meters and signals 1080 p up to 40 meters.

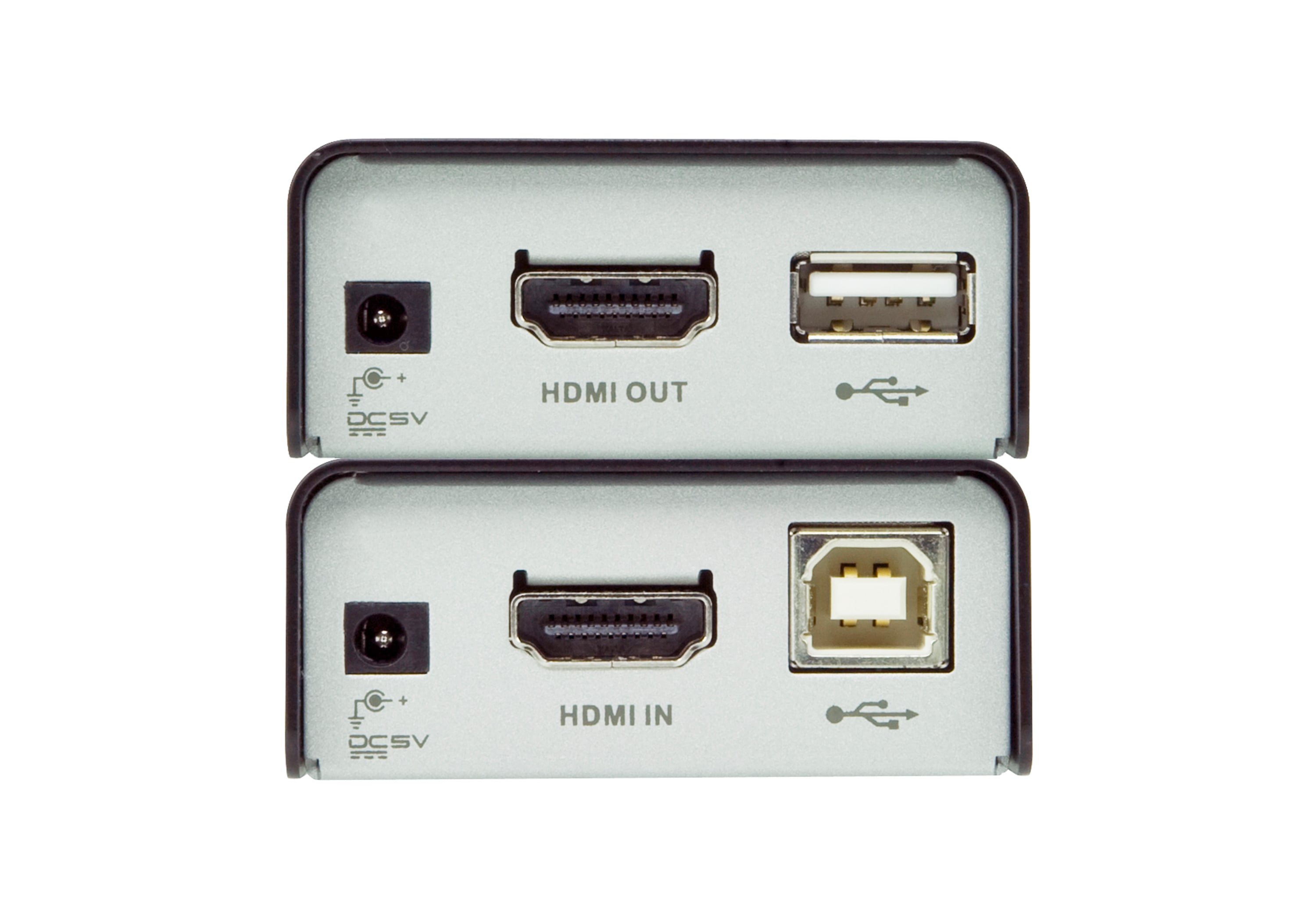

The VE 803 è features USB connectors that allow you to extend a USB device between the drives à. The USB feature also provides touch panel control support, so you can control the local HDMI source from the remote screen or control the remote screen via the local unità.

IDATA VE- 803 è ideal for transportation centers, medical facilities, shopping centers or wherever a touch panel or kiosk is needed. For greater flexibility à and comfortà, è power via USB cable the unità local VE 803 when è connected to a suitable source device. IDATA VE- 803 è HDCP compliant, to offer so ì an HDMI extension solution for all uses.



Features

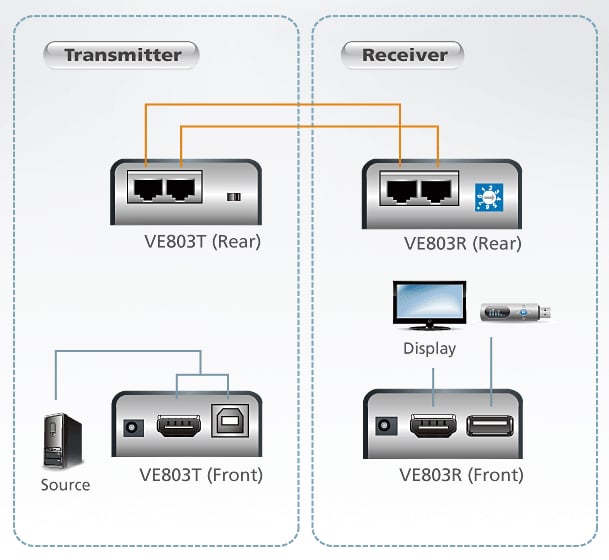

• Use two Cat 5 cables to connect local and remote units


• Extends 1080 p a 40 m and 1080 i a 60 m


• Superior video: HDTV resolutions of 480 p, 720 p, 1080 i, 1080 p (1920 x 1080), VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)


• Supports USB touch panel

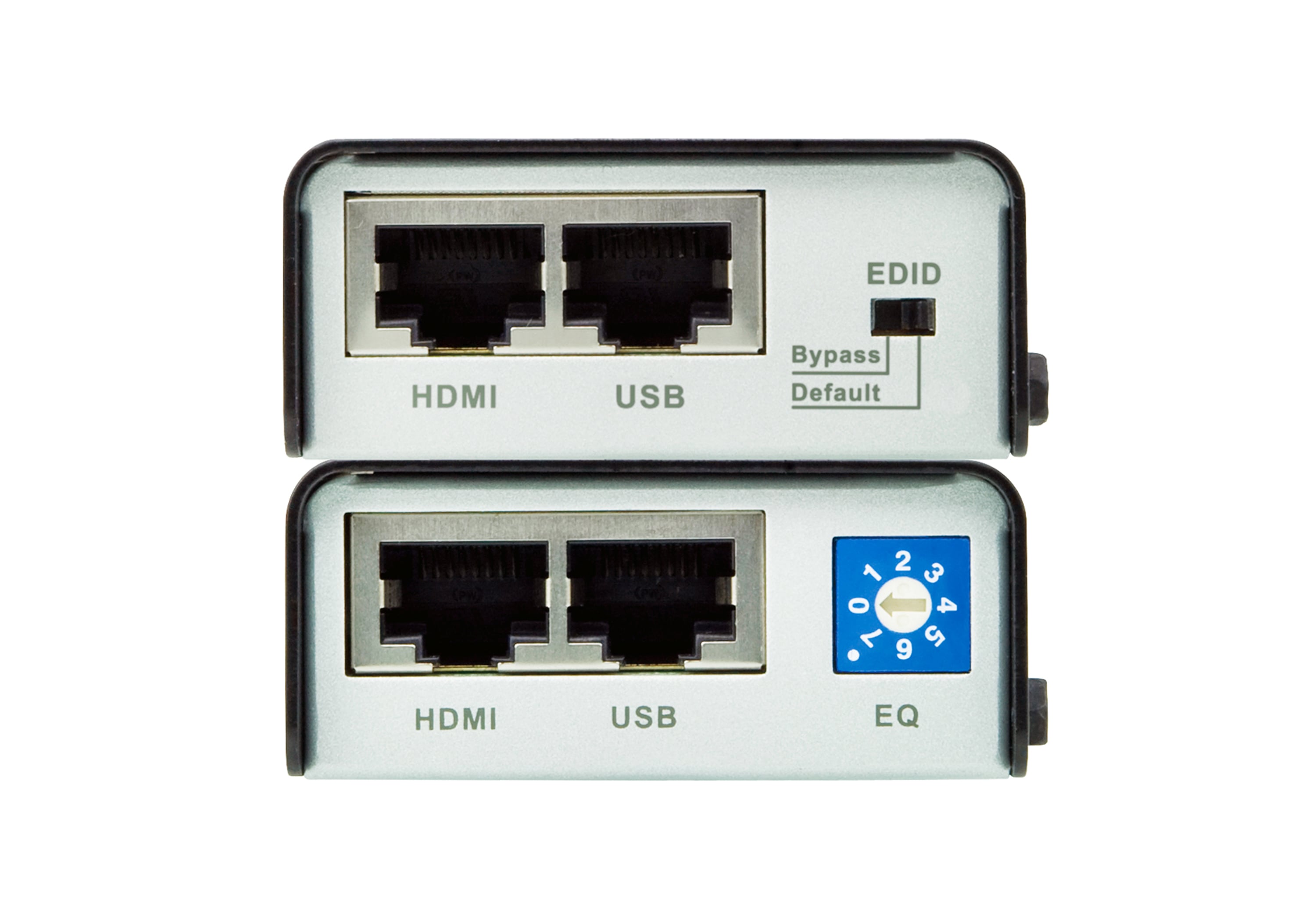

• Adjusting equalization to 8 levels to improve image quality à


• Supports Dolby True HD and DTS HD Master Audio


• Protection 8 KV/ 15 KV ESD built-in


• Transparent USB support - all 2.0 full speed USB devices are supported (up to 12 Mbps)


• Supports wide screen formats


• HDMI (3 D, Deep Color), HDCP compatible: speed ` signal up to 2,25 Gbit/s


• Unit power supply à local USB cable



Technical specifications

• Video Input



- Interfaces: 1 x HDMI type A female (black)

- Impedance: 100

• Video output



- Interfaces: 1 x HDMI type A female (black)

- Impedance: 100

• Video



- Max. frequency of data: 6,75 Gbps (2,25 Gbps per lane)

- Pixel clock max.: 225 MHz

- Conformityà: HDMI (3 D, Deep Color). HDCP compatible

- Maximum resolution/distance: up to 1080 p to 40 m; 1080 i to 60 m

• Audio



- Input: 1 x HDMI type A female (black)

- Output: 1 x HDMI type A female (black)

• Monitoring



- USB: 1 x female USB

• EDID Settings: Modelità EDID: Default


• Feeding



- Connectors: 1 x DC connector

- Consumption: 5 V CC, 3,9 W / 5 V CC, 1 W

• Environment



- Operating temperature: 0 - 50 °C

- Storage temperature: - 20 - 60 °C

- Humidità: 0 - 80 % relative humidity, without condensation

• Proprietà physical



- Structure: Metal: Metal

- Weight: 0.16 kg (0.35 lb): 0.16 kg (0.35 lb)

- Dimensions (L x P x A): 9.00 x 5.74 x 2.40 cm



Package contents

• 1 x HDMI USB extender VE 803 T


• 1 x HDMI USB extender VE 803 R


• 1 x 0 AD 6 - 1705 - 10 EG power supply


• 1 x USB cable (1,8 m)


• 1 x mounting kit


• 1 x user guide
