Extender VGA Cat 5 1280 x 1024 a 150 m, VE 150 A - Aten IDATA VE- 150

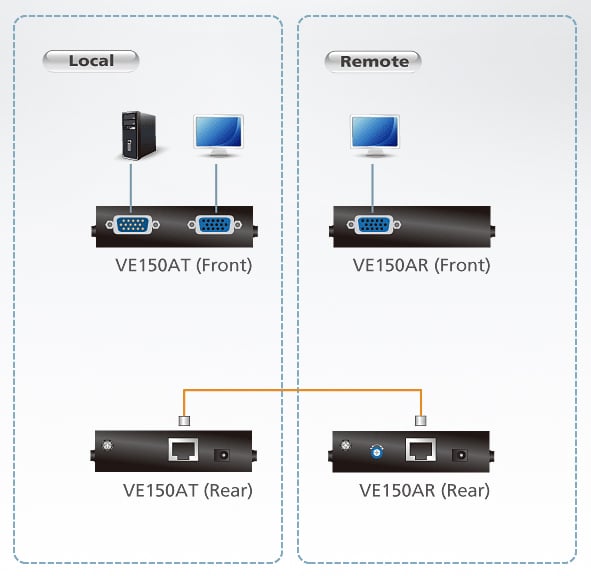

The video extensor VE 150 A è consists of a local unit à transmitter and a remote unità receiver connected to each other by standard Cat 5 E cables. The maximum distance between the unitsà è of 150 m. This is an ideal solution for factories and construction sites or other places where the screen can be exposed to risks while you want to keep the system safe.



Features

• Use Cat. 5 cables and connect local to remote


• Supports a local screen and a remote one


• Long distance transmission up to 150 m


• Adjustable gain control: manually adjusts signal power to compensate for distance.


• High quality video: up to 1920 x 1200 (30 m); 1600 x 1200 (100 m); 1280 x 1024 (150 m)


• Supports VGA, XGA, SVGA, UXGA, WUXGA and Multisync monitors


• Supports wide screen formats


• Supports the hot connection to the system.


• Protection 8 KV/ 15 KV ESD built-in


• Supports DDC for local monitor


• Easyà d'installation


• Mountable in rack


• Plug-and-play: does not require software installation



Connectors

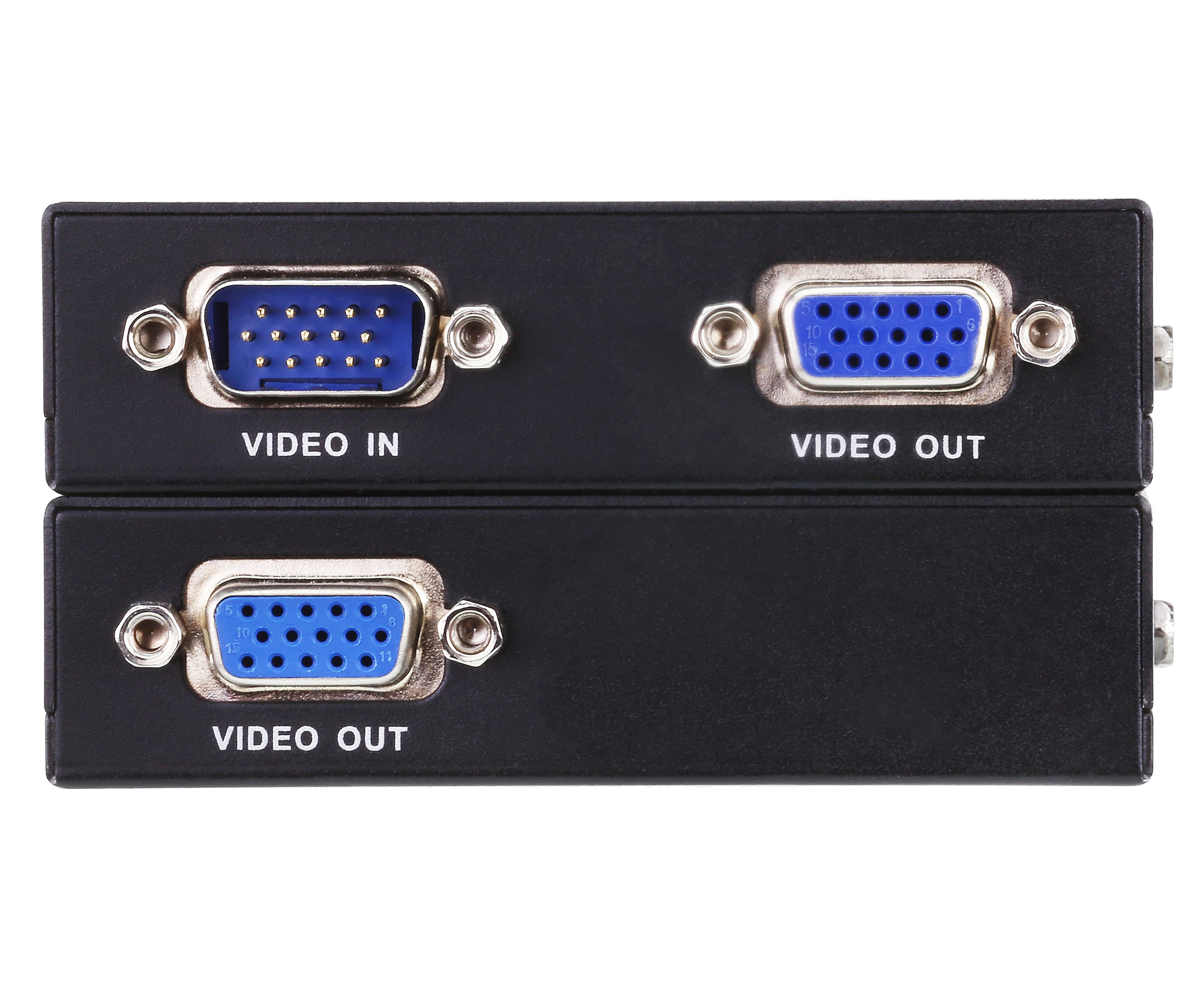

Video input:

• 1 x HDB- 15 male interfaces (blue)


• Impedence 75


• Maximum distance 1,8 m



Video output:

• 1 x HDB- 15 female interfaces (blue)


• Impedence 75



Video

• Max bandwidth 300 MHz


• Maximum resolution/distance up to 1920 x 1200 to 30 m; 1280 x 1024 to 150 m

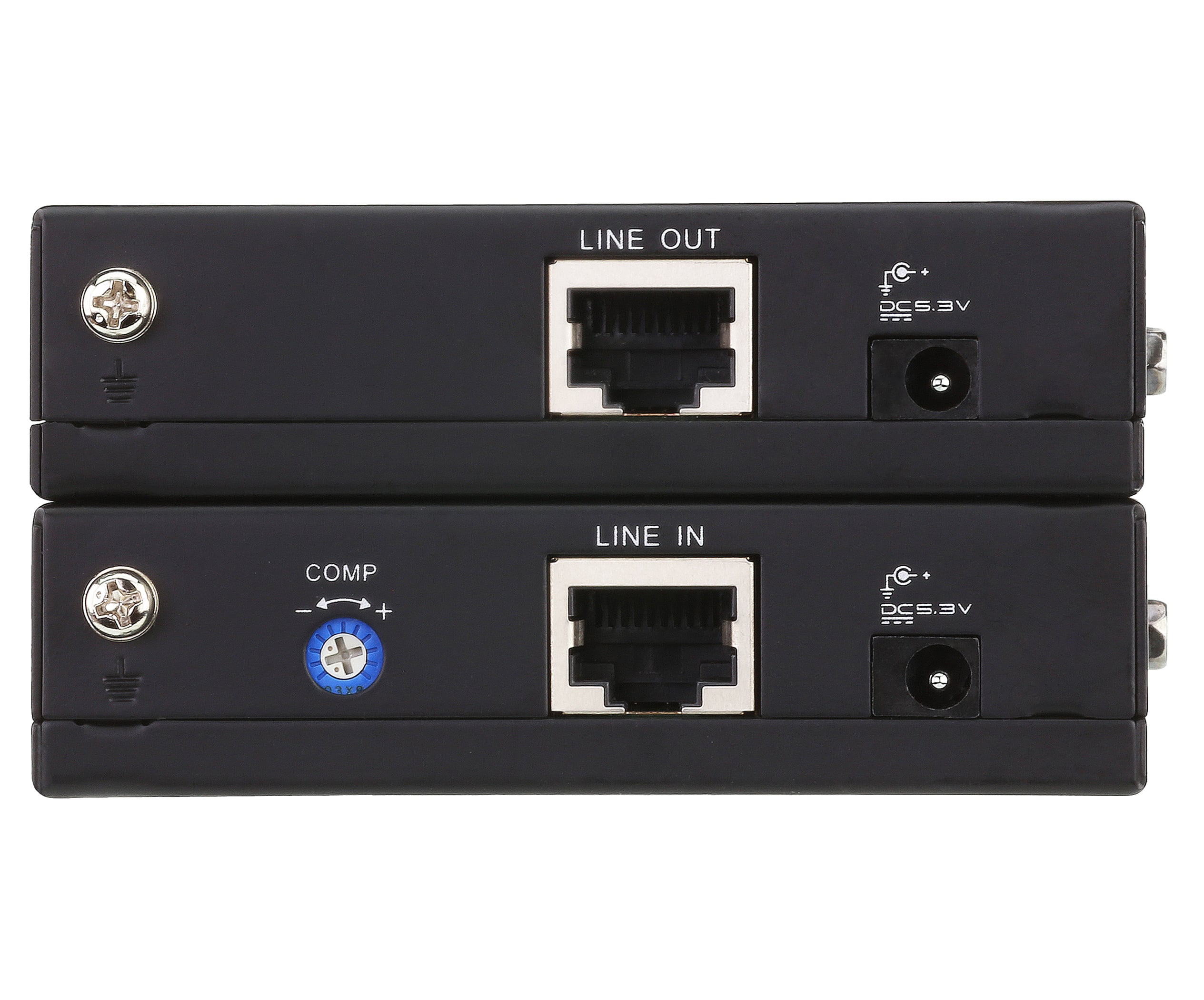

Feeding

• Connectors: 1 x CC connector


• Consumption: 5,3 V CC, 1,2 W



Environmental features

• Operating temperature: 0 – 50


• Storage temperature: - 20 – 60


• Humidità: 0 - 80% relative humidityà without condensation



Dimensions

• Width: 12.77 cm


• Depthà: 9.04 cm


• Height: 2.26 cm



Package contents

• 1 x video extender Aten VE 150 AT (unità local)


• 1 x video extender Aten VE 150 AR (unità remote)


• 2 x power supplies


• 1 x VGA cable


• 1 x mounting kit


• 1 x user guide
