Receiver Extender HDMI 4 K HDBaseT-Lite 70 m - Aten IDATA VE- 801 R

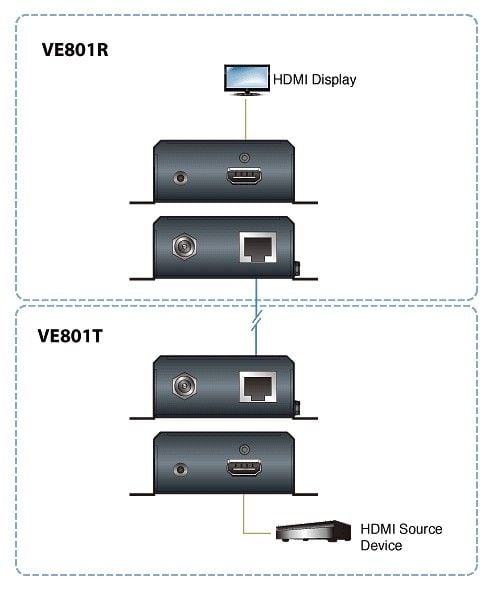

The VE 801 R HDMI HDBaseT-Lite Receiver connects to the transmitters* HDBaseT to increase the signal distance to 70 m from the source via a Cat 5 and/ 6 / 6 a cable. It supports the HDMI functions that include 3 D, Deep Color and 4 K image resolutions, in addition to the Dolby Digital 5.1 , DTS HD audio and the compatibilityà HDCP compatibility. The all inclusive design of the VE 801 R offers an easy way to mount the device in any position. The side panel has anti-slip handles that help avoid accidental fall during the installation of the unit. The handles also allow you to see the LED status indicators. The VE 801 R è perfect for digital entertainment centers or for any installation that requires the extension over large distances of a serious qualityà HDMI video higher.

Complete transmitter + receiver kit: IDATA VE- 801

* Unità compatible HDBaseT transmitter: IDATA VE- 801 T



Features

• Connectivityà HDBaseT – increases the distance of an HDMI connection via a Cat 5 and/ 6 / 6 cable to


• HDBaseT Anti-block – resists signal interference during high quality video transmission via HDBaseT technology


• EDID Expert – configures the optimal EDID settings for high quality à smooth display and to use the best resolution on different screens


• Installed to rack

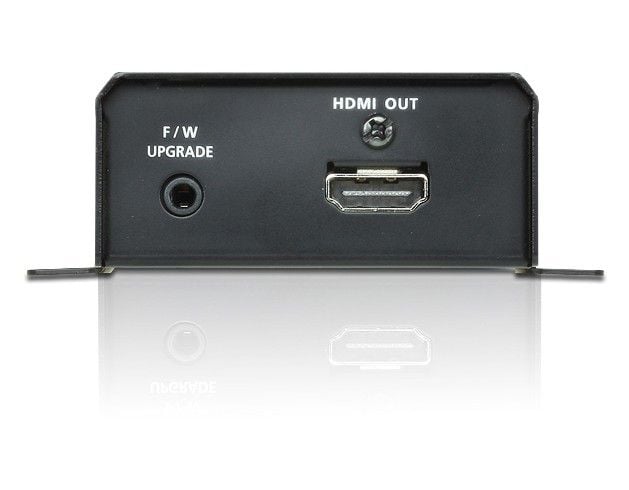

Video output

• Interfaces: 1 x HDMI type A female (black)


• Impedance: 100



Video

• Max. data frequency 



- 10,2 Gbps (3,4 Gbps per lane)

• Pixel Clock max. 



- 340 MHz

• Conformityà 



- HDMI (3 D, Deep Color, 4 K)

- HDCP compatible

- CEC (Consumer Electronics Control)

• Resolution/Distance max. 



- Up to 4 K to 35 m (Cat 5 and/ 6) / 40 m (Cat 6 a);

- 1080 p a 60 m (Cat 5 e/ 6) / 70 m (Cat 6 a)

* 4 K supported:

- 4096 x 2160 / 3840 x 2160 at 60 Hz (4 : 2 : 0 );

- 4096 x 2160 / 3840 x 2160 at 30 Hz (4: 4: 4 )



Audio

• 1 x HDMI output type A female (black)

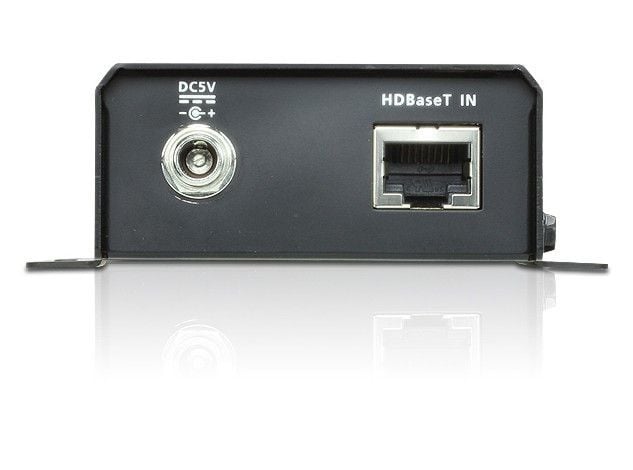

Feeding

• Connectors: 1 x CC (black) connector with lock


• Consumption: 5 V CC, 4,23 W



Environmental features

• Operating temperature 0 - 50 °C


• Storage temperature -20 - 60°C


• Humidità 0 - 80 % relative humidity, without condensation



Dimensions

• Width: 12.47 cm


• Depthà: 8.70 cm


• Height: 3.00 cm



Package contents

• 1 x VE 801 R HDMI HDBaseT-Lite Extensor


• 1 x 0 AD 6 - 1 F 05 - 26 EG power supply


• 1x User instructions
