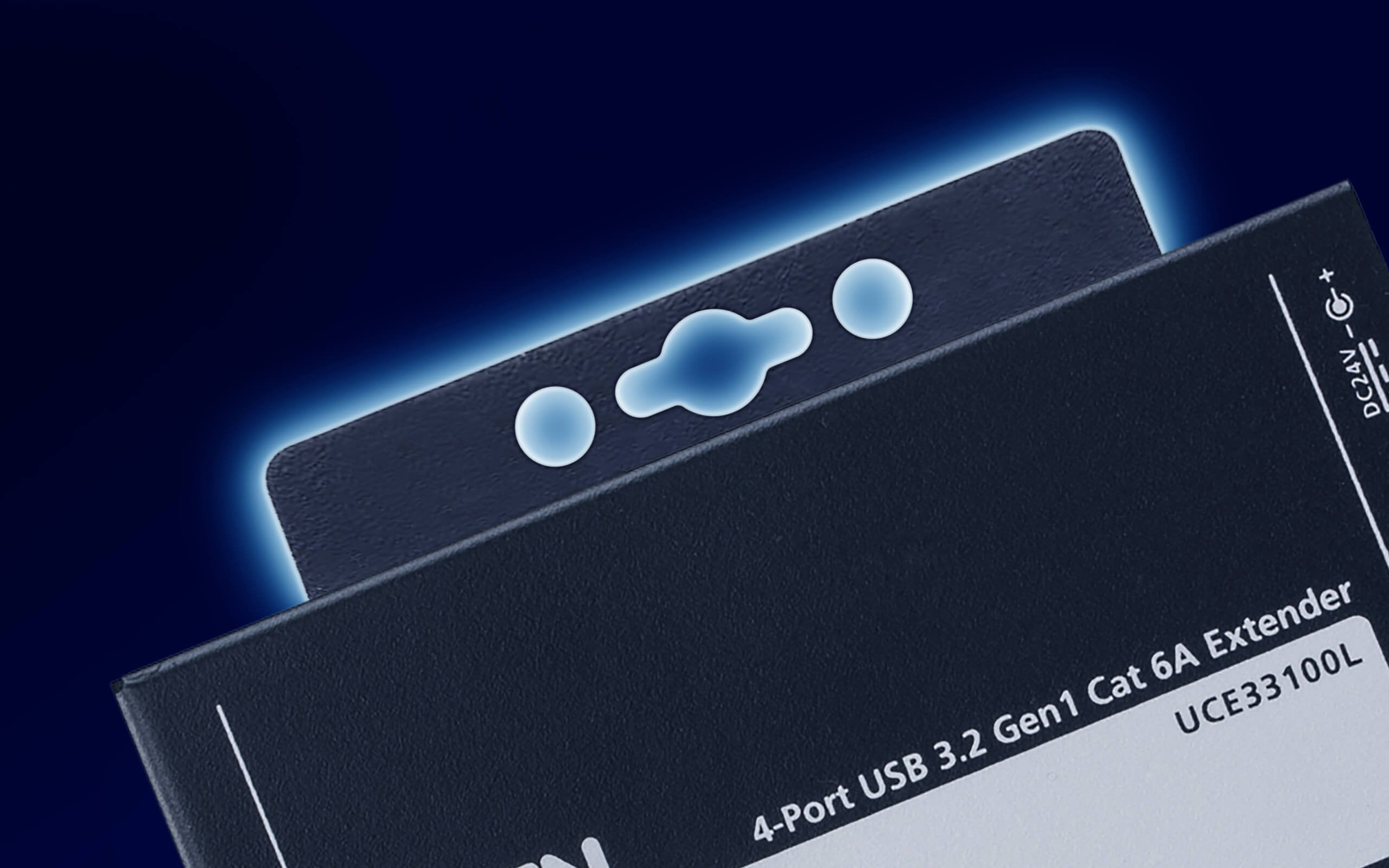

Extensor USB 3.0 Gen. 1 Cat 6 A a 4 port (100 m) - Aten IDATA UCE- 33100

•

• The USB extension unit 3.2 CAT 6 A to 4 ports UCE 33100 è a two-unit device which can be used as transmitter and receiver

• It offers a durable and high quality connection that takes full advantage of all the capabilities of the USB 3.2 standard to ensure reliable data communication

• It transmits uncompressed USB 3.2 data up to 5 Gbps

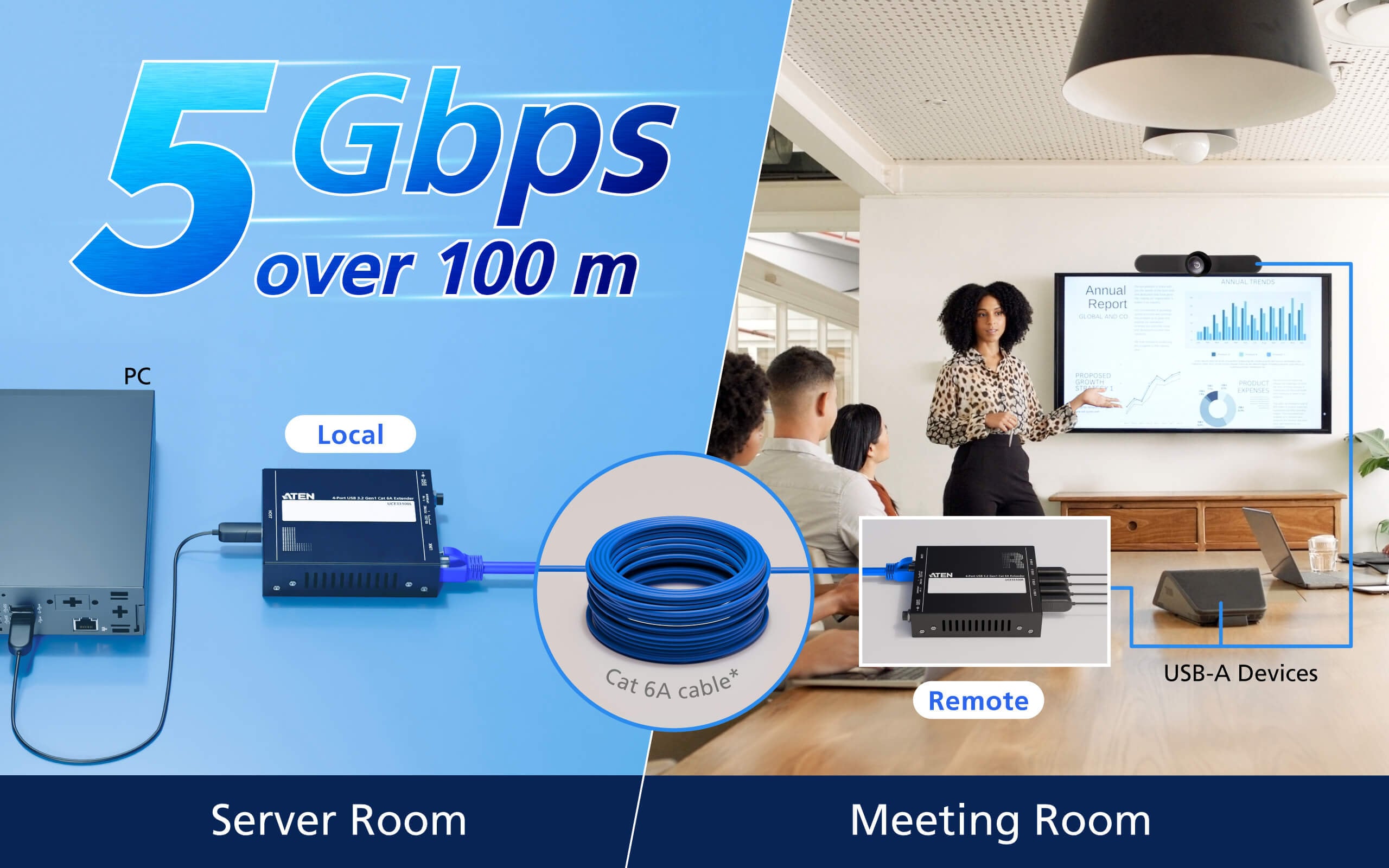

• You can extend the 3.2 USB transmission distance to 100 meters from your computer via a Cat 6 A Ethernet cable

• Retrocompatible with USB 2.0 / 1.1 specifications

• Thanks to the four USB Type A ports integrated into the remote unità the connection to more ù USB peripherals, such as flash drives, keyboards, mouse, webcams and interactive boards, è simplified and loss-free

• Supports two-way RS- 232 pass-through for integration into control systems

• Supports bidirectional GPIO FSYNC (Frame Synchronization) pass-through for applications with industrial cameras

• The two-way 24 V power supply via cable eliminates the need for an additional power adapter when the local or remote unit receives power supply

• Plug-and-play

• Metal housing

• Compact dimensions; wall-mounted and integrated din rail

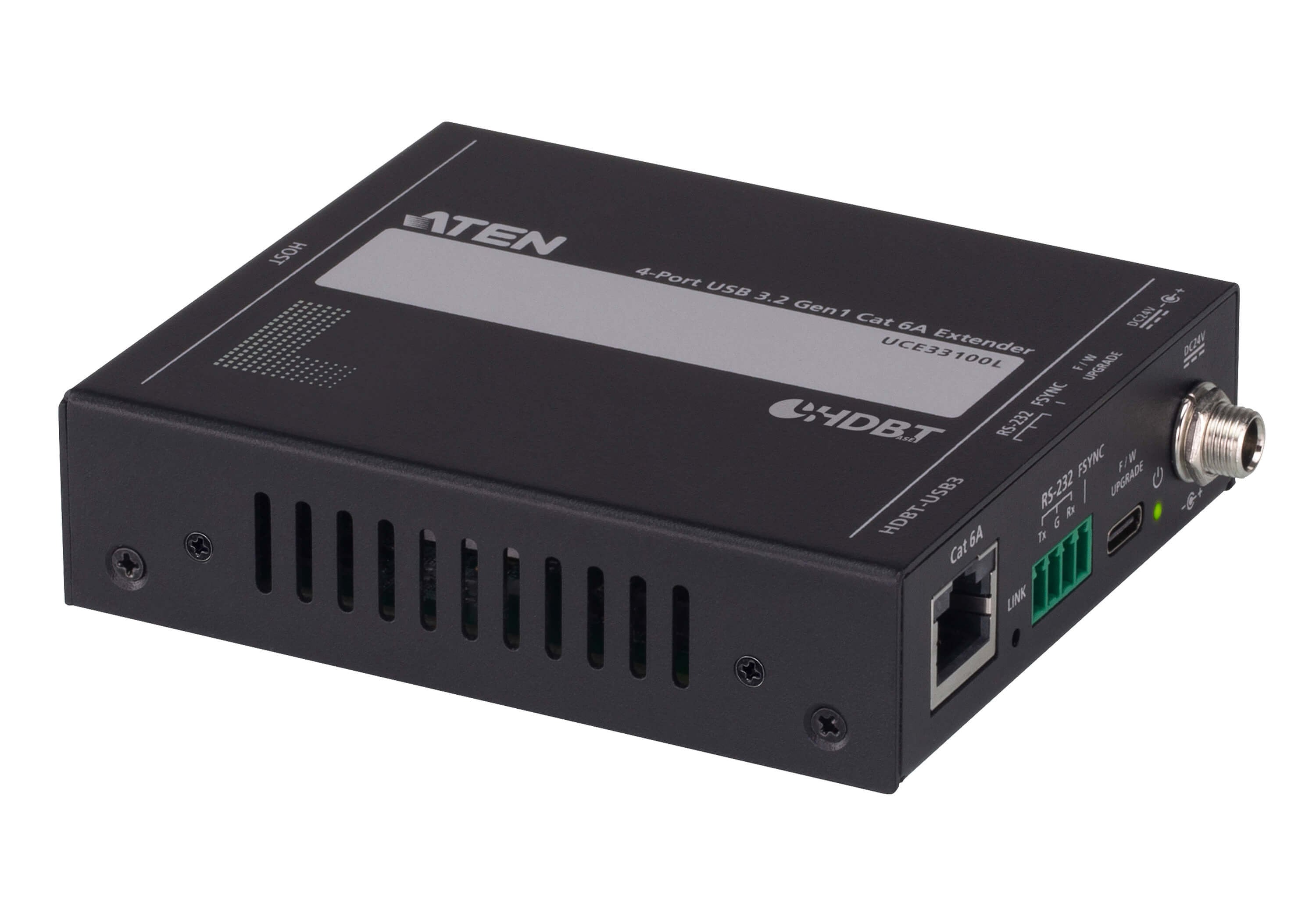

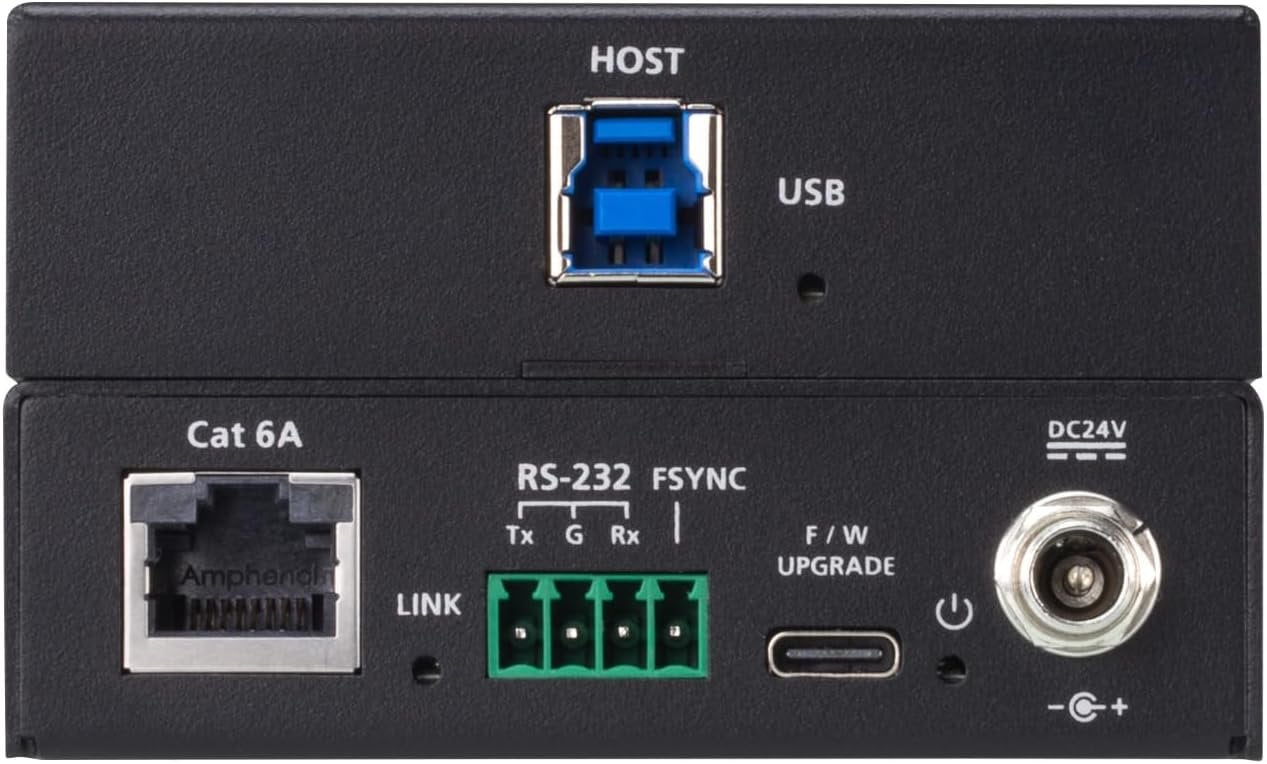

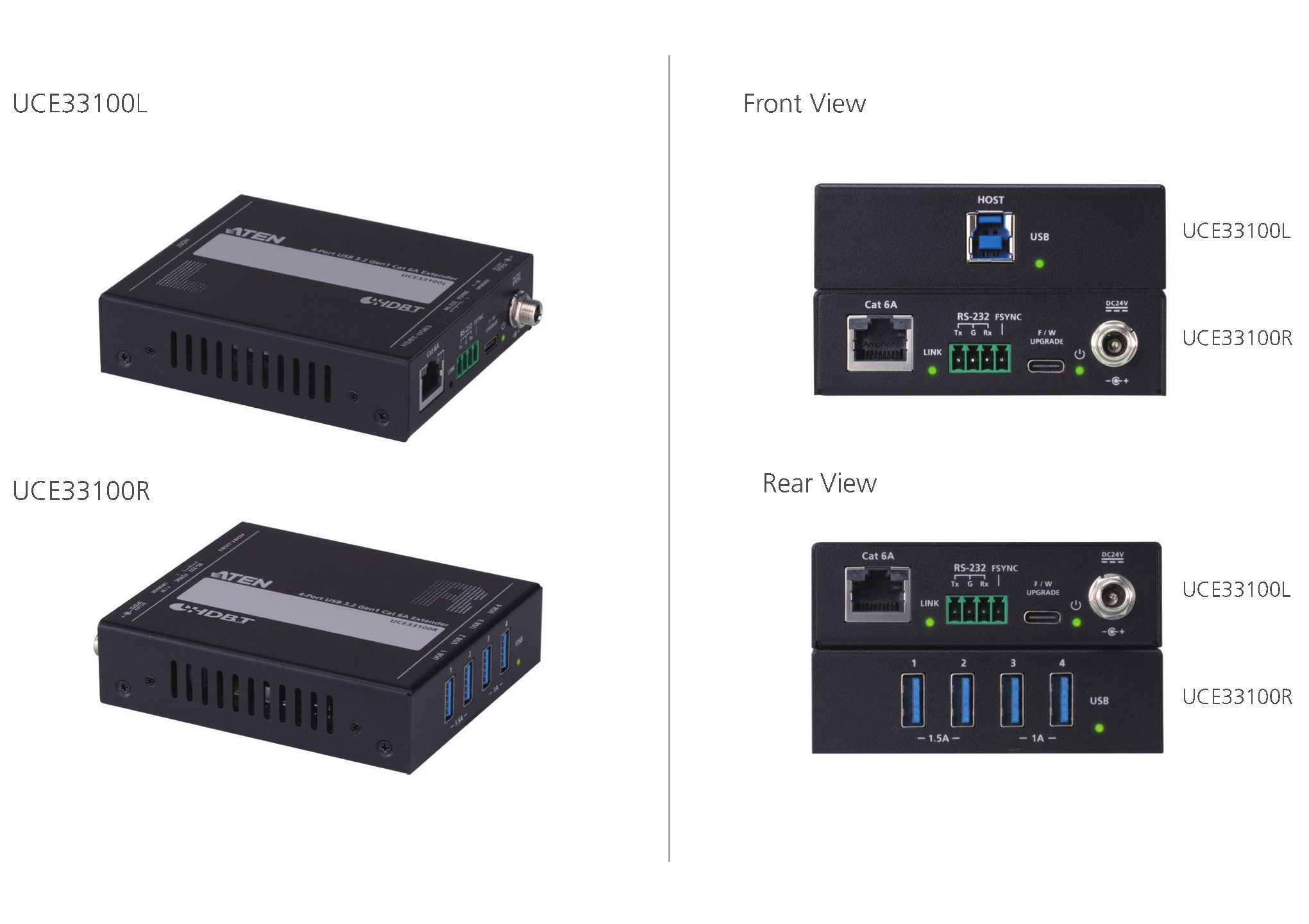

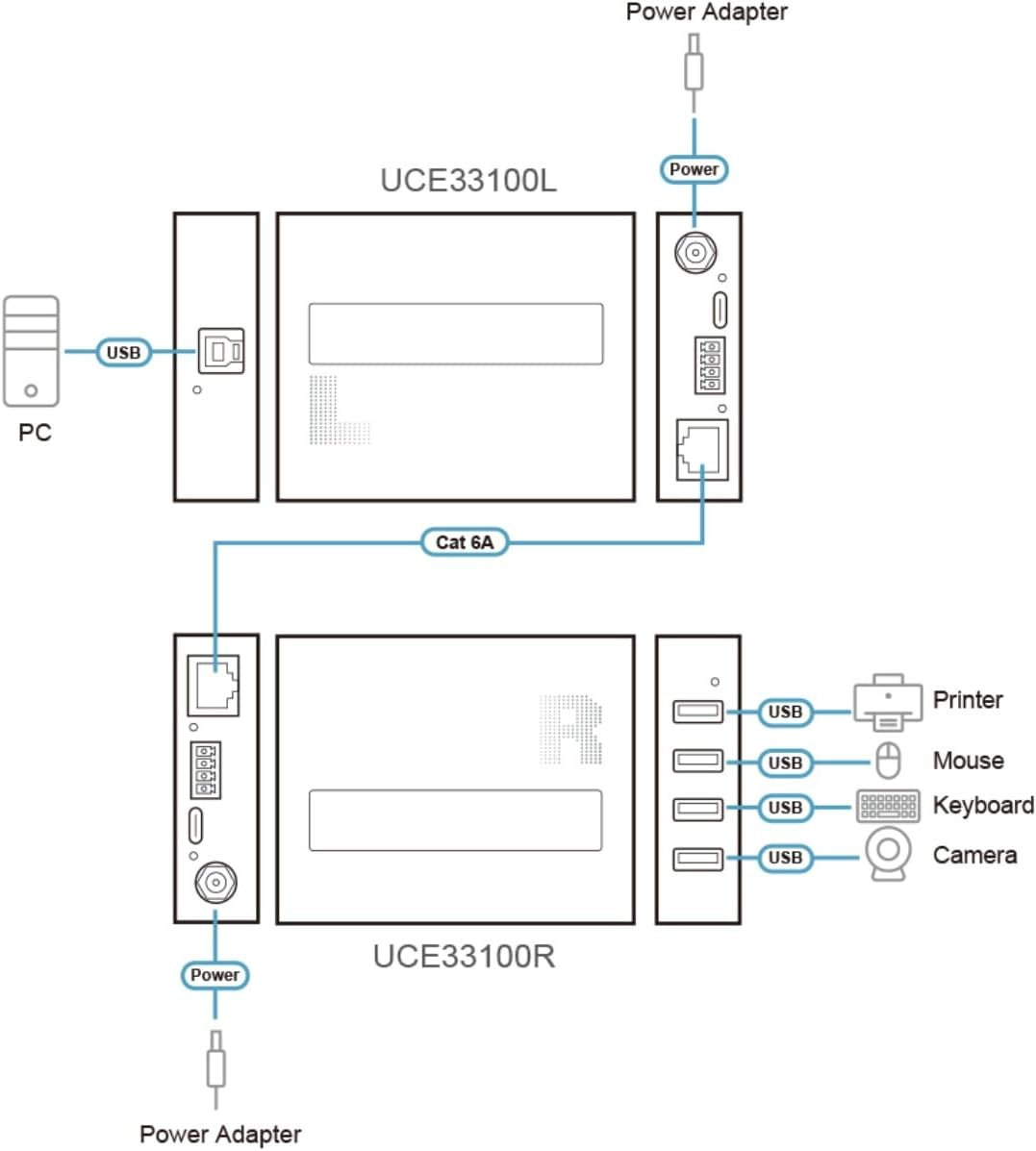

Local unit à connections

•

• Upstream port: 1 x USB Type-B female

• Downstream port: 1 x RJ- 45 female, HDBT-USB 3

• 1 x USB-C female (firmware update)

• 1 x 3 pin terminal connector (RS- 232)

• 1 x 1 pin terminal connector (FSYNC)

• Power supply: 1 x DC jack


Remote drive à connections

•

• Upstream port: 1 x RJ- 45 female, HDBT-USB 3

• Downstream port: 4 x USB Type-A female

• 1 x USB-C female (firmware update)

• 1 x 3 pin terminal connector (RS- 232)

• 1 x 1 pin terminal connector (FSYNC)

• Power supply: 1 x CC jack


Environmental features

•

• Operating temperature: 0 – 40 °C

• Storage temperature: - 20 – 60 °C

• Humidità: 20 – 90 % RH, without condensation


Dimensions

•

• Width: 10,75 cm

• Depthà: 8,5 cm

• Height: 2,55 cm


Package contents

•

• 1 x transmitter UCE 33100 L

• 1 x receiver UCE 33100 R

• 1 x USB cable 3.2 Gen 1 Type A male Type B male

• 2 x terminal block 4 -pin

• 4 x mounting kit

• 1 x power adapter

• 1 x user manual
