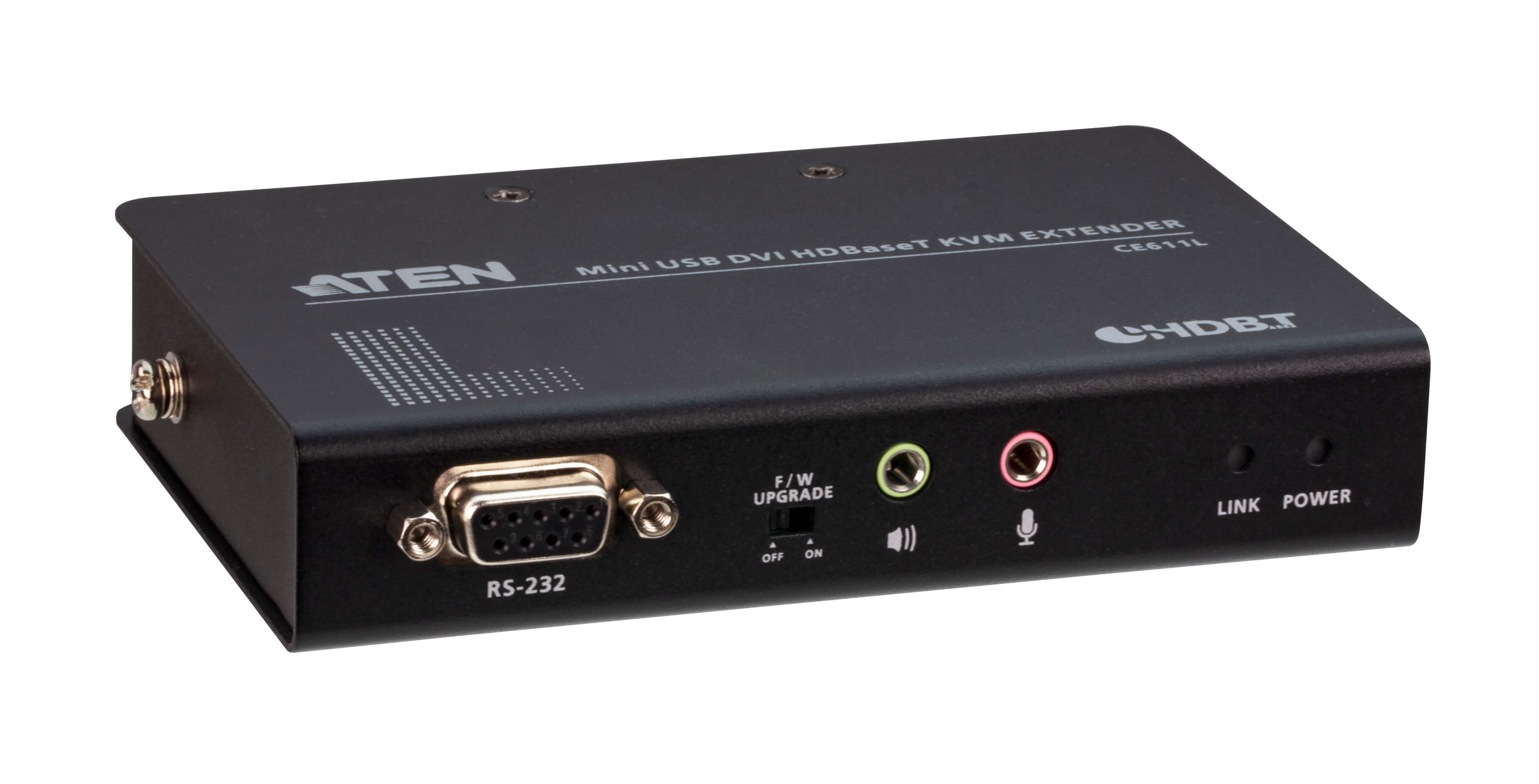

Extensor KVM Mini USB DVI HDBaseT, CE 611 - Aten IDATA CE- 611

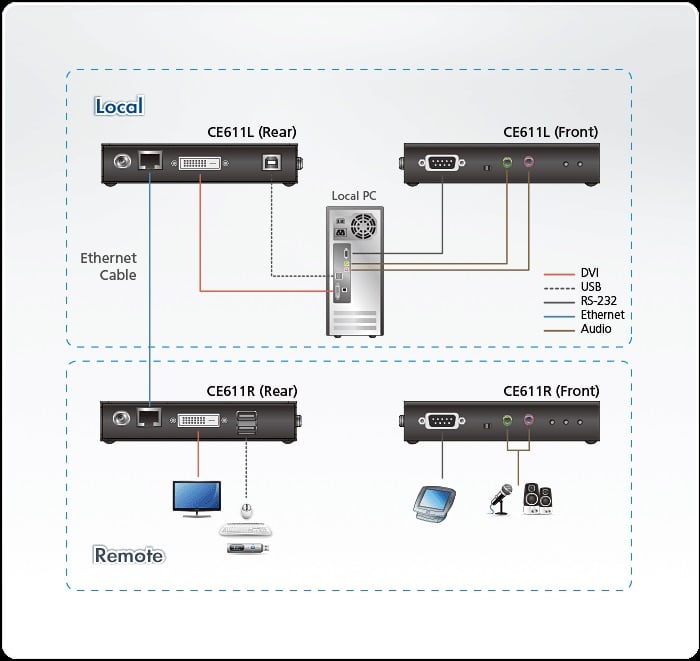

The ATEN CE611 is a USB DVI HDBaseT™ KVM extender that integrates the latest HDBaseT™ technologies to transmit DVI video at 1920 x 1200, stereo audio, USB signals and RS-232 up to 100 meters using a single Cat.5e/ Cat6 / 6a / ATEN 2L-2910 Cat 6 copper cable. The cost-effective extenders feature a compact form factor design that includes DVI/audio interfaces, USB 2.0 full-speed ports and a serial console to meet most extended KVM console control requirements. With simple installation supporting multiple signals, CE611 is ideal for applications requiring convenient remote access, such as transportation control centers, medical facilities, industrial warehouses and extended workstations.



Features

• Extender Remote + Local Kit


• Supports HDBaseT&trade technology;


• Extends video, audio, USB, and RS- 232 signals via a single Cat 6 / 6 cable to / ATEN 2 L- 2910 Cat 6


• Improved bit error detection and correction to withstand signal interference during high quality video transmissions;


• Status detection and LED indication for HDBaseT&trade signal transmission;


• Long distance with quality à higher video: up to 1920 x 1200 to 100 m (Cable Cat 6 / 6 to / ATEN 2 L- 2910 Cat 6 )


• 2.0 USB port full speed – guarantees fast transmission speed à for peripherals


• Supports stereo audio to 2 independent channels for audio applications in high qualityà


• ESD protection 8 KV / 15 KV integrated (Contact voltage 8 KV; Air voltage 15 KV)

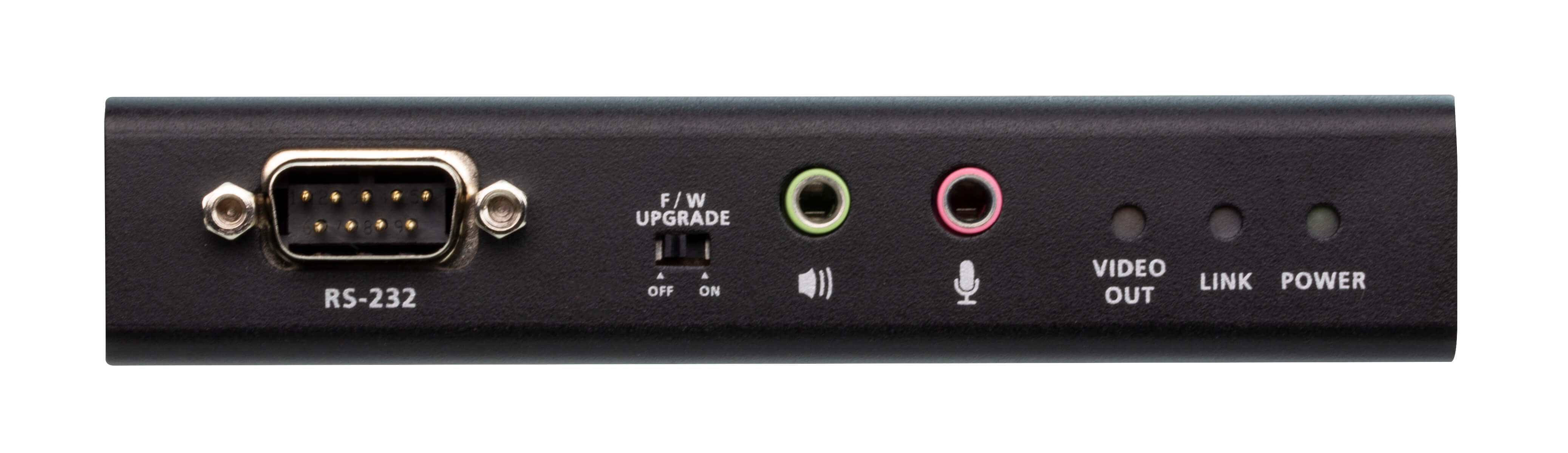

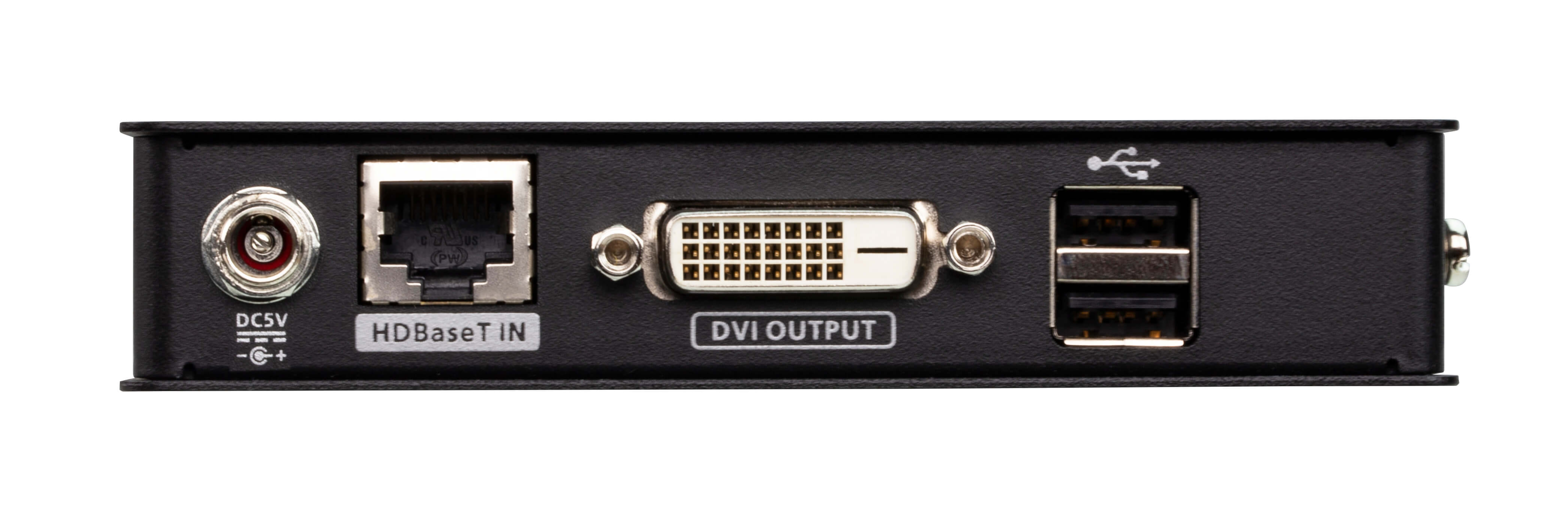

Connections

• Female DVI-D (white)


• Female type B USB (white)


• Jack mini stereo female (green)


• Jack mini stereo female (pink)


• DB- 9 female (black); Type: DTE


• RJ 45


• Jack Power Supply 5 V



Distance/Resolution Ratio



Up to 1600 x 1200 & 1920 x 1200 a 90 m (Cat 5 e) / 100 m (Cat 6 / 6 a/ATEN 2 L- 2910 Cat 6 )

1920 x 1080 a 100 m (Cat 5 e/ 6 / 6 a)



Proprietà Physical/Environmental

• Structure: Metallo 


• Weight: 0,35 kg (0,77 pounds)


• Dimensions: (L x P x A)  12,80 x 8,69 x 2,50 cm
