HDMI HDBaseT VE 811 Extensor Kit - Aten IDATA VE- 811

The HDBaseT HDMI VE 811 Extensor guarantees optimal HDMI connection up to 100 m via a single Cat 5 and/ 6 / 6 a cable. The VE 811 meets the HDMI specifications including 3 D, Deep Color audio formats, loss-free HD and CEC pass-through. It supports Dolby Digital 5.1 audio and video signals, DTS HD resolution up to 4 K. In addition, the VE 811 supports long-distance modeà which offers effective means to extend HDMI signals up to 150 m via a single Cat 5 and/ 6 cable.

The compact design makes it easy to install in any location: ideal for meeting rooms, or any configuration that requires HDMI video extension to qualityà high at long distances.



Features

• Connectivity à HDBaseT extends an HDMI connection to 100 m via a single Cat 5 and/ 6 / 6 cable to


• Supports HDBaseT long distance mode; up to 150 m via a single Cat 5 and/ 6 cable with resolution up to 1080 p


• Compatibilityà: HDMI (3 D, Deep Color, 4 K); HDCP 2.2


• Supports resolutions up to Ultra HD 4 kx 2 k and 1080 p Full HD


• Consumer Electronic Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control


• Supports screen format


• Plug and play – no software needed


• Integrated ESD protection 8 KV/15 KV


• Mountable on rack



Specifications

• Video input:



- 1 x HDMI Type A female receiver interface (black)

- Receiver impedance: 100 Ohm

- Max distance. Receiver: 1,8 m

• Video output:



- Transmitter interface: 1 x HDMI type A female (black)

- Transmitter impedance: 100 Ohm

• Video:



- Maximum frequency of data (transmitter/receiver): 10,2 Gbps (3,4 Gbps per line)

- Max pixel clock (transmitter/receiver): 340 MHz

- Conformityà (transmitter/receiver): HDMI (3 D, Deep Color, 4 K); HDCP compatible; Consumer Electronics Control (CEC)

- Maximum resolution/distance (transmitter/receiver): Up to 4 K to 70 m (Cat 5 and/ 6) / 100 m (Cat 6 a/ATEN 2 L- 2910 Cat 6 ); 1080 p a 100 m (Cat 5 e/ 6 / 6 a)

- * 4 K supported: 4096 x 2160 / 3840 x 2160 at 60 Hz (4: 2: 0 ); 4096 x 2160 / 3840 x 2160 at 30 Hz (4: 4: 4 )

• Audio:



- Input (receiver): 1 x HDMI type A female (black)

- Output (transmitter): 1 x HDMI type A female (black)

• Connectors:

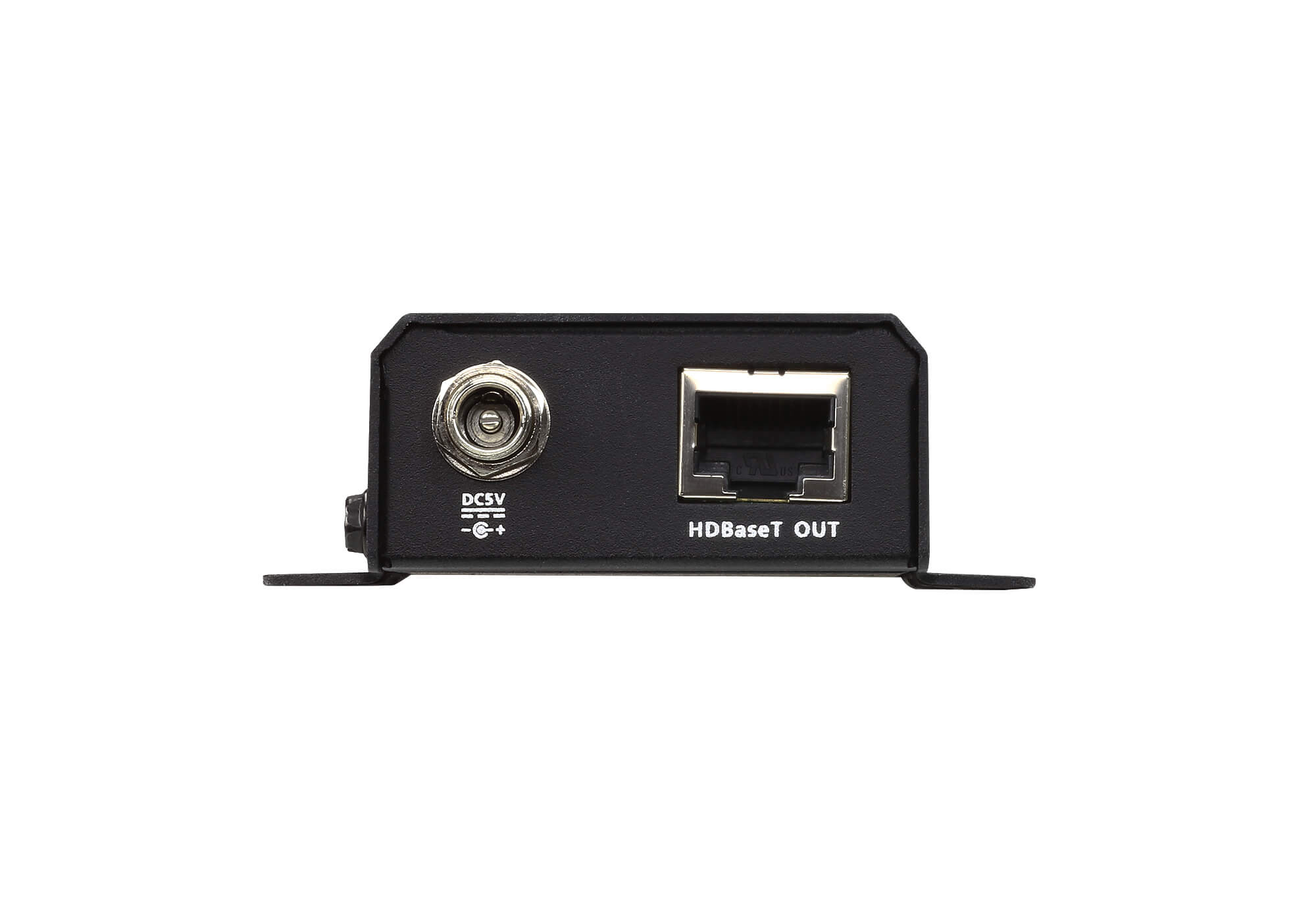

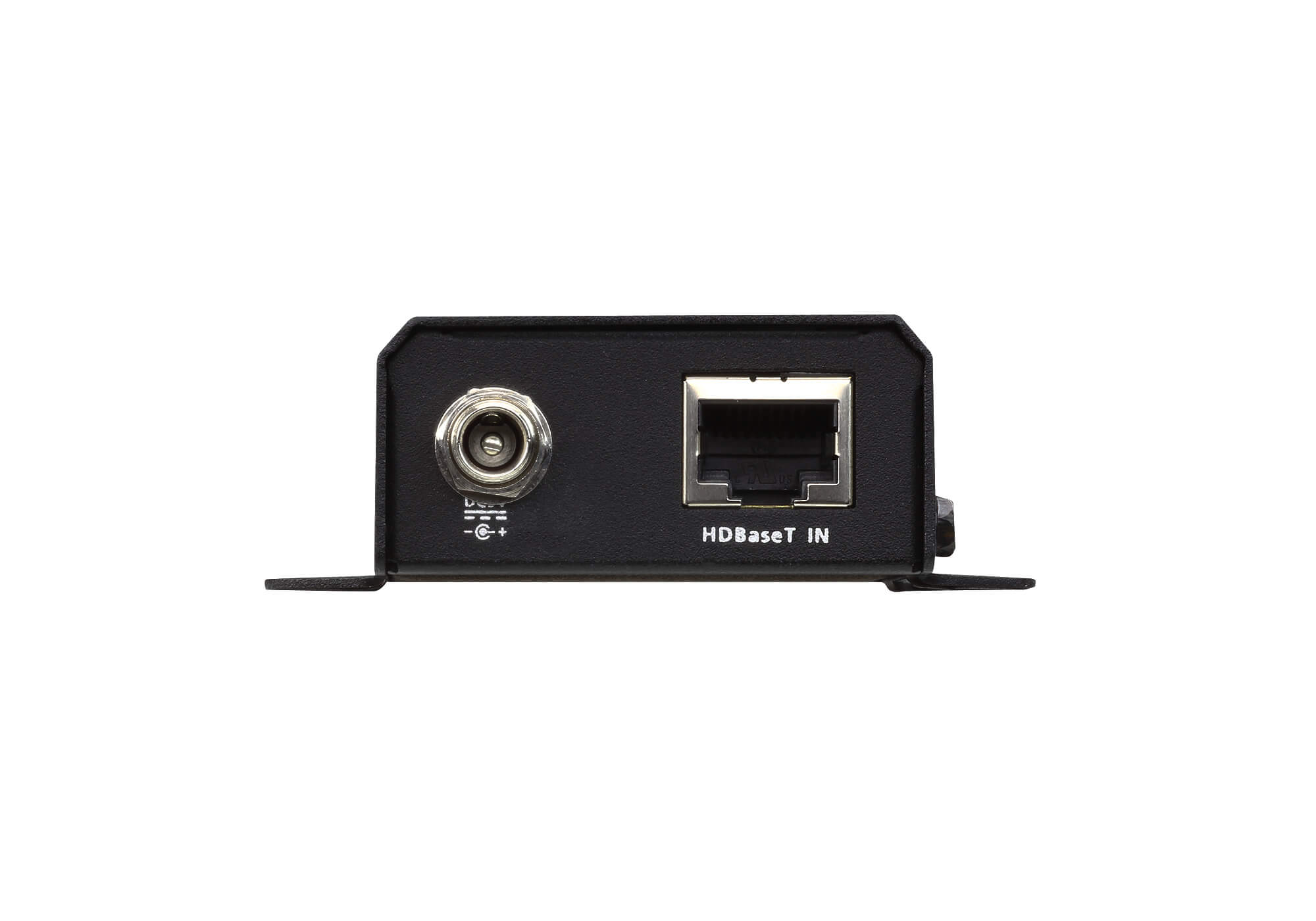

- Unità a Unità (transmitter/receiver): 1 x RJ- 45 female

- Firmware update (transmitter/receiver): 1 x female mini stereo connector (black)

- Power supply (transmitter/receiver): 1 x CC (Black) connector with block

• Switches:

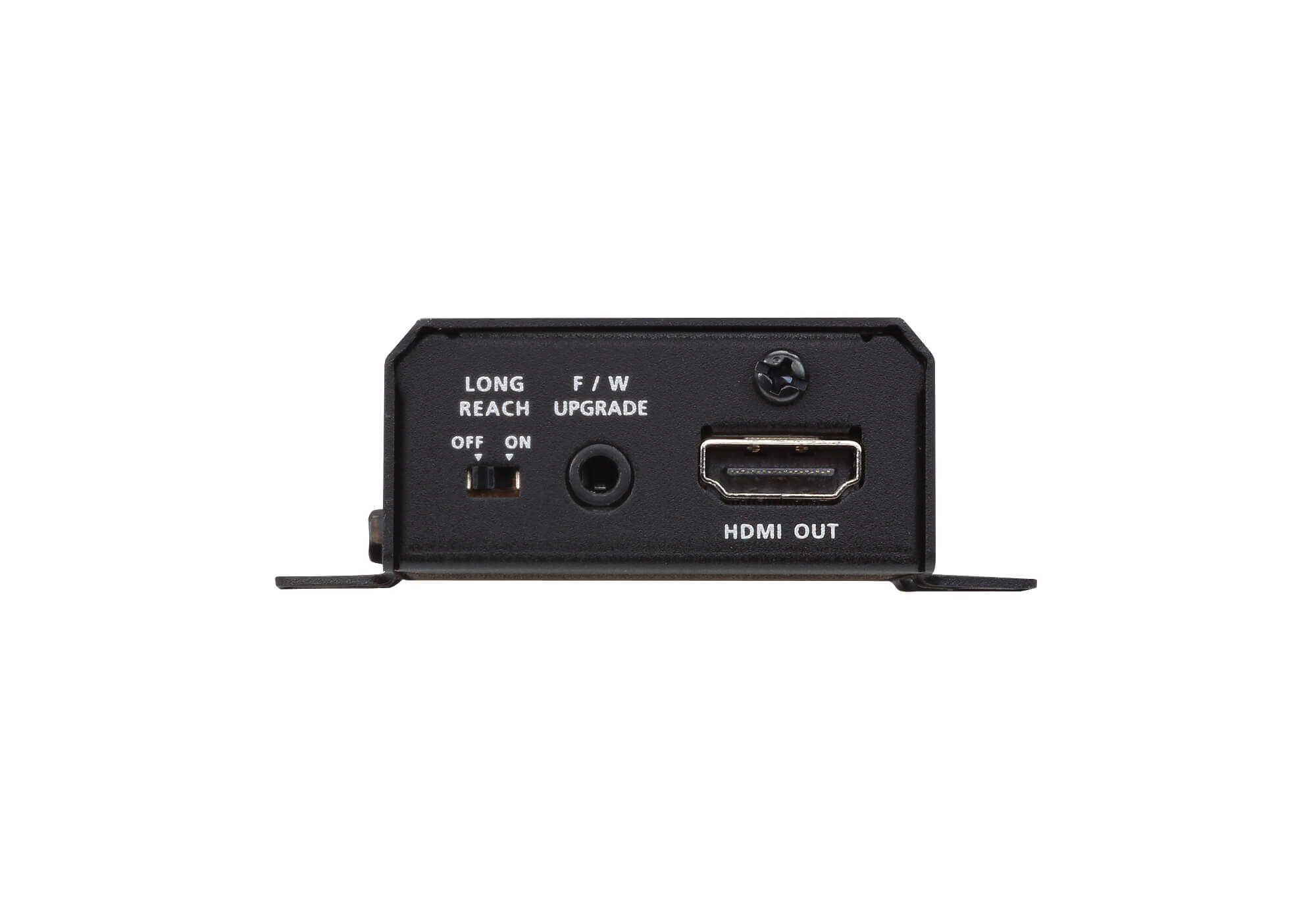

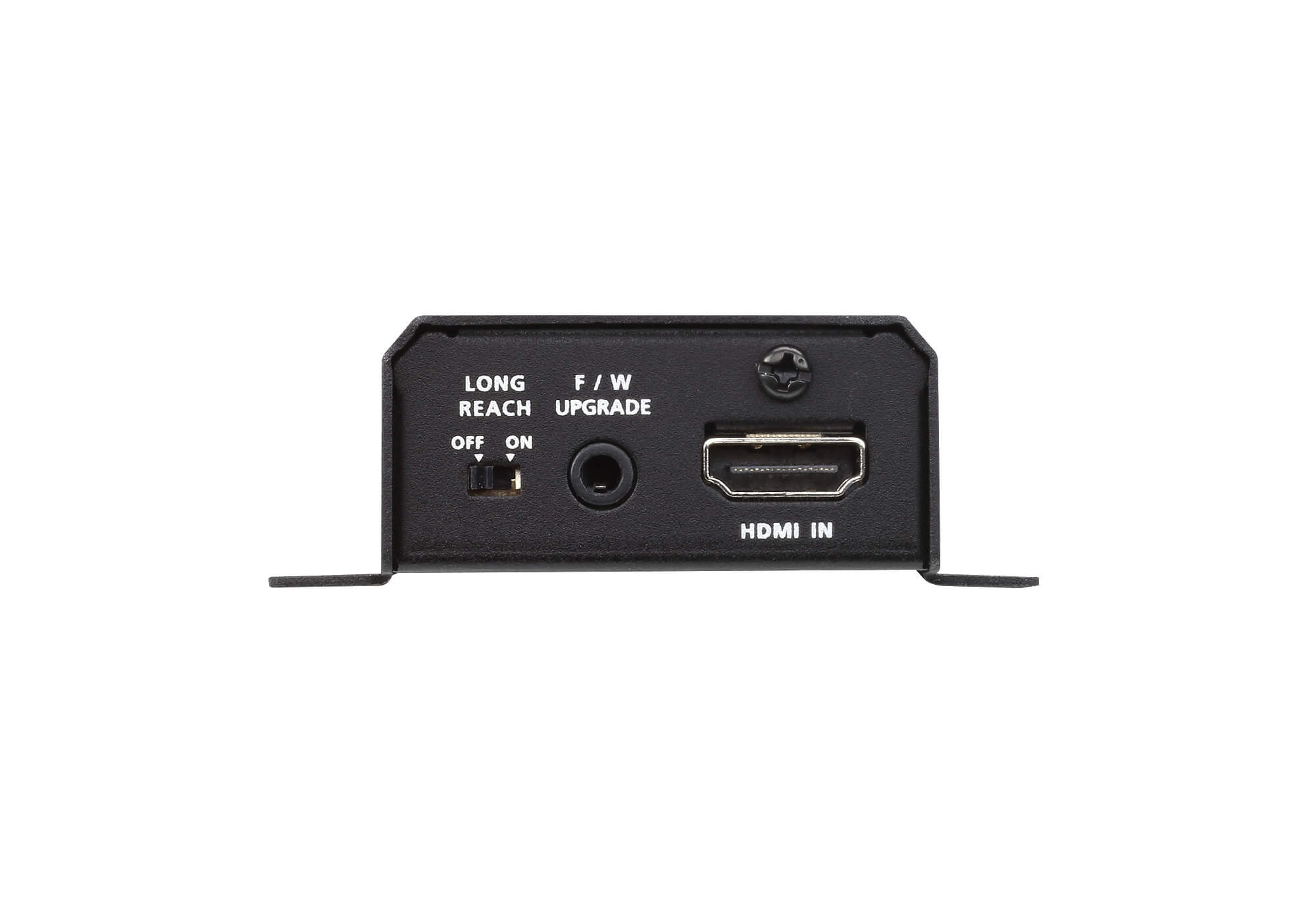

- Mode transition & agrave; long distance (transmitter/receiver): 1 x Sliding support - ON/OFF

• Power consumption: DC 5 V: 3.77 W: 18 BTU / DC 5 V: 3.84 W: 18 BTU; receiver: DC 5 V: 3.77 W: 18 BTU / DC 5 V: 3.84 W: 18 BTU


• Environment



- Operating temperature: 0 - 40 °C

- Storage temperature: - 20 - 60 °C

- Humidità: 0 - 80 % relative humidity, without condensation

• Proprietà physical:



- Structure: metal

- Weight: transmitter 0,17 kg; receiver: 0,16 kg

- Dimensions (L x L x A) with bracket (transmitter / receiver): 8.64 x 7.30 x 2.47 cm

- Dimensions (L x L x A) without bracket (transmitter / receiver): 8.20 x 5.20 x 2.37 cm

Note: For some rack mount products, the standard physical dimensions LxPxA are indicated using the LxLxA format.



Package contents

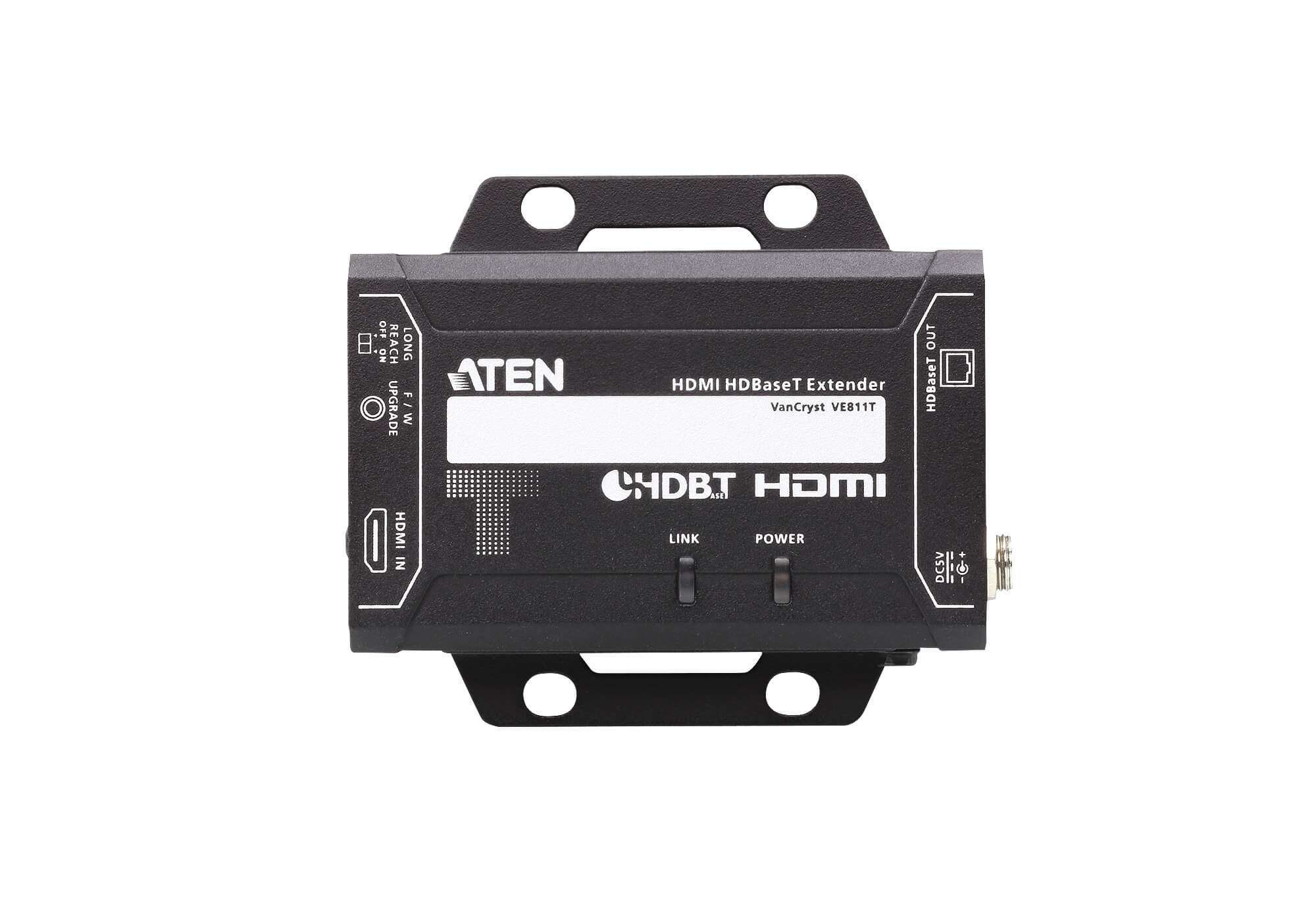

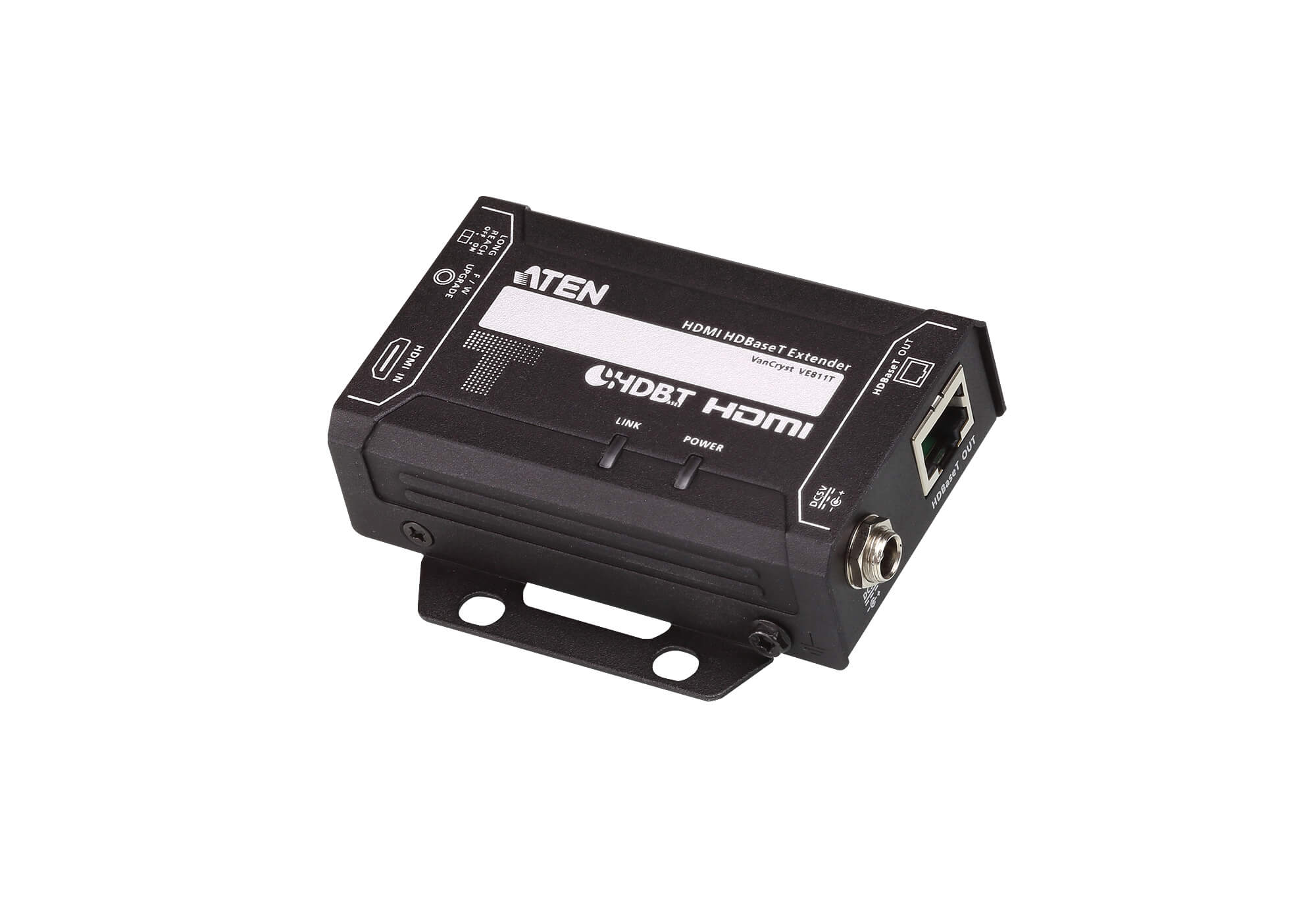

• 1 x HDBaseT HDMI VE 811 T transmitter

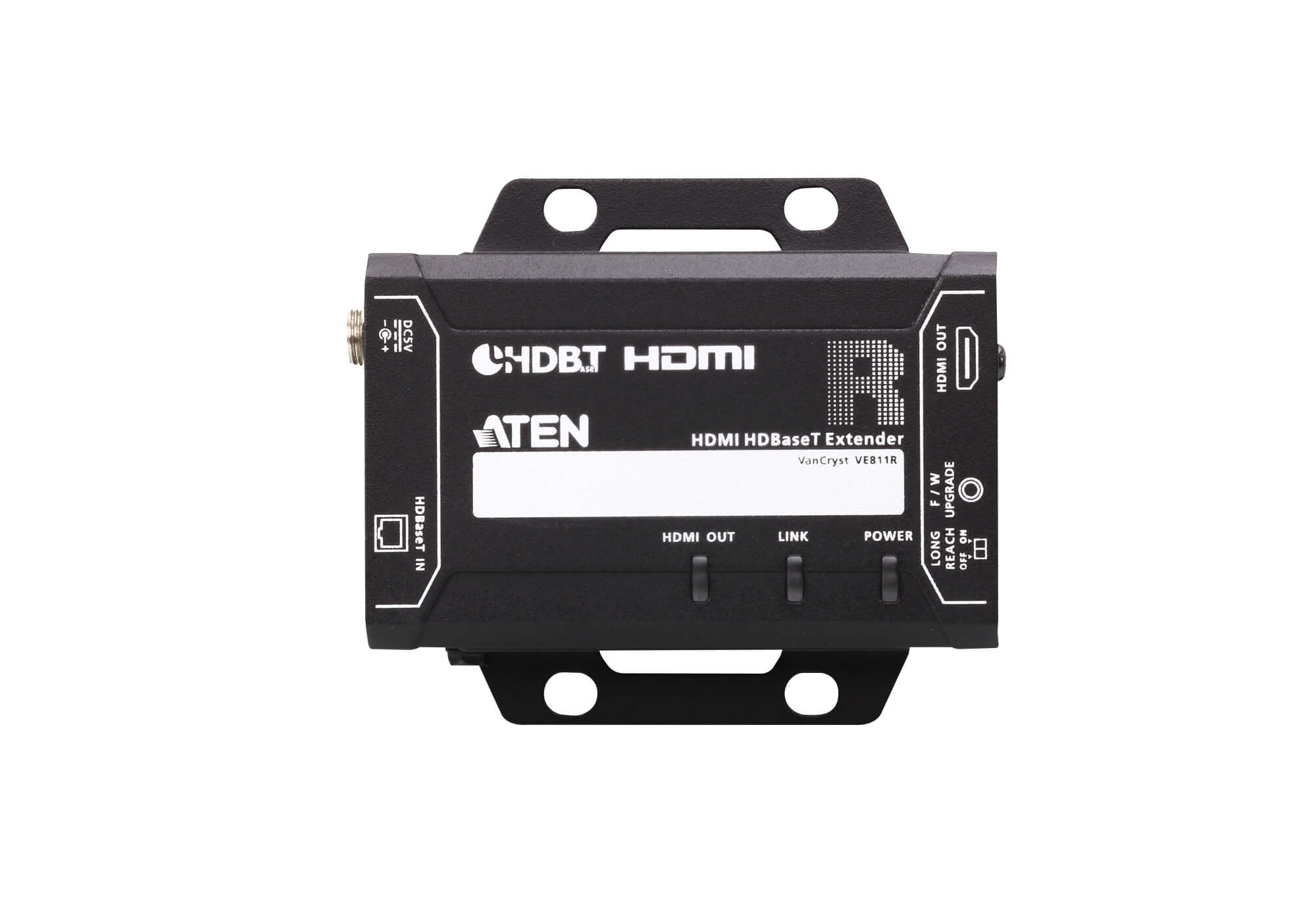

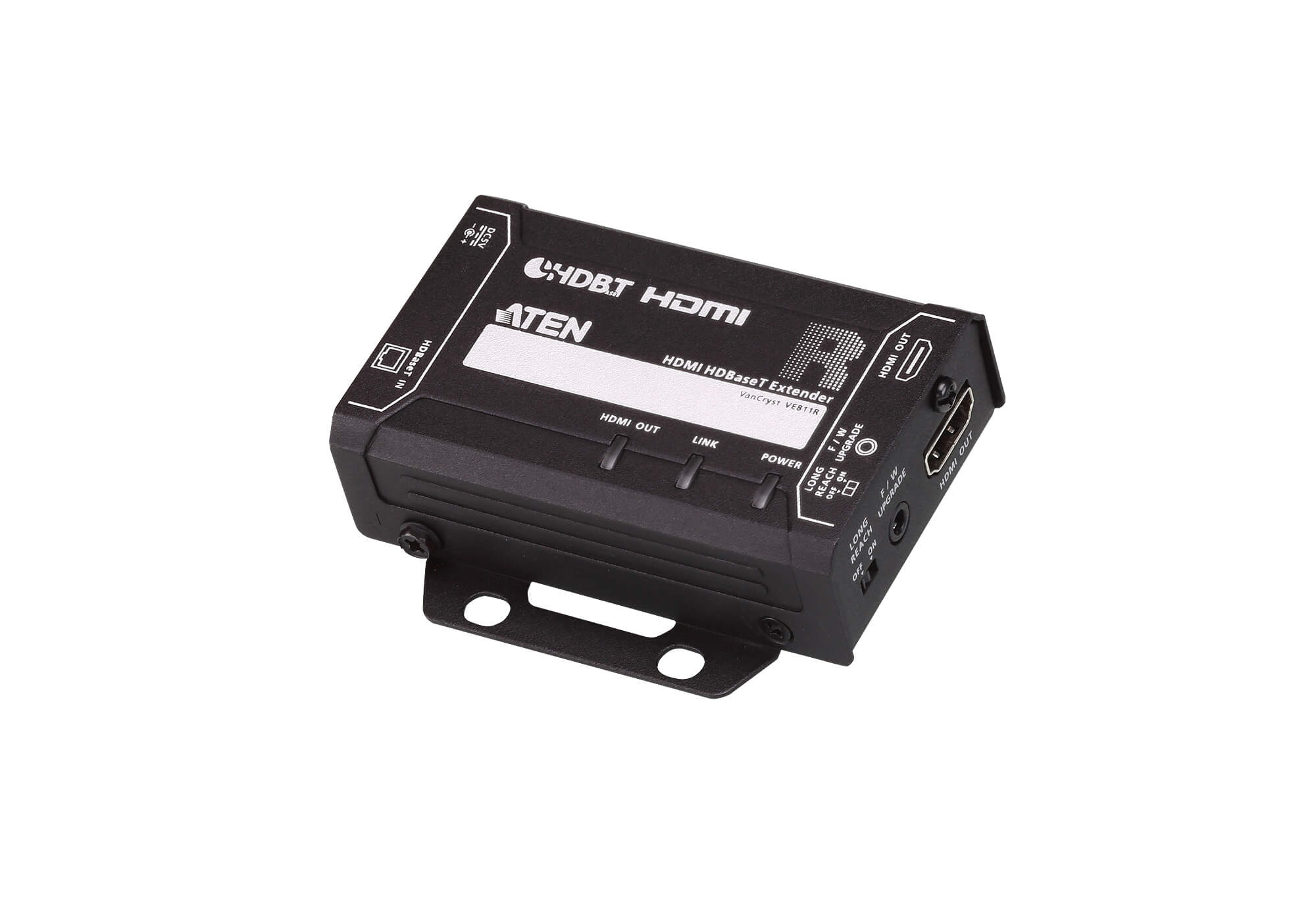

• 1 x HDBaseT HDMI VE 811 R receiver


• 2 x power adapters


• 1 x user instructions
