VGA USB KVM Extensor with audio, RS- 232 and Deskew 300 m - Aten IDATA CE- 770

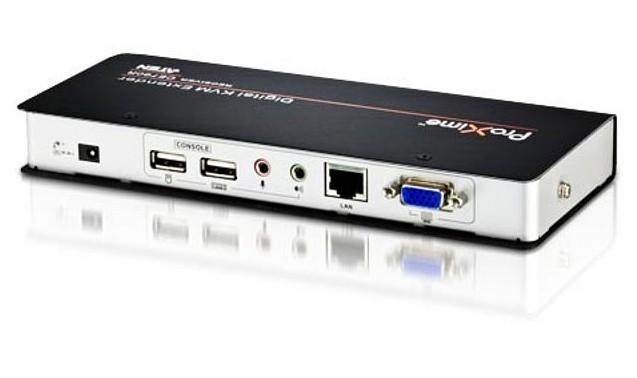

CE-770 IDATA è a USB KVM extender with Deskew function. Automatic signal compensation and RS- 232 serial functionality allow access to a computer system from a remote USB console.

Supports RGB delay tune to manually synchronize RGB signals. Ciò allows you to distribute equipment over wider distances. The CE 770 synchronization function fixes the color phase errors and the time errors occurring on long distance transmissions. It also allows you to manually tune the R/G/B signal settings.



Features

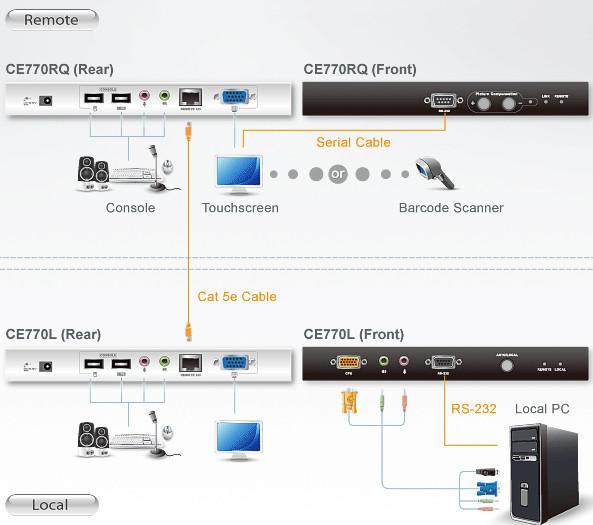

• Unità remote and local connectable with a maximum distance of 300 meters with a Cat 5 cable and


• Operation with double console: both local and remote system control from keyboard console, USB mouse and monitor


• Deskew function: automatically synchronizes RGB signal delay to compensate for distance


• Chip ASIC provided for greater reliabilityà and compatibilityà


• Automatic signal compensation (ASC)


• RS- 232 channel: allows connection of serial devices such as touchscreen and barcode scanners


• Mac/Sun keyboard support and emulation*


• Equipped with audio: supports speakers and stereo microphone


• USB overcurrent detection and protection


• Selection of mode à operating by pushing a button (only for local unità): selection between local à mode; operation and automatic


• Protection 8 KV/ 15 KV ESD built-in (contact voltage 8 KV; aerial voltage 15 KV) and protection from current peaks of 2 KV


• High resolution video: up to 1920 x 1200 at 60 Hz (150 m); 1280 x 1024 at 60 Hz (300 m)


• Superior audio: no loss of quality; at 300 m


• Support widescreen formats **


• Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitor; local monitor supports DDC; DDC 2; DDC 2 B


• Hot link


• Installed to rack


• Easy to install – does not require – è software sufficient to connect cables to devices



* 1 . Emulation of Sun/Mac keyboards via PC keyboard key combinations

2 . Sun/Mac keyboards only work with their respective computers



** EDID data for widescreen format is sent from the local video output port. For widescreen modes and screens, connect the monitor to the local video output port or use an ATEN EDID emulator.



Technical specifications

• Connectors connection port to the console:



- Keyboard: 1 USB type A female (white)

- Video: 1 female HDB- 15 connector (blue)

- Mouse: 1 USB type A female (white)

- Speakers: 1 female mini stereo connector (green)

- Mic: 1 female mini stereo connector (pink)

- RS- 232: CE 770 L 1 DB- 9 female (black); CE 770 RQ 1 DB- 9 male (black)

• KVM port connectors:



- Keyboard/Video/Mouse: 1 SPHD- 17 female (yellow)

- Speakers & 1 mini stereo connector (green)

- Mic: 1 mini stereo connector (pink)

• Power connector: 1 DC connector (black)


• Device to device: 1 female RJ- 45 connector (black)



Video Resolution

1920 x 1200 @ 60 Hz (150 m);

1280 x 1024 @ 60 Hz (300 m);

DDC, DDC 2 , DDC 2 B



Environmental features

Operating temperature: 0 - 50°C

Storage temperature: - 20 - 60 °C

Humidità relative 0 - 80 %, without condensation



Dimensions

• Width: 20.20 cm


• Depthà: 8.64 cm


• Height: 2.50 cm



Certifications

• RoHS


• RAEE



Package contents

• 1 Extensor KVM USB CE 770 L (unità local)


• 1 Extensor KVM USB CE 770 R (unità remote)


• 1 USB KVM cable (1,8 m)


• 2 Power supplies 0 AD 6 - 1605 - 03 EG


• 1 Mounting kit


• 1 User guide
