Extensor DisplayPort HDBaseT-Lite - Aten IDATA VE- 901

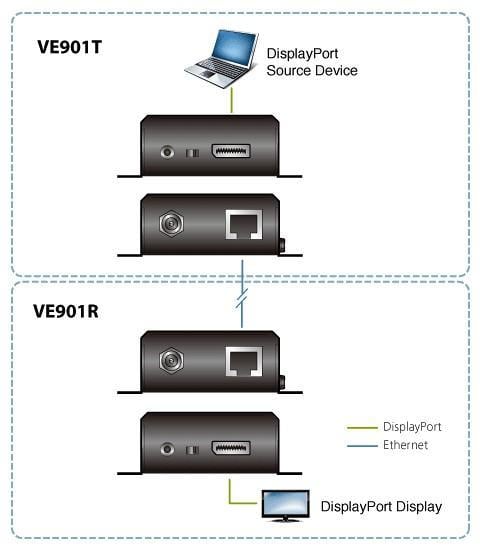

The DisplayPort HDBaseT-Lite Aten VE 901 è extends displayPort to 70 m using a Cat 6 / 6 a cable. This combination of ATEN technology and HDBaseT™ supports media sharing 4 K at a distance up to 40 m, offering a simple, adaptable and cost-effective solution for any professional A/V installation.

The DisplayPort HDBaseT-Lite VE 901 è extender is the perfect solution for professional A/V installations that require protection from video signal interference, such as medical and military installations. Thanks to its lightweight and easy to mount design, and a non-slip CC jack lock mechanism, Aten VE 901 can be installed in different locations always ensuring tranquilityà thanks to its reliabilityà.



Features

• Connectivityà HDBaseT – extends the DisplayPort connection to 70 meters via a single Cat 6 / 6 cable to


• HDBaseT Anti-block – resists signal interference during video transmission using HDBaseT technology


• It has 3,3 V / 500 mA power output for power supply of auxiliary devices


• Installed to rack

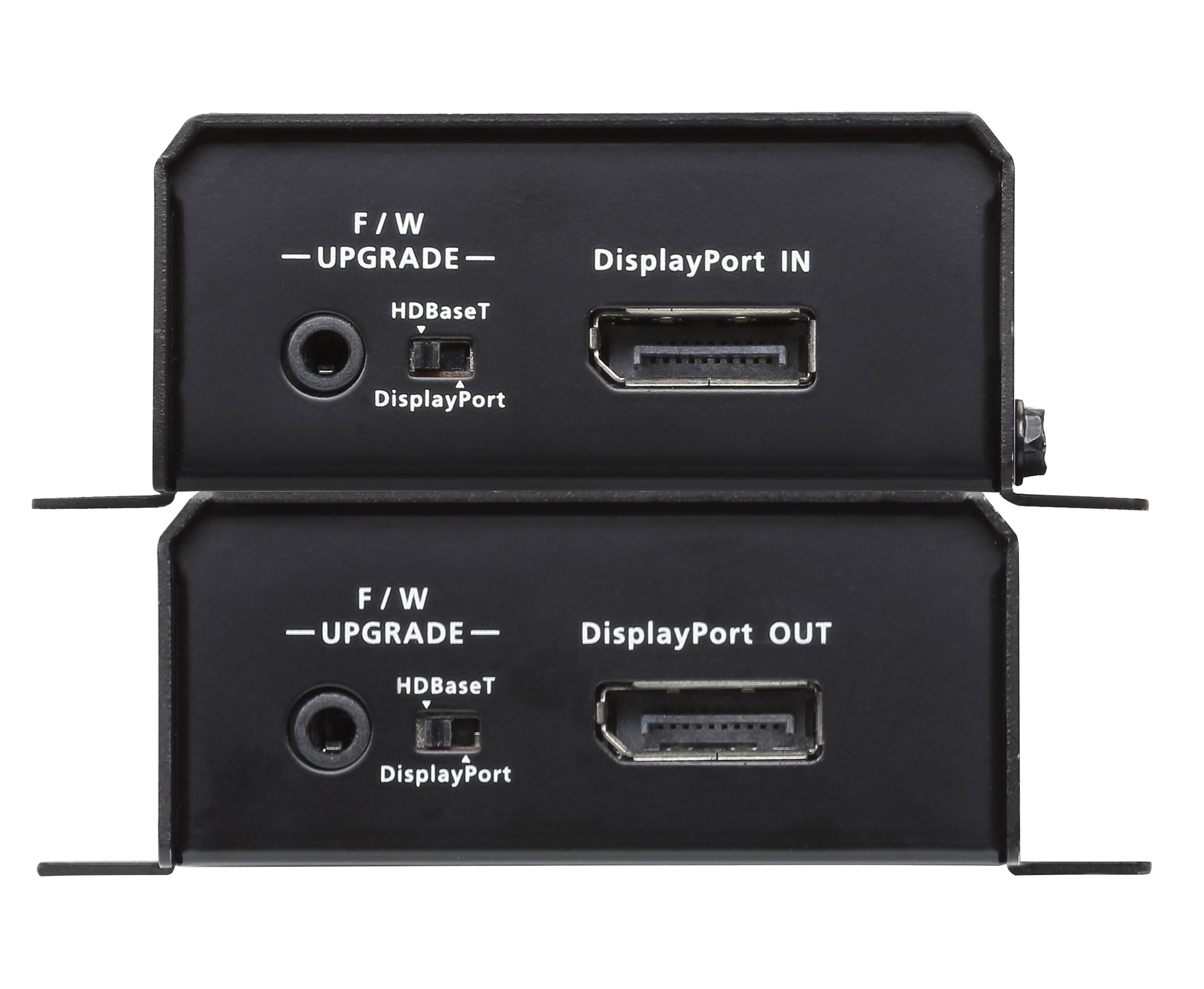

Video Input

• Interfaces: N/D 1 x DisplayPort female (black)


• Impedance: N/D 100


• Maximum distance N/D 1,5 m



Video output

• Interfaces: 1 x DisplayPort female (black) N/D


• Impedance: 100 N/D



Audio

• Input: N/D 1 x DisplayPort female (black)


• Output: 1 x DisplayPort female (black) N/D



Feeding

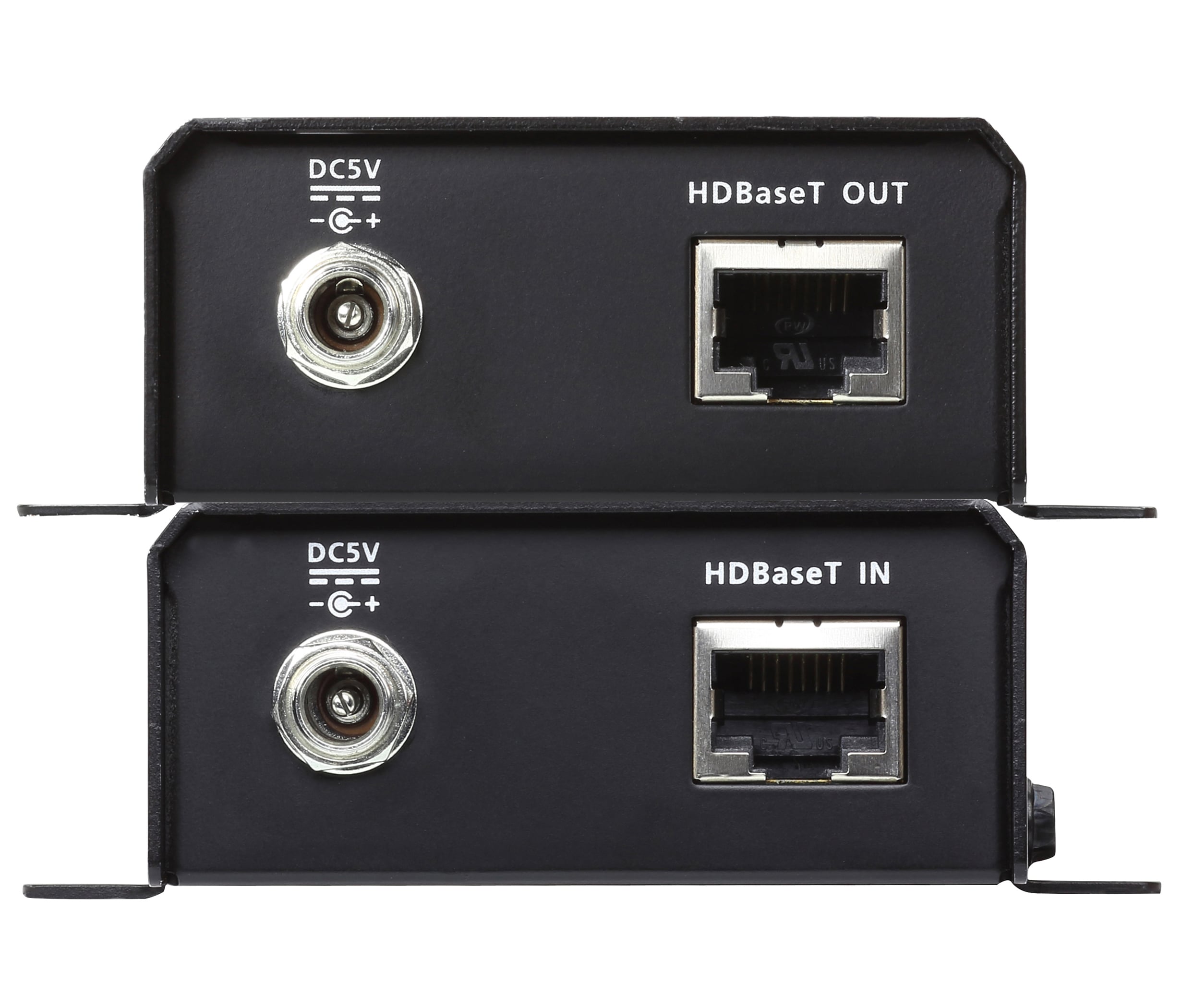

• Connectors:



1 x CC (Black) connector with block  

1 x CC (Black) connector with lock

• Consumption: 



5 V CC, 7,95 W &

5 V CC, 3,13 W



Environmental features

• Operating temperature  0 - 40 °C


• Storage temperature -20 - 60°C


• Humidità 0 - 80 % RH, without condensation



Certifications

• RoHS


• RAEE



Dimensions

• Width: 10,06 cm


• Depthà: 8,70 cm


• Height: 3,00 cm



Package contents

• 1 x VE 901 T transmitter DisplayPort HDBaseT-Lite


• 1 x VE 901 R receiver DisplayPort HDBaseT-Lite


• 2 x 0 AD 6 - 1 F 05 - 26 EG power supplies


• 1 x user instructions
