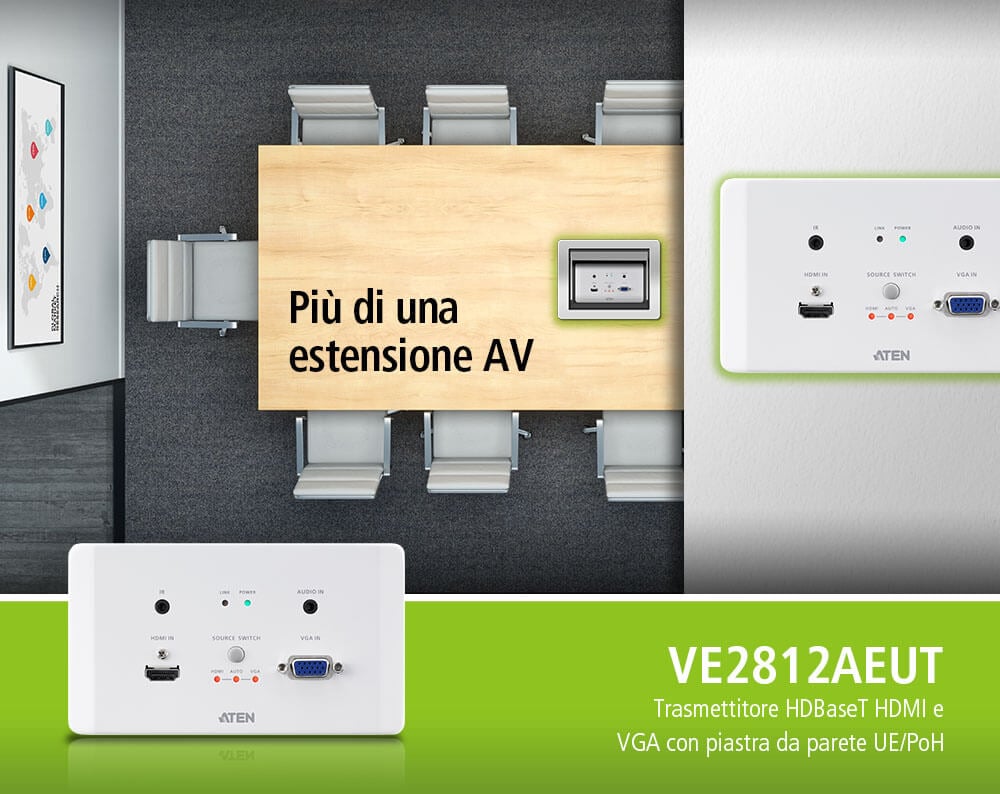

HDBaseT HDMI VGA Wall Plate 4 K to 100 m - Aten IDATA VE- 2812 AEUT

Thanks to the minimum dimensional requirements that allow you to adapt it to the EU and MK standards in different regions, the VE 2812 AEUT è a transmitter with wall plate for sending VGA signals (with audio) and HDMI up to 100 m via a single 5 and/ 6 / 6 cable designed to fit the elegant furnishings of the meeting rooms modern, administration rooms, conference rooms, classes, and reading rooms. It offers a qualityà higher video up to 4 K to 100 m and 1080 p to 150 m through a single Cat 6 to/ATEN 2 L- 2910 Cat 6 to extend the connections regardless of where the output devices are located. Easy to associate with our range of HDBaseT receivers to support different visualization interfaces such as DisplayPort, HDMI, and DVI.

Available for both MK and EU mounting brackets to make more ù convenient installation, the VE 2812 AEUT supports legacy and popular AV interfaces such as VGA, HDMI, and stereo audio so that you are ready to connect any device in the room.

It offers a quality à higher video up to 4 K at 100 m and 1080 p at 150 m via a single Cat 6 a/ATEN 2 L- 2910 Cat 6 cable to extend the connections regardless of where the output devices are located.

The Source Exchange button allows immediate switching when necessary, while the Modelità automatic exchange supports automatic switching on the new connected device and returning to the previous source when disconnected. It also supports RS- 232 for switching through the alternate control interfaces.

Supports Power over HDBaseT (PoH) and allows power supply from another Power Source Equipment (PSE) device. It will not beà moreù need to worry about extending or installing power sockets.

In addition to the transmission of video and audio, the VE 2812 AEUT maximizes the functionality à of HDBaseT&trade technology; in addition to offering IR and RS-232 channels for control of devices located in difficult to reach areas as well as simplifying the user's operational experience.

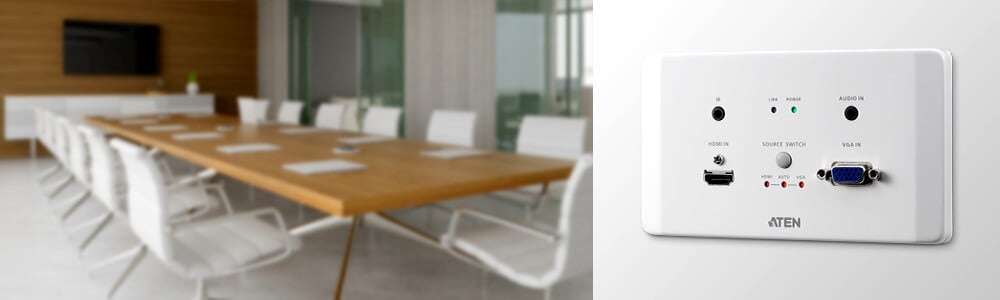

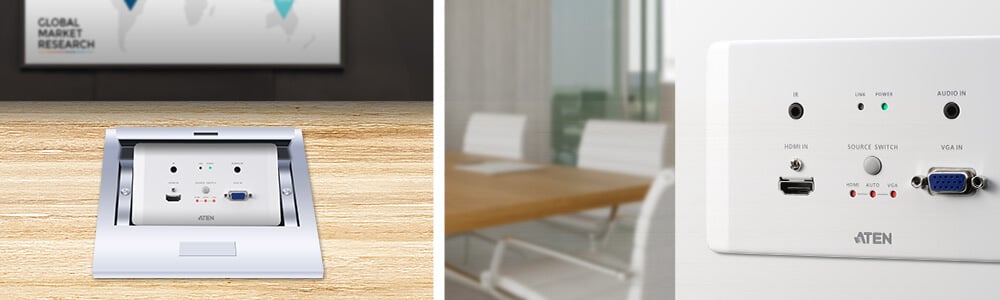

Thanks to the elegant and clean design, extensions blend elegantly with the furnishings of any room.

• Extends HDMI or VGA signals via a single Cat 5 and/ 6 / 6 cable to



- HDMI: 4 K at a distance of up to 100 m using a Cat 5 and/ 6 / 6 a or ATEN 2 L- 2910 Cat 6

- VGA: 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 5 and/ 6 / 6 a or ATEN 2 L- 2910 Cat 6

• Supports long distance HDBaseT – up to 150 m mode with a single Cat 5 and/ 6 cable with resolutions up to 1080 p

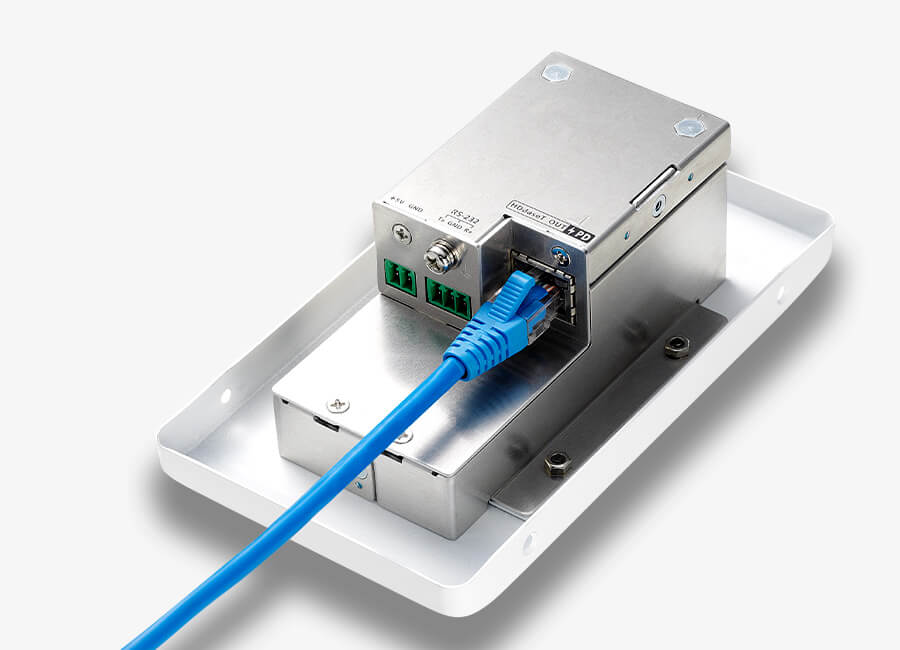

• Thanks to the built-in PoH (Power over HDBaseT) – function, the VE 2812 AEUT receives power from the HDBaseT output port on the connected device.


• Supports automatic – switch automatically switches to new connected input source

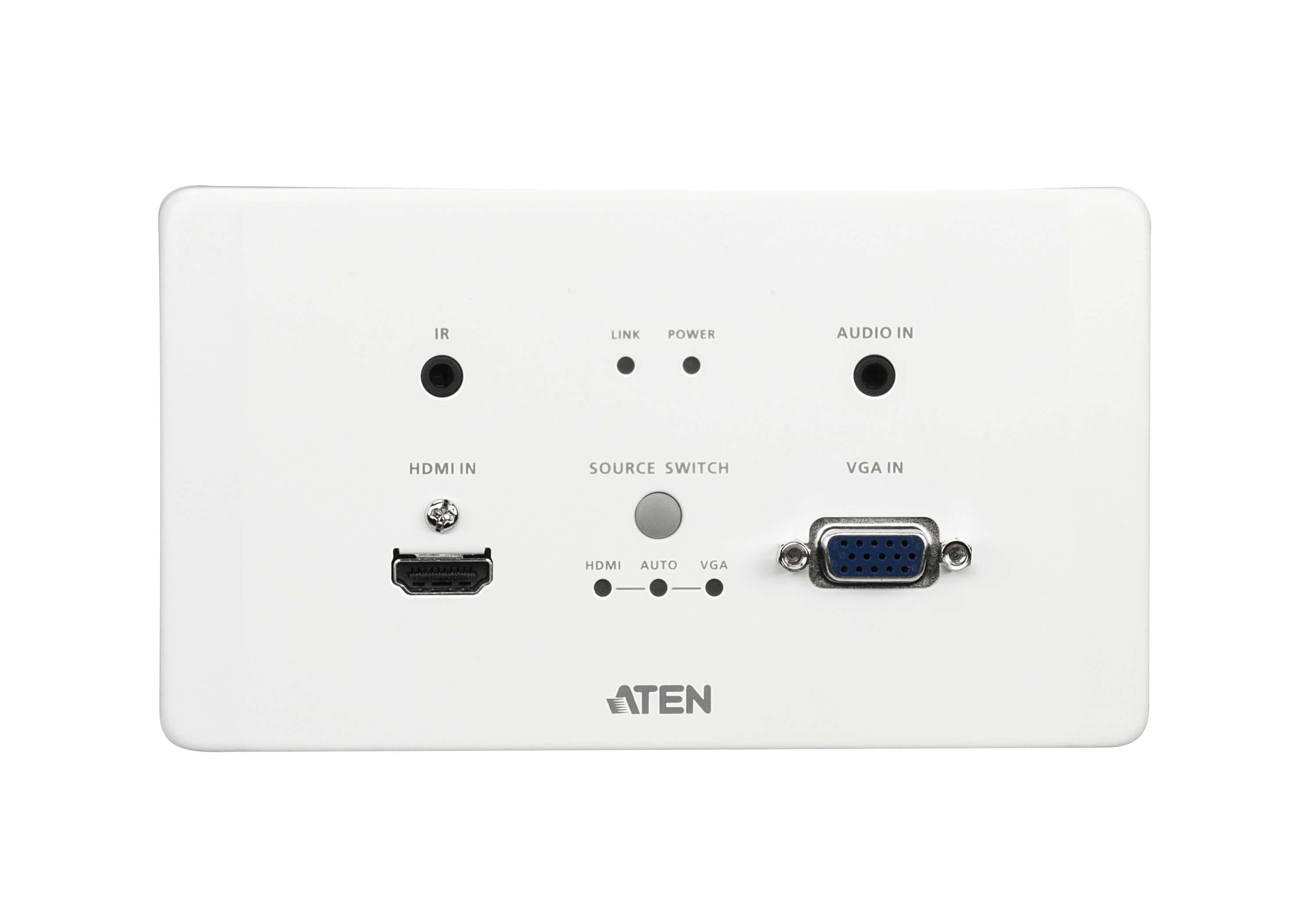

Video Input

• Interfaces:



1 x HDMI type A female (black)

1 x HDB- 15 (VGA) female (blue)

• Impedance: 



HDMI: 100 Ω

HDB- 15 (VGA): 75 Ω

• Max. distance 



HDMI: 3 m

HDB- 15 (VGA): 10 m



Video

• Maximum frequency of data: 10,2 Gbps (3,4 Gbps per line)


• Pixel clock max. 340 MHz


• Conformityà HDMI (3 D, Deep Color, 4 K)


• HDCP 2.2 compatible


• CEC (Consumer Electronics Control)


• Resolution/Distance max. 



HDMI: Up to 4 K to 70 m (Cat 5 and/ 6) / 100 m (Cat 6 to/ATEN 2 L- 2910 Cat 6 ); 1080 p to 100 m (Cat 5 and/ 6 / 6 a)

VGA: Up to 1920 x 1200 & 1600 x 1200 a 70 m (Cat 5 e/ 6) / 100 m (Cat 6 a/ATEN 2 L- 2910 Cat 6 ); 1920 x 1080 a 100 m (Cat 5 e/ 6 / 6 a)

* 4 K supported:

4096 x 2160 / 3840 x 2160 at 60 Hz (4 : 2 : 0 );

4096 x 2160 / 3840 x 2160 at 30 Hz (4 : 4 : 4 )

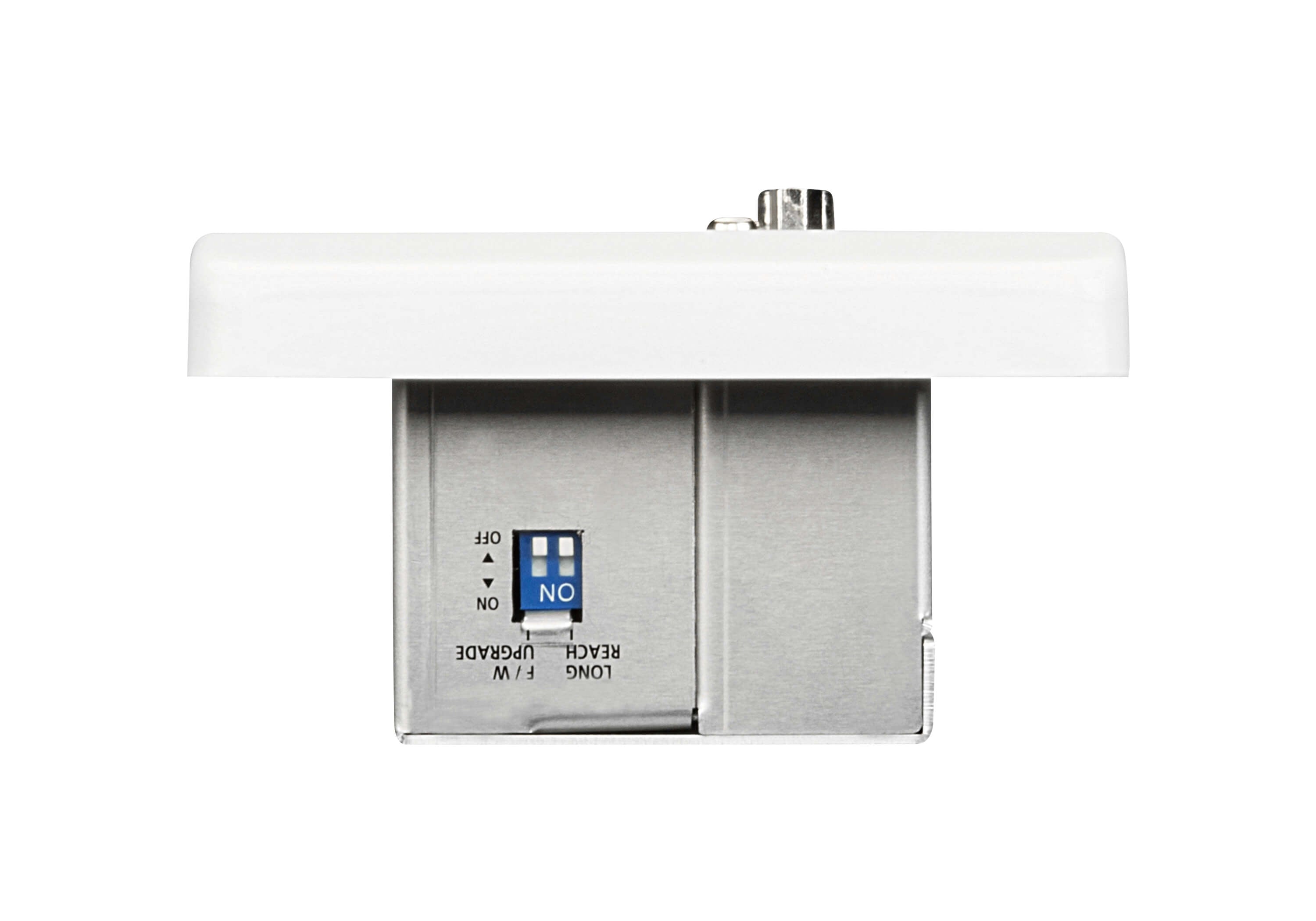

Switches

• Video input port selection: 1 x Push button - HDMI, VGA and AUTO


• Mode transition à long distance: 1 x Sliding support - ON/OFF


• Firmware update: 1 x Sliding support - ON/OFF



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80% relative humidityà without condensation



Dimensions

• Transmitter dimensions: 5.00 x 10.80 x 5.17 cm


• Front cover dimensions: 8.60 x 15.10 x 1.35 cm



Package contents

• 1 x HDBaseT HDMI and VGA VE 2812 AEUT transmitter with EU/PoH wall plate

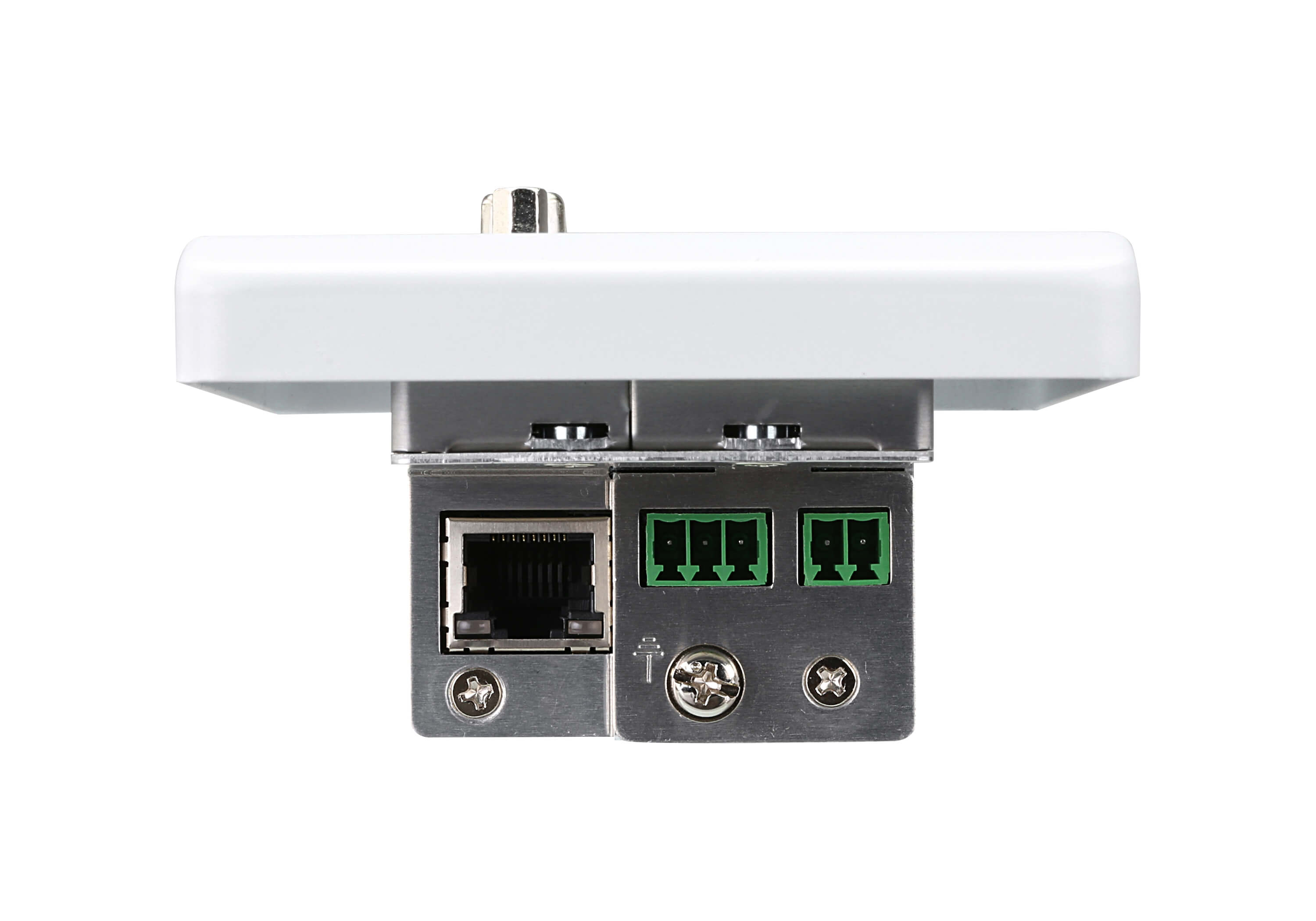

• 1 x JCNT- 3301 - 103 G terminal block RS- 232 to 3 pin


• 1 x JCNT- 3301 - 102 G 2 pin power supply terminal block


• 1 x Mounting kit


• 1x Power supply


• 1x User instructions
