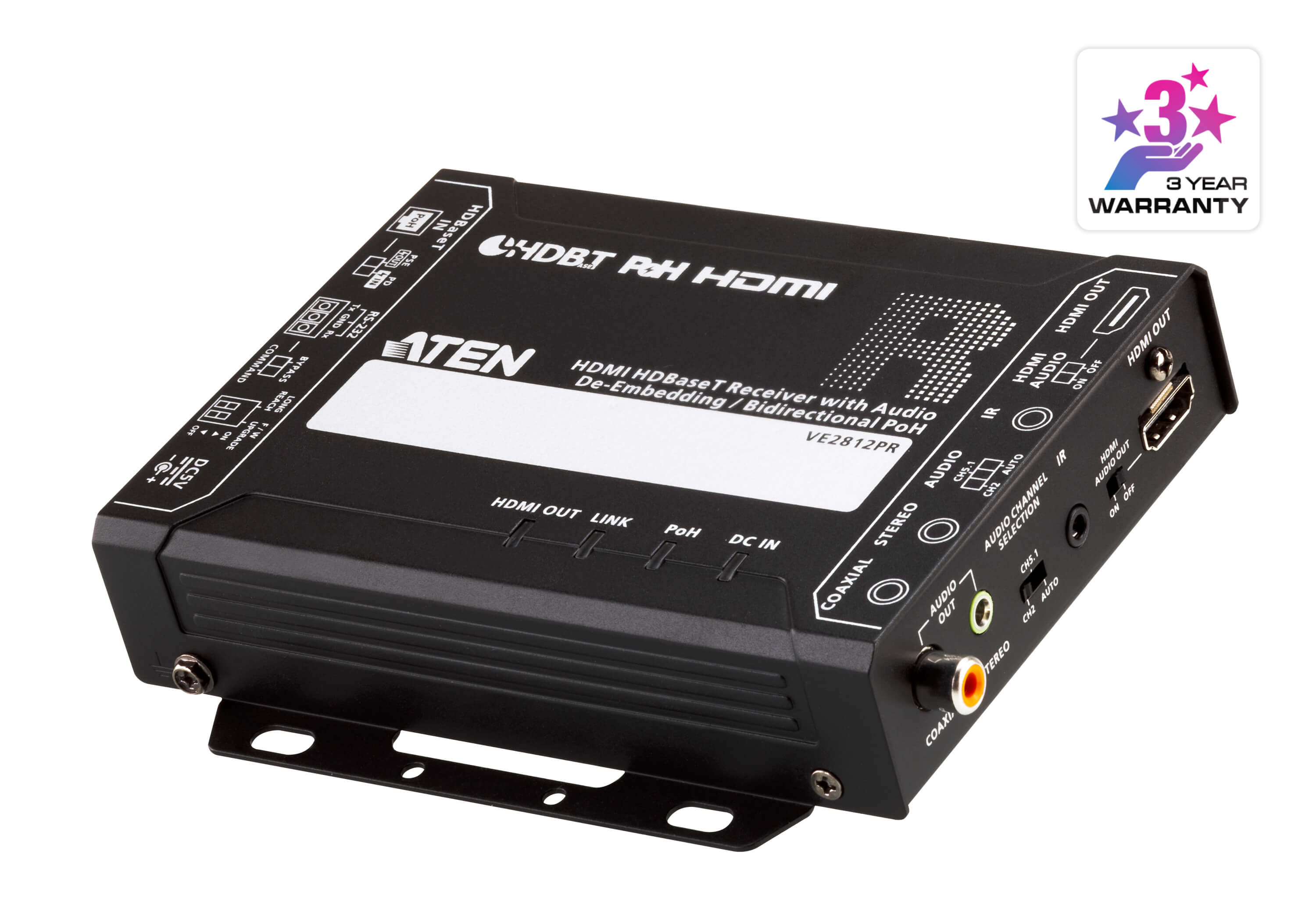

HDBaseT HDMI receiver with two-way PoH audio de-embedding 4 K 100 m - ATEN IDATA VE- 2812 PR

Equipped with powerful HDBaseT Class A technology, IDATA VE- 2812 PR è a receiver for video, audio and control signals HDMI 4 K over a distance up to 100 m via a data cable Cat 5 E / 6 / 6 a.

The HDMI signal transmission extends up to 150 m to 1080 p when the HDBaseT mode is activated.

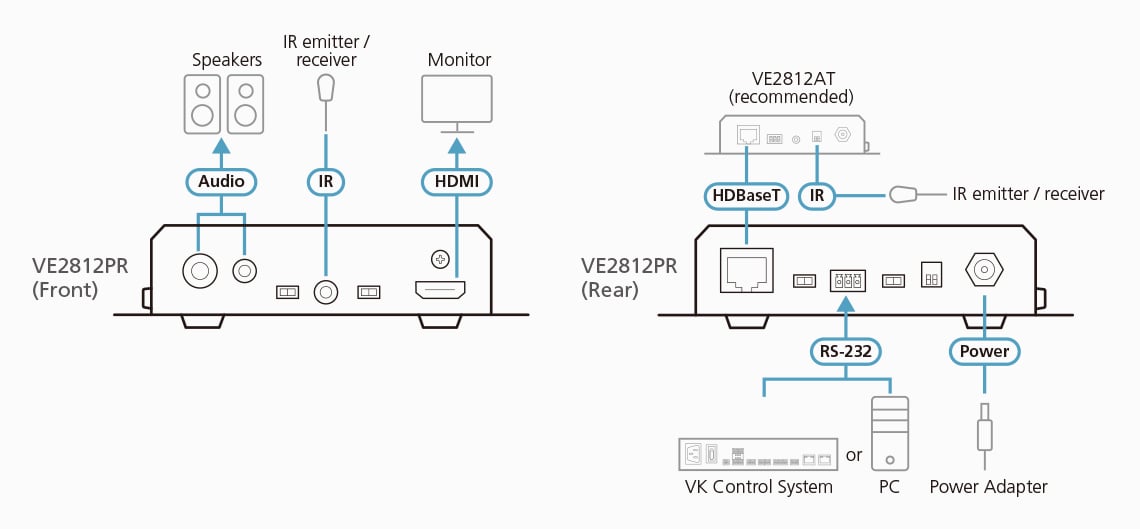

Designed to optimize flexibility, the VE2812PR features bidirectional PoH functionality, which allows a PoH PD-enabled Tx (VE2812AT series recommended) to be remotely powered by the locally powered VE2812PR, or allows distributing power along the cable from a PoH PSE-enabled Tx (VE1812T recommended) to the VE2812PR. Regarding the audio de-embedding of the VE2812PR, the audio signal can be extracted from the HDMI input source and then transmitted via coaxial or stereo output to external audio distribution systems. The VE2812PR offers users additional convenience when it comes to extending control and communication signals via the built-in bidirectional RS-232 and IR ports. Additionally, it is compliant with HDCP 2.2 and supports HDMI specification features such as 4K2K, 3D, Deep Color, and CEC, for reliable transmission of di alta qualità uncompressed HDMI content.



Thanks to all the features enclosed in a compact enclosure, the VE 2812 PR ensures an easy and discreet installation, keeping the presentation space in order. It is ideal for small and medium-sized areas where è requires transmission of HDMI signals 4 K and long-distance control, such as meeting rooms, classrooms and Digital Signage applications.



Features

• It transmits HDMI 4 K up to 100 m via a Cat 5 and / 6 / 6 A data cable


• Transmit HDMI up to 150 m to 1080 p in modeà long HDBaseT flow rate


• Two-way PoH:



- allows a PoH PD-enabled Tx to be remotely powered by the VE 2812 PR powered locally

- allows the distribution of power from a PoH PSE enabled Tx to VE 2812 PR via cable

• De-embedding audio – extracts the audio stream from the HDMI source and provides it as HDMI-separated audio to S/PDIF or stereo coaxial audio output


• Supports switching audio EDID (stereo to 2 channels, surround to 5.1 channels and AUTO)


• RS- 232 serial communication switch: switching between mode ` command and mode à bypass for various application requirements


• Supports bidirectional IR signal transmission (IR transmission is processed in one direction at a time)


• HDMI (3 D, Deep Color, 4 K); compatible with HDCP 2.2


• Updated Firmware


• Integrated ESD protection 8 kV / 15 kV


• Plug-and-play


• Mountable on rack using VE-RMK 1 U



Video output

• Interfaces: 1 x HDMI Type-A female (Black)


• Impedance: 100 Ω


• Maximum distance 3 m



Video

• Maximum frequency 10,2 Gbps data (3,4 Gbps per channel)


• Pixel clock max. 340 MHz


• Conformityà HDMI (3 D, Deep Color, 4 K)


• Compatible with HDCP 2.2


• Consumer Electronics Control (CEC)


• Max resolution 4 K supported:



4096 x 2160 / 3840 x 2160 at 60 Hz (4 : 2 : 0 );

4096 x 2160 / 3840 x 2160 at 30 Hz (4 : 4 : 4 )

• Maximum resolution/distance up to 4 K to 70 m (Cat 5 and/ 6) / 100 m (Cat 6 a/ATEN 2 L- 2910 Cat 6 ); 1080 p a 100 m (Cat 5 e/ 6 / 6 a)



Audio

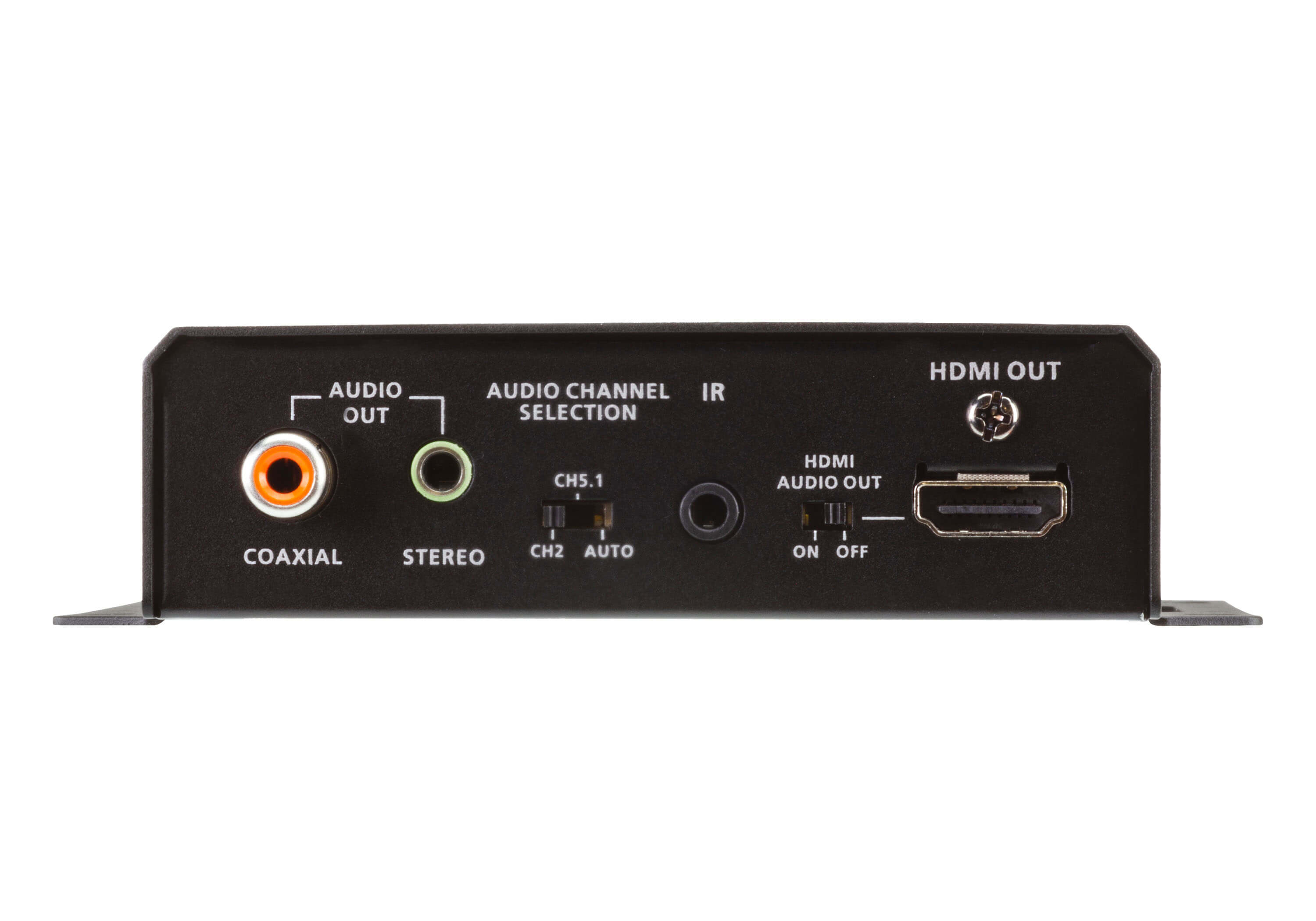

• Output:



1 x HDMI Type-A female (Black)

1 x Mini stereo jack female (Green)

1 x SPDIF female coaxial (Orange)



Switches

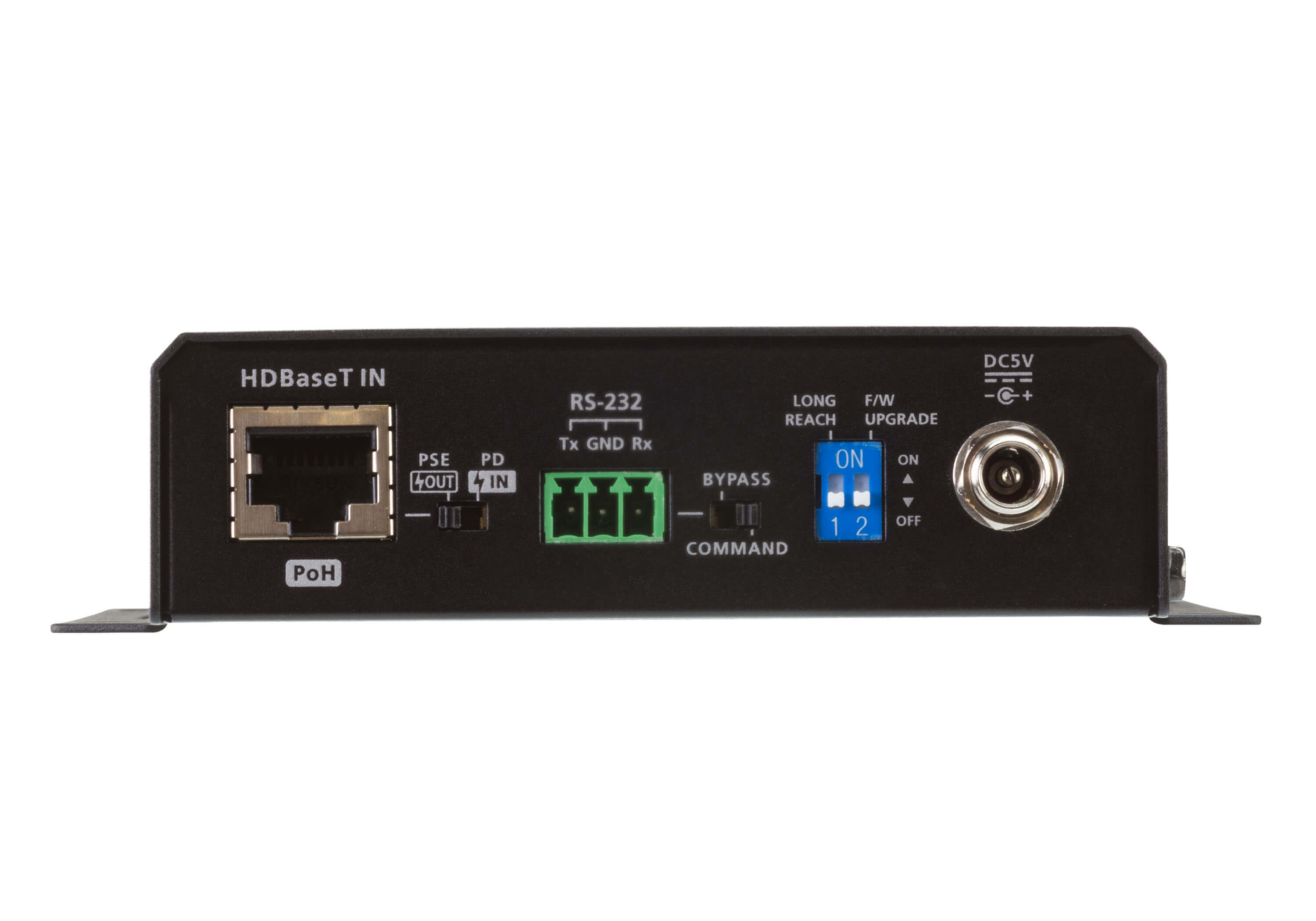

• Selected power: 1 x Scrolling switch - Power selection POH: PSE / PD


• HDMI exclusion: 1 x Scrolling switch - HDMI Audio ON/OFF


• Selection of audio EDID: 1 x slide switch - Selection of audio output format: 2 ch / 5.1 ch / AUTO


• Mode Selectionà: 1 x slide switch - Mode Selectionà RS- 232 command/bypass


• Mode transition & agrave; long distance: 1 x Scrolling switch - Modelità long flow rate ON/ OFF


• Firmware update: 1 x Scrolling switch - Modelità firmware update ON/ OFF



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80 % RH, without condensation



Dimensions

• With bracket: 14,53 x 12,30 x 3,00 cm


• Without bracket: 13,60 x 10,10 x 2,90 cm



Package contents

• 1 x HDBaseT HDMI VE 2812 PR receiver with two-way audio de-embedding / PoH


• 1 x RS- 232 Morsettiera


• 1 x Set of feet (4 pcs.)


• 1x Power supply


• 1x User instructions
