VGA USB KVM Extensor with audio and RS- 232 200 m - Aten IDATA CE- 750

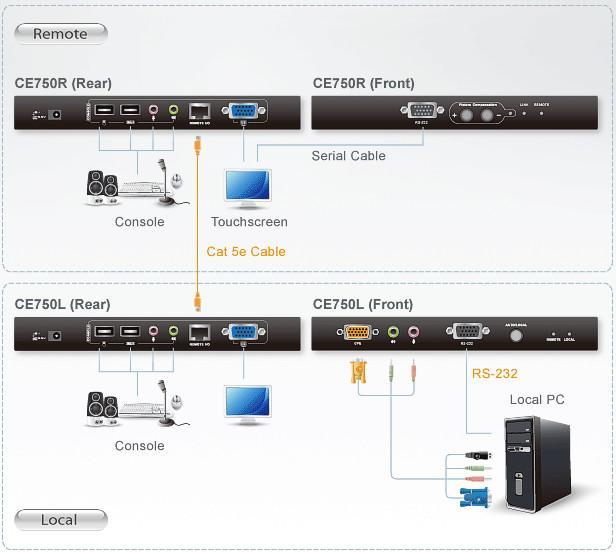

Aten CE 750 A è a USB-based KVM Extensor with automatic signal compensation and RS- 232 serial functionality that allows access to a computer system from a remote USB console (USB keyboard, monitor and USB mouse).

Because it allows access to a computer system from a remote console, CE 750 A è perfect for use in any type of installation where è need to place the console in accessible point and you want at the same time to keep the system equipment in a safe position, for example away from dust and dirt of the production department or hazardous environments such as a construction site.

CE 750 A improves the previous design by adding an RS- 232 port, both on the local and remote unità which allows connection to a serial end for configuration (Unità local) or serial devices such as touchscreen and barcode scanner (Unità remote).



Features

• The local and remote units connect at a distance of up to 200 meters via a Cat 5 cable and


• Operation with two – è consoles can control the system from both the USB keyboard, monitor and mouse of the local and remote console


• Integrated ASIC for greater reliability à and compatibilityà


• USB keyboard ports and USB mouse


• RS- 232 – serial ports allow connection to a serial terminal for configuration (Local Unità) or to serial devices such as touchscreen and barcode scanner (Remote Unità)


• Supports stereo speakers and stereo microphone


• USB overcurrent detection and prevention


• Select mode à push button operating mode (local Unit à only) – choose between local à and automatic operating mode


• Integrated ESD protection 8 KV/15 KV (contact voltage 8 KV, air discharge voltage 15 KV) and surge protection 2 KV


• Adjustable gain control – automatic and manual adjustment of the signal intensityà to compensate for distance


• High resolution video – up to 1920 x 1200 to 60 Hz to 30 m, 1600 x 1200 to 60 Hz to 150 m, 1280 x 1024 to 60 Hz to 200 m


• Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), and multisync monitors; local monitor supports DDC, DDC 2, DDC 2 B


• Hot Connectable


• Mountable on rack


• Easy – installation no software needed, è sufficient to connect cables to devices


• Supports many screen formats*



* EDID data for a widescreen is sent from the local video output port. For widescreen modes and screens, connect the monitor to the local video output port or use an ATEN EDID emulator.



Technical specifications

• Connector ports to the console:



- Keyboard: 1 USB type A female (white)

- Video: 1 female HDB- 15 connector (blue)

- Mouse: 1 USB type A female (white)

- Speaker: 1 female mini stereo connector (green)

- Mic: 1 female mini stereo connector (pink)

- RS- 232: 1 DB- 9 female (black); 1 DB- 9 male (black)

- Device to device: 1 female RJ- 45

- Power supply: 1 DC connector

• KVM port connectors:



- Keyboard/Video/Mouse: 1 SPHD- 15 female (yellow)

- Speaker: 1 female mini stereo connector (green)

- Mic: 1 female mini stereo connector (pink)



Video Resolution

• 1920 x 1200 @ 60 Hz at 30 m;


• 1600 x 1200 @ 60 Hz at 150 m;


• 1280 x 1024 @ 60 Hz a 200 m



Environmental features

• Operating temperature: 0 - 50


• Storage temperature: - 20 - 60



- Humidità relative: 0 - 80 %, without condensation



Dimensions

• Width: 20.20 cm


• Depthà: 8.01 cm


• Height: 2.50 cm



Certifications

• CE


• RoHS


• RAEE



Package contents

• 1 extender KVM USB (unità local) CE 750 AL


• 1 extender KVM USB (unità remote) CE 750 AR


• custom KVM cable set 2 L- 5302 U


• 2 power supplies 0 AD 6 - 1605 - 24 EG


• 1 assembly kit


• 1 user guide
