Receiver Extender HDMI HDBaseT 4 K 100 m - Aten IDATA VE- 812 R

With the HDMI extension unit Aten VE 812 è you can position the HDMI displays up to 100 meters away from the source device. It can be easily and economically extended using a single Cat 5 e cable.

The VE 812 not only supports HDMI (3 D, Deep Color) bensì also Ultra HD (4 k x 2 k) and è HDCP compatible. The EDID pass-through also ensures the optimal quality à video of the HDMI screen.

The VE 812 è perfect for meeting rooms, the home theater or wherever there is need for long distance transmissions and higher quality video.



Features

• Expands the distance between the HDMI source and the HDMI screen

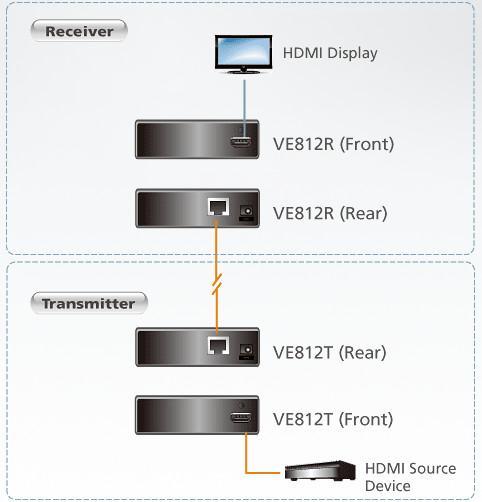

• Implement HDBaseT extension technology using a single Cat 5 cable to connect transmitter and receiver


• HDMI compatible (3 D, Deep Color, 4 k 2 k) and HDCP


• Anti-interferences: resists signal interference during high quality video transmission; using HDBaseT technology


• Long distance transmission up to 100 m


• Supports resolutions up to Ultra HD 4 kx 2 k and 1080 p Full HD


• EDID Expert: select the optimal EDID settings for unhinged ignition and maximum quality à video


• Supports bandwidth up to 340 MHz for high-performance video


• Supports Dolby True HD and DTS HD Master Audio


• Protection 8 KV/ 15 KV ESD built-in (contact voltage 8 KV; aerial voltage 15 KV)


• Transmitter not included



Technical specifications

• Video output



- Interfaces: 1 x HDMI type A female (black);

- Impedance: 100

• Video



- Max. data frequency: 10,2 Gbps (3,4 Gbps per flow)

- Max pixel clock: Up to 340 MHz

- Conformityà: HDMI (3 D, Deep Color, 4 K), HDCP Compatible, CEC (Consumer Electronic Control)

- Maximum resolution/distance: Up to 4 K to 70 m (Cat 5 and/ 6) / 100 m (cat 6 a); 1080 p to 100 m; 4 K supported: 4096 x 2160 / 3840 x 2160 to 60 Hz (4: 2: 0 ) and 4096 x 2160 / 3840 x 2160 to 30 Hz (4: 4: 4 )

• Audio



- Output: 1 x HDMI type A female (black);

• Feeding



- Connectors: 1 x DC connector

- Consumption: 5,3 VDC, 4,5 W

• Environment



- Operating temperature: 0 - 50 °C

- Storage temperature: - 20 - 60 °C

- Humidità: 0 - 80 % relative humidity, without condensation

• Proprietà physical



- Structure: Metal

- Weight: 0,41 kg

- Dimensions (L x P x A): 14,17 x 10,3 x 3 cm



Package contents

• 1 Receiver Aten VE 812 R


• 1 assembly kit


• 1 power supply


• 1 user guide
