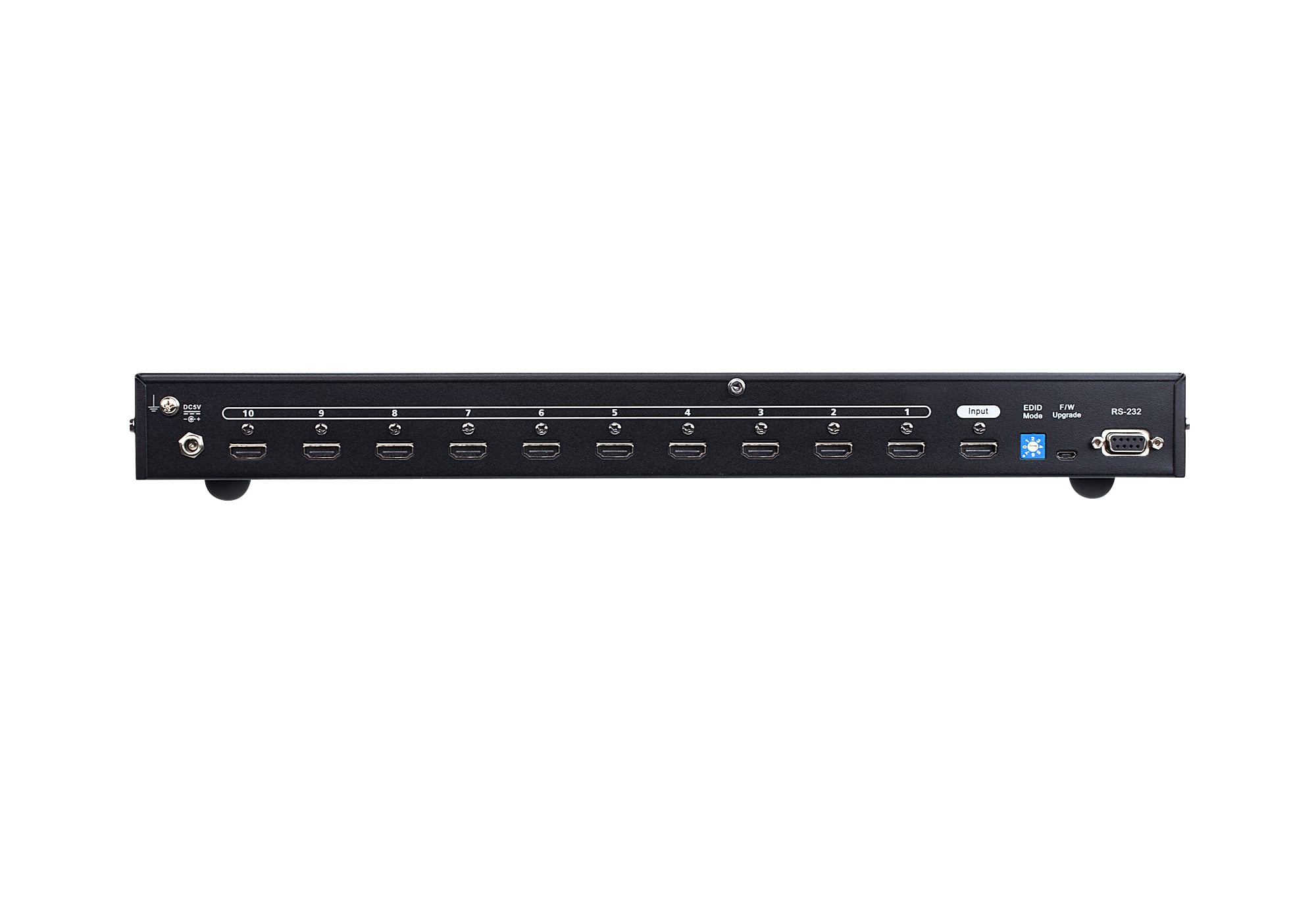

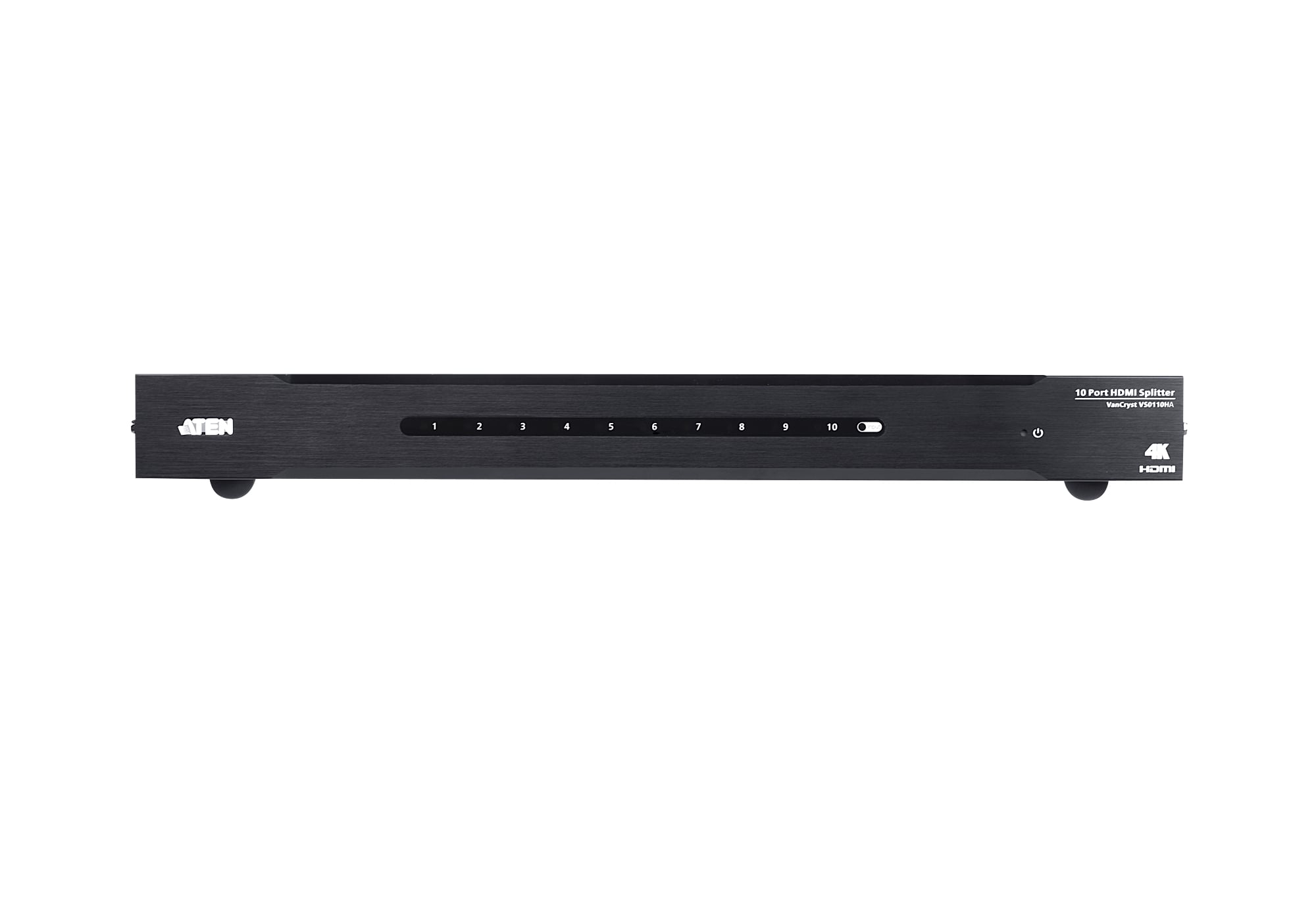

Splitter 4 K HDMI to 10 doors - ATEN IDATA VS- 0110 HA

The 4 K HDMI VS 0110 HA è splitter is a perfect solution for applications that require sending a high definition 4 K video source to ten screens at the same time. The HDMI interface addresses most sources and devices, such as DVD players, satellite decoders and any HDMI screen. Equipped with ATEN EDID technology, the VS 0110 HA ensures continuous EDID communications with connected devices and optimal video outputs.



The 4 K HDMI VS 0110 HA è HDCP (High-bandwidth Digital Content Protection) splitter makes it perfect with all HDMI screens in home theater applications, as well as business, educational and commercial settings.



Features

• Connect an HDMI source to ten HDMI screens simultaneously


• HDMI (3 D, Deep Color, 4 K); HDCP 1.4 compatible


• Superior video quality: 4 K resolutions up (4096 x 2160 at 60 Hz; 4: 2: 0 )


• Long distance transmission from source to output: up to 15 m


• Integrated bidirectional RS- 232 serial control port for control of advanced systems


• LED indication of device status


• EDID Expert™: select the best EDID options for trouble-free ignition, high quality à display and use of best resolution between different screens


• Plug-and-play


• Mountable on rack (design 1 U)



Technical specifications

• LED:



- Power supply 1 x LED (green)

- input 1 x LED (green)

- Video output 10 x LED (green)

• Video input:



- Interfaces: 1 x HDMI type A female (black)

- Impedance: 100

- Maximum distance: 5 m (resolution 4 K)

• Video output:



- Interfaces: 10 x HDMI type A female (black)

- Impedance: 100

- Maximum distance: 10 m (resolution 4 K)

• Video:



- Max. frequency of data: 10,2 Gbps (3,4 Gbps per line)

- Pixel clock max.: 340 MHz

- conformità: HDMI 1.4 (3 D, Deep Color, 4 K);

- Compatible: HDCP 1.4

- Resolution max. 

Up to 4096 x 2160 / 3840 x 2160 at 60 Hz (4 : 2 : 0 );

4096 x 2160 / 3840 x 2160 at 30 Hz (4 : 4 : 4 )



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80 % relative humidity without condensation



Dimensions

• Width: 43.72 cm


• Depthà: 15.78 cm


• Height: 4.40 cm



Package contents

• 1 x VS 0110 HA splitter 4 K HDMI to 10 ports


• 1 x 0 AD 6 - 1 F 05 - 26 EG power supply


• 1 x mounting kit


• 1 x user instructions
